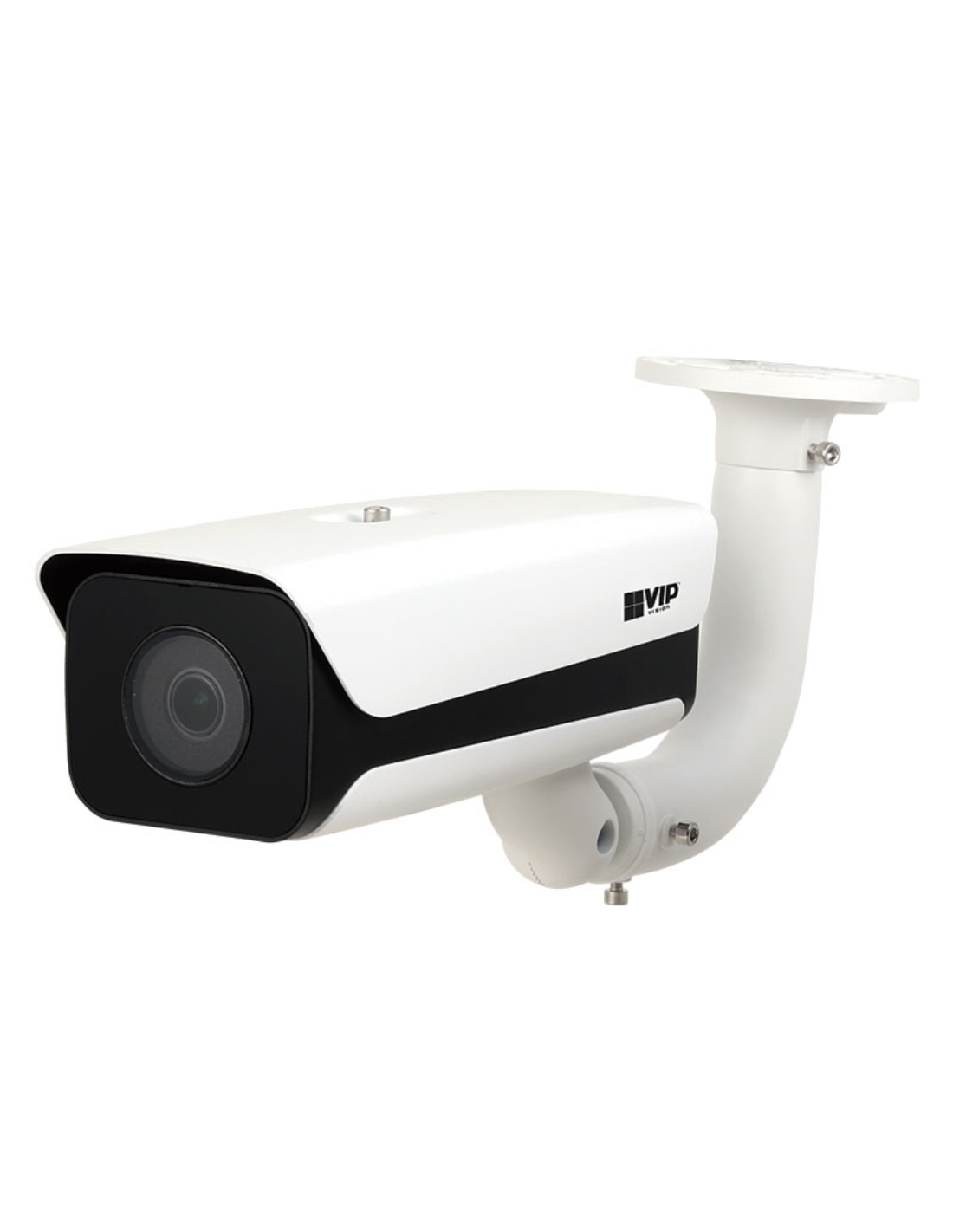

VIP Vision Traffic AI Series 4.0MP Motorised AI VSIPNP-4BIRM-IZ

VIP Vision Traffic AI Series 4.0MP Motorised AI ANPR Bullet - VSIPNP-4BIRM-IZ

Name: VIP Vision Traffic AI Series 4.0MP Motorised AI ANPR Bullet - VSIPNP-4BIRM-IZ
Brand: VIP Vision
SKU: VSIPNP-4BIRM-IZ
Price: 1701.7 AUD
Availability: InStock

Reference VSIPNP-4BIRM-IZ

In Stock - Ready to Ship

$ 1,701.70

inc-GST

Stream up to 4.0MP (2688 x 1520) at 25fps
10 ~ 50mm motorised lens (41~ 9°, DC auto iris)
Superb low light colour performance at 0.002lx

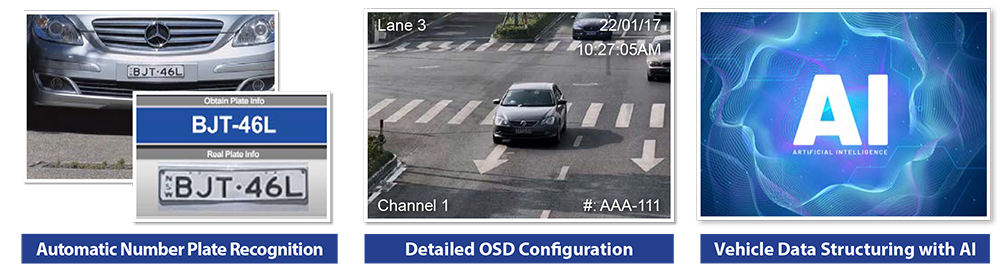

Automatic number-plate recognition (ANPR)
AI-enhanced plate capture and vehicle detection
Edge enhancement for number plate detail & legibility
Supports shutter speed windowing; set min/max speed
Highlight compensation removes headlight glare
Capture number plates for vehicles going up to 60km
Identify vehicle size, colour & direction with AI
Configurable OSD showing time, date, number plate etc.
IP67 rated weather-resistant metal housing

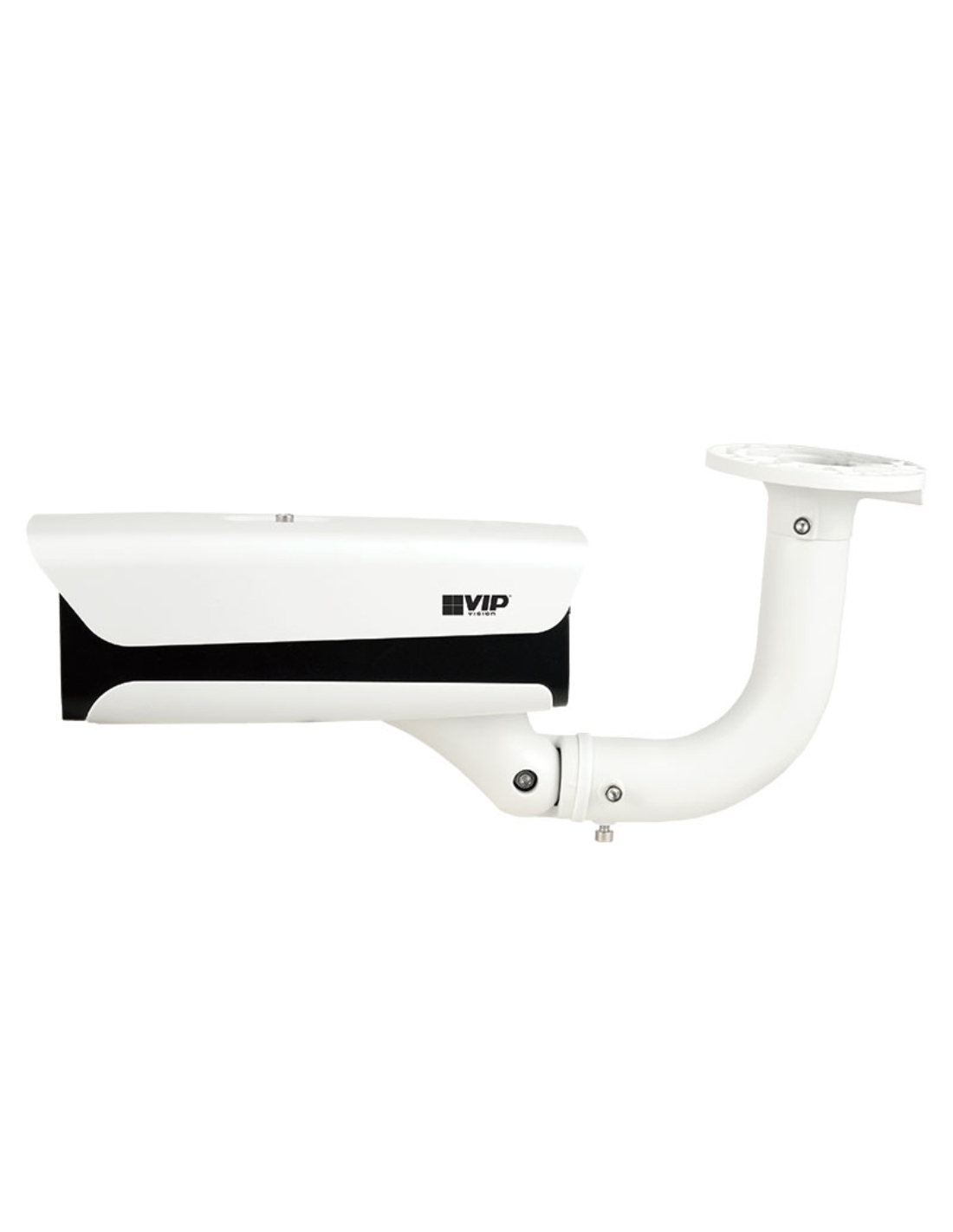

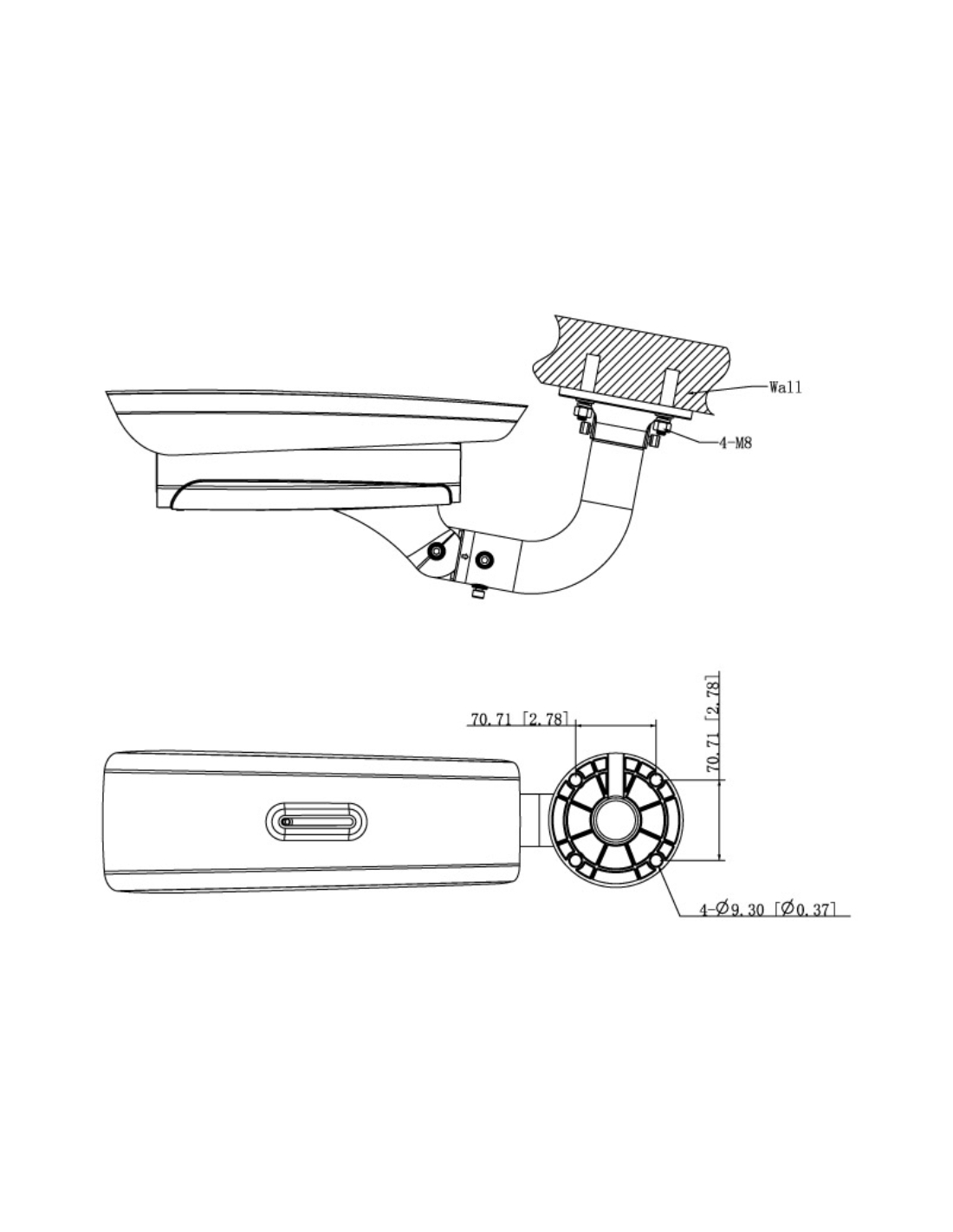

* Includes mounting bracket

VIP Vision Traffic AI Series 4.0MP Motorised AI ANPR Bullet

VSIPNP-4BIRM-IZ

Specially designed for number plate enhancement, Traffic AI Series number plate cameras are designed to obtain video evidence with vehicle identification in controlled environments with challenging lighting conditions. Enhanced with AI, this series has superior plate recognition compared to earlier ANPR models and additional smart features.

Product Features:

• Stream up to 4.0MP (2688 x 1520) at 25fps

• 10 ~ 50mm motorised lens (41~ 9°, DC auto iris)

• Superb low-light colour performance at 0.002lx

• Automatic number-plate recognition (ANPR)

• AI-enhanced plate capture and vehicle detection

• Edge enhancement for number plate detail & legibility

• Supports shutter speed windowing; set min/max speed

• Highlight compensation removes headlight glare

• Capture number plates for vehicles going up to 60km

• Identify vehicle size, colour & direction with AI

• Configurable OSD showing time, date, number plate, etc.

• IP67-rated weather-resistant metal housing

* Includes mounting bracket

Specifications:

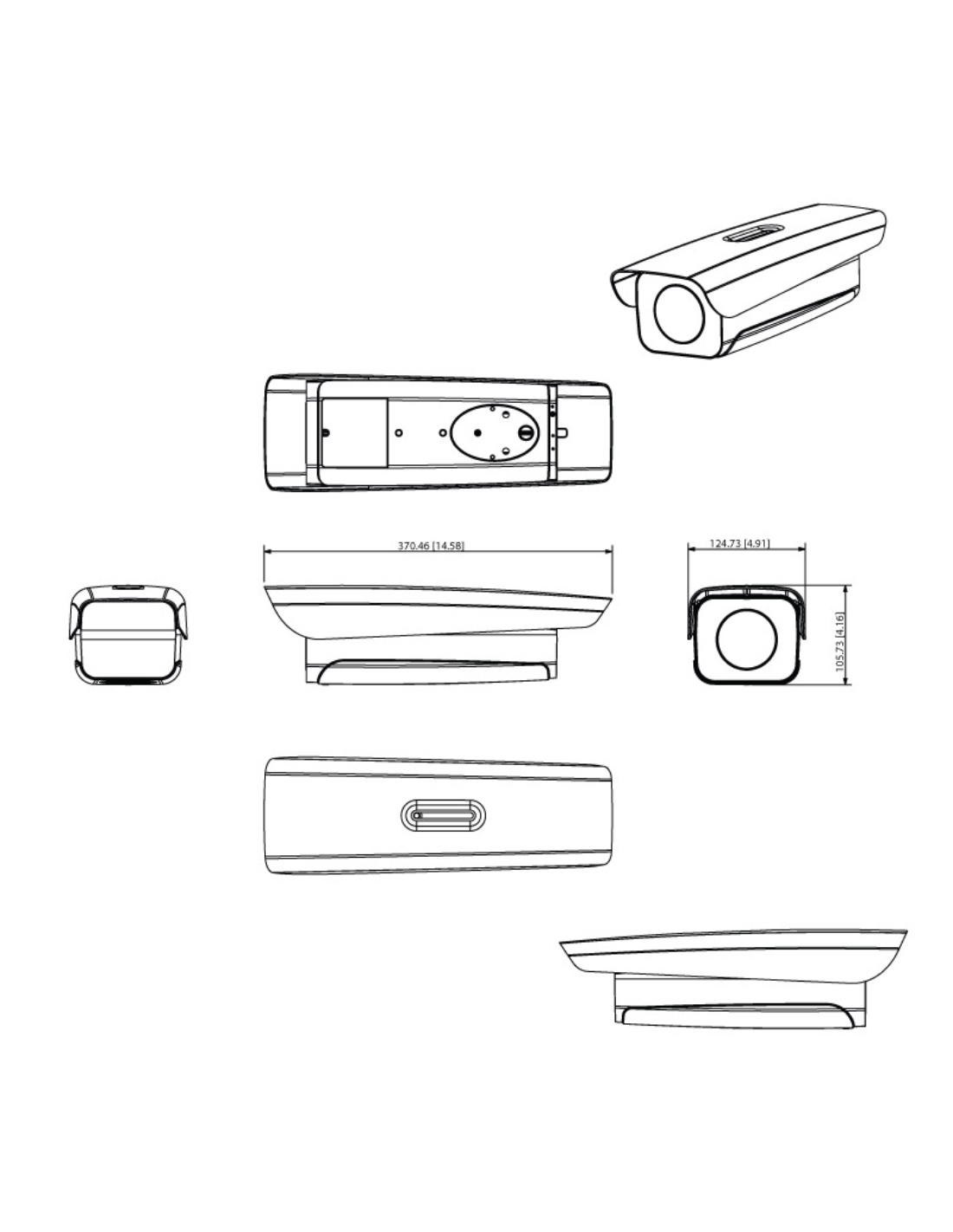

Dimensions: 515.2 x 124.7 x 183.2mm (with bracket)
Ethernet: RJ-45 (100/1000 Base-T)
Housing: Metal & plastic, Installed with bracket
Net Weight: 1.9kg
Operating Conditions: -30° ~ +65° C / Less than 90% RH
Power Supply: 12VDC / 24VAC / PoE+ (802.3at)
Ingress Protection: IP67
Vandal Resistance: IK10
Bit Rate: H.264B: 32 Kbps–32768 Kbps / MJPEG: 512 Kbps–65536 Kbps
Frame Rate (Main): 4.0MP (1 ~ 25fps)
Frame Rate (Sub): 720p (1 ~ 25fps)
Frame Rate (Third): N/A
Max. User Access: 20 Users
Power Consumption
Video Compression: H.264B / H.264M / H.264H / H.265 / MJPEG
Resolution: 4.0MP (2688 x 1520) to CIF (352 x 288, 352 x 240)
Series: Traffic AI Series
Weather Resistance: Yes
Focus: Auto Focus
Interoperability: N/A
Effective Pixels: 2688 (H) x 1520 (V)
Image Sensor: 1/1.8" 2.0MP Progressive Scan CMOS
Alarm Interface: 3 Input / 3 Output
Camera Type: Bullet
Max. Resolution: 4.0 Megapixel
Field of View: Horizontal: 40.55°~ 9.33°, Vertical: 22.7°~5.3°, Diagonal: 46.4°~11°
Lighting Compensation: WDR (96dB)
Day/Night: Auto (ICR) / Colour / B&W
Gain Control: Auto / Manual
Lens Type: Motorised Varifocal
Noise Reduction: 3D DNR
Tri-Axis Mounting: No
White Balance: Auto / Manual
Audio Interface: 1 Input / 1 Output
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage: FTP / Micro SD Card (supports max. 128GB)
ePoE: No
Infrared System: 6 x Infrared LED, 30m range, Auto/manual on/off control
Intelligent Functions: Number Plate Edge Enhancement, Number Plate Recognition, Video Detection, I/O Coil, Snapshot, OSD (Time, Location, Number Plate, Lane No.), Barrier Control (1ch Relay Out), Vehicle Data Structuring (Vehicle Size, Vehicle Colour & Vehicle Direction)
IVS: Yes
Lens / Iris: 10 ~ 50mm Motorised Varifocal Lens with Auto Iris
Min Illumination: 0.002 Lux/F1.3 (Color), 0 Lux/F1.3 (IR on)
Pan/Tilt/Rotation: N/A
Picture Control: N/A
RAM / ROM: N/A
S/N Ratio: N/A
Smart Scene Adaptive (SSA): N/A
Streaming Method: Unicast / Multicast
Video Interface: N/A
Auxiliary Interface: 2 x RS485 / 1 x RS232 / 1 x Analog Output
Detection Range / Rate: Capture Range: 8~30m / Lane Width: 6~7m / Detection Rate: ≥99%
Max. Detection Speed: 60km/h
Vehicle Recognition: Vehicle Type, Logo, Series, Color, Number Plate, Features of Driver and Front-seat Passenger, Vehicles without Plate. Vehicle recognition rate ≥95%

AI Traffic Motorised Bullet

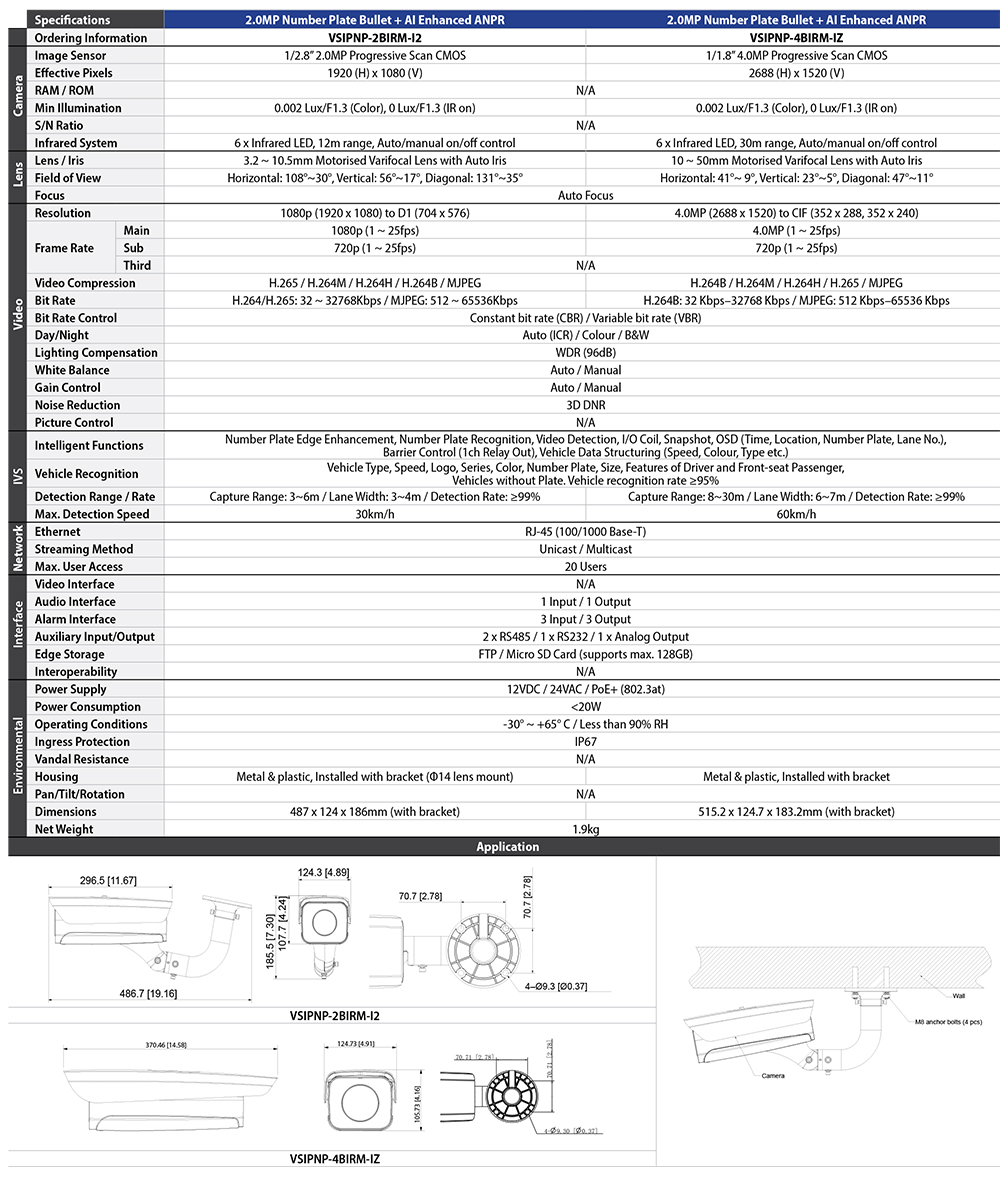

VIP Vision AI Traffic Series Motorised Bullet 2.0 & 4.0MP Datasheet (PDF)

Download (904.51KB)

VIP Vision is backed by over 2,000 professionals in research and development at the forefront of advanced surveillance and IP intercom technologies. Their constant pursuit of innovation delivers cutting edge products with high quality, performance and reliability.

With 4 to 128 channel systems, VIP Vision offers professional video surveillance solutions for small projects through to large commercial, public sector and government level applications.

Stream beyond Ultra HD with 12 megapixel recording using the latest range of VIP Vision IP surveillance cameras. Adaptable to any task, the range offers a wide selection of professional bullet and dome cameras, as well as application specific models such as PTZ, fisheye and pinhole cameras.

VIP Vision IP systems are accompanied by an extensive range of accessories including, video wall controllers, brackets & adapters, central management software and PoE accessories to help you deliver the most professional and reliable install possible.

Rest assured knowing you have usable video evidence when it matters most with VIP Vision IP surveillance.
