Hikvision 8MP 4K ISU/SL 2.8mm BLACK — DS-2CD2386G2-ISU/SL(2.8mm)(C)(BLACK)

Ethernet: 1 × RJ45 10/100 Mbps self-adaptive

Power Supply: 12 VDC ± 25% or PoE 802.3af Class 3

Ingress Protection: IP67

Operating temperature: -30 °C to +60 °C, humidity ≤ 95%…

Housing Material: Metal (trim ring: non-metal)

View all from HIKVision Australia

Hikvision 8MP 4K ISU/SL 2.8mm BLACK — DS-2CD2386G2-ISU/SL(2.8mm)(C)(BLACK)

Name: Hikvision 8MP 4K ISU/SL 2.8mm BLACK — DS-2CD2386G2-ISU/SL(2.8mm)(C)(BLACK)
Brand: HIKVision Australia
SKU: DS-2CD2386G2-ISU/SL(2.8mm)(C)(BLACK)
Price: 287.5 AUD
Availability: InStock

InFront SKU: DS-2CD2386G2-ISU/SL(2.8mm)(C)(BLACK)

★★★★★No reviews yetBe the first to review

BLACK 4K. Strobe + two-way audio on one PoE run (verify headroom). Same ISU/SL class as the white 2.8 mm, with factory black finish. Deterrence + AcuSense for retail, perimeters, roller doors. ✓ Genuine Hikvision, supplied by Infront Technologies…

IP RatingIP67

PowerPoE max 10 W;

In Stock · Same-day dispatch (order before 2pm AEST)

$ 287.50inc. GST

$261.36 ex. GST

4 interest-free payments of—with

Free shipping over $200Same-day dispatch · Australia-wide

Manufacturer warrantyGenuine, locally-supported stock

30-day returnsUnopened items · view policy

Secure checkoutVisa · Mastercard · Afterpay · Zip · PayPal

Trade pricing availableSign in or apply for a trade account to see your trade rate.

Overview

Hikvision DS-2CD2386G2-ISU/SL 8 MP 4K AcuSense turret with strobe and two-way audio

Hikvision · Pro Series EasyIP (8 MP, AcuSense)

4K deterrence. Not just a picture.
Strobe, audio, AcuSense.

The Hikvision DS-2CD2386G2-ISU/SL (BLACK, 2.8 mm) is an 8 MP 4K turret with human/vehicle AcuSense classification, 120 dB WDR, active strobe and audio alarm, and built‐in two‐way audio with speaker and microphone. It is a self‐contained network camera: add a recorder or VMS to match your retention needs.

Product shot may differ from the actual product.

This is a STANDALONE IP CAMERA — it is not a full recorder kit.

The DS-2CD2386G2-ISU/SL is a full network camera on one cable, but it does not include an NVR, hard drive or cloud subscription. You will typically add a PoE switch or NVR to record, or run event-only to the card or VMS of your choice.

In the box (typical retail)

8 MP turret camera and accessories bag (per Hikvision regional kit)
Drill template, waterproof gland and Torx key (class-typical)

Exact accessories vary by region; use the manufacturer quick-start if in doubt.

You may also need

802.3af (or 802.3at) PSE: PoE NVR or switch
External Cat cable to the mount point
Optional microSD, up to 512 GB (per datasheet)

Unsure what to pair? See Compatible hardware below or contact Infront Technologies before you order.

8 MP 4K, AcuSense, and on-board deterrence in one turret.

Hikvision positions the DS‐2CD2386G2‐ISU/SL line for customers who want human/vehicle classification, wide dynamic range, and an active warning path without running extra devices. The attached DS‐2CD2386G2‐ISU/SL‐C datasheet is the specification authority for this 2.8 mm SKU.

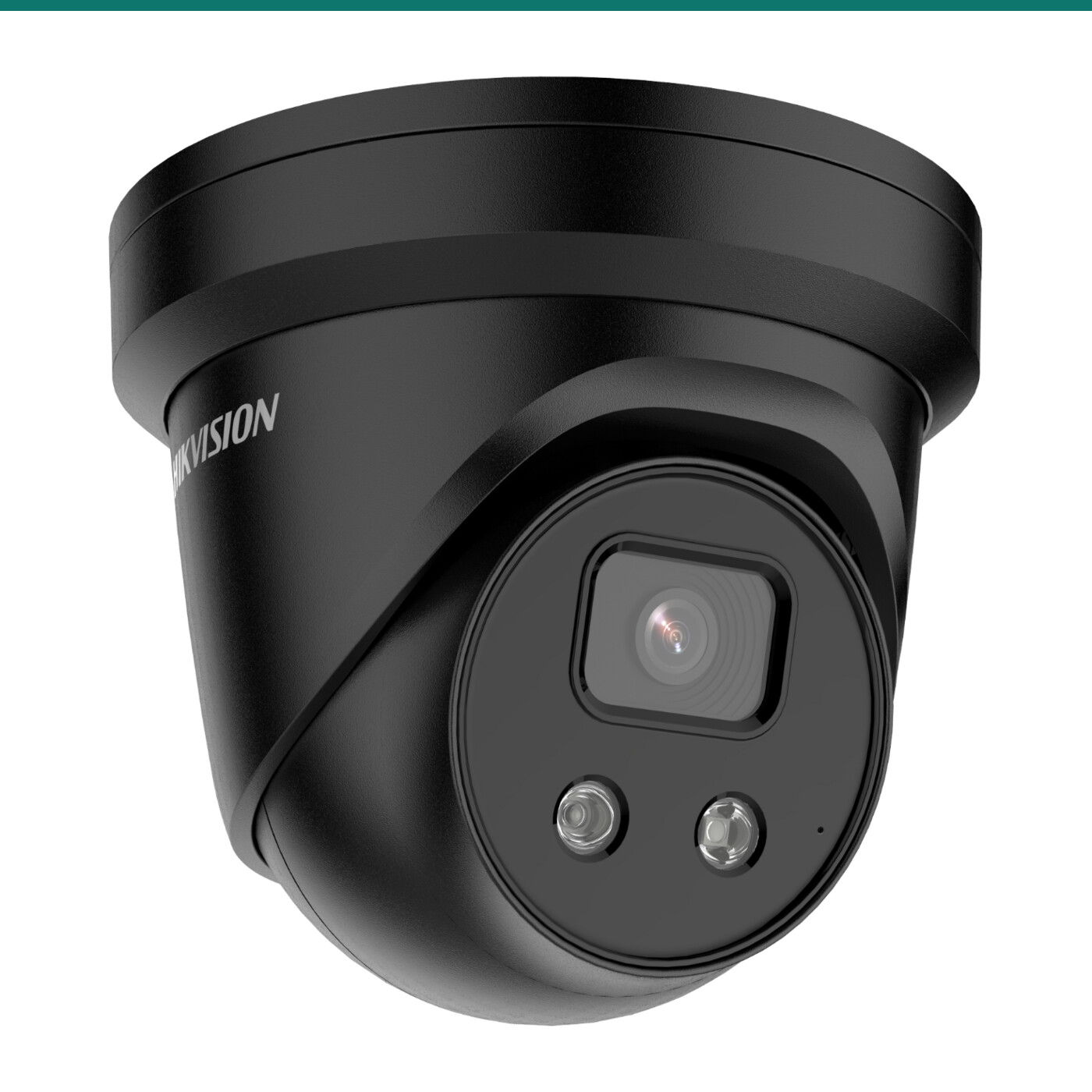

Hikvision DS-2CD2386G2-ISU/SL 8 MP turret — front

CLARITY · 01

4K, DarkFighter‐class low light, 120 dB WDR.

The 1/1.8" sensor behind F1.6 × 2.8 mm optics delivers 111° horizontal coverage with a main stream at 3840 × 2160 up to 25 fps (50 Hz) per the official datasheet, with H.265+, H.265, H.264+ and H.264.

Minimum scene illumination is documented at 0.003 lux in colour (F1.6, AGC on) and 0 lux in monochrome with 850 nm Smart IR out to 30 m.

DETER · 02

Strobe, speaker and two‐way audio on the same PoE run.

The SL suffix brings a visual strobe and audible warning path you can link to smart events, alongside the built‐in speaker and microphone for two‐way communication and line‐level audio I/O on terminal blocks.

Pair deterrence with AcuSense target classification so warnings follow people and vehicles rather than every shadow — configure rules in iVMS‐4200, Hik‐Connect or your ONVIF‐compatible VMS.

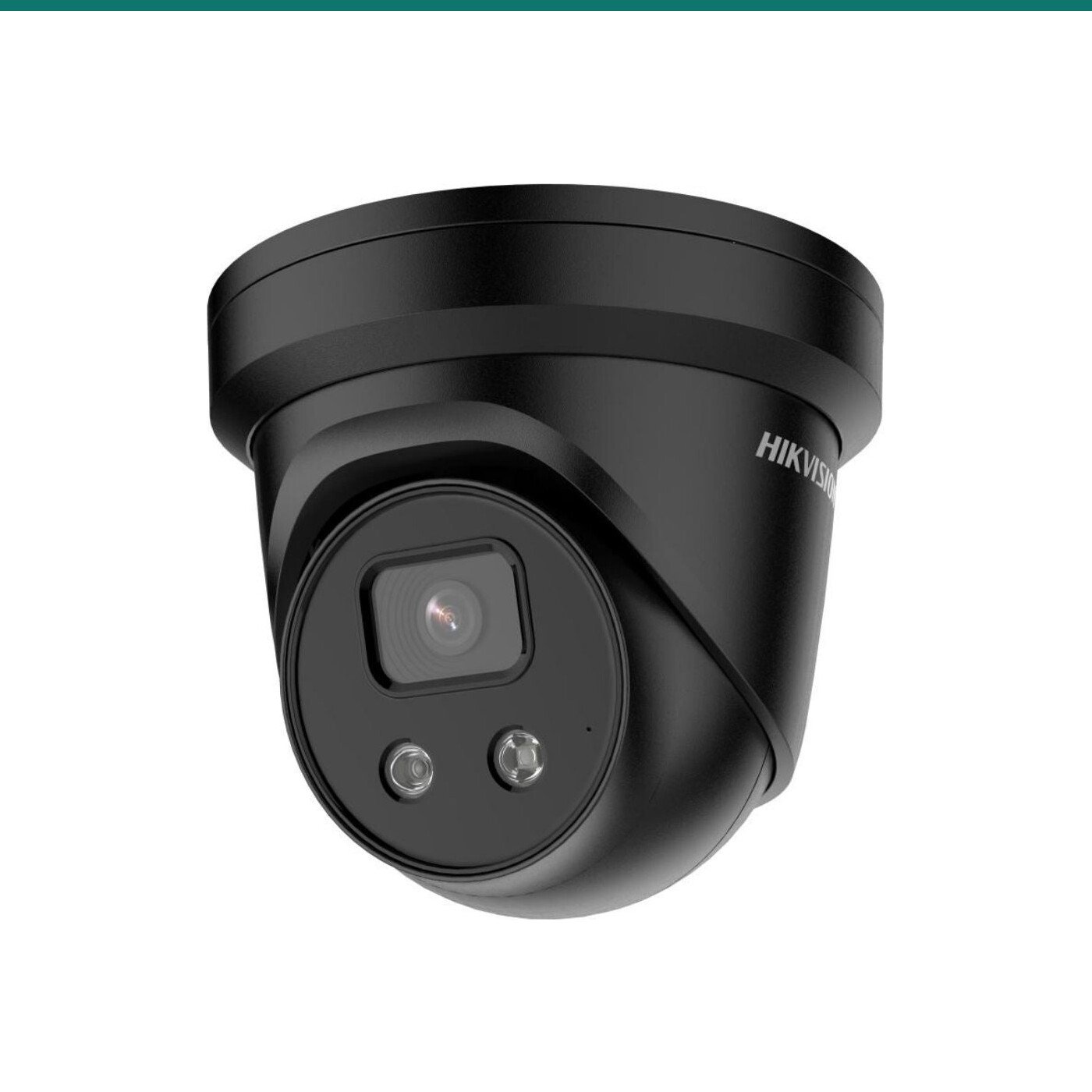

Hikvision DS-2CD2386G2-ISU/SL — lens and IR ring

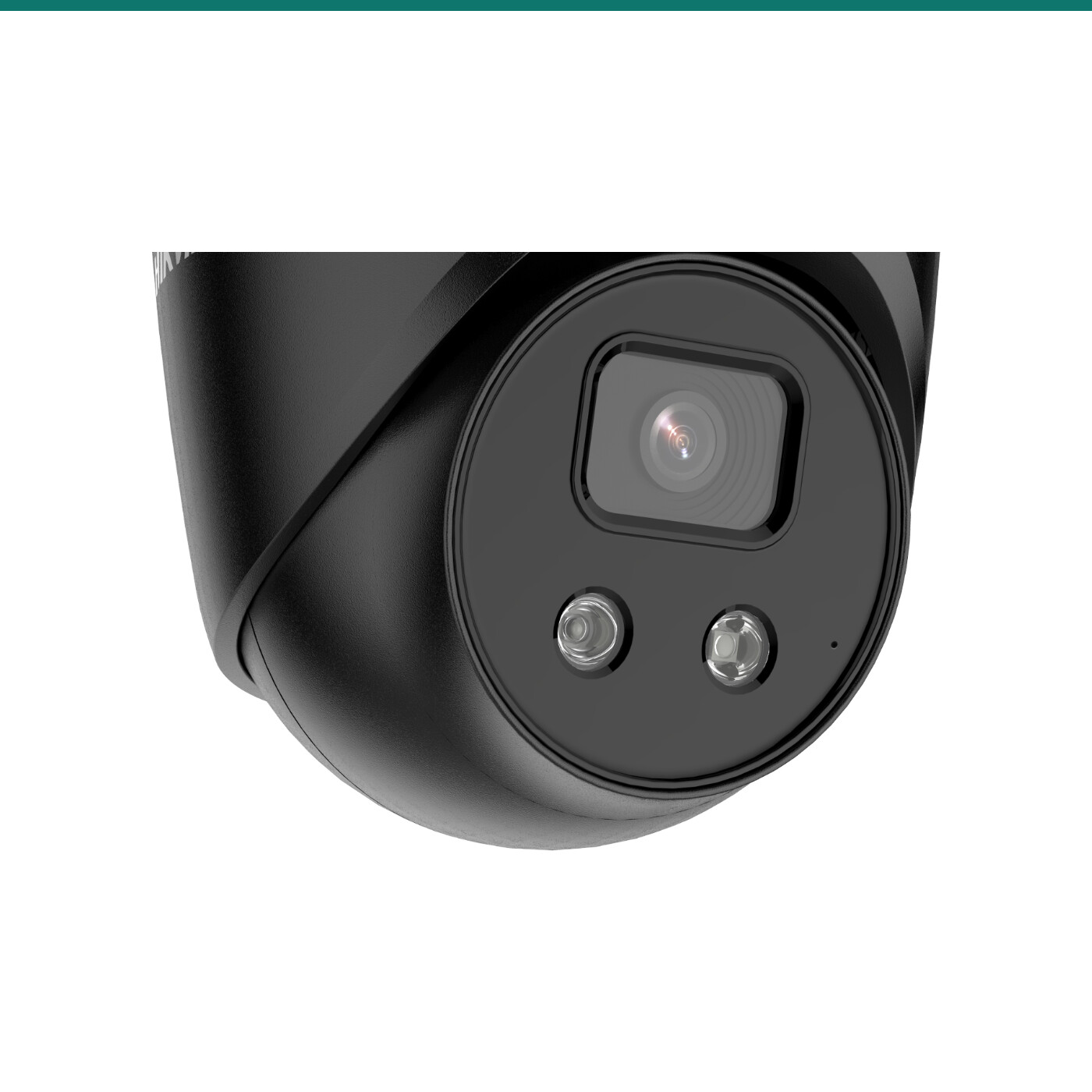

Hikvision DS-2CD2386G2-ISU/SL — housing base

BUILD · 03

IP67 metal, Ø138.3 mm footprint, 840 g.

The housing is IP67 to IEC 60529‐2013 with a 3‐axis turret head. Operating range is −30°C to +60°C and 95% RH non‐condensing, matching the published environmental table.

Use 802.3af PoE (max 10 W on PoE per datasheet) or 12 VDC. Add a 512 GB edge card if you need local redundancy alongside your NVR.

How it works

From cable pull to 4K + deterrence in four steps.

Power and data on one run

802.3af Class 3 PSE; allow headroom for the 10 W PoE maximum in the datasheet on longer runs.

Adopt in SADP or NVR

Set a strong password, enable H.265+ main stream, and map AcuSense events to record and notification rules.

Tune IR, strobe and audio

With consent, verify two‐way levels, set Smart IR distance, and only enable strobe/audible paths where policy allows.

Handover

Document where the edge card lives (if fitted), Hik‐Connect pairing, and which rules drive deterrence.

At a glance

Key specs — DS-2CD2386G2-ISU/SL (BLACK, 2.8 mm)

Form factor: Fixed turret (Gen 2 AcuSense, Pro Series EasyIP)
Resolution: 3840 × 2160 (4K UHD, 8 MP)
Sensor: 1/1.8" progressive scan CMOS
Lens: 2.8 mm fixed, F1.6, M12 mount (this SKU)
Field of view: 111° (H) / 59° (V) / 131° (D) on 2.8 mm, per datasheet
DORI (2.8 mm): D 89.2 m · O 35.4 m · R 17.8 m · I 8.9 m
Min. illumination: Colour: 0.003 lux @ (F1.6, AGC ON); B/W: 0 lux with IR
WDR: 120 dB true WDR
IR: Up to 30 m, Smart IR, 850 nm
Deterrence: Active strobe light and audio alarm, per model suffix SL
Onboard storage: microSD / SDHC / SDXC up to 512 GB (per datasheet) + ANR to NAS
Network: 1 × RJ45 10/100 Mbps
Power: 12 VDC ± 25% or 802.3af Class 3 PoE
Power consumption: 12 VDC max 9 W; PoE max 10 W (per datasheet)
Body: Metal (except trim ring), white, IP67 (IEC 60529-2013)
Audio: Built-in mic and speaker, two-way, line in / line out (terminal)
Alarm: 1 input, 1 output (max. 24 V, 500 mA), per datasheet
Weight (camera): Approx. 840 g
Dimensions: Ø 138.3 mm × 124.5 mm

Hikvision DS‐2CD2386G2‐ISU/SL‐C datasheet (stamped PDF) governs. Table is a summary only.

Physical

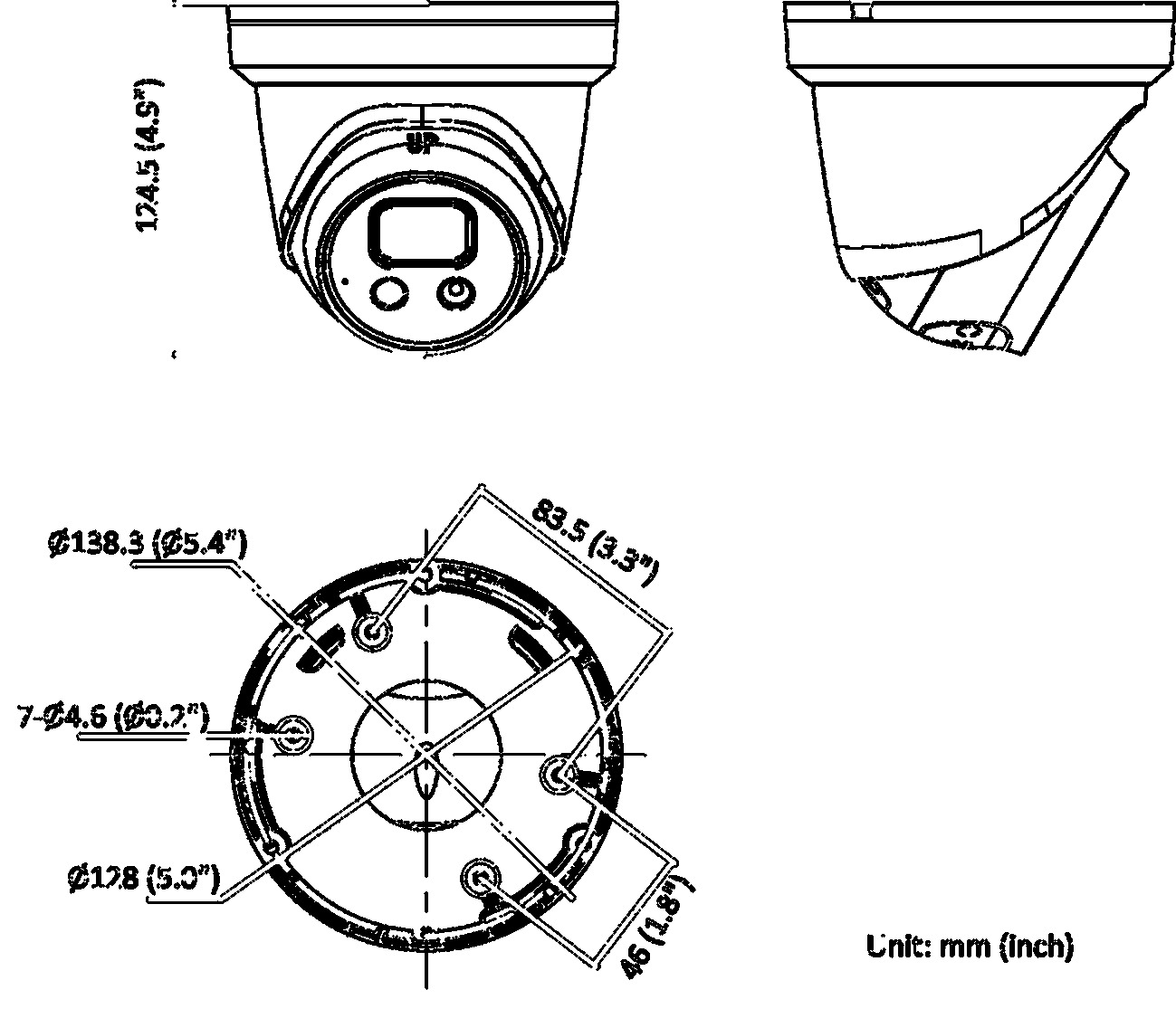

Mechanical drawing (Hikvision)

Hikvision DS-2CD2386G2-ISU/SL — outline dimensions from the manufacturer datasheet

Product shot may differ from the actual product.

Pair it with

Compatible hardware

RECORD

Hikvision M‐Series PoE NVR (example)

An 802.3af/802.3at NVR such as the DS‐7608NI‐M2/8P — schedule 4K streams, keep AcuSense events in one place.

CABLING

External Cat 6 run

Shielded or U/UTP outdoor‐rated Cat 6 between switch and turret; keep within channel budget for 4K+ substreams.

EDGE

Up to 512 GB microSD

Match Hikvision’s 512 GB ceiling with a high‐endurance card rated for 24/7 write.

SUPPORT

Infront Technologies

Australian sales, RMA, pre‐sale design help and warranty administration.

Answers

Frequently asked questions

What does ISU/SL mean on the model name?

ISU denotes built‐in two‐way audio. SL denotes the active strobe and audible‐warning feature set on the Hikvision datasheet. This listing is the 2.8 mm fixed lens variant.

What capacity microSD card can I use?

Hikvision documents up to 512 GB microSD / SDHC / SDXC in the current DS‐2CD2386G2‐ISU/SL‐C datasheet. Use a surveillance‐rated endurance card for continuous write.

How much PoE does the camera need?

The datasheet lists 802.3af Class 3 PoE with a maximum 10 W draw on PoE and 9 W on 12 VDC. Use a PSE that can deliver Class 3 on the run length you need.

Will it work with my non‐Hikvision NVR?

In most cases via ONVIF (Profiles S, G, T) and standard H.264/H.265 streams. For the deepest AcuSense event integration, pair with a Hikvision AcuSense‐capable NVR or iVMS‐4200.

Is the strobe and siren always on?

No. They are event‐driven deterrence features you enable and schedule in the camera or VMS. Follow local lighting and privacy rules for your state or territory.

Order with confidence.

Genuine Hikvision, supported Australia‐wide by Infront Technologies — 1300 736 970 · [email protected].

Installation & safety notice

Low-voltage product (SELV). The DS-2CD2386G2-ISU/SL is powered by IEEE 802.3af PoE or a 12 VDC plug-pack. There is no mains wiring inside the device. A standard plug-in 12 VDC adapter in an existing GPO is fine to use as-is for bench testing; most permanent installs use PoE from a switch or NVR port.

When a licensed tradesperson is required. Concealed structured data cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Strobe/audible deterrence: configure per local privacy and sound-level rules. New GPOs or switchboard work require a licensed electrician under AS/NZS 3000.

Specifications in good faith. Verify the attached Hikvision datasheet (stamped) for your firmware; features and accessories can change. Product appearance and packaging may differ from marketing images.

By placing an order you confirm the product is fit for your intended use and that cabling and mounting will be performed to the manufacturer’s instructions. Infront Technologies does not accept liability for incorrect site preparation or misuse outside Hikvision’s specifications.

Ethernet

1 × RJ45 10/100 Mbps self-adaptive

Power Supply

12 VDC ± 25% or PoE 802.3af Class 3

Specifications

Ethernet	1 × RJ45 10/100 Mbps self-adaptive
Power Supply	12 VDC ± 25% or PoE 802.3af Class 3
Ingress Protection	IP67
Operating temperature	-30 °C to +60 °C, humidity ≤ 95% (non-condensing)
Housing Material	Metal (trim ring: non-metal)
Power Consumption	PoE max 10 W; 12 VDC max 9 W
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
Range	Pro Series EasyIP (AcuSense)
Resolution	8 MP (3840 × 2160)
Brand	Hikvision
Certifications	CE-EMC, CE-LVD, FCC, RCM, IC, KC, UL, CB, RoHS, WEEE, REACH
Image Sensor	1/1.8" Progressive Scan CMOS
Lens	2.8 mm fixed, F1.6, M12 mount
Camera Type	Fixed turret network camera
Protocols	TCP/IP, HTTP/HTTPS, FTP, RTSP, ONVIF, ISAPI, SNMP, 802.1X
Field of View	Horizontal 111°, vertical 59°, diagonal 131° (2.8 mm)
Min. Illumination	Colour 0.003 Lux @ F1.6, 0 Lux with IR
Face Capture	Yes
Active Deterrence	Strobe light and audible warning (ISU/SL)
Shutter Speed	1/3 s to 1/100,000 s
Day/Night Switch	Day, Night, Auto, Schedule (IR cut filter)
Video Bit Rate	32 Kbps to 16 Mbps
Image Enhancement	BLC, HLC, 3D DNR
Wide Dynamic Range	120 dB true WDR
Audio Compression	G.711a/u, G.722.1, G.726, MP2L2, PCM, MP3, AAC
ONVIF	Profile S, Profile G, Profile T
Simultaneous Live View	Up to 6 channels
Smart Event	Line cross, intrusion, region enter/exit, scene change
On-board Storage	microSD/SDHC/SDXC slot, up to 256 GB
Built-in Microphone	Yes
Built-in Speaker	1.2 W, 95 dB SPL @ 10 cm
SNR	≥ 52 dB
Alarm I/O	1 input, 1 output (24 VDC/24 VAC, 500 mA)
Warranty	Manufacturer warranty through Infront Technologies
DORI (2.8 mm)	D 89.2 m, O 35.4 m, R 17.8 m, I 8.9 m
IR Range	Up to 30 m (850 nm)
Two-Way Audio	Yes (line in + line out + built-in)
Model	DS-2CD2386G2-ISU/SL(2.8mm)(C)(BLACK)
Max. frame rate	25 fps @ 3840 × 2160 (50 Hz)
AcuSense	Human and vehicle target classification
Camera weight	Approx. 840 g
Finish	Factory BLACK
Smart Supplement Light	Yes
Users	Up to 32 users (admin, operator, user)
Camera Dimensions	Ø138.3 × 124.5 mm
Firmware Version	V5.5.112 (per datasheet)
Weight	1.40 kg
