VIP Vision Vertical Wall Mount Security Cabinet - SECCAB
- Perfect for keeping your installation neat and tidy
- Compact; only 580(W) x 635(H)x 180(D)mm (closed)
- Capacity: 2RU, 240~480mm width, 465mm depth
- Cable management knockouts from all cabinet sides
- Fit the 600VA Line Interactive UPS 360W (UPS-C600-L)
- Superior ventilation; Supplied with 2 x 50mm cooling fans
- Fit up to 24” monitor, with 50/75/100 VESA mounts
- Integrated 4 x outlet powerboard & 2 x cabinet locks
- 30kg cabinet load bearing capacity (10kg vertical shelf)
- 440mm width between mount points to fit wall studs
- SPCC steel construction and white powder coating
VIP Vision Vertical Wall Mount Security Cabinet
SECCAB
The SECCAB is a compact, vertical, wall-mount security cabinet that is great for delivering professional results in security installations. The SECCAB offers secure storage of CCTV surveillance, alarm & access control systems in difficult areas with limited space, such as behind refrigerators, in cupboards or wardrobes.
The SECCAB vertical rackmount shelf has a capacity of up to 2U height, up to 480mm width & 465mm depth, with extra space to mount up to a 24'' LCD monitor. It can house 1 HDD, 2HDD and 4HDD bay NVRs and DVRs from VIP Vision, Watchguard, Securview. It can also accommodate a WGAP864 alarm system and professional VIP Vision access control system in a single cabinet.
Product Features:
• Compact; only 580(W) x 635(H)x 180(D)mm (closed)
• Capacity: 2RU, 240~480mm width, 465mm depth
• Cable management knockouts from all cabinet sides
• Superior ventilation; optional 2 x 50mm cooling fans
• Fit up to 24” monitor, with 50/75/100 VESA mounts
• Integrated 4 x outlet powerboard & 2 x cabinet locks
• 30kg cabinet load bearing capacity (10kg vertical shelf)
• 440mm width between mount points to fit wall studs
• SPCC steel construction and white powder coating
- Weight
- 17.0kg
- Power
- 4 x Outlet Powerboard
- Load Capacity
- Wall Mount: 30kg / Hinged Shelf: 10kg
- VESA Mount
- 50 / 75 / 100
- Mounting Options
- Wall mount
- Cabinet Depth
- 465mm
- Fixed Shelves
- No
- Power Board
- Yes
- Rack Units (RU)
- 2
- Wheels
- No
- Cabinet Lock
- 2 x locks on front door
- Cable Management
- 2 per side, 8 total (40 x 50mm each)

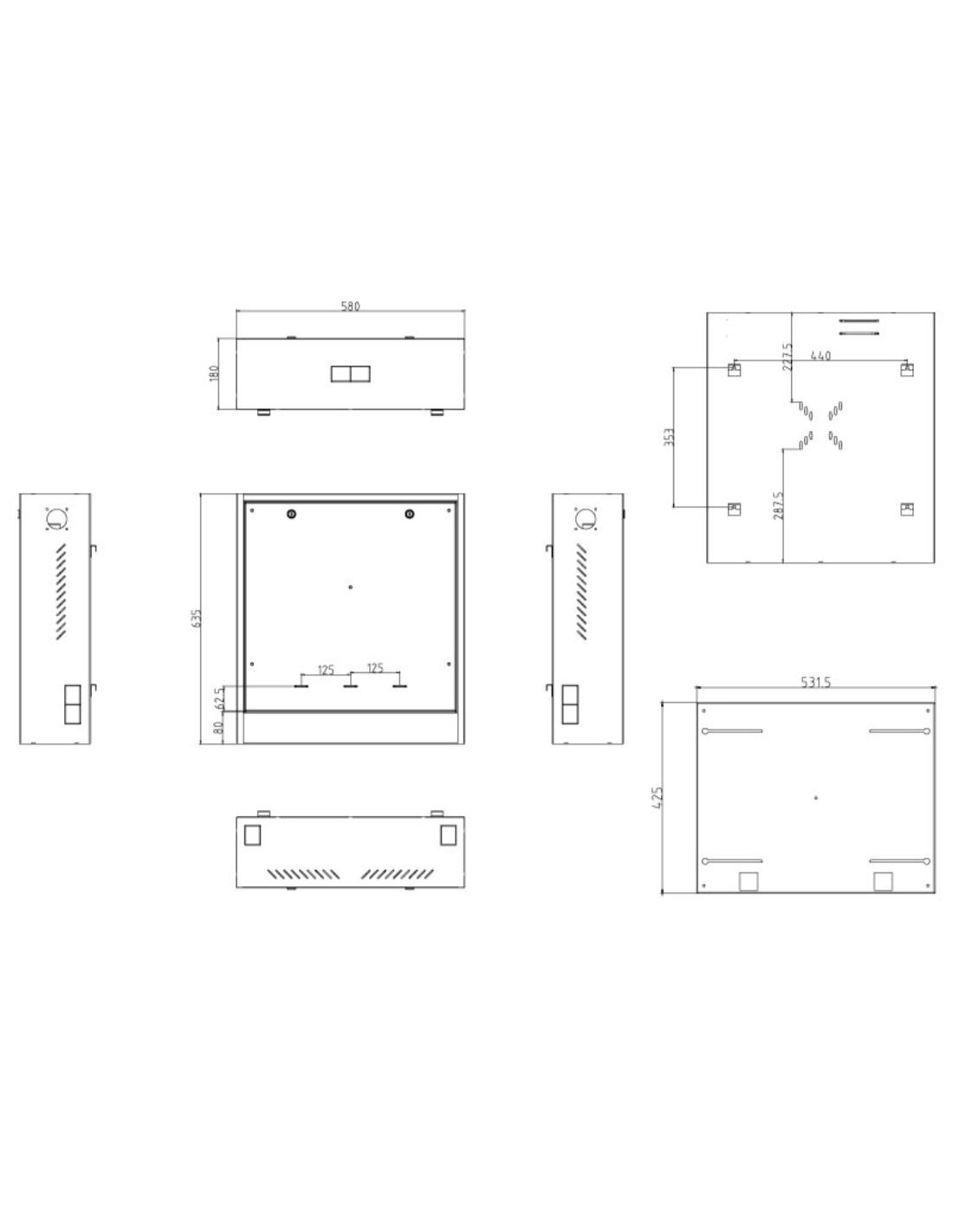

- Dimensions (W x H x D)
- Closed: 580 x 635 x 180mm / Open: 580 x 635 x 712mm
- Materials
- SPCC quality cold rolled steel, powder coated
- Max. Capacity (D)
- 465mm
- Max. Capacity (H)
- 2RU (~90mm)
- Max. Capacity (W)
- Adjustable 240 ~ 480mm rackmount slides
- Max. Monitor Size
- 24” (16:9 widescreen)
- Ventilation
- 2 x 50mm fan slots (optional)
- Wall Mount
- 4 x Mounting Points with Hooks
- Wall Mount Dimensions (W x H)
- 440 x 353mm
