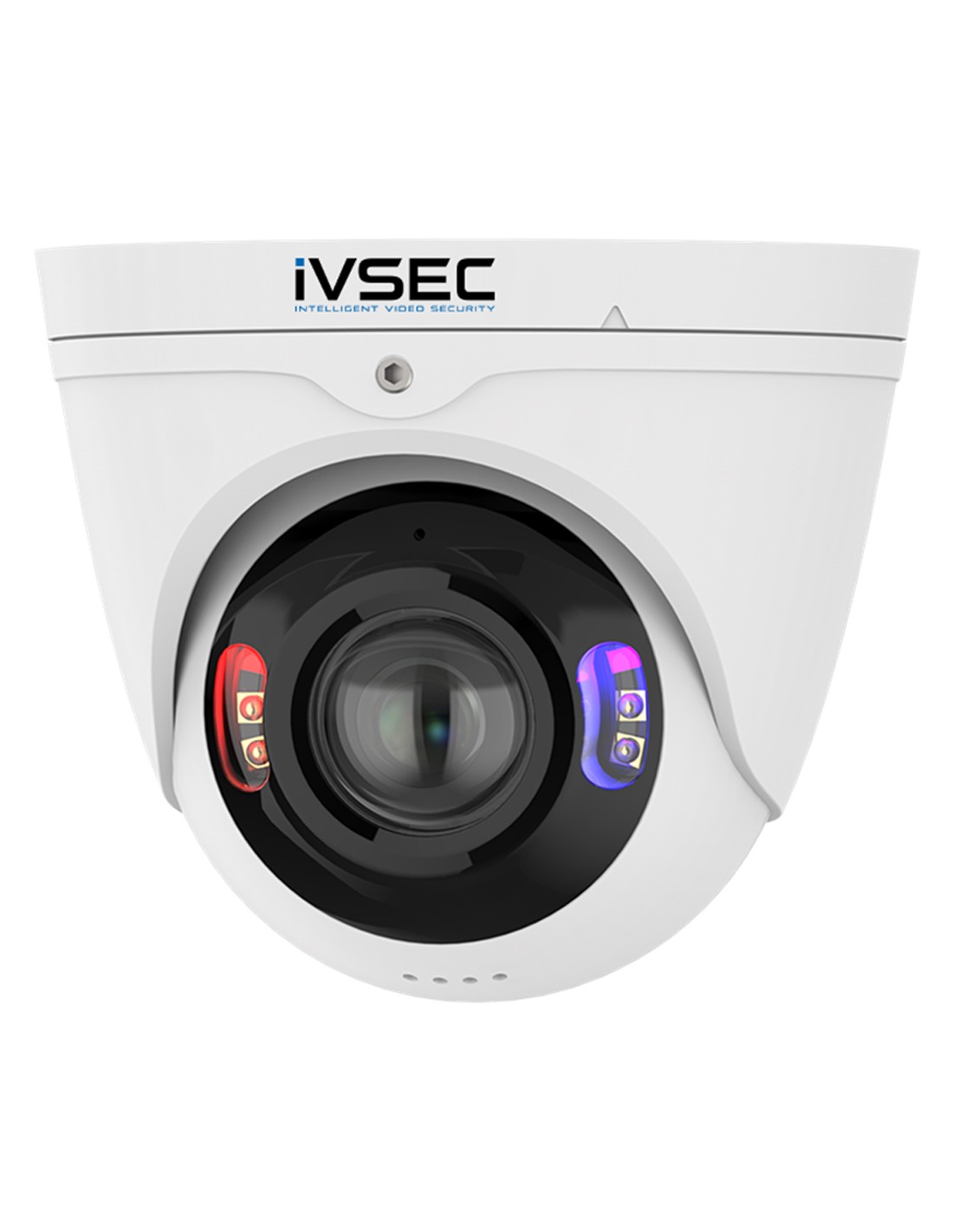

IVSEC IVNC543ADX 8MP 180 degree panoramic turret camera, front view

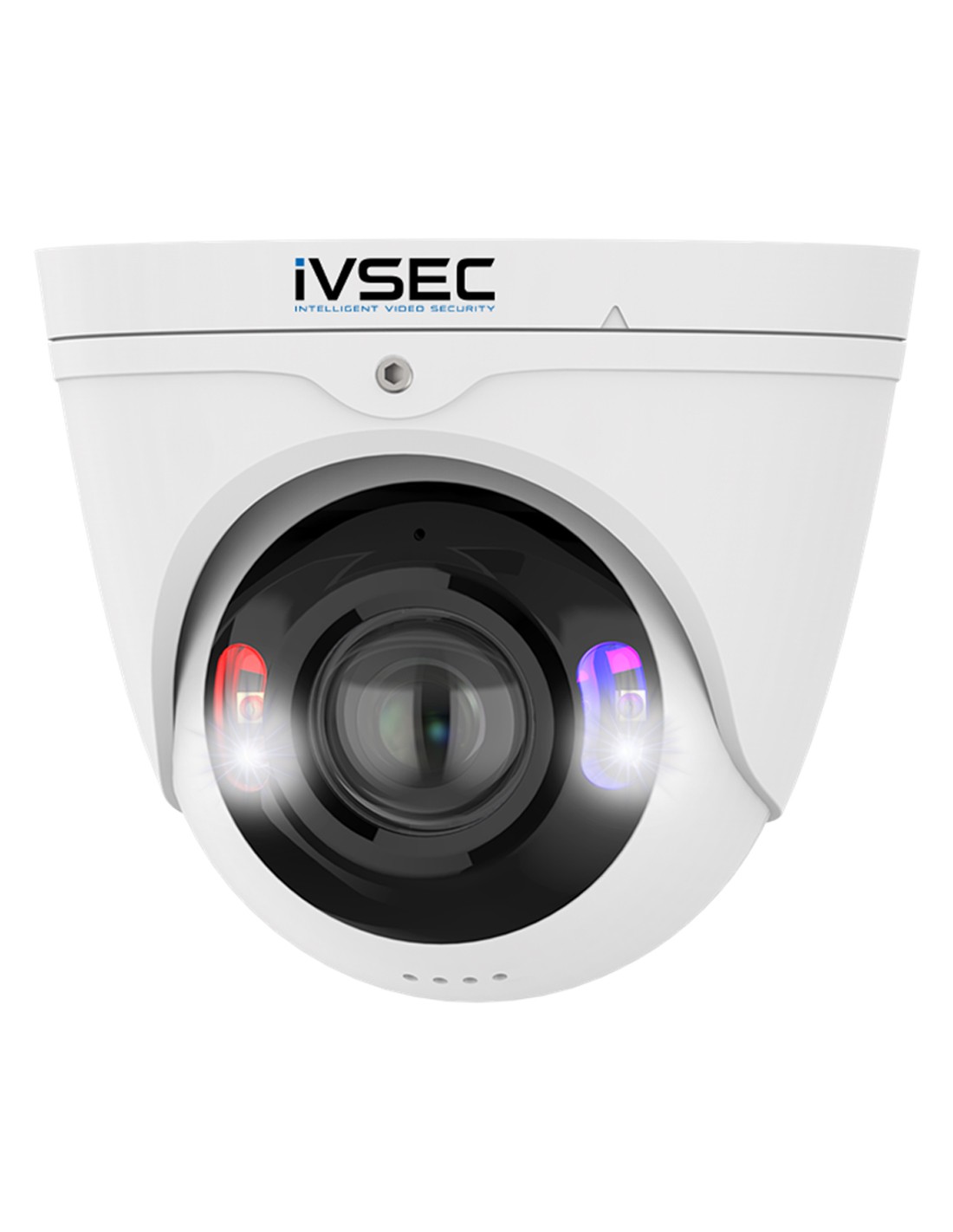

IVSEC NC543ADX with warm white light and red and blue lights on

IVSEC NC543ADX close-up of the panoramic lens and light windows

Wired PoE camera: cable tail with network connector and 12 V DC socket

1 / 4

iVSEC 8MP 4K-UHD Panoramic AI 30FPS LED Smart Deterrence IP Camera - IVNC543ADX

Name: iVSEC 8MP 4K-UHD Panoramic AI 30FPS LED Smart Deterrence IP Camera - IVNC543ADX
Brand: IVSEC
SKU: IVNC543ADX
Price: 802.5 AUD
Availability: InStock

SKU IVNC543ADX In Stock - Ready to Ship

$802.50 inc GST

IVSEC IVNC543ADX: an 8MP panoramic turret camera with a 180° view, colour night vision, red and blue warning lights and two-way audio.

✓8MP, 3840 × 2160 at up to 30 fps
✓2.8 mm panoramic lens, 180° view
✓Warm white light, IR to 30 m
✓Red and blue warning lights, microphone and speaker
✓IP67 and IK10, PoE+ or 12 V DC
✓3-year warranty

IVSEC · 8MP Panoramic · Smart Deterrence

180° in one 8MP picture.
Red and blue lights, and a voice at the door.

The IVSEC NC543ADX is an 8MP (4K) panoramic turret camera with a 2.8 mm lens that sees 180°, warm white light for colour at night, red and blue warning lights, a built-in microphone and speaker, and an IP67, IK10 housing.

In one sentence: the IVSEC IVNC543ADX is a wired 8MP (3840 × 2160) PoE panoramic turret camera with a 2.8 mm 180° lens at 30 fps, IR to 30 m, warm white and red and blue lights, a microphone and speaker, rated IP67 and IK10.

Camera only. The network cable and recorder are not included.

This listing is one turret camera. It needs one Cat5e or Cat6 cable back to a PoE+ port on a recorder or switch, and a recorder or VMS to keep the footage.

In the box

NC543ADX turret camera
Printed quick user guide
Installation template
Mounting screws and plugs

You also need

An IVSEC NVR, or another ONVIF Profile S, G or T recorder
Cat5e or Cat6 cable to the camera
A PoE+ (802.3at) port or switch, or a 12 V DC supply
IV2457X wall mount or a junction box if it does not go flat on an eave

One camera where you would have needed two.

The 180° lens covers a whole side of a house, a shopfront or a car park from one point, so there is no gap between two cameras to walk through. When someone crosses a line after hours the camera can switch on its lights, flash red and blue, and you can talk to them through the speaker.

Lights on

Warm white, red and blue.

The warm white light keeps night video in colour; IR reaches 30 m for black and white at a distance. Day, night, auto and scheduled modes are all available.

Lens

2.8 mm, 180°, 30 fps.

3840 × 2160 at up to 30 fps from a 1/2.7" progressive CMOS sensor, in one wide picture. The housing is 127 × 136 × 136 mm, rated IP67 and IK10, from −30 °C to 60 °C.

How it goes in

From the eave to a 180° view.

Pick the spot

Mount it in the middle of the area, facing out, so the 180° view reaches both ends. Use the installation template to mark the holes.

Run the cable

Run Cat5e or Cat6 to a PoE+ (802.3at) port on the recorder or a switch, or use a 12 V DC supply.

Add it to the recorder

Find it with IVSEC's Device Search / Config Tool, set a password, then add it to an IVSEC NVR, the IVSEC app (QR code) or any ONVIF recorder.

Set detection and lights

Draw line crossing or intrusion zones for people and vehicles, then choose when the white light and the red and blue lights switch on.

At a glance

IVNC543ADX

Show specs

Camera type

Panoramic turret

Resolution

8MP, 3840 × 2160, up to 30 fps

Image sensor

1/2.7" progressive CMOS

Lens

2.8 mm fixed panoramic, 180°

Night vision

IR up to 30 m; warm white light for colour

Lights

IR, red and blue, warm white

Day/night modes

Day, night, auto, schedule

Audio

Built-in microphone and speaker

Video analytics

Motion, face recognition, pedestrian and vehicle detection, line crossing, intrusion, region entrance and exit, object detection, cross counting, heat map, crowd density, queue length, licence plate recognition

Compression

H.265+, H.265, H.264+, H.264, MJPEG; 3 streams

Storage

microSD / SDHC card slot

Network

RJ45 10/100/1000 Mbps; ONVIF Profile S/G/T

Power

PoE+ (IEEE 802.3at) or 12 V DC, under 14 W

Protection

IP67 weatherproof, IK10 vandal resistant

Size and weight

127 × 136 × 136 mm, 0.8 kg

Operating range

−30 °C to 60 °C, humidity 90% or less

Warranty

3 years

Pair it with

What this camera does not include

Recorder

An IVSEC NVR

Records around the clock. Any ONVIF Profile S, G or T recorder can also be used.

Power

A PoE+ port or switch

IVSEC lists 802.3at (PoE+) for this camera, or a 12 V DC supply. It draws under 14 W.

Mounting

IV2457X wall mount

IVSEC's 90° wall mount for this camera. The IV2422X, IV2433X and IV2480X boxes are also listed.

Storage

A microSD card

Optional, for recording in the camera or as a backup when the network drops.

Where it is used

Where a 180° camera fits.

Front of a house

Driveway, porch and front yard in one picture from the middle of the eave.

Shopfronts

The whole footpath and entry, with a voice warning after hours.

Car parks

A full row of bays without a blind spot between two cameras.

Backyards

Fence line to fence line from the back wall.

Warehouse walls

A long wall of roller doors from one mounting point.

Reception areas

Counter and waiting area in one view, with two-way audio.

IVNC543ADX or IVNC544ADX

	IVNC543ADX (this camera)	IVNC544ADX
Sensors	1 × 1/2.7" CMOS	2 × 1/2.7" CMOS
Picture	3840 × 2160 (16:9)	5120 × 1440 (wide strip)
Frame rate	Up to 30 fps	Up to 15 fps
Lens and view	2.8 mm, 180°	2 × 2.8 mm, 180°
Streams	3	2
Night and lights	IR 30 m, warm white, red and blue	IR 30 m, warm white, red and blue

Figures from IVSEC's NC543ADX and NC544ADX datasheets (both updated 23 October 2026). The NC543ADX gives a taller picture at 30 fps; the NC544ADX stitches two sensors into a wider, flatter strip at 15 fps.

Common questions

How wide is the view?

180°. The 2.8 mm panoramic lens covers a whole side of a building in one 3840 × 2160 picture.

Does it show colour at night?

Yes, with the warm white light on. Without it, the IR gives black and white video to 30 m. You can choose day, night, auto or scheduled modes.

What do the red and blue lights do?

They flash as a warning when an alarm rule triggers, so an intruder knows the camera has seen them.

Can I talk through it?

Yes. IVSEC lists a built-in microphone and speaker, so you can listen and speak through the recorder or app. Check your state's laws before recording audio.

Is a recorder included?

No. This listing is the camera only. It records to an IVSEC NVR, any ONVIF Profile S, G or T recorder, or a microSD card in the camera.

How is it powered?

From a PoE+ (802.3at) port or switch, or a 12 V DC supply. It draws under 14 W.

What frame rate does it record?

Up to 30 fps at 3840 × 2160 (8MP).

Which analytics does it have?

Is it weatherproof?

Yes. It is rated IP67 for weather and IK10 for impact, and runs from −30 °C to 60 °C.

Which mount do I need for a wall?

IVSEC lists the IV2457X 90° wall mount, plus the IV2422X, IV2433X and IV2480X boxes, for this camera.

Should I choose the NC543ADX or the NC544ADX?

Both see 180°. The NC543ADX uses one sensor for a 3840 × 2160 picture at 30 fps; the NC544ADX uses two sensors for a wider 5120 × 1440 strip at 15 fps.

What warranty does it have?

Three years. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.

Supported by InFront Technologies.

Help placing a 180° camera or choosing the mount: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Low-voltage camera. Runs from PoE+ or 12 V DC, under 14 W. There is no mains wiring. A new power point needs a licensed electrician.

Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Audio and privacy. Recording conversations and filming beyond your boundary are covered by state and territory surveillance laws. Use signage and check the rules before you switch on audio.

What it does not do. No zoom (fixed 2.8 mm lens), no Wi-Fi and no battery. IVSEC does not list a siren.

Figures. From IVSEC's NC543ADX datasheet, updated 23 October 2026.
