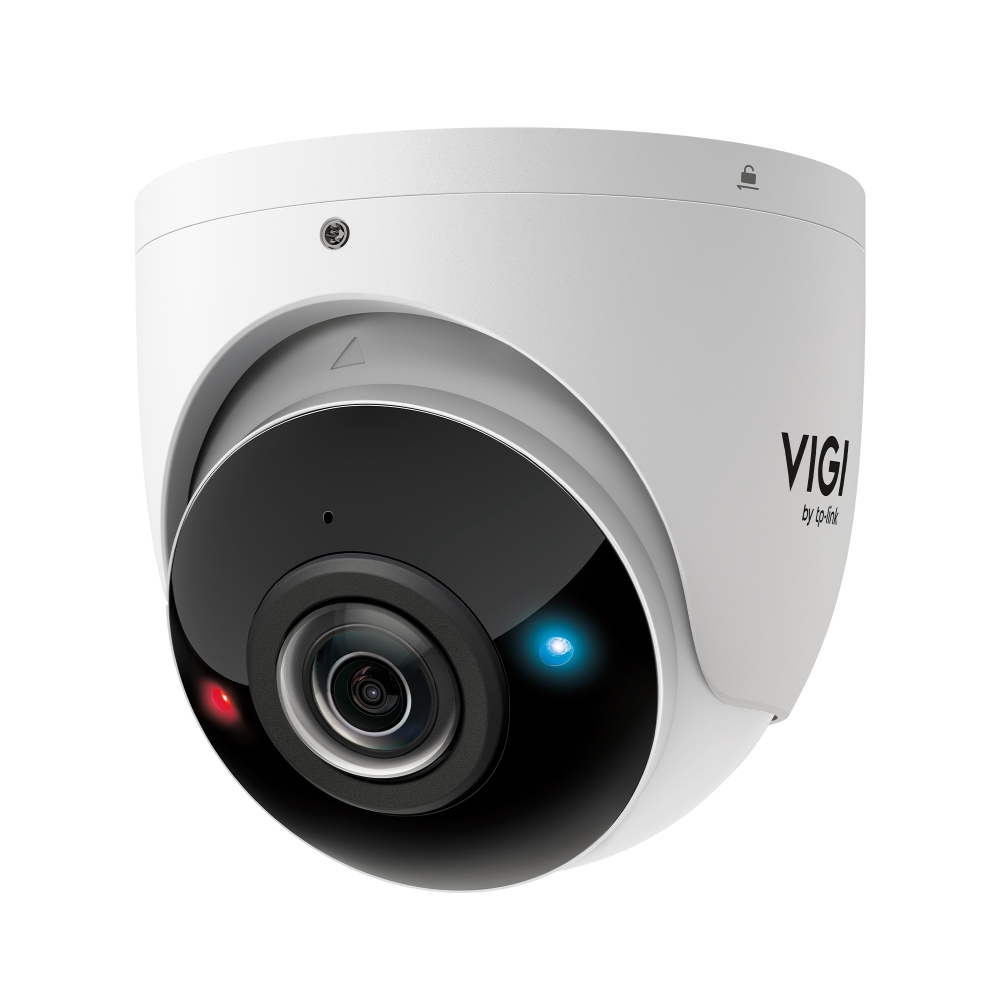

VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic InSight-S485PI

VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Dome IP Network Camera - InSight-S485PI

Name: VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Dome IP Network Camera - InSight-S485PI
Brand: TP-Link
SKU: InSight-S485PI
Price: 399 AUD
Availability: InStock

Reference: InSight-S485PI

In Stock - Ready to Ship

$ 399.00

inc-GST

8MP IR panoramic dome
Weather / protection: IP67 · IK10
Max resolution: 3840x2160
See specifications for lens options
Standalone camera — NVR and mounts sold separately

TP-Link VIGI InSight S485PI

8MP IR panoramic dome

VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Dome IP Network Camera - InSight-S485PI

Overview

The InSight-S485PI is a 180° panoramic IR dome with AI analytics, IP67 + IK10.

Standalone IP camera — NVR / PoE switch / mounts sold separately. Specs below match TP-Link Australia.

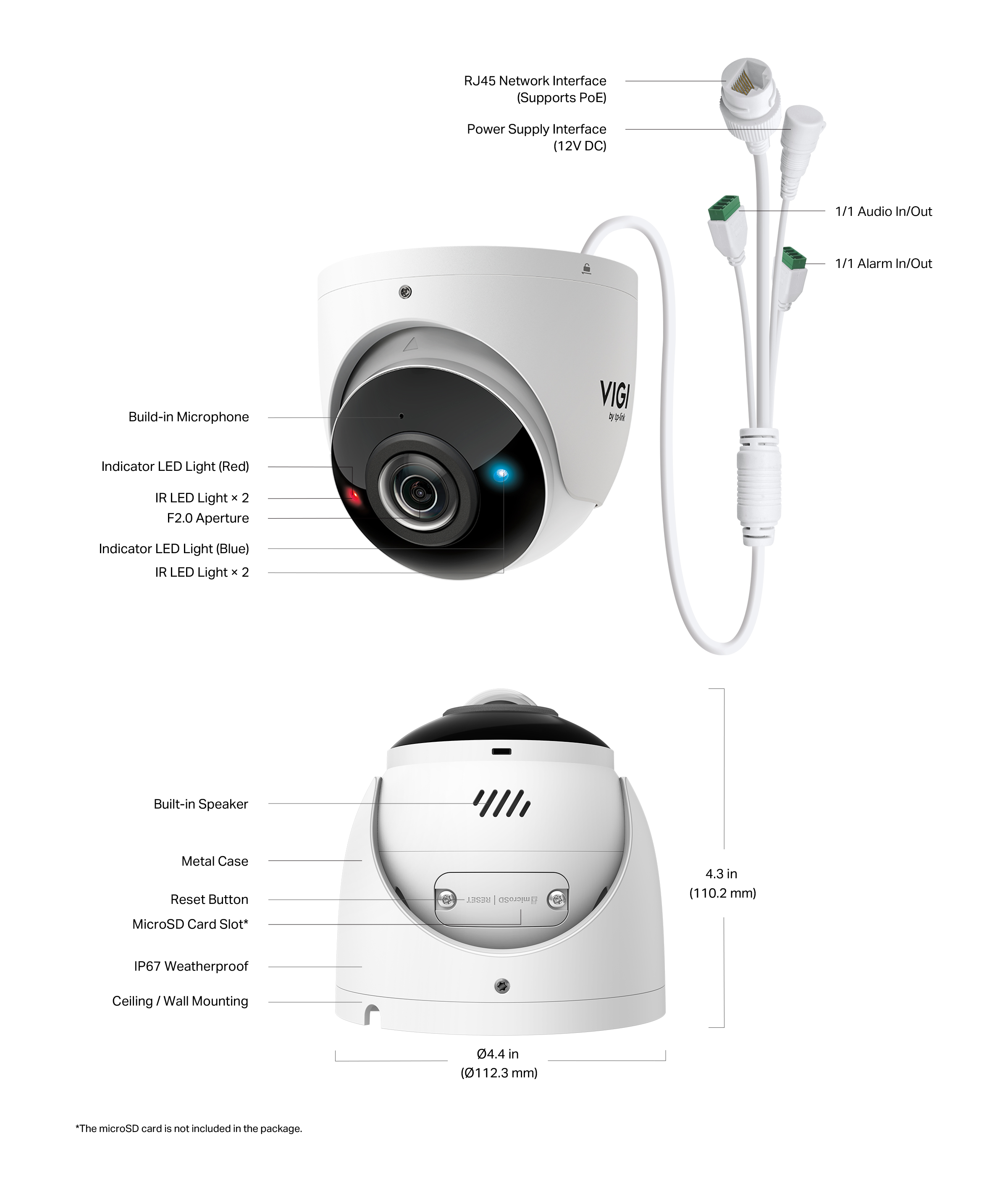

BUILD

8MP IR panoramic dome

180° panoramic IR dome with AI analytics, IP67 + IK10. Official protection: IP67 · IK10.

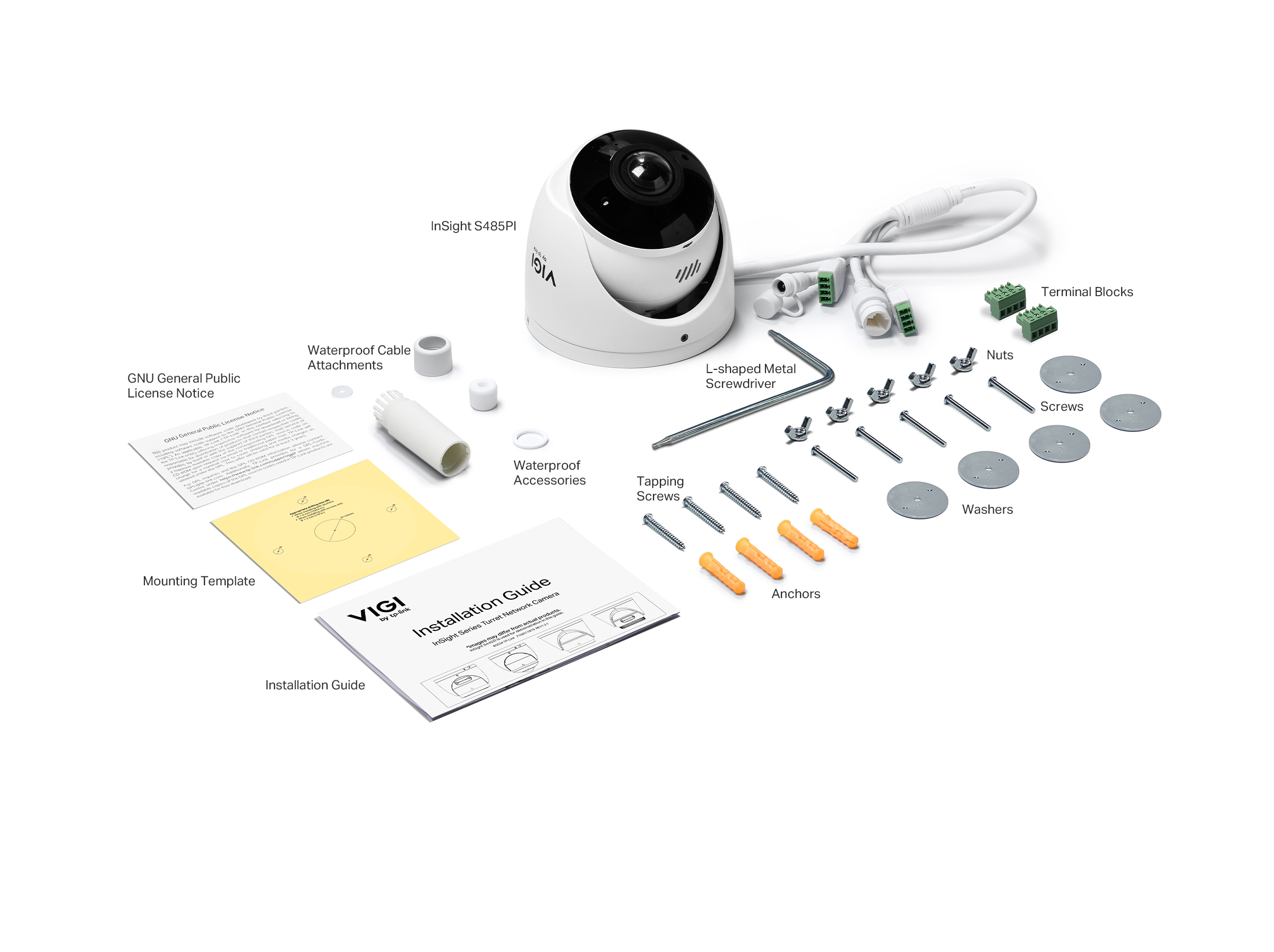

IN THE BOX

What ships with the camera

VIGI Network CameraQuick Start GuideWaterproof Cable AttachmentsMounting Accessories

Key specs

Specification	Detail
Max. resolution	3840x2160
Focal length	1.65 mm
Image sensor	1/2.7“ Progressive Scan CMOS
Protection	IP67 Waterproof, IK10 Vandal Proof
Power	• 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, class 4, Max. 21 W
Net weight	0.76 Kg

Full specifications are in the Specifications tab. Source: TP-Link Australia.

Recommended mounts

Official AU accessory matrix. Confirm your exact model before ordering.

VJB-240 — wall junction for listed dome / turret / fisheye bodies
VJB-300 — compact general junction box on the AU matrix
VJB-305 — larger InSight junction box where listed

Frequently asked questions

What weather / vandal rating does TP-Link publish?

TP-Link Australia lists IP67 · IK10 for this model.

Which junction box or pole mount do I need?

On the AU accessory matrix this camera maps to: VJB-240 — wall junction for listed dome / turret / fisheye bodies; VJB-300 — compact general junction box on the AU matrix; VJB-305 — larger InSight junction box where listed.

Is this a kit?

No — this listing is the standalone camera. NVR, cable and mounts are sold separately unless the product title says Kit.

Need help matching this camera to an NVR or mount?
Infront Technologies stocks and supports TP-Link VIGI across Australia — call 1300 736 970 or email [email protected].

Install note. Use an ACMA-registered cabler for concealed customer cabling (AS/CA S009). Specs and imagery can change at TP-Link’s discretion — verify against the current AU product page before ordering.

Net Weight: 0.76 Kg
Power Supply: 12V DC 5%, Max. 18 W, PoE: 802.3at, class 4, Max. 21 W
Ingress Protection: IP67
Vandal Resistance: IK10
Operating temperature: -30 to 60 C
Power: • 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, class 4, Max. 21 W
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Alarm: 1 Alarm In, 1 Alarm Out, Red-Blue Warning Lights
Audio Input: Built-in microphone
Brand: TP-Link
Certifications: CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10
Image Sensor: 1/2.7“ Progressive Scan CMOS
Lens: 1.65 mm
Max. Resolution: 3840x2160
Protection: IP67 Waterproof, IK10 Vandal Proof
Storage Temperature: -40 to 60 C
DORI Distance: Detect: 144.36 ft, Observe: 60.15 ft, Recognize: 28.87 ft, Identify: 14.44 ft
Product Dimensions: 4.4 4.4 4.3 in (112.3 112.3 110.2 mm)
FOV: Horizontal: 180, Vertical: 86, Diagonal: 180
Main Stream Frame Rate: 50Hz: 1-25fps, 60Hz: 1-30fps
Sub-Stream Frame Rate: 50Hz: 1-25fps, 60Hz: 1-30fps
Video Bit Rate: Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 1024 Kbps
ROI: 4 Region
Audio Sampling Rate: 8 KHz
Client: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser: Chrome 57+, Firefox 52+, Safari 11+, Edge 91+
Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login), Alarm Input Device
Angle Adjustment Range: Pan: 0 to 360, Tilt: 0 to 75, Rotation: 0 to 360
IR LED Range: 65.62 ft (20 m)
IR LED Wavelength: 850 nm
Video Max. Resolution: 3840x2160
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Warranty: Australian Warranty via Infront Technologies
Product Family: VIGI InSight
Model: S485PI

TP-Link VIGI Network Camera Junction Box - VJB-240VJB-240

TP-Link VIGI Network Camera Junction Box - VJB-240VJB-240 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Junction Box - VJB-240

TP-Link

VJB-240

$ 34.00

Aluminium alloy + SGCC network camera junction box Wall mounting for listed dome, turret and fisheye cameras Dimensions: 181 × 134 × 59 mm (7.1 × 5.3 × 2.3 in) Weight: 533 g · VIGI White Hides cables and connectors for a clean install Compatible models listed in full description (InSight + VIGI C2xx/C4xx)

TP-Link VIGI Network Camera Junction Box - VJB-300VJB-300

TP-Link VIGI Network Camera Junction Box - VJB-300VJB-300 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Junction Box - VJB-300

TP-Link

VJB-300

$ 43.00

Aluminium alloy network camera junction box Indoor / outdoor wall or ceiling mounting Dimensions: ∅125 × 130.47 × 45.7 mm (4.92 × 5.14 × 1.80 in) Weight: 364 g · VIGI White Waterproof design for cable concealment Compatible models listed in full description (broad VIGI / InSight range)

TP-Link VIGI Network Camera Junction Box - VJB-305VJB-305

TP-Link VIGI Network Camera Junction Box - VJB-305VJB-305 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Junction Box - VJB-305

TP-Link

VJB-305

$ 49.00

Larger aluminium alloy network camera junction box Indoor / outdoor wall or ceiling mounting Dimensions: 155.56 × 150 × 51 mm (6.1 × 5.9 × 2.0 in) Weight: 416 g · VIGI White For listed InSight models only (see description) Not a drop-in for VIGI C-series — use VJB-300 for those

CAMERA
Image Sensor	1/2.7“ Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

LENS
Type	Fixed Focal Lens
Focal Length	1.65 mm
Aperture	F2.0
FOV	1.65mm: • Horizontal FOV: 180° • Vertical FOV: 86° • Diagonal FOV: 180°
Lens Mount	M12
DORI Distance	1.65mm • Detect: 144.36 ft (44 m) • Observe: 60.15 ft (18.33 m) • Recognize: 28.87 ft (8.8 m) • Identify: 14.44 ft (4.4 m)

Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

ILLUMINATOR
IR LED	Quantity: 4 Range: 65.62 ft (20 m) Wavelength: 850 nm
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	3840x2160
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 1024 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	4 Region
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Built-in Microphone Audio In Interface
Audio Output	Built-in Speaker Audio Out Interface
Audio Compression	Yes
Audio Sampling Rate	8 KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) • Alarm Input Device
Alarm Linkage	• Memory Card Video Recording • Upload to FTP Server • Alarm Output Device • Push Notifications • Send to Alarm Server • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm

Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.3

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	1 Alarm In, 1 Alarm Out Red-Blue Warning Lights
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	1 Audio In, 1 Audio Out

GENERAL
Operating Temperature	-30 to 60 °C
Storage Temperature	-40 °C to 60 °C
Operating Humidity	95% or Less (Non-condensing)
Storage Humidity	95% or Less (Non-condensing)
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Material	Metal
Net Weight	0.76 Kg
Power Supply	• 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug • PoE: 802.3at, class 4, Max. 21 W
Protection	IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm)
Certifications	CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10
