Complete solar 4G kit: Includes the TP-Link VIGI-C540-4G camera and VIGI-SP6020 60W solar power system.

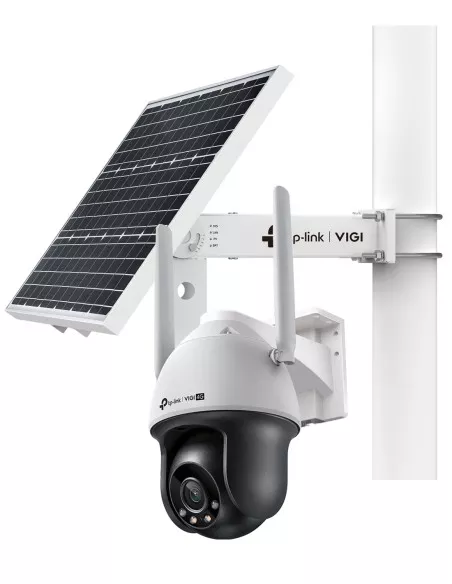

This is the VIGI-C540-4G-SP6020: the VIGI C540-4G 4MP full-colour pan-tilt camera and the VIGI SP6020 60W solar power system, sold together. Add a Nano-SIM and a pole and it runs anywhere with sun and 4G coverage.
In one sentence: the VIGI-C540-4G-SP6020 is a TP-Link pole-mounted kit that pairs a 4MP full-colour 4G pan-tilt camera with a 60W solar panel and a self-heating 10.8V 20.8Ah lithium battery, for sites with no power or internet.
Camera and solar system included. SIM, pole and memory card are not.
The kit ships as two cartons: the camera, and the solar system with its bracket.
TP-Link’s model for one C540-4G on this system is 4.3 days of running through consecutive rainy days, and 1.8 sunny days to recharge from empty while it keeps recording. For shaded or cloudy sites, the SP6030 version of this kit has a 31.2Ah battery, rated 6.4 days.
Full colour at night (left) against a typical infrared picture (right). Two white LEDs light the scene to 30 m, and colour sensitivity goes down to 0.005 lux. Switch to the two 850 nm infrared LEDs, also 30 m, when you would rather not light the area up.
Camera

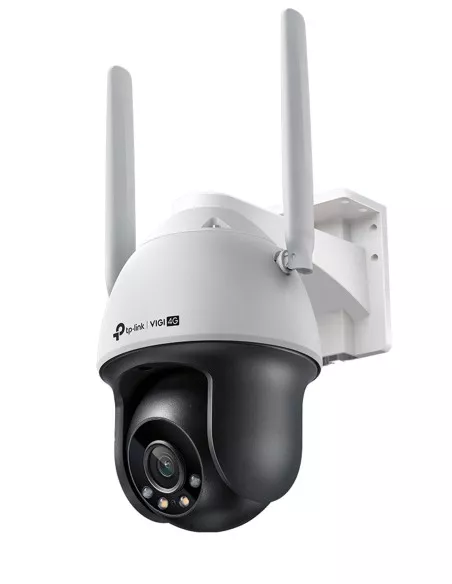

A 1/3.06-inch sensor at 2560 × 1440 behind a 4 mm F1.6 lens with an 80° horizontal view. Save up to 300 presets and 8 patrols, or let auto tracking follow a person or vehicle. Human and vehicle detection cuts out alerts for animals and moving trees, and the built-in speaker can sound a warning while the white light flashes.
4G
LTE Cat 4 on FDD bands 1, 3, 5, 7, 8, 20 and 28 and TDD bands 38, 40 and 41, through two external antennas. The main stream runs from 256 Kbps to 3 Mbps with H.265+, so you decide how much data it uses. Footage records to a microSD card in the camera, up to 512GB, whether or not the signal holds.
Solar

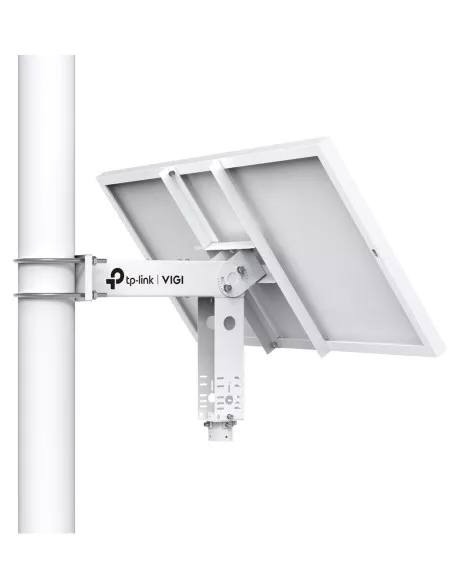

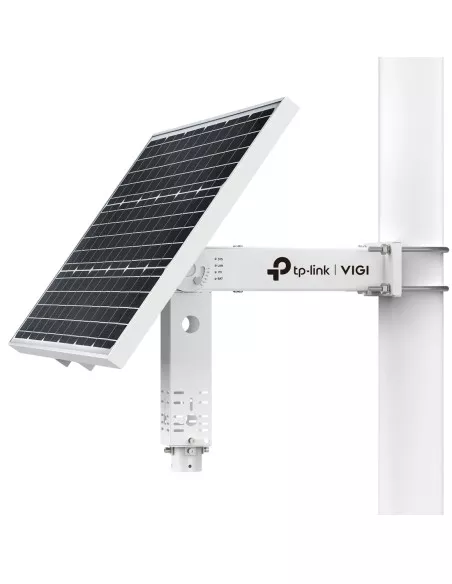

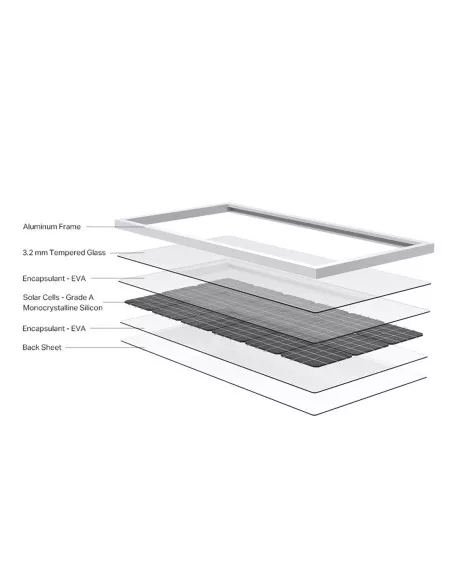

A Grade-A monocrystalline panel, 690 × 516 × 30 mm, under 3.2 mm tempered glass in an aluminium frame, on a galvanised steel bracket that tilts from 5° to 55°. The MPPT controller charges a 10.8 V 20.8 Ah lithium battery that warms itself, so it charges down to −30 °C. Battery level, power use and low-battery alerts show in the VIGI app.
How it goes in
01
Test 4G coverage at the pole with your SIM. Pick a spot where the panel faces north with no shade through the day.
02
The bracket fits a pole of 80 to 120 mm diameter. Set the panel tilt from 5° to 55°, close to your latitude.
03

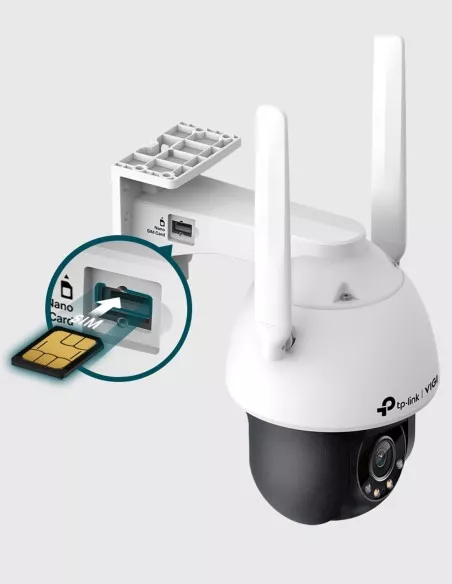

Fit the Nano-SIM and a microSD card in the camera, then plug the camera’s 12 V DC lead into one of the three outputs on the solar system.
04
Add the camera, draw the detection areas for people and vehicles, and turn on alerts. Battery level and power use show in the app too.
At a glance
Show specs
Kit
VIGI C540-4G camera + VIGI SP6020 solar power system
Camera
4MP full-colour 4G pan-tilt, 2560 × 1440
Image sensor
1/3.06" progressive scan CMOS
Lens
4 mm F1.6, fixed. 80° horizontal, 43° vertical, 94° diagonal
Pan and tilt
Pan 0–348°, tilt 0–120°, 8–44°/s
Presets and patrols
300 presets, 8 patrols of up to 8 presets, auto tracking
Night light
2 white LEDs to 30 m, 2 IR LEDs (850 nm) to 30 m
Minimum illumination
Colour 0.005 lux; 0 lux with IR or white light
Compression
H.265+ / H.265 / H.264+ / H.264
Bit rate
Main stream 256 Kbps–3 Mbps, sub-stream 64–512 Kbps
DWDR, 3D DNR, BLC, HLC, Smart IR, up to 4 privacy masks
Smart detection
Human and vehicle classification, intrusion, line crossing, region entering and exiting, object left or removed, abnormal sound, tampering
Deterrence
Audible warning and flashing white light
Audio
Two-way, built-in microphone and speaker
Mobile network
4G LTE Cat 4, Nano-SIM. FDD B1/3/5/7/8/20/28, TDD B38/40/41
Antennas
2 external omni dipoles, 690–960 and 1710–2690 MHz
Storage
microSD up to 512GB (card not included)
Apps
VIGI App, VIGI Security Manager, web browser, cloud, ONVIF Profile S
Camera power
12 V DC 1 A, 5.5 mm plug
Camera body
IP66, −30 °C to 60 °C, 120 × 182 × 201 mm without antennas, 0.69 kg
Solar panel
60 W, 18 V monocrystalline, 690 × 516 × 30 mm, 3.2 mm tempered glass
Panel tilt
5° / 15° / 25° / 35° / 45° / 55°
Battery
Lithium 10.8 V 20.8 Ah, 12.6 V max output, over 500 cycles, self-heating
Battery charging
0–45 °C, or −30 °C to 45 °C with heating
Battery discharging
−20 °C to 60 °C, or −30 °C to 60 °C with heating
Power outputs
3 × 5.5 mm DC: two at 9–12.6 V 2 A, one at 12 V 2 A
Controller
MPPT, 1 × 10/100 RJ45, SYS / LAN / PV / BAT lights
Protection
Overdischarge, high and low temperature, remote reboot and firmware update
Pole
80–120 mm diameter (not included)
No-sun running (TP-Link model)
4.3 days; 1.8 sunny days to recharge under load
Solar system weight
13 kg; carton 800 × 615 × 225 mm, 14.5 kg
Certifications
Camera CE, RCM, RoHS. Solar system CE, FCC, IC, IP66; battery CB, PSE
SP6020 drawing. Panel 690 × 516 mm, arm 400 mm from the pole, pole 80–120 mm diameter. The camera is 120 × 182 × 201 mm without antennas.
Pair it with
Storage
Up to 512GB. Our SanDisk High Endurance 256GB suits continuous recording.
Data
From a carrier with coverage at the pole. A data-only plan is enough.
Mounting
Not included. Allow for a 13 kg system and a 690 × 516 mm panel in the wind.
More battery
The VIGI-C540-4G-SP6030 has the same camera and panel with a 31.2Ah battery.
Where it is used
Watch a gate, a fuel tank or a machinery shed a long way from the house.
Up on a pole before the power is connected. Move it when the job moves.
See who comes in, in colour at night, and talk to them through the speaker.
Keep an eye on remote infrastructure with no power or data line to it.
Cover a laydown yard or car park where trenching a cable is not worth it.
Check on an empty property or vacant land from the VIGI app.
| SP6020 kit (this page) | SP6030 kit | |
|---|---|---|
| Camera | VIGI C540-4G | VIGI C540-4G |
| Solar panel | 60 W, 18 V | 60 W, 18 V |
| Battery | 10.8 V 20.8 Ah | 10.8 V 31.2 Ah |
| No-sun running* | 4.3 days | 6.4 days |
| Recharge from empty* | 1.8 sunny days | 2.7 sunny days |
| Solar system weight | 13 kg | 14 kg |
The SP6020 and SP6030 datasheets are identical apart from battery capacity and weight. *TP-Link’s modelled figures for one C540-4G; season, shade and panel angle change real results.
No. The camera runs from the 60W solar panel and 20.8Ah battery, and sends video over 4G through a Nano-SIM. It needs sun on the panel and 4G coverage at the pole.
No. Use a 4G data Nano-SIM from a carrier with coverage at the site. The pole and the microSD card are not included either.
LTE Cat 4 on FDD bands 1, 3, 5, 7, 8, 20 and 28, and TDD bands 38, 40 and 41. It also lists WCDMA bands 1, 5 and 8, but Australian 3G networks have closed, so use a 4G plan.
TP-Link’s model for one C540-4G on the SP6020 is 4.3 days of consecutive rainy days, and 1.8 sunny days to recharge from empty while running. Season, shade and panel angle change the result. The SP6030 kit is rated 6.4 days.
Yes, to a microSD card in the camera, up to 512GB. You need 4G coverage to watch it live, play footage back remotely or get alerts.
Yes. Two white LEDs light the scene to 30 m for colour video, with colour sensitivity down to 0.005 lux. It can also use two 850 nm infrared LEDs to 30 m for black-and-white night video.
Pan is 0° to 348° and tilt is 0° to 120°. It stores 300 presets and 8 patrols, and auto tracking can follow a person or vehicle. The lens is a fixed 4 mm with an 80° horizontal view; there is no optical zoom.
A pole of 80 to 120 mm diameter, not included. The bracket arm holds the panel 400 mm off the pole, and the panel is 690 × 516 × 30 mm. The solar system weighs 13 kg.
Yes. The battery heats itself, so it charges from −30 °C to 45 °C and runs from −30 °C to 60 °C. The camera is rated −30 °C to 60 °C.
It uses data when you watch live, play back remotely or receive alerts. Recording to the microSD card uses none. The main stream bit rate is adjustable from 256 Kbps to 3 Mbps, with H.265+ compression.
Yes. It has a built-in microphone and speaker for two-way audio, and it can sound an audible warning and flash its white light when it detects someone.
Infront Technologies stocks it, ships it from Australia and supports the warranty. The camera and solar system datasheets are on the Attachments tab.
Camera and solar system datasheets attached. Call 1300 736 970 for help picking a site, a SIM plan or a bigger battery. Trade pricing is on the account.
Extra-low voltage. The camera runs on 12 V DC from the solar system. There is no mains connection on the pole and no electrician is needed for the kit itself.
Working at height. The solar system weighs 13 kg and the panel catches the wind. Use a pole and footing rated for the load, and the right access equipment to fit it.
What it does not do. There is no optical zoom (fixed 4 mm lens), no SIM, pole or memory card in the box, and it will not work on 3G. Figures are from the TP-Link VIGI C540-4G (4mm) 1.0 and VIGI SP6020 1.0 datasheets.
