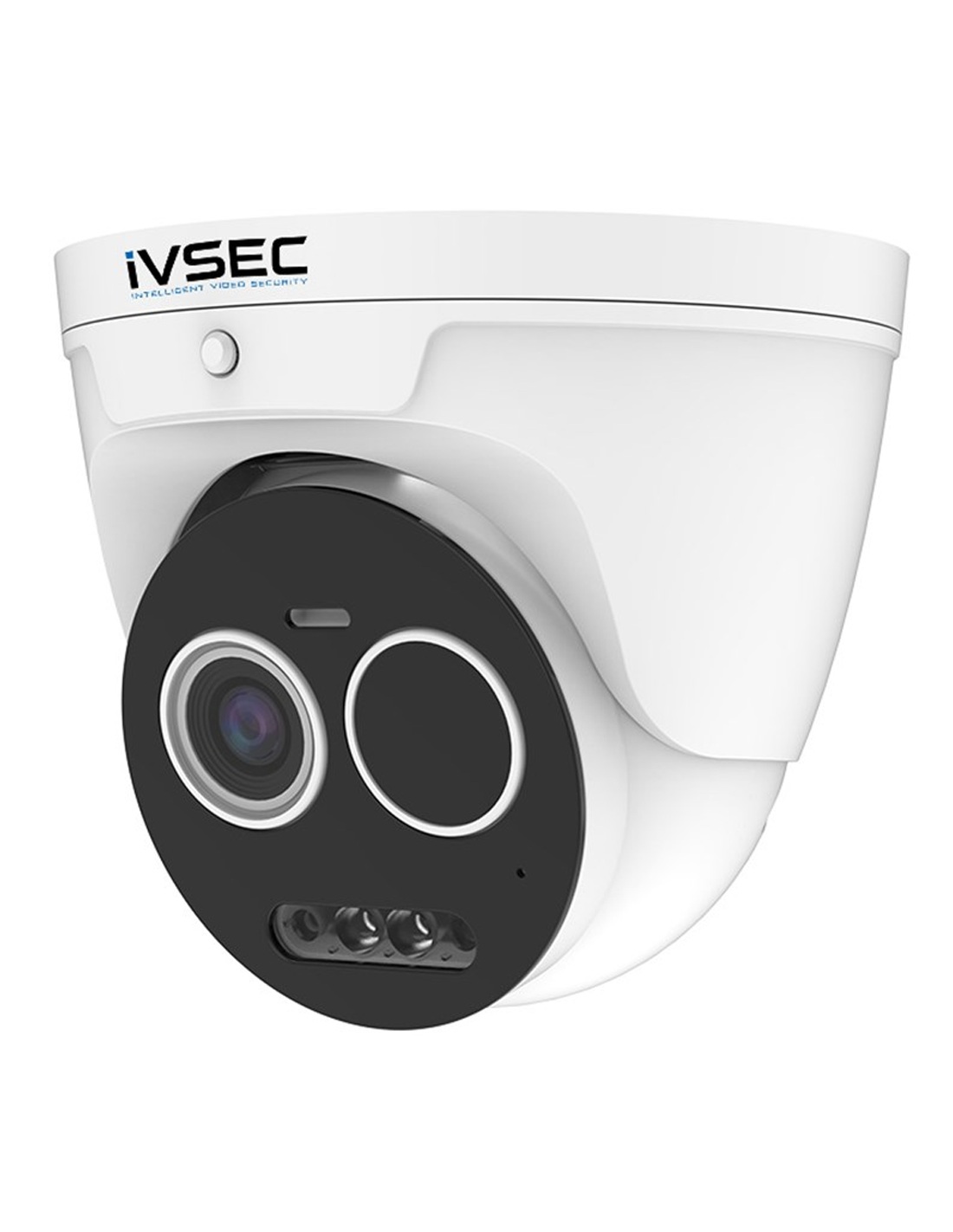

    IVSEC IVNC620ADX bi-spectrum thermal turret camera
    IVSEC IVNC620ADX close-up of the colour lens, thermal lens and light strip
    IVSEC IVNC620ADX turret housing side, close-up
    1 / 3

    IVSEC 5MP Thermal Turret IP Camera with 3.2mm Fixed Lens, 25FPS, Bi-Spectrum Advanced Detection - IVNC620ADX

    SKU IVNC620ADX In stock
    $1,100.00 inc GST

    IVSEC IVNC620ADX: a bi-spectrum PoE turret with a 5MP colour camera and a thermal camera, fire detection, temperature measurement and red and blue deterrent lights.

    • ✓5MP colour (81°) plus thermal (56°), 25 fps
    • ✓Thermal 12 µm, 8–14 µm, 40 mK or better
    • ✓Fire detection, temperature measurement −20 to 150 °C
    • ✓Human and vehicle detection, intrusion, line crossing
    • ✓Red and blue lights, white LEDs
    • ✓IP67, IK10, PoE+ 802.3at or 12 V DC, 3 year warranty



    Description

    IVSEC NC620ADX bi-spectrum thermal turret camera with its colour lens, thermal lens and light strip
    IVSEC · Thermal Turret · Bi-Spectrum

    Colour and thermal in one turret.
    Sees heat when the light is gone.

    The IVSEC IVNC620ADX is a bi-spectrum turret camera: a 5MP colour camera and a thermal camera side by side, with fire detection, temperature measurement, red and blue deterrent lights and an IP67, IK10 housing.

    In one sentence: the IVSEC IVNC620ADX is a bi-spectrum PoE turret camera pairing a 5MP colour lens (81°) with a thermal lens (56°, 12 µm, 8 to 14 µm), with fire detection, temperature measurement, red and blue lights and IP67, IK10.

    Camera only. Recorder, cable and a PoE+ port are separate.

    This listing is one camera. It needs a Cat5e or Cat6 cable to a PoE+ (IEEE 802.3at) port or a 12 V DC supply, and a recorder or VMS that can take two video channels.

    In the box
    • IVNC620ADX thermal turret camera
    • Printed quick user guide
    • Installation template
    • Mounting screws and plugs
    You also need
    • An IVSEC NVR or another ONVIF (Profile S, G or T) recorder
    • Cat5e or Cat6 cable
    • A PoE+ (802.3at) port, or a 12 V DC supply
    • IV2477X junction box or IV2457X wall mount if the site needs one

    Thermal picks out people, vehicles and heat.

    The thermal camera sees body and engine heat rather than light, so it works in darkness, smoke and glare where an ordinary camera struggles. The colour camera beside it records the detail you need to identify someone, and the analytics add fire detection and temperature measurement from −20 °C to 150 °C.

    IVSEC NC620ADX close-up of the colour lens and the larger thermal lens side by side

    Two cameras

    5MP colour plus thermal.

    The colour camera records 2592 × 1944 from a 1/2.8" progressive CMOS sensor with an 81° view. The thermal camera has a 56° view, a 12 µm pixel pitch, an 8 to 14 µm spectral range and a sensitivity of 40 mK or better, with colour palettes. Both run at 25 fps.

    IVSEC NC620ADX white turret housing and base ring with IVSEC logo, close-up

    Housing

    IP67 and IK10 turret.

    127 × 136 × 136 mm (H × W × L), rated IP67 for weather and IK10 for impact, from −30 °C to 60 °C. Red and blue and white LEDs sit under the lenses for deterrence and night lighting.

    How it goes in

    From box to first thermal alert.

    01

    Plan the view

    Mount it where the area to protect sits inside the 56° thermal view, such as a fence line, yard or plant room, clear of direct sun into the lens.

    02

    Run cable and power

    Run Cat5e or Cat6 to a PoE+ (802.3at) port on a switch or recorder, or use a 12 V DC supply. The camera draws under 14 W.

    03

    Mount the camera

    Mark the holes with the installation template and fix the base with the supplied screws and plugs, or fit it to an IV2477X junction box.

    04

    Add it and set the rules

    Add both channels to an IVSEC NVR or ONVIF recorder, then set intrusion, line crossing, fire detection or temperature rules and the light response.

    Pair it with

    What this camera does not include

    Power

    A PoE+ (802.3at) port

    The camera asks for 802.3at PoE. Check the recorder or switch port can supply it, or use a 12 V DC supply.

    Recorder

    An IVSEC NVR

    Records both the colour and the thermal channel. Any ONVIF Profile S, G or T recorder can also be used; ask us about analytics support.

    Mounting

    IV2477X junction box or IV2457X wall mount

    Both are on IVSEC's accessory list for this camera, to hide the cable or mount the turret on a wall.

    Storage

    A microSD card

    Optional, for recording in the camera or as a backup when the network drops.

    Where it is used

    Where a thermal turret earns its keep.

    Perimeter fences

    Heat shows people along a fence line in darkness, with lights to warn them off.

    Plant rooms and switchboards

    Temperature measurement and fire detection watch for equipment running hot.

    Warehouses and yards

    Thermal sees through glare and low light across stock yards and loading docks.

    Farms and sheds

    Hay sheds and machinery bays, where heat and fire alerts matter.

    Construction sites

    After-hours intrusion alerts with red and blue lights on detection.

    Car parks and depots

    People and vehicles picked out by heat, with licence plate detection on the colour camera.

    IVNC620ADX or IVNC630ADX

    IVNC620ADX (this turret)IVNC630ADX bullet
    HousingTurretBullet
    Size127 × 136 × 136 mm301 × 108 × 108 mm
    Colour and thermal5MP colour, thermal 1280 × 7205MP colour, thermal 1280 × 720
    Lens3.2 mm: colour 81°, thermal 56°3.2 mm: colour 81°, thermal 56°
    AnalyticsFire, temperature, intrusion and moreFire, temperature, intrusion and more
    PowerPoE 802.3at, 12 V DC; under 14 WPoE 802.3at, 12 V DC; under 14 W
    Best forEaves and ceilings, lower profileWalls and longer views, more visible

    Same bi-spectrum camera in two housings. Figures from IVSEC's IVNC620ADX and IVNC630ADX datasheets (December 2024).

    Common questions

    What does bi-spectrum mean?

    Two cameras in one housing: a 5MP colour camera and a thermal camera. The thermal one sees heat, the colour one gives the detail to identify a person or vehicle.

    Is a recorder included?

    No. This listing is the camera only. It records to an IVSEC NVR, an ONVIF Profile S, G or T recorder, or a microSD card in the camera.

    How is it powered?

    From a PoE+ (IEEE 802.3at) port or a 12 V DC supply. It draws under 14 W, so check your recorder's PoE ports support 802.3at.

    What resolution is the thermal picture?

    IVSEC lists the thermal channel as 1MP, 1280 × 720, with a 12 µm pixel pitch and a 56° view. The colour channel is 5MP, 2592 × 1944 with an 81° view.

    Can it detect fire?

    Yes. IVSEC lists fire detection and temperature measurement among its analytics, with a measuring range of −20 °C to 150 °C. Use it alongside smoke alarms, not instead of them.

    Does it work in total darkness?

    The thermal camera needs no light at all. For the colour camera, IVSEC rates night viewing to 30 m with its white LEDs.

    Does it have deterrent lights?

    Yes. It has red and blue lights and white LEDs that can be triggered by an alarm rule. IVSEC does not list a built-in speaker or siren.

    Does it record sound?

    IVSEC lists audio in and audio out connectors but marks audio streaming as No, so confirm with us before planning on audio.

    Can it go outside?

    Yes. It is rated IP67 against dust and water and IK10 against impact, and runs from −30 °C to 60 °C.

    What is in the box?

    The camera, a printed quick user guide, an installation template and mounting screws and plugs. The network cable is not included.

    Turret or bullet: IVNC620ADX or IVNC630ADX?

    Same colour and thermal cameras and analytics. The IVNC620ADX turret is lower profile under eaves; the IVNC630ADX bullet is longer at 301 mm and more visible on a wall.

    What warranty does it have?

    IVSEC lists a 3 year warranty. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.

    Supported by InFront Technologies.

    Help planning thermal coverage, PoE+ power or mounting: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

    Installation and safety

    Low-voltage camera. Runs on PoE+ (802.3at) or 12 V DC, under 14 W. There is no mains wiring; a new power point needs a licensed electrician.

    Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

    Privacy. Filming beyond your boundary is covered by state and territory surveillance laws. Point the camera at your own property and use signage.

    What it does not do. It is not a certified fire alarm, smoke detector or medical temperature screening device. No Wi-Fi, no battery, no built-in speaker listed and no gigabit port (10/100).

    Figures. From IVSEC's IVNC620ADX datasheet, updated 16 December 2024. It lists the net weight as 0.8 kg and the gross weight as 0.5 kg, so treat the weight as approximate.
