Press to release. Reset with a key.
No broken glass.
The Gianni CP-32GBZ-LB is a resettable green emergency door-release call point — DPDT relay (Sw1: 5 A @ 250 VAC · Sw2: 1 A @ 30 VDC), blue backlight, built-in 80 dB buzzer, hinged clear cover and resettable key, 12 / 24 VDC jumper-selectable, compact 91 × 87 × 53 mm surface housing. Lift the cover, push the element — the relay latches, the buzzer sounds, the maglock drops; reset in seconds with the supplied key. Stocked Australia-wide by Infront Technologies; 12-month manufacturer warranty.
EMERGENCY DOOR-RELEASE CALL POINT — NOT A FIRE-ALARM CALL POINT.
Signals a maglock release or controller REX input via dry DPDT contacts. Not certified to AS 1670.1 / AS 4428. In the box: housing, resettable key (P-PL-CP-32-K), manual. You supply: 12 / 24 VDC PSU, maglock or strike, controller optional, 2/4-core cable, wall fixings.
Safety · 01
No glass to break. No shards to sweep.

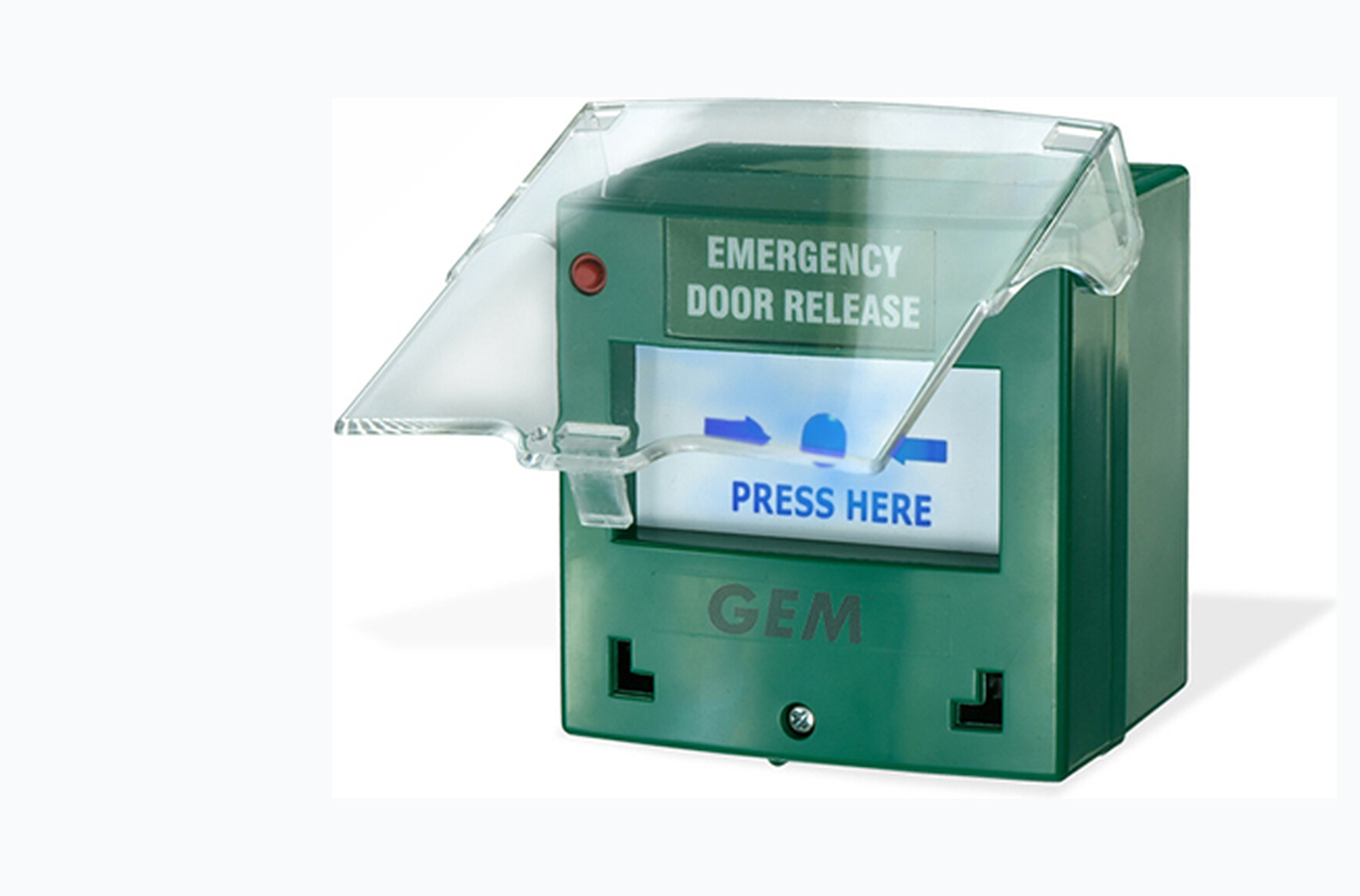

A resettable hinged operating element replaces the breakable pane used by traditional fire-style call points. Push it — it latches; twist the supplied key a quarter turn — it pops back. The clear polycarbonate flip cover sits over the press-here window in standby and has to be deliberately lifted, reducing accidental knocks in school corridors, hospitals, aged care sites and commercial buildings.
Wiring · 02

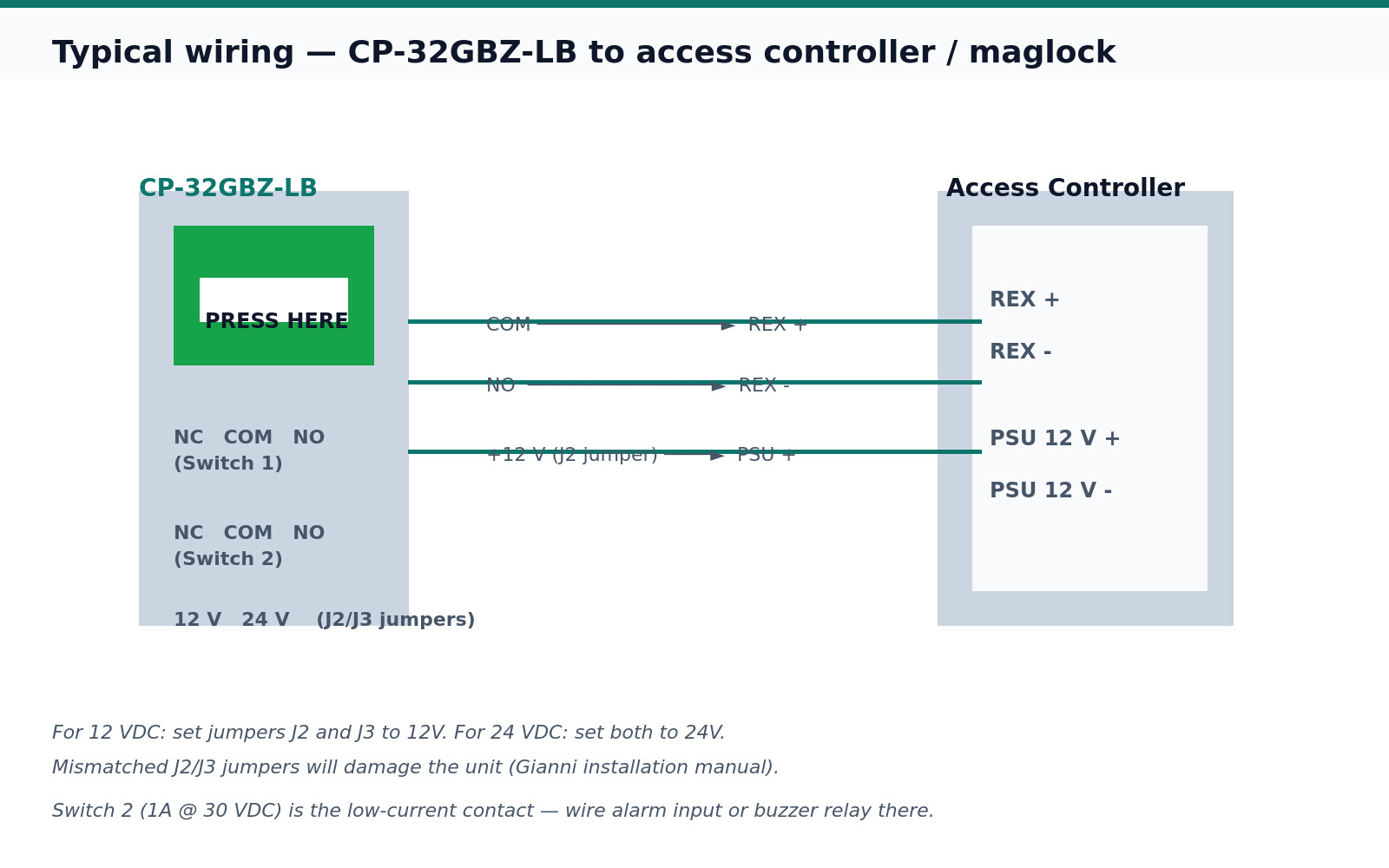

DPDT — door drop AND alarm input from one device.
Switch 1 rated 5 A @ 125 / 250 VAC — series with the maglock feed or to the controller REX input. Switch 2 rated 1 A @ 30 VDC — alarm, audit or buzzer-relay input. Power 12 / 24 VDC via J2 / J3 jumpers; contact resistance 100 mΩ.
Check J2 / J3 before power-on — mismatched voltage jumpers will damage the unit. No auto-detect.
At a glance.
| Reference / MPN | CP-32GBZ-LB · Gianni GEM brand |
|---|
| Class | Resettable emergency door-release call point, indoor |
|---|
| Colour | Green stocked · Red / White / Yellow / Blue on request |
|---|
| Dimensions | 91 × 87 × 53 mm with cover |
|---|
| Voltage | 12 or 24 VDC via J2 / J3 jumper |
|---|
| Contacts | DPDT — Sw1: 5 A @ 125/250 VAC · Sw2: 1 A @ 30 VDC |
|---|
| Backlight + buzzer | Blue LED · built-in 80 dB piezo |
|---|
| Reset | Clear hinged cover + resettable key P-PL-CP-32-K |
|---|
| Mounting | Surface, two corner fixings M3.5 / #6 screws |
|---|
| Approvals + warranty | CE 332113 · Taiwan Patent M444599 · 12-month warranty |
|---|

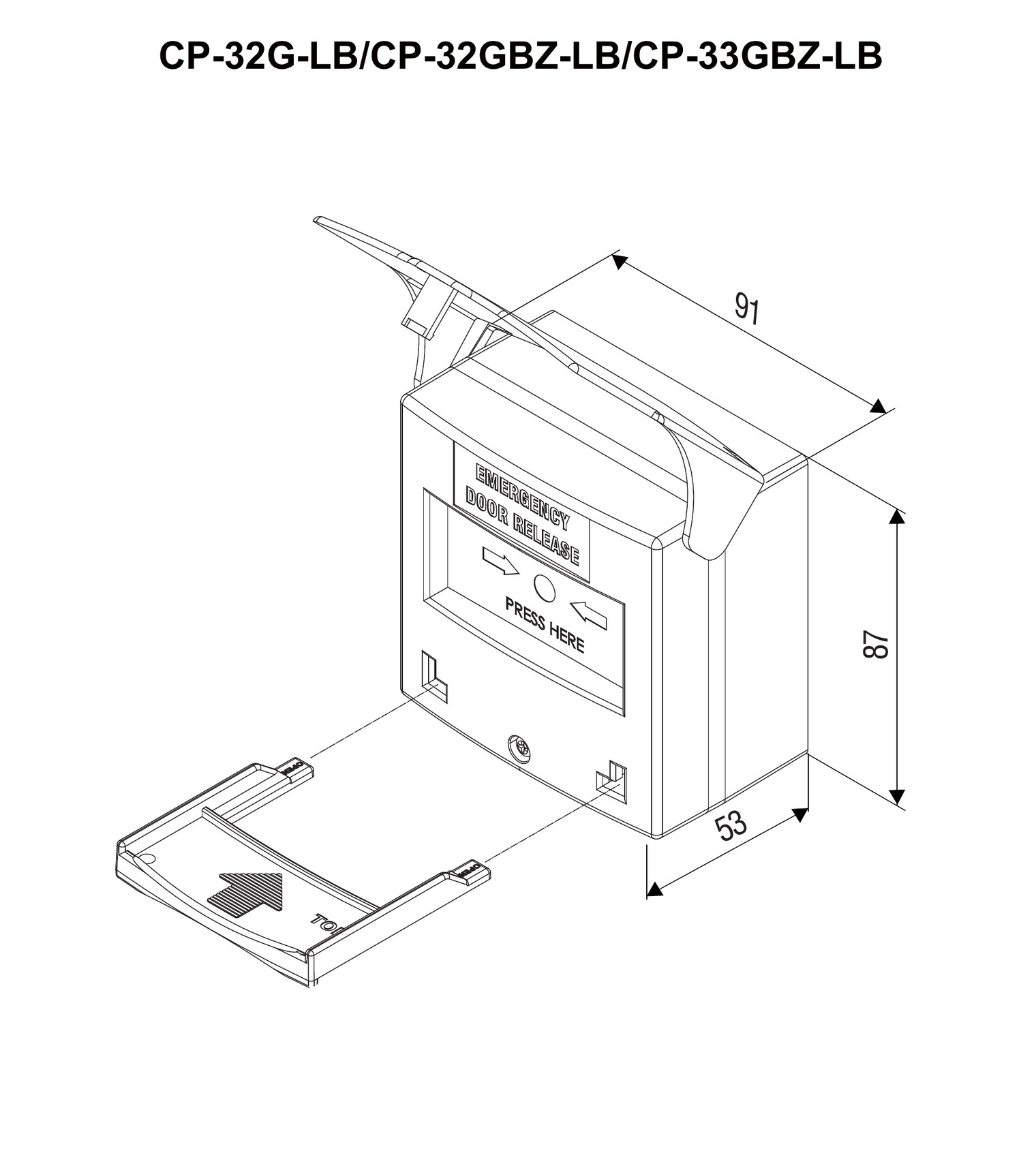

91 × 87 × 53 mm surface housing · M3.5 / #6 corner fixings

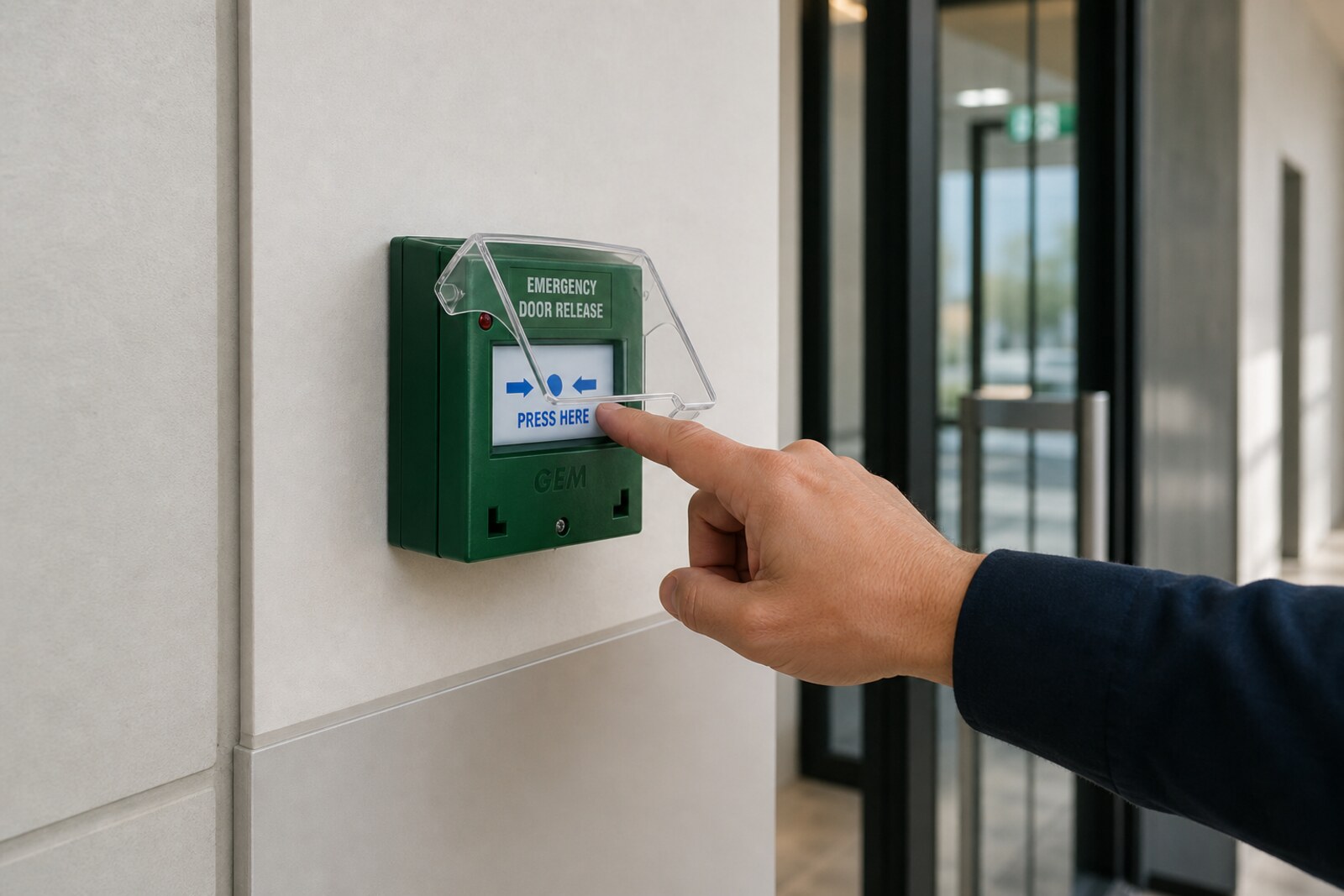

Where you’ll see the CP-32GBZ-LB installed.
Schools & universities — lockdown corridors, labs and sports halls. Hospitals & clinics — ward perimeters, paediatric units, drug-storage areas and theatre-recovery exits. Aged care & disability — memory-care perimeters, lockdown wings and NDIS group-home egress. Offices, retail & government — after-hours lobbies, fire-stair re-entry and council facilities.
How the CP-32GBZ-LB compares.
| Approach | Reset | Accidental press | Audible | Consumables |
|---|
| CP-32GBZ-LB resettable | Key, 5 sec | Low — cover guards | 80 dB buzzer | None |
| Traditional break-glass | Replace glass | Low — glass deters | Glass-break only | Spare-glass kits + cleanup |
| Standard push-to-exit | Self-resets | High — no cover | Silent | None |
| Touchless / IR sensor | Self-resets | Medium — passers | Silent | None |
Frequently asked.
Is it a fire-alarm call point?
No — emergency door-release, not fire-alarm break-glass. Dry DPDT contacts signal maglock release or controller REX; not certified to AS 1670.1 / AS 4428.
Will it work with my access controller?
Yes. The DPDT dry contact wires into the REX input on Hikvision DS-K, Inner Range Integriti / Inception, Bosch, Paxton Net2, Gallagher Command Centre, Hills ProAccess and Centaur.
What does resettable mean?
Nothing breaks. The hinged element latches when pushed; the supplied key twists it back in 5 seconds. No spare glass, no shards, no service callout.
Does the cover stop accidental presses?
Yes. The clear flip cover must be lifted before the element can be pressed. Tamper-alarm version is CP-32GBZ-LB-ALM.
12 or 24 VDC?
Both. J2 / J3 jumpers select voltage; default 24 V. Mismatched jumpers damage the unit on power-on.
Contact ratings?
DPDT — Sw1 5 A @ 125 / 250 VAC; Sw2 1 A @ 30 VDC; both NC / COM / NO.
Buzzer loudness? Outdoor rated?
80 dB at 1 m, continuous while activated, silent on reset. Indoor only — use an IP56 weatherproof exit switch outdoors. Silent variant: CP-32G-LB.
Multiple call points on one door?
Yes. Wire Sw1 NC contacts in series in the maglock feed — pressing any one drops the lock.
Australian fire-egress compliance?
SELV egress device. Whole-of-door fire compliance under NCC E2.2a / AS 1851 is a property of the door system — confirm with your fire-services certifier.
Warranty and AU support?
12 months, supported in Australia by Infront Technologies on 1300 736 970. Stocked locally, same-day dispatch on business days.
Stocked & supported in Australia.
Held in Australian stock and dispatched same-day on business days from Infront Technologies. Installation support on 1300 736 970; warranty replacements from local stock. For project pricing or the detachable-terminal CP-33GBZ-LB variant, contact us before ordering.
Installation & compliance notice
SELV 12 / 24 VDC egress device — no mains inside. Concealed security cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler; mains feeds and lock PSUs are the licensed electrician’s job. NOT a fire-alarm call point — not certified to AS 1670.1 / AS 4428; whole-of-door fire-egress compliance under NCC E2.2a / AS 1851 must be confirmed by your fire-services certifier. Specifications supplied in good faith from Gianni documentation — verify the latest revision before ordering.
