Hikvision DS-2CD2T86G2-2I(2.8mm)(C)
The DS-2CD2T86G2-2I with 2.8 mm optics is an 8 MP 4K Hikvision AcuSense bullet with class-leading IR for the 2I (≈ 50–60 m) family, metal IP67, PoE, human/vehicle classification and ONVIF. Compare with the 4I 4 mm for longer throw when you can sacrifice angle of view. Verify the exact IR curve and PSE class (802.3af/802.3at) in the PDF because marketing imagery will not be contract evidence.

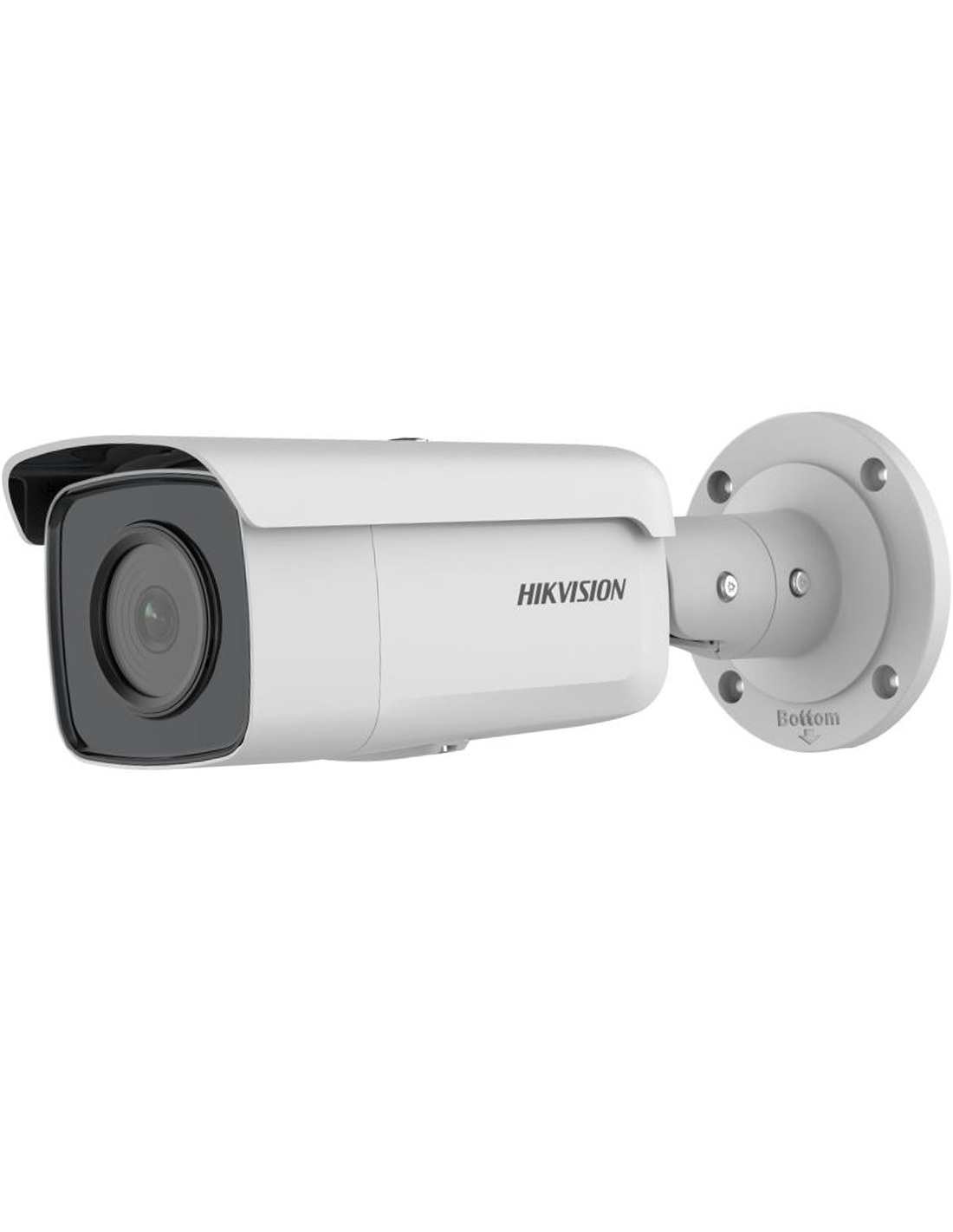

Product shot may differ from the actual product.
Key specifications
- Form factor
- Outdoor bullet, AcuSense
- Resolution
- 8 MP, 4K UHD, per Hikvision DS-2CD2T86G2-2I documentation
- Lens (this SKU)
- 2.8 mm, per part number
- IR (2I class)
- 50 m / 60 m class IR — verify on stamped datasheet
- Body
- IP67 metal, per marketing
- Power
- 802.3af / 12 VDC, per family datasheet
Values from Hikvision marketing and datasheets; verify the stamped PDF and label before you promise exact limits for legal or RFP work.
Low-voltage (SELV). This IP camera is powered from 12 VDC and/or 802.3af PoE. Concealed data cabling must be completed by an ACMA-registered cabler under the Wiring Rules. Infront Technologies supplies genuine Hikvision and Australian warranty admin.
Sales & support: Infront Technologies — 1300 736 970, [email protected]
How to commission this SKU
Run a fresh Cat6 home-run or homerun-to-switch design with 802.3af/802.3at headroom. Adopt the camera in SADP or from your PoE NVR, set a long admin passphrase, disable default accounts, and enable HTTPS + time sync. For AcuSense, start with a human+vehicle filter on your highest-traffic line-cross, then add intrusion/region after a week of tuning so you do not flood the app with false positives. Record on the NVR; use microSD only for edge/ANR with an endurance card.
FAQ — will it work on my NVR? If the NVR is ONVIF and supports H.265, usually yes for video. Deep Hikvision events (full AcuSense filter payload) are happiest on a Hikvision AcuSense channel plan or on iVMS-4200 test bench before you deploy site-wide. Third-party VMS may see standard motion before AI metadata — plan accordingly.
Regulatory & good faith. Specifications move with firmware. Our page is built from the current public EasyIP/Pro story plus your exact order code on the label. Do not use marketing renders as expert evidence. For audio-capable or deterrence models, follow consent, signage, workplace, strata and state surveillance laws before you enable the mic, speaker, strobe, or white light.
