19" 4RU 300mm Pre-assembled Wall-Mount Data Cabinet

RMC-B4U300W
In Stock - Ready to Ship
$ 115.00
inc-GST

Optimise tight comms rooms with VIP Vision’s RMC-B 4U wall-mount cabinet. Only 300 mm deep yet 19″ standard width, it ships pre-assembled for rapid install. Features:

  • 4U height, 600 × 300 × 285 mm
  • Welded powder-coated steel, 60 kg static load
  • Tempered glass swing door, lockable
  • Quick-release side panels
  • Top & bottom knock-outs; 120 mm fan slot
  • Wall-mount bracket, cage nuts & keys included



VIP Vision 19" 4RU Wall-Mount Data Cabinet

Model RMC-B4U300W • 300 mm Deep • Pre-assembled

Optimise small comms rooms and CCTV installs with the space-saving RMC-B4U300W. Just 300 mm deep yet built to the 19″ standard, this 4RU welded-steel cabinet arrives fully assembled with a tempered-glass swing door, quick-remove side panels and a wall-mount bracket for super-fast, professional installs.

Key Features

  • 19″ standard, 4RU height with an ultra-shallow 300 mm depth.
  • Welded SPCC steel frame – powder-coated, rated to 60 kg static load.

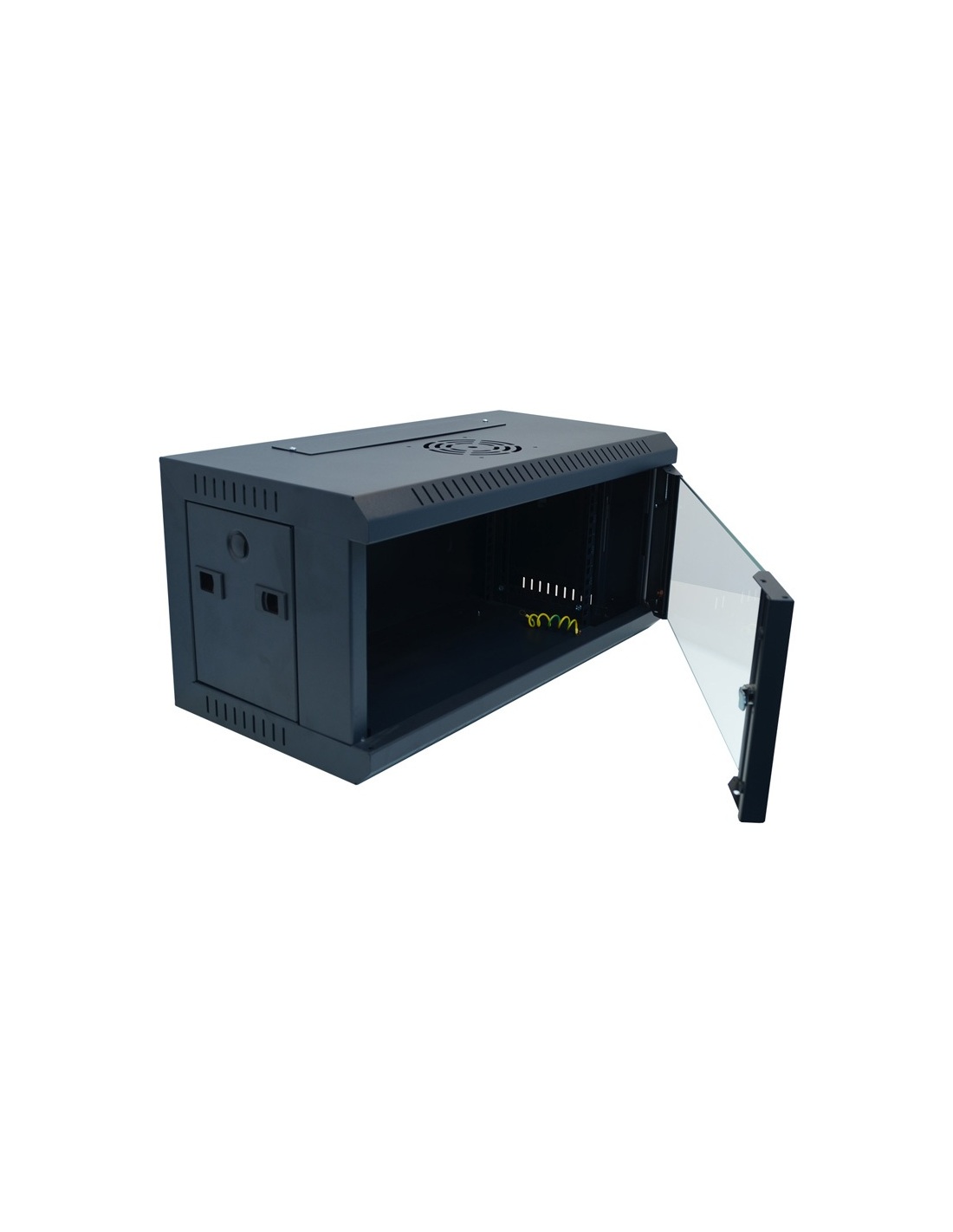

  • Tempered-glass swing door – 180° opening with keyed lock for secure access.
  • Quick-remove side panels for effortless patching and maintenance.
  • Top & bottom knock-outs plus 120 mm fan mount (fan optional).

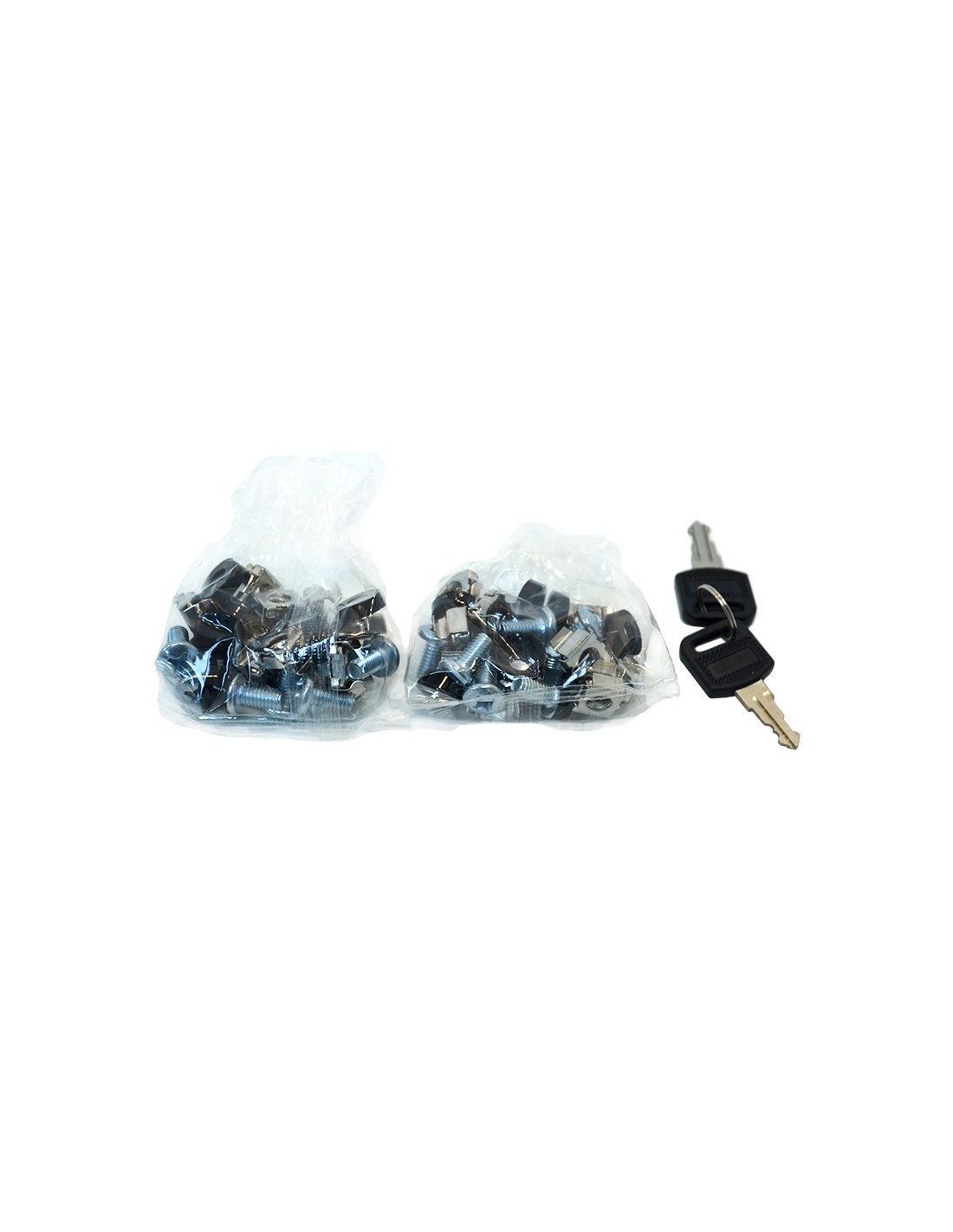

  • Complete hardware kit – earthing cable, cage nuts, washers & keys included.
  • Wall-mount bracket for rapid, one-person installation.

Quick Specs – RMC-B4U300W

Rack Height 4RU
External Size (W×D×H) 600 × 300 × 285 mm
Static Load 60 kg
Material / Finish 1.2 mm SPCC steel, powder-coated
Fan Slots 1 × 120 mm (optional)
Ingress / Compliance IP20 • EIA-310-D, IEC297-2, DIN41497/41494
Shipping (WxDxH / Wgt) 620 × 320 × 340 mm • 7 kg

Space tight? Mount switches, NVRs or patch panels neatly in the shallow RMC-B4U300W and finish the job in record time.

Material
SPCC Steel
Load Capacity
60kg
Mounting Options
Wall mount
Cabinet Depth
300mm
Fan Slots
Yes (1 x fan slot)
Lockable
Yes (Front lock included, side locks optional)
Power Board
No
Rack Units (RU)
4
Wheels
No
Assembled
Yes
Cabinet Standard
19'' (482mm)
Exterior (WxDxH)
600 x 300 x 280mm
Included Shelves
No
