19" 4RU 300mm Pre-assembled Wall-Mount Data Cabinet
Optimise tight comms rooms with VIP Vision’s RMC-B 4U wall-mount cabinet. Only 300 mm deep yet 19″ standard width, it ships pre-assembled for rapid install. Features:
- 4U height, 600 × 300 × 285 mm
- Welded powder-coated steel, 60 kg static load
- Tempered glass swing door, lockable
- Quick-release side panels
- Top & bottom knock-outs; 120 mm fan slot
- Wall-mount bracket, cage nuts & keys included
Various Payment Types at Checkout.
All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

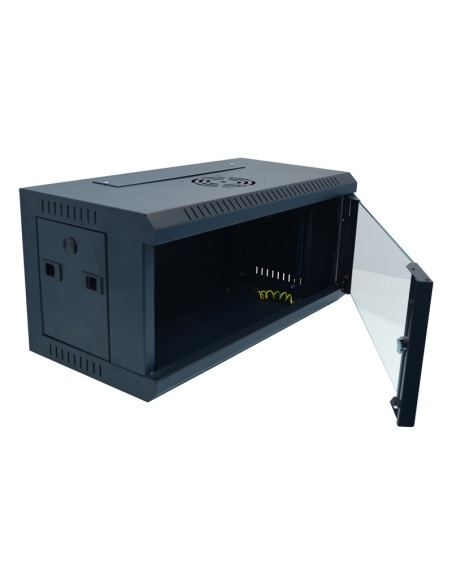

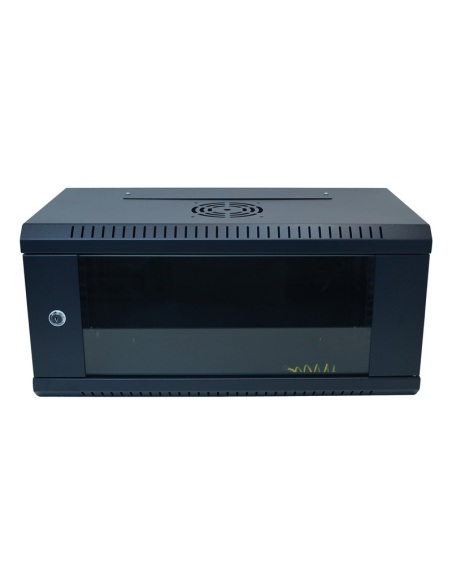

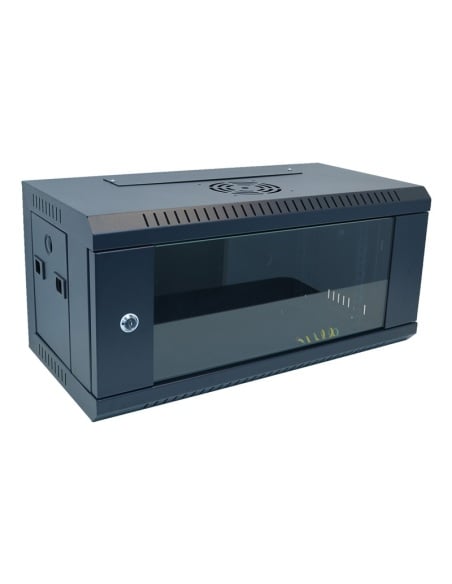

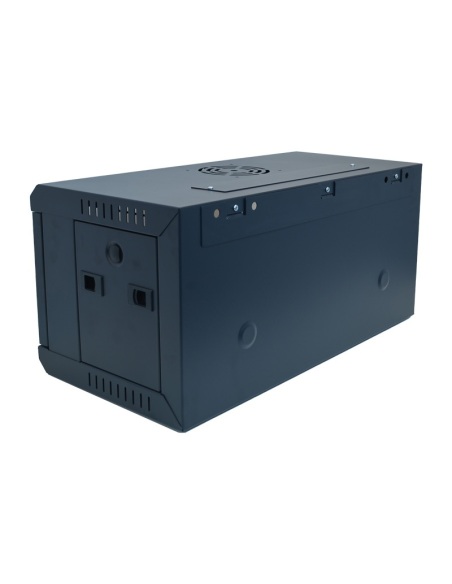

VIP Vision 19" 4RU Wall-Mount Data Cabinet
Model RMC-B4U300W • 300 mm Deep • Pre-assembled
Optimise small comms rooms and CCTV installs with the space-saving RMC-B4U300W. Just 300 mm deep yet built to the 19″ standard, this 4RU welded-steel cabinet arrives fully assembled with a tempered-glass swing door, quick-remove side panels and a wall-mount bracket for super-fast, professional installs.
Key Features
- 19″ standard, 4RU height with an ultra-shallow 300 mm depth.
- Welded SPCC steel frame – powder-coated, rated to 60 kg static load.
- Tempered-glass swing door – 180° opening with keyed lock for secure access.
- Quick-remove side panels for effortless patching and maintenance.
- Top & bottom knock-outs plus 120 mm fan mount (fan optional).

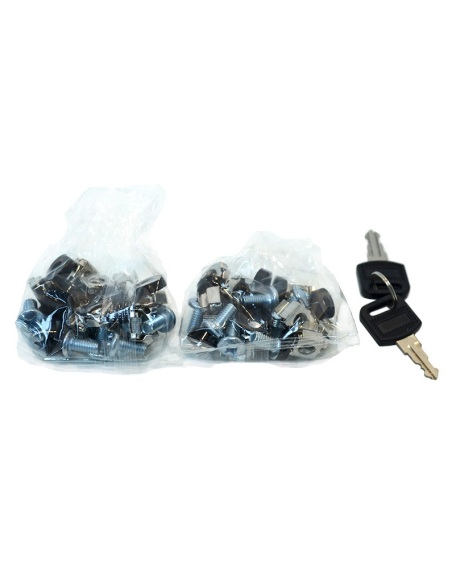

- Complete hardware kit – earthing cable, cage nuts, washers & keys included.
- Wall-mount bracket for rapid, one-person installation.
Quick Specs – RMC-B4U300W
Rack Height | 4RU |
---|---|
External Size (W×D×H) | 600 × 300 × 285 mm |
Static Load | 60 kg |
Material / Finish | 1.2 mm SPCC steel, powder-coated |
Fan Slots | 1 × 120 mm (optional) |
Ingress / Compliance | IP20 • EIA-310-D, IEC297-2, DIN41497/41494 |
Shipping (WxDxH / Wgt) | 620 × 320 × 340 mm • 7 kg |
Space tight? Mount switches, NVRs or patch panels neatly in the shallow RMC-B4U300W and finish the job in record time.
- Material
- SPCC Steel
- Load Capacity
- 60kg
- Mounting Options
- Wall mount
- Cabinet Depth
- 300mm
- Fan Slots
- Yes (1 x fan slot)
- Lockable
- Yes (Front lock included, side locks optional)
- Power Board
- No
- Rack Units (RU)
- 4
- Wheels
- No
- Assembled
- Yes
- Cabinet Standard
- 19'' (482mm)
- Exterior (WxDxH)
- 600 x 300 x 280mm
- Included Shelves
- No
