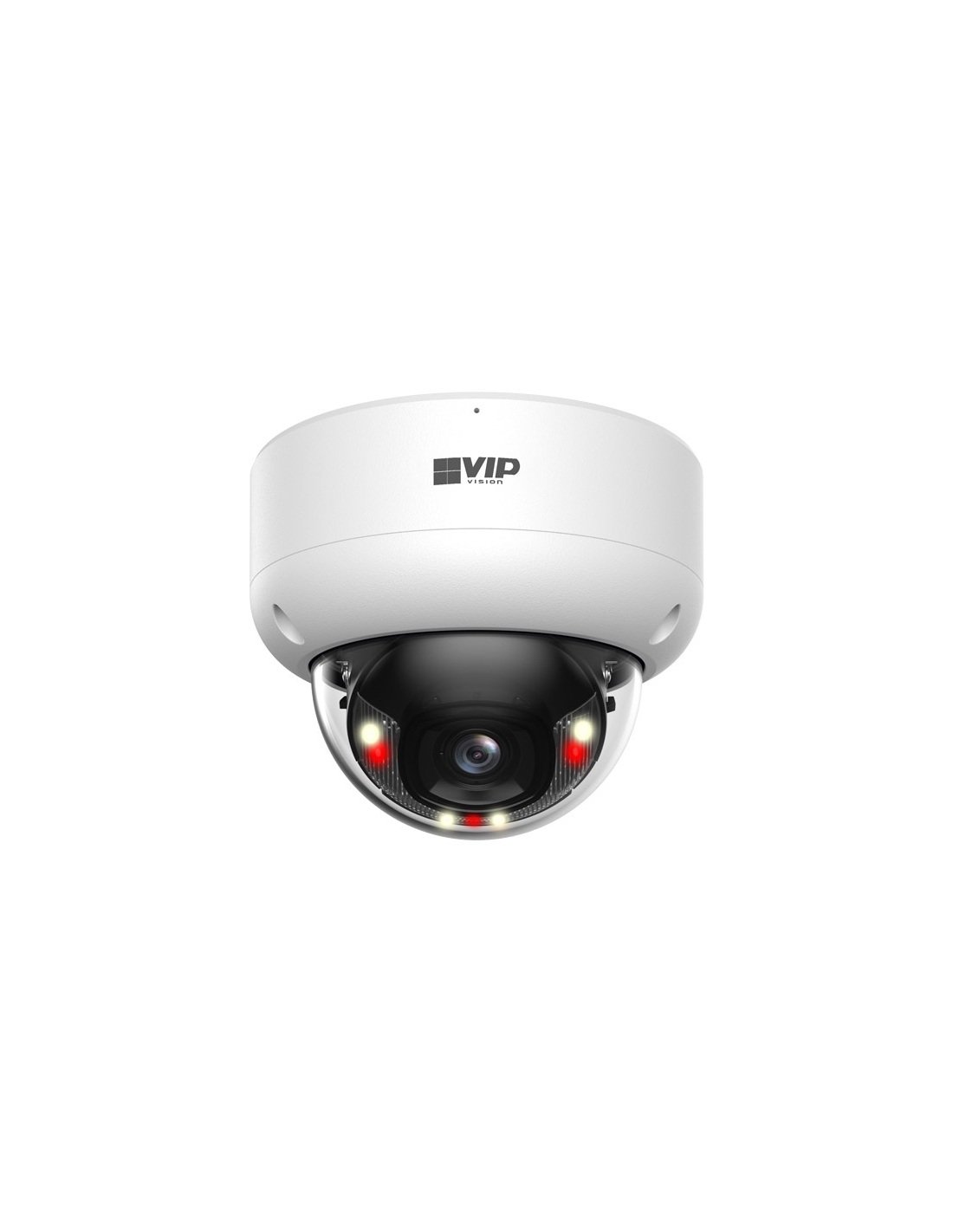

VIP Vision Professional AI Series 6MP Fixed IP Vandal Dome - VSIPP-6DIRD-I3

VSIPP-6DIRD-I3
In Stock - Ready to Ship
$ 215.00
inc-GST


• Stream up to 6.0MP (3288 x 1850) at 25fps
• 2.8mm fixed lens with 110° viewing angle
• Up to 30m infrared range; true day/night (auto ICR)
• Intelligent search across all Acupick cameras
• Warm LED light triggers on person/vehicle detection
• H.265 encoding for efficient storage & streaming
• MicroSD slot for recording at the edge up to 512GB
• AI powered perimeter protection & smart motion detecti

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



VIP Vision VSIPP-6DIRD-I3 | 6MP AI Fixed Vandal Dome IP Camera – 2.8 mm Lens, 30 m IR, IP67, IK10

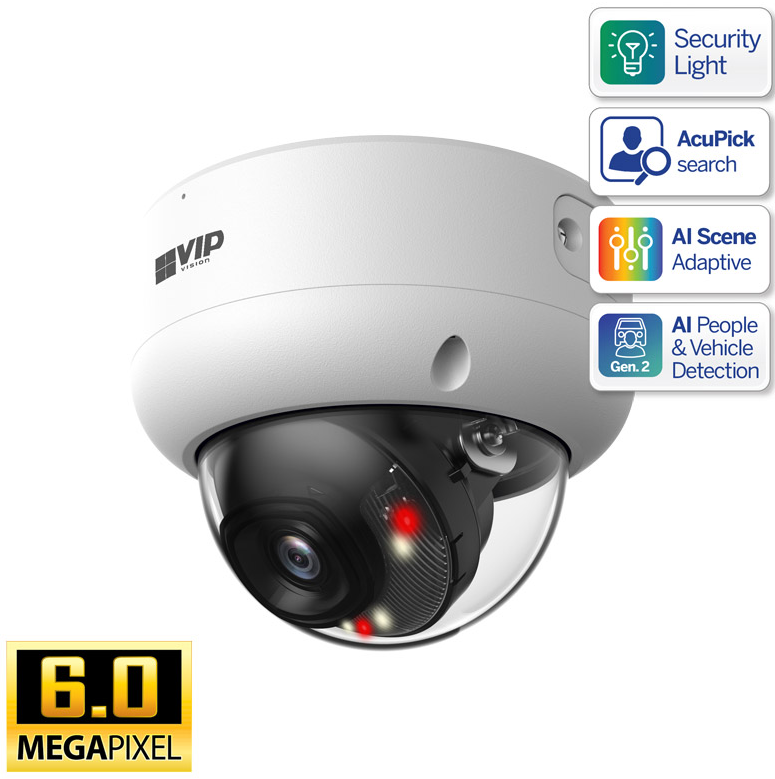

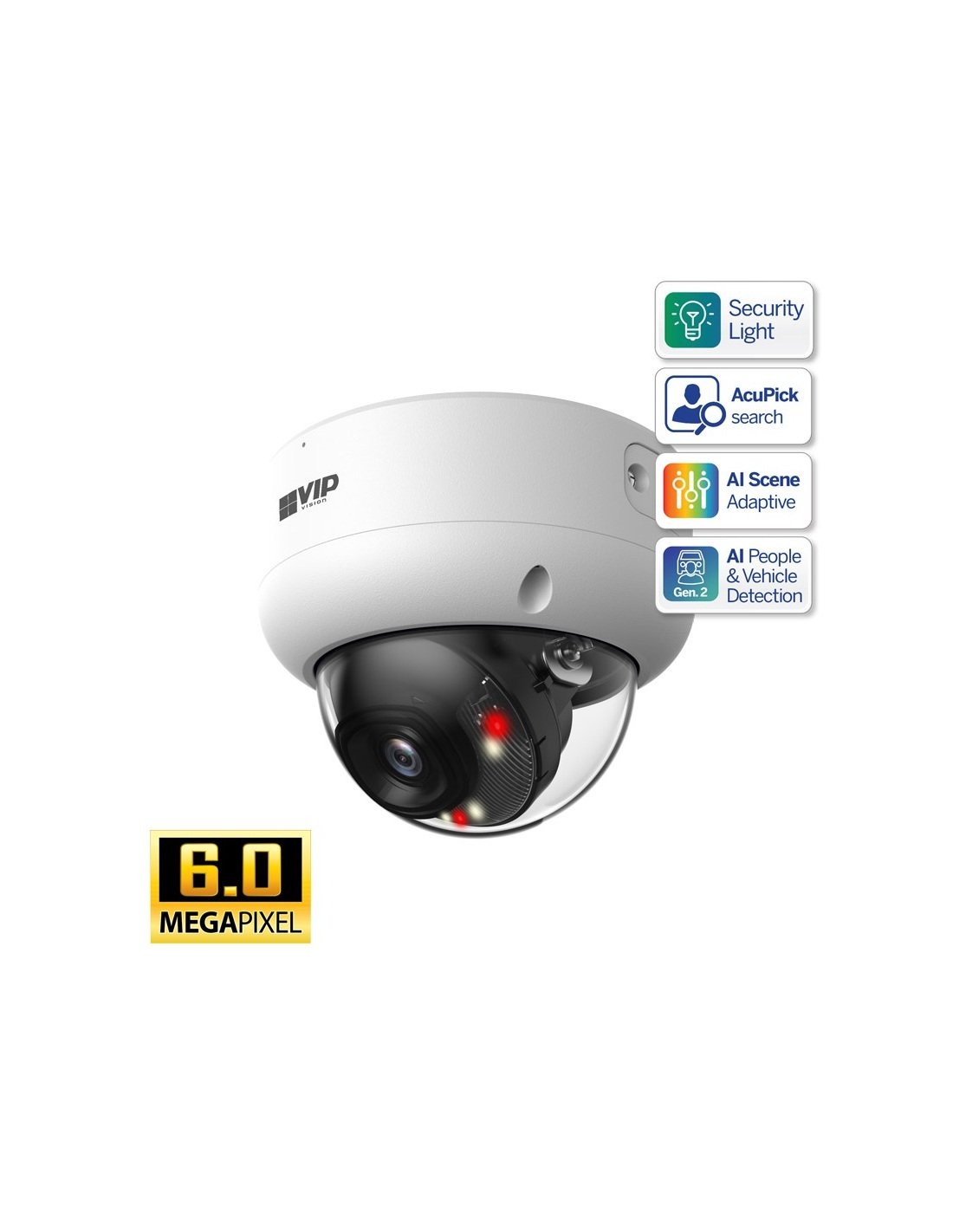

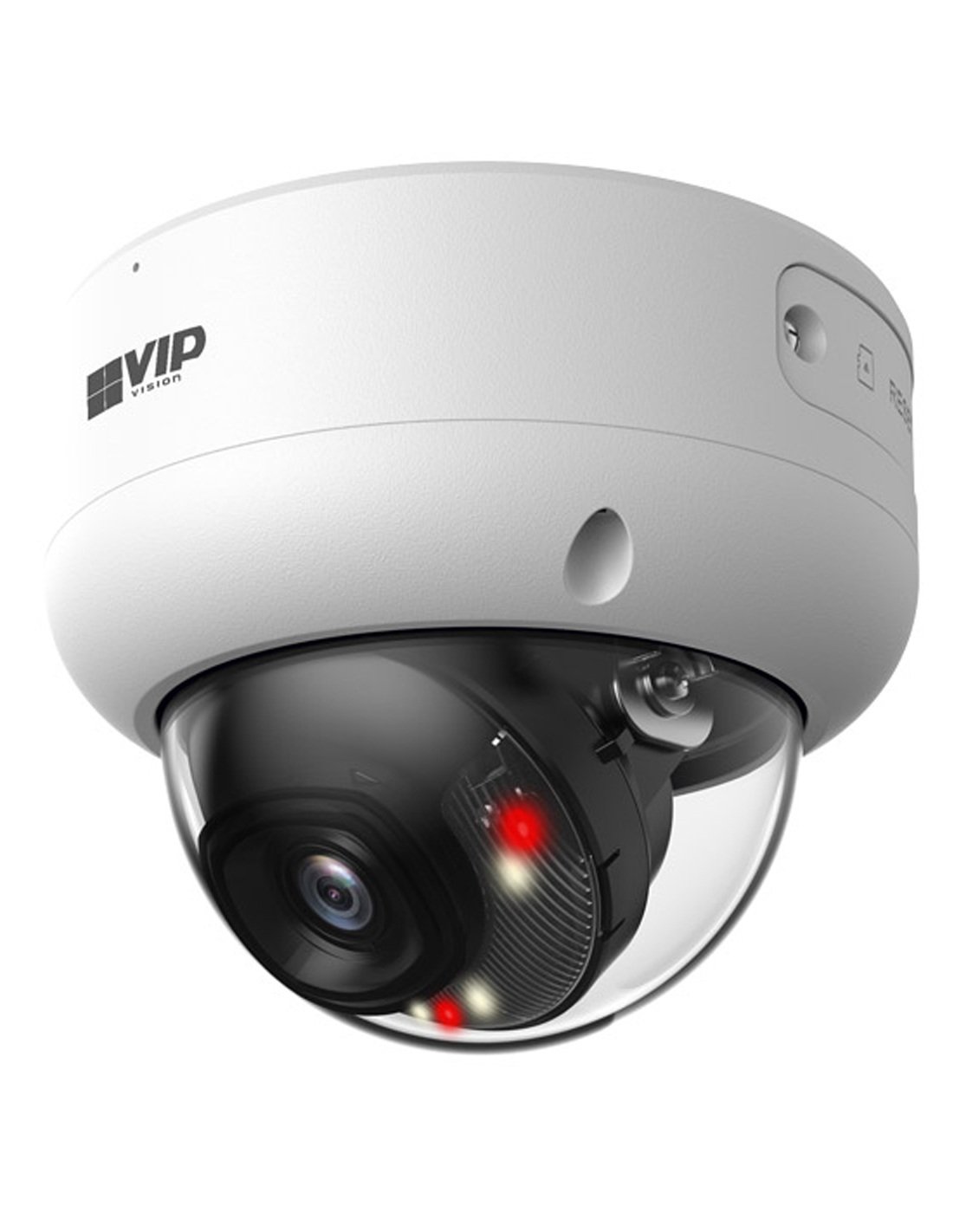

VIP Vision VSIPP-6DIRD-I3 6MP Fixed Vandal Dome Camera

The VIP Vision VSIPP-6DIRD-I3 is a high-resolution 6MP AI-powered vandal dome security camera offering clear, detailed surveillance in residential, commercial, and industrial environments. With a wide-angle 2.8 mm lens (~110° field of view), efficient 30 m infrared night vision, and an integrated warm LED deterrent, it ensures vibrant full-colour capture at night and proactively discourages intruders while recording crucial footage.

Equipped with cutting-edge AI features—such as Smart Motion Detection (SMD 4.0), human & vehicle classification, and perimeter protection—this camera minimizes false alarms and provides accurate, smart alerts. Use the AcuPick intelligent search to quickly locate people or vehicles across multiple cameras. Add edge recording with MicroSD (up to 512GB), robust IP67 weatherproofing, IK10 vandal-resistant metal housing, and flexible PoE or 12V DC power options, and you've got a comprehensive, easy-to-use surveillance solution.

Key Features

  • 6MP Ultra HD Resolution — 3288 × 1850 @ 25 fps for ultra-clear video.
  • Wide 2.8 mm Fixed Lens — Approximately 110° field of view.
  • 30 m IR Night Vision & Warm LED Deterrent — Clear night imaging with active deterrence.
  • Advanced AI Detection — SMD 4.0, human/vehicle detection, tripwire & intrusion alerts.
  • AcuPick Intelligent Search — Quickly find specific people or vehicles across compatible cameras.
  • Edge Storage — Supports MicroSD up to 512 GB for onboard recording.
  • Robust Construction — IP67 weatherproof and IK10 vandal-resistant metal housing.
  • Compression and Bandwidth Efficiency — Supports H.265/H.264/MJPEG with smart codecs for reduced storage use.
  • Integration Ready — ONVIF-compatible with support for PoE (802.3af) or 12V DC power.

Ideal Applications

  • Residential & Multi-Unit Housing — Secure backyards, driveways, entries, and common corridors.
  • Retail & Shopfronts — Oversee cash areas, entrances, corridors, and storage.
  • Commercial & Office Spaces — Monitor lobbies, reception zones, parking facilities, and shared areas.
  • Industrial & Warehousing — Keep watch over loading docks, storage aisles, and perimeter fencing.
  • Schools & Daycare Centers — Enhance facility safety in playgrounds, hallways, and entry points.
  • Hospitality & Public Venues — Monitor lobbies, dining areas, and outdoor walking paths efficiently.
  • Strata & Shared Facilities — Cover communal rooms, mail areas, and waste disposal zones.

Technical Specifications

  • Image Sensor: 1/2.7" 6.0 MP Progressive Scan CMOS
  • Resolution: 6.0 MP (3288 × 1850)
  • Lens: 2.8 mm fixed (~110° FOV)
  • IR & LED: 30 m IR range; 4× warm LED; auto/manual control
  • DORI Range: Detect: 85 m • Observe: 34 m • Recognise: 17 m • Identify: 8 m
  • WDR / Noise Reduction: 120 dB WDR; 3D DNR; AI SSA scene adaption
  • Compression: H.265 / H.264 / MJPEG & Smart codecs
  • Edge Storage: MicroSD up to 512 GB; NAS
  • Power: 12 V DC or PoE (802.3af)
  • Operating Conditions: –40 °C to +60 °C; ≤95% RH
  • Ingress/Vandal Rating: IP67 & IK10
  • Dimensions / Weight: Ø89 mm × 112 mm; 0.53 kg
  • Users: Up to 20 users (64 Mb bandwidth)
  • Warranty: 4 years

Upgrade your surveillance with the VIP Vision VSIPP-6DIRD-I3 — delivering unmatched 6 MP clarity, smart AI detection, rugged IK10 build, and effective warm-light deterrence for total peace of mind.

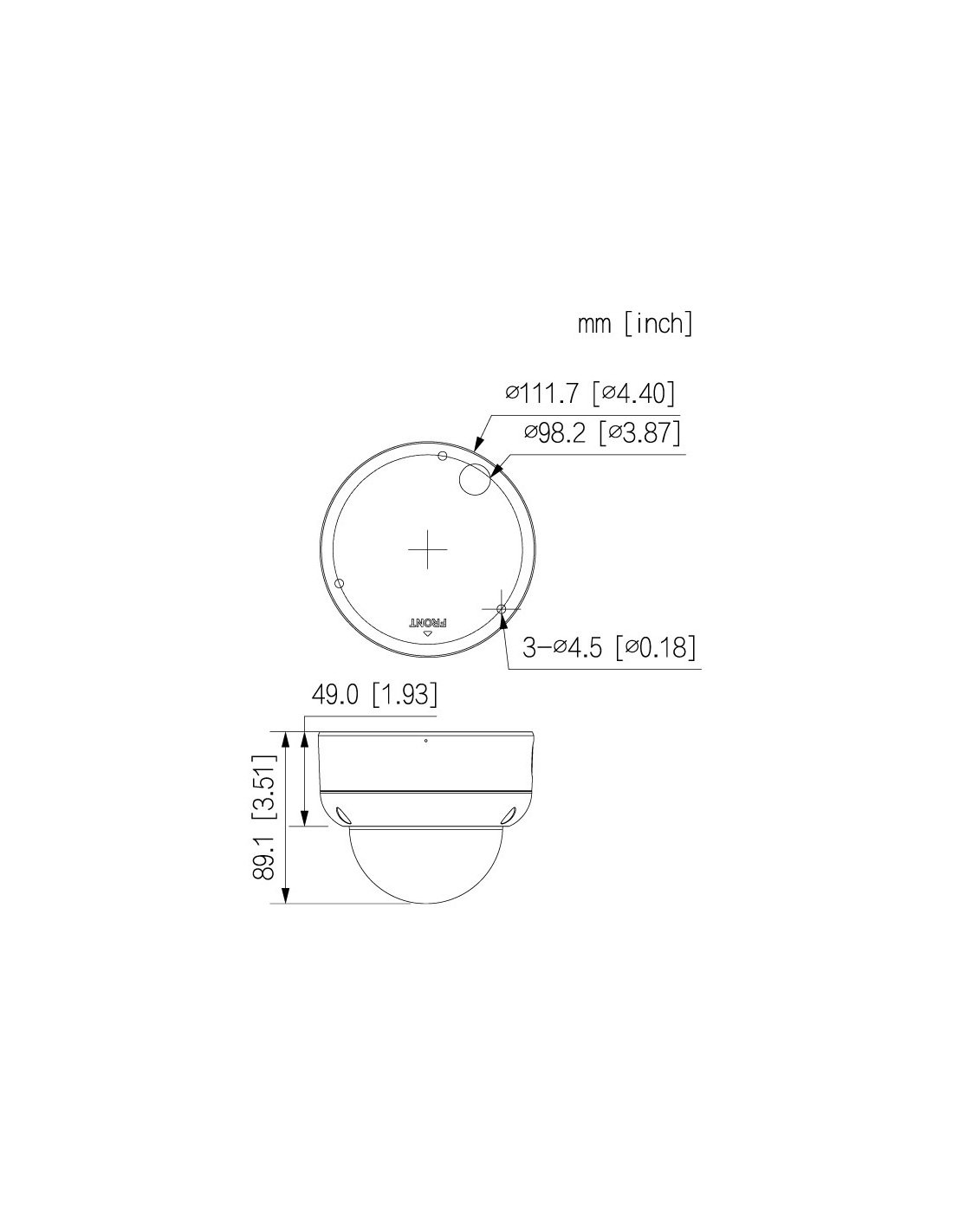

Dimensions
Ø89mm x 112mm
Ethernet
RJ-45 (10/100Base-T)
Housing
Metal
Net Weight
0.53kg
Operating Conditions
-40°C ~ +60°C / ≤95% RH
Power Supply
12VDC / PoE (802.3af)
Ingress Protection
IP67
Vandal Resistance
IK10
Bit Rate
H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
Frame Rate (Main)
6.0MP (1 ~ 25fps)
Frame Rate (Sub)
1080p (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Max. User Access
20 Users (Total bandwidth: 64MB)
Power Consumption
Video Compression
H.265 / H.264 / H.264H / H.264B / MJPEG / Smart H.265+ / Smart H.264+ / AI H.265 / AI H.264
Resolution
6.0MP (3288 x 1850) to CIF (352 x 288)
Series
Professional AI Series
Focus
Fixed / 1.4m Min. Focus Distance
Interoperability
ONVIF / P2P / CGI
Effective Pixels
3288 (H) × 1850 (V)
Image Sensor
1/2.7’’ 6.0MP Progressive Scan CMOS
RS485
N/A
Alarm Interface
1 channel in: 5mA 3-5VDC/ 1 channel out: 300mA 12VDC
Camera Type
Vandal Dome
Max. Resolution
6.0 Megapixel
Field of View
Horizontal: 110°, Vertical: 58°
Lighting Compensation
BLC / HLC / WDR (120dB) / AI SSA
Day/Night
Auto (ICR) / Color / B&W
Detect (25px/m)
85m
Gain Control
Auto/Manual
Identify (250px/m)
8m
Lens Type
Fixed
Noise Reduction
3D DNR
Observe (63px/m)
34m
Recognise (125px/m)
17m
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Built-in MIC / Audio Compression - G.711a; G.711Mu; PCM; G.726; G.723
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage
MicroSD Card (up to 512GB) / NAS
ePoE
No
Infrared System
2x warm LED light, 2 x Infrared LED, 30m range, Auto/manual on/off control
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
Lens / Iris
2.8mm F1.4 Fixed Lens
Min Illumination
0.005 Lux/F1.4 (Color), 0.0005 Lux/F1.4 (B/W), 0 lux (illuminator on)
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
RAM / ROM
1GB / 256MB
S/N Ratio
> 56dB
Smart Scene Adaptive (SSA)
Yes
Streaming Method
Multicast
Video Interface
N/A
Event Trigger
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Face Attributes
N/A
Face Detection
N/A
Heat Map
N/A
Intelligent Search
Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
People Counting
N/A
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
