LA-Series IP 6MP Fixed AI Turret PoE Camera Watchguard - VSIPL-6DIRG-I
- 6MP Streaming: Capture ultra-clear footage (3072 x 2048) at 20fps.
- Wide View: 2.8mm lens with a 111° horizontal angle.
- Night Vision: Infrared range up to 30m; true day/night functionality.
- Efficient Storage: H.265 encoding saves bandwidth and space.
- Built-in Audio: Includes a microphone and microSD edge recording.
- AI Detection: Accurate human/vehicle detection (6m/9m range).
- Smart Alerts: Configure AI detection and search footage by events.
- Enhanced Imaging: True WDR (120dB), backlight compensation, and noise reduction.
- Flexible Power Options: 12VDC or PoE (802.3af) support.
- Weatherproof Design: Durable IP67-rated metal housing for outdoor use.

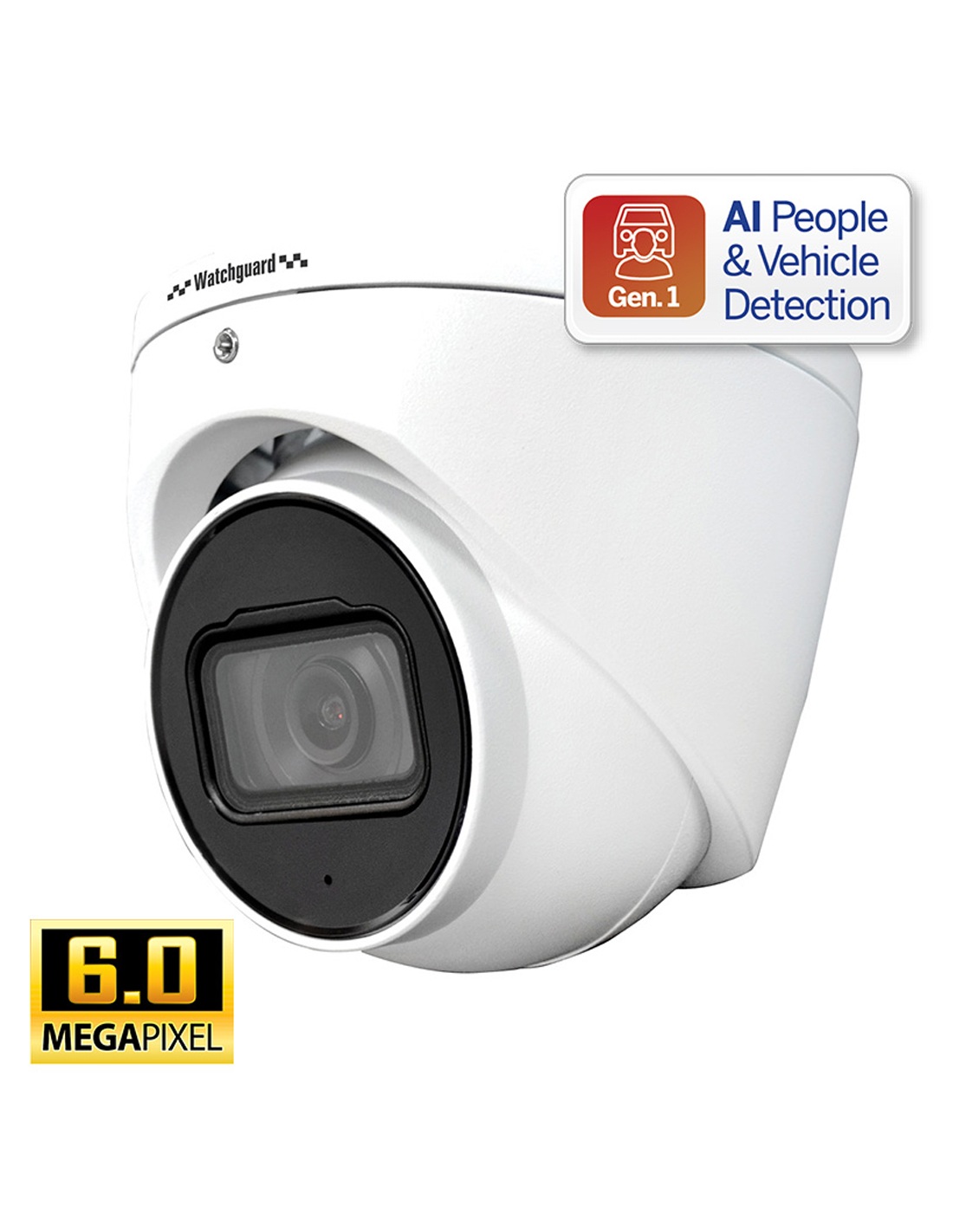

LA Series 6MP Fixed AI Turret Camera - Watchguard VSIPL-6DIRG-I
AI Detection | 6MP Ultra HD | 30m Night Vision | IP67 Weatherproof | Built-in Microphone
The LA Series 6MP Fixed AI Turret Camera (VSIPL-6DIRG-I) delivers premium surveillance with crystal-clear 6MP video, advanced AI detection, and reliable outdoor performance. Its compact turret design, wide-angle lens, and smart features make it ideal for securing entrances, homes, offices, and businesses with intelligent, accurate monitoring.
Key Features & Benefits
- 6MP Ultra HD Resolution — Capture highly detailed 3072 × 2048 video for precise identification and clarity.
- Wide 111° Horizontal Field of View — 2.8mm fixed lens provides broad coverage ideal for open spaces and entry points.
- 30m Infrared Night Vision — Maintain visibility in complete darkness with true day/night automatic IR cut filters.
- AI Human & Vehicle Detection — Smart alerts reduce false alarms by accurately detecting real threats.
- Built-in Microphone — Record audio alongside video for added situational awareness.
- Smart AI Filters — Quickly search and review AI-detected events for efficient incident management.
- True WDR & Image Enhancements — 120dB Wide Dynamic Range, backlight, and highlight compensation ensure balanced video in difficult lighting.
- H.265 Compression — Optimise storage space and bandwidth without sacrificing quality.
- Edge Recording — microSD slot allows for convenient local recording (card not included).
- IP67 Weatherproof Design — Durable metal housing built for reliable outdoor performance in all conditions.
- Flexible Power Options — Supports 12VDC or Power over Ethernet (802.3af) for simplified installation.
Real-World Applications
Home Entrances & Driveways — Deter intruders and monitor property boundaries with AI alerts and crystal-clear video.
Small Business Security — Protect retail spaces, offices, and warehouses with intelligent, easy-to-deploy monitoring.
Car Parks & Common Areas — Reliable day/night surveillance with wide coverage and audio recording capabilities.
Perimeter Protection — Robust weatherproof construction ideal for exposed outdoor installations.
Intelligent AI detection, superior image quality, and reliable outdoor performance — The Watchguard VSIPL-6DIRG-I is your ideal choice for modern, dependable surveillance.
Specifications
- Resolution: 6.0MP (3072 × 2048)
- Lens: 2.8mm fixed, 111° horizontal FOV
- Night Vision: 30m infrared with ICR
- AI Detection Range: Human up to 6m, Vehicle up to 9m
- Compression: H.265 / H.264
- Audio: Integrated microphone
- Local Storage: microSD slot (card not included)
- Weatherproof Rating: IP67
- Power: 12VDC or PoE (802.3af)
What’s in the Box
- 1 x Watchguard VSIPL-6DIRG-I 6MP Turret Camera
- Quick Installation Guide
Suggested Add-Ons
- Compatible NVR Models: NVR8COM, NVR8COM-I
- Ethernet Cabling: Cat5e or Cat6 for reliable PoE installation
- microSD Card: Optional for local edge recording

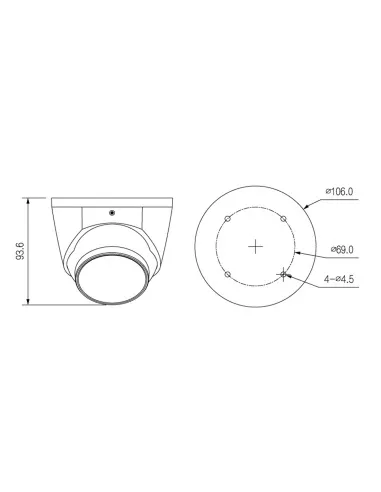

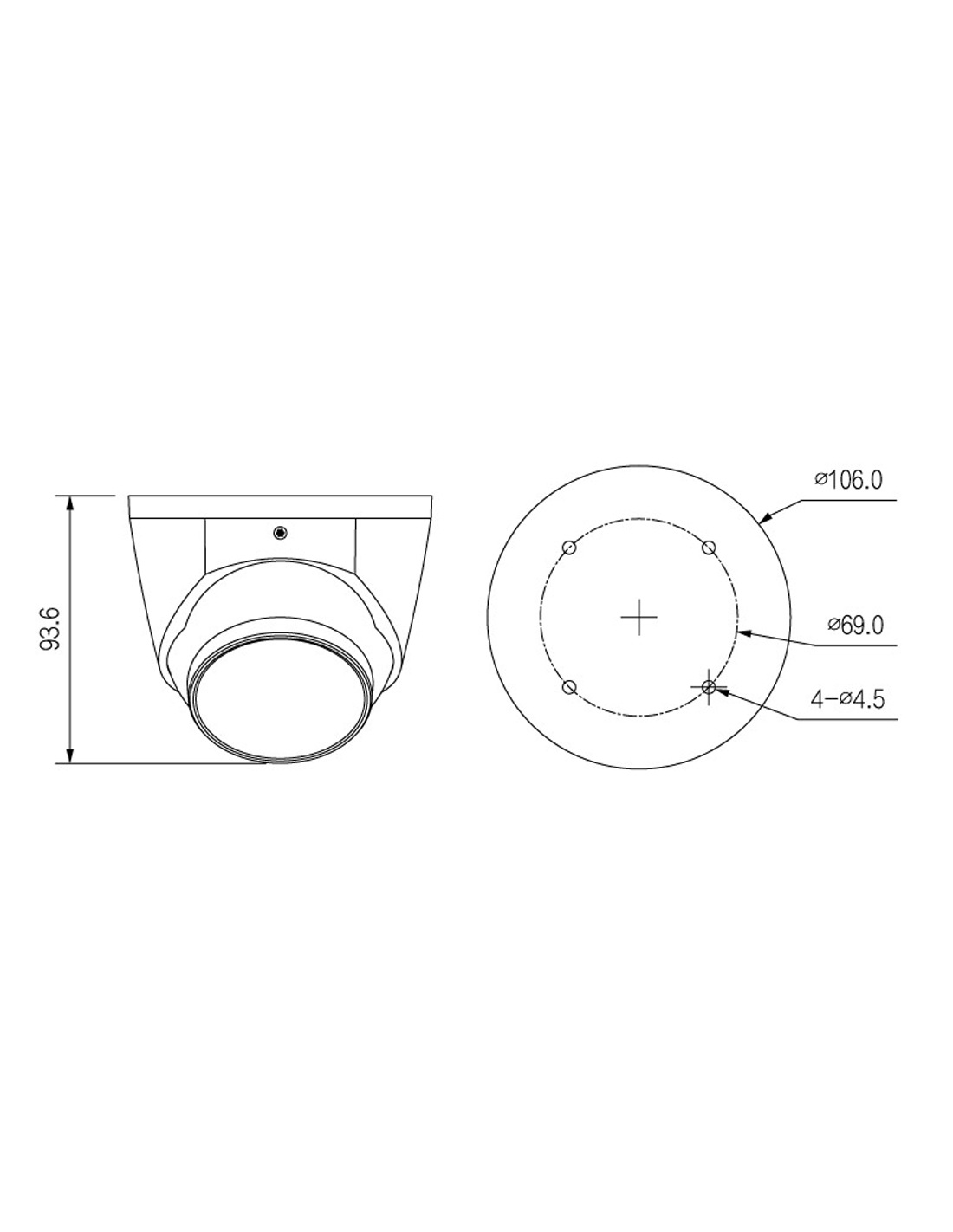

- Dimensions
- Ø106mm x 93.6mm
- Ethernet
- RJ-45 (10/100Base-T)
- Housing
- Metal
- Operating Conditions
- -40° ~ +60° C / Less than 95% RH
- Power Supply
- 12VDC / PoE (802.3af)
- Ingress Protection
- IP67
- Bit Rate
- H.264: 32kbps ~ 8192kbps / H.265: 12kbps ~ 8192kbps
- Frame Rate (Main)
- 6.0MP (1 ~ 20fps), 4.0MP (1~25fps)
- Frame Rate (Sub)
- D1 (1 ~ 25fps)
- Max. User Access
- 20 Users
- Video Compression
- H.265 / H.264 / H.264B / MJPEG
- Resolution
- 6.0MP (3072 x 2048) to CIF (352 x 288)
- Series
- LA Series
- Focus
- Fixed, 1.1m Close Focus Distance
- Interoperability
- ONVIF, CGI, P2P, Milestone, Genetec
- Effective Pixels
- 3072 (H) x 2048 (V)
- Image Sensor
- 1/2.7" 6.0MP Progressive Scan CMOS
- Camera Type
- Turret
- Max. Resolution
- 6.0 Megapixel
- Field of View
- Horizontal: 111°, Vertical: 58°
- Lighting Compensation
- HLC / BLC / WDR (120dB)
- Day/Night
- Auto (ICR) / Color / B&W
- Detect (25px/m)
- 63m
- Identify (250px/m)
- 6m
- Noise Reduction
- 3D DNR
- Recognise (125px/m)
- 12m
- White Balance
- Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
- Audio Interface
- Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; G.723; PCM
- Bit Rate Control
- Constant bit rate (CBR) / Variable bit rate (VBR)
- Edge Storage
- MicroSD Card (up to 256GB) / NAS / FTP/ SFTP
- Infrared System
- 1 x Infrared LED, 30m range, Auto/manual on/off control
- Intelligent Functions
- Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
- Lens / Iris
- 2.8mm F1.6 Lens
- Min Illumination
- 0.007 Lux/F1.6 (Color 1/3s-1)
- Pan/Tilt/Rotation
- Pan: 0° ~360 °; Tilt: 0° ~78°; Rotation: 0° ~360°
- Picture Control
- Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode)
- Protocol
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
- RAM / ROM
- 256MB / 128MB
- S/N Ratio
- > 56dB
- Streaming Method
- Unicast / Multicast
- Event Trigger
- Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
- Intelligent Search
- Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
- Perimeter Protection
- Tripwire & Intrusion (Add recognition of humans & vehicles)
