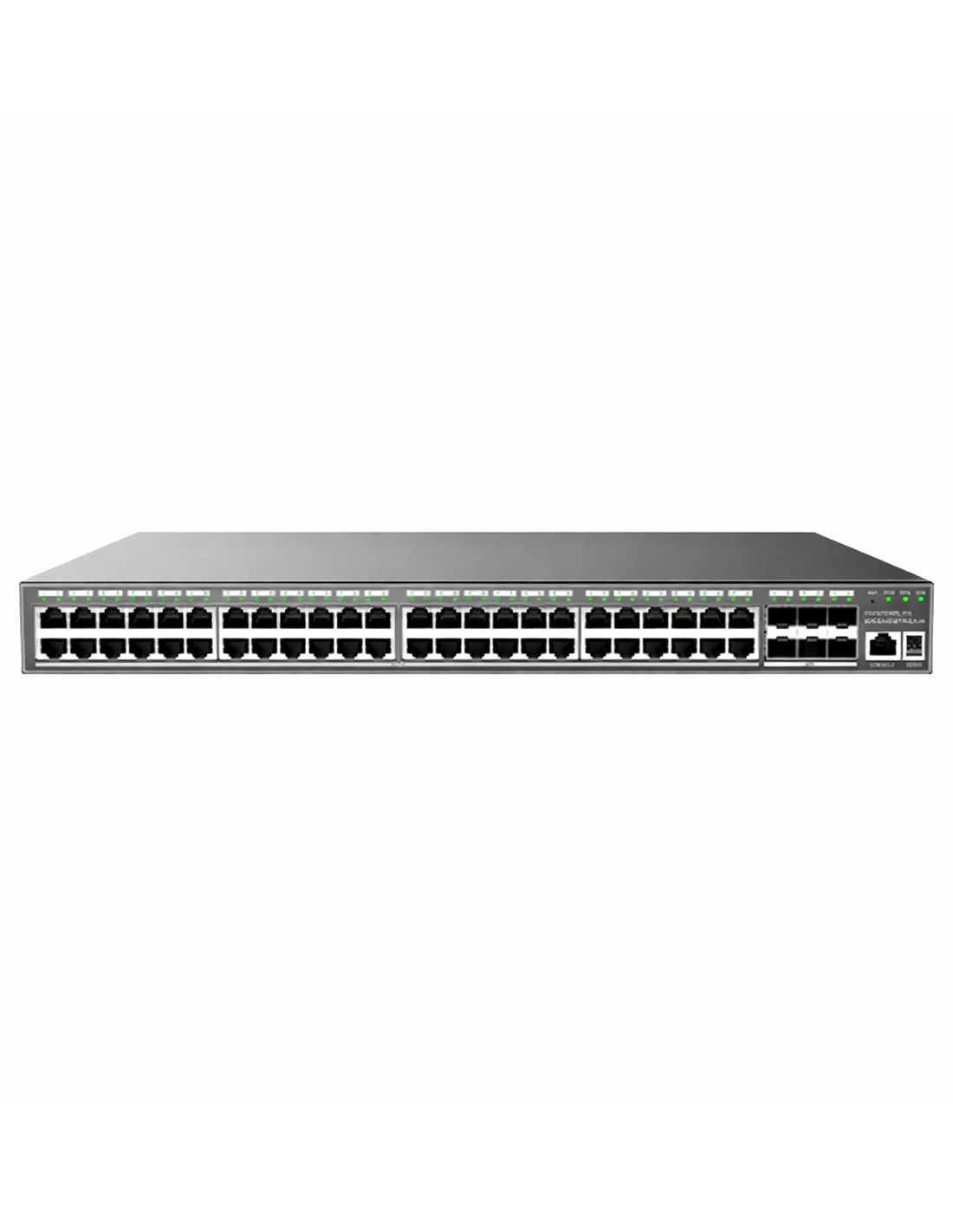

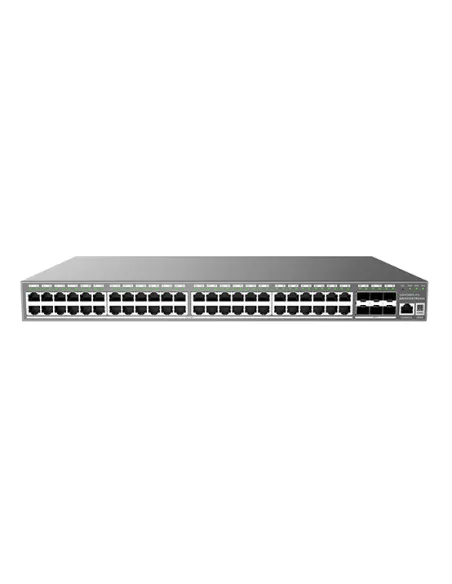

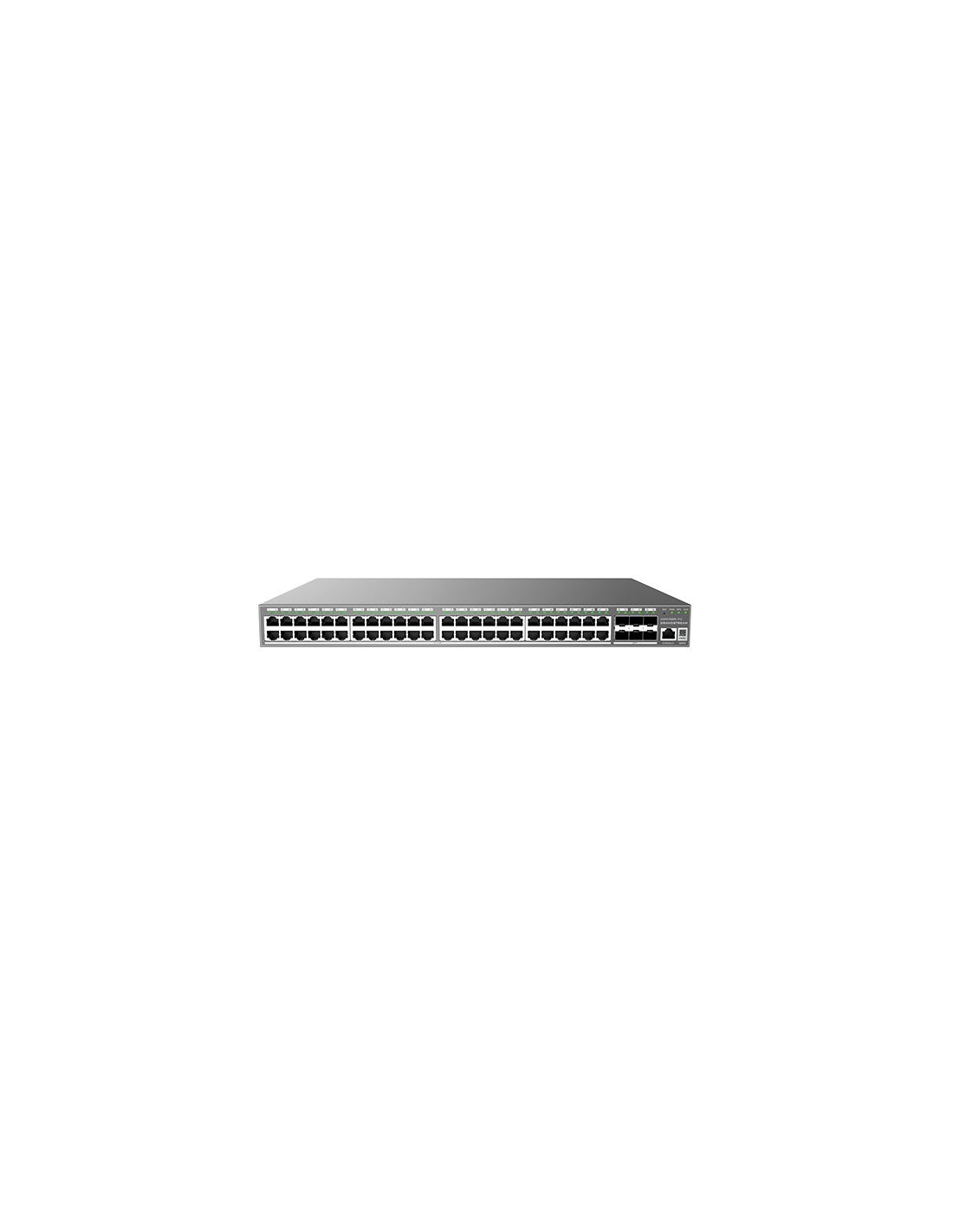

Grandstream 48-Port Layer 2++ Managed PoE+ Switch with 6× 10Gb SFP+ — GWN7806PL Pro (400W PoE Budget)
Model GR-GWN7806PLPRO
The Grandstream GR-GWN7806PLPRO (GWN7806PL Pro) is an enterprise-grade Layer 2++ managed network switch built for demanding SMB and enterprise edge networks that need high port density, strong segmentation, and secure switching. It combines 48× Gigabit Ethernet access ports with 6× 10Gb SFP+ uplinks for fast aggregation, plus a 400W PoE+ budget to power IP phones, Wi-Fi access points, and IP cameras from a single rack unit.
Designed for scalable deployments, the GWN7800 Pro platform adds advanced VLAN and QoS controls, multicast optimization features, and robust security protections—along with flexible management via local WebUI, cloud, software, or CLI.
Key Features & Benefits
- 48× Gigabit Ethernet ports for high-density access switching.
- 6× 10Gb SFP+ uplinks to enable high-speed aggregation and backbone connectivity.
- 400W PoE+ total power budget to run phones, APs, cameras and other PoE endpoints.
- Layer 2++ features with advanced VLAN tools for flexible traffic segmentation.
- Advanced QoS for prioritising voice, video and real-time business traffic.
- Multicast optimisation via IGMP/MLD snooping for improved network performance.
- Comprehensive security protections including ARP inspection, IP source guard, DHCP snooping, DoS protection and port security.
- Stacking support (up to 8 devices) for simplified scaling and management.
- Flexible management options: local WebUI (embedded controller), GDMS Networking (cloud), GWN Manager (software), routers integration and CLI.
- Rack-ready build with included rack-mounting hardware for clean installs.
High-port-density PoE+ with 10Gb uplinks.
Power edge devices with a 400W PoE budget while keeping uplinks fast and congestion-free with 6× 10Gb SFP+.
Real-World Applications
VoIP & Unified Communications — power IP phones and prioritise voice traffic with QoS and Voice VLAN capability.
Security & IP Surveillance — run PoE cameras and segment networks using VLANs and security protections.
Wi-Fi & Office Networks — power access points and connect to 10Gb aggregation/core using SFP+ uplinks.
SMB / Campus Edge Switching — scale cleanly with stacking support and centralized management options.
Quick Specs
| Switch Type |
Enterprise Layer 2++ Managed Network Switch |
| RJ45 Ports |
48× 10/100/1000 Mbps Gigabit Ethernet |
| Uplinks |
6× SFP+ (up to 10Gbps) |
| PoE Standards |
IEEE 802.3af / 802.3at (PoE+) |
| Total PoE Budget |
400W |
| Switching Capacity |
Up to 216 Gbps |
| Total Non-Blocking Throughput |
Up to 108 Gbps |
| Stacking |
Yes — up to 8 devices |
| Management Options |
WebUI (embedded), GDMS Networking (cloud), GWN Manager (on-prem), CLI |
| Mounting |
Desktop or Rack-Mount (rack-mount kits included) |
| Operating Temperature |
0°C to 45°C |
What’s in the Box
- 1× Grandstream GWN7806PL Pro (GR-GWN7806PLPRO) managed PoE+ switch
- Rack-mounting kits (hardware included)
- AC power cable
- Ground cable
- Rubber footpads (for desktop placement)
- Quick installation guide & regulatory documentation
Choose the GR-GWN7806PLPRO for high-density PoE+ access switching with 10Gb SFP+ uplinks—ideal for modern voice, Wi-Fi and security deployments.
