Grandstream 6-Port (5GE + 1 SFP) Outdoor L2 Lite Managed PoE Switch | IP66 Weatherproof - GR-GWN7710R

GR-GWN7710R
In stock
$ 278.00
inc-GST

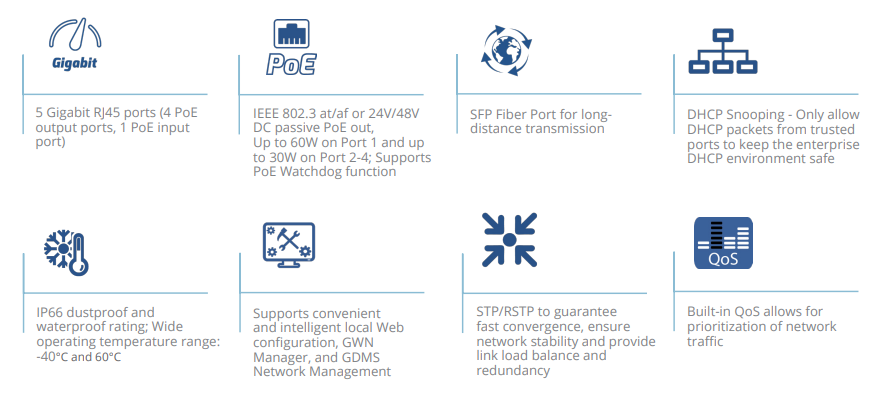

  • 6 Ports: 5 × Gigabit RJ45 (4 PoE Out + 1 PoE In) + 1 × SFP uplink
  • PoE Power: IEEE 802.3 at/af & 24/48 V DC passive PoE; 60 W (Port 1), 30 W (Ports 2–4) + PoE Watchdog
  • Outdoor Design: IP66 dust/waterproof; -40 °C to 60 °C operation
  • Network Security: DHCP Snooping for safe enterprise environments
  • Performance: STP/RSTP for redundancy and fast convergence
  • Traffic Control: Built-in QoS for traffic prioritization
  • Easy Management: Local Web UI, GWN Manager & GDMS support

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



GR‑GWN7710R | 6‑Port Outdoor L2 Lite Managed Switch • 5× GE (4× PoE‑Out + 1× PoE‑In) • 1× SFP • IP66

Rugged, weather‑sealed (IP66) managed PoE switch for outdoor deployments with PoE Watchdog, DHCP Snooping, STP/RSTP, and QoS.

The Grandstream GWN7710R is a 6‑port (5× Gigabit RJ45 + 1× SFP) outdoor L2 lite managed PoE switch built for harsh environments. Its IP66 waterproof/dustproof enclosure withstands rain, snow and temperature extremes from −40 °C to 60 °C. Four PoE output ports support IEEE 802.3af/at or 24 V/48 V passive PoE to power outdoor APs/cameras, while a dedicated PoE input port enables flexible powering. Intelligent features like PoE Watchdog, DHCP Snooping, STP/RSTP and built‑in QoS keep outdoor networks stable and responsive.

Grandstream GR‑GWN7672 Wi‑Fi 7 Tri‑Band Indoor Access Point

Grandstream GR‑GWN7672 Wi‑Fi 7 Tri‑Band Indoor Access Point

Why this Outdoor PoE Switch?

  • Outdoor‑ready IP66 — Sealed against dust and water for reliable open‑air installs.
  • Flexible PoE — 4× PoE‑Out ports with 802.3af/at or 24/48 V passive PoE; PoE‑In port for feeding the switch from an injector.
  • Power where you need it — Up to 60 W on Port 1 and 30 W on Ports 2–4 (device/PSU dependent).
  • SFP uplink — Fiber backhaul for long‑distance connectivity.
  • Self‑healing edgePoE Watchdog auto‑restarts unresponsive devices.
  • Hardened switchingDHCP Snooping, STP/RSTP for fast convergence and loop protection.
  • Traffic priority — Built‑in QoS to prioritise video, voice and critical data.
  • Simple management — Local Web UI, GWN Manager (on‑prem) or GDMS Networking (cloud).

Ideal Applications

  • Outdoor Wi‑Fi access points (parks, campuses, stadiums)
  • Security cameras and perimeter devices at gates, carparks and warehouses
  • Remote poles and enclosures needing fiber uplink and PoE power distribution

Power planning tips:

  • Confirm the PoE budget of your injector/PSU to ensure enough wattage for all powered devices.
  • Use outdoor‑rated cables/glands; maintain drip loops and weather seals for IP66 integrity.
  • When using passive 24/48 V, verify end‑device compatibility to avoid damage.

Technical Details — GR‑GWN7710R

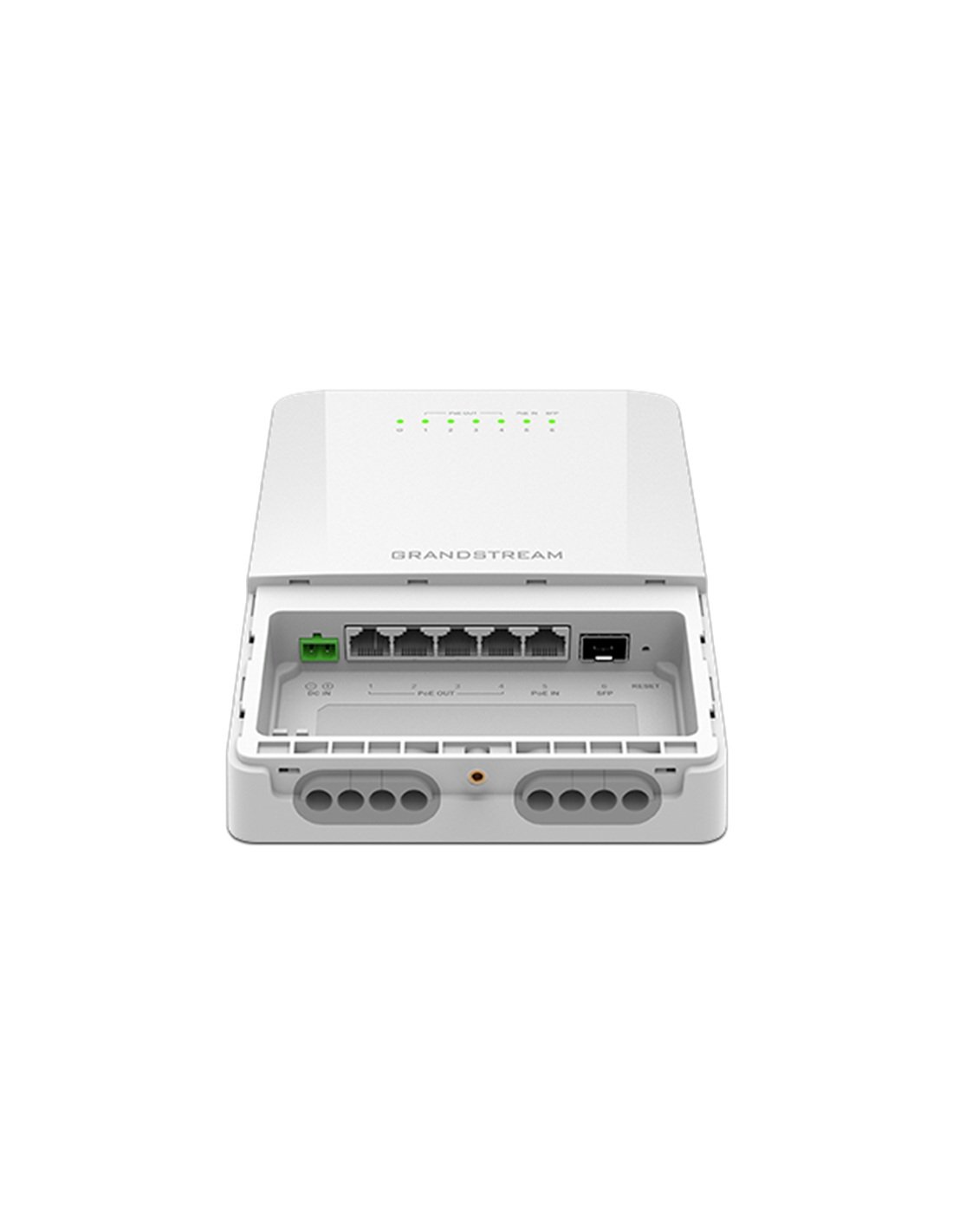

  • Ports: 5× Gigabit RJ45 (4× PoE‑Out, 1× PoE‑In) • 1× SFP (fiber uplink)
  • PoE Output: IEEE 802.3af/at or 24/48 V DC passive • Up to 60 W on Port 1 • Up to 30 W on Ports 2–4
  • Managed Features: L2 lite switching • PoE WatchdogDHCP SnoopingSTP/RSTPQoS
  • Enclosure Rating: IP66 dustproof/waterproof; outdoor‑rated
  • Operating Temperature: −40 °C to 60 °C
  • Management: Local Web configuration • GWN Manager (on‑prem) • GDMS Networking (cloud)

Deploy with confidence. Need help sizing PoE budget or fiber modules? Contact Sales for a tailored bill of materials.

Specs based on provided feature list; verify against the current Grandstream datasheet for your exact region and firmware.
