Hikvision KIS101-P 2 Wire Intercom Kit, HD DS-KIS101-P-S

Hikvision KIS101-P 2 Wire Intercom Kit, HD Analogue Surface Mount

Name: Hikvision KIS101-P 2 Wire Intercom Kit, HD Analogue Surface Mount
Brand: HIKVision Australia
SKU: DS-KIS101-P-S
Price: 240 AUD
Availability: InStock

Reference DS-KIS101-P-S

In Stock - Ready to Ship

$ 240.00

inc-GST

Surface mounting 2-wire plug & play analog video intercom bundle
Receive video call and unlock via indoor station
One-touch nametag calling for easier calls
Higher protection level: IP65 & IK07
2 lock relays, power supply for one electric lock (Up to 12 V 1 A)
Power adapter included in the package (European Standard)

Hikvision KIS101-P 2 Wire Intercom Kit, HD Analogue Surface Mount

DS-KIS101-P-S

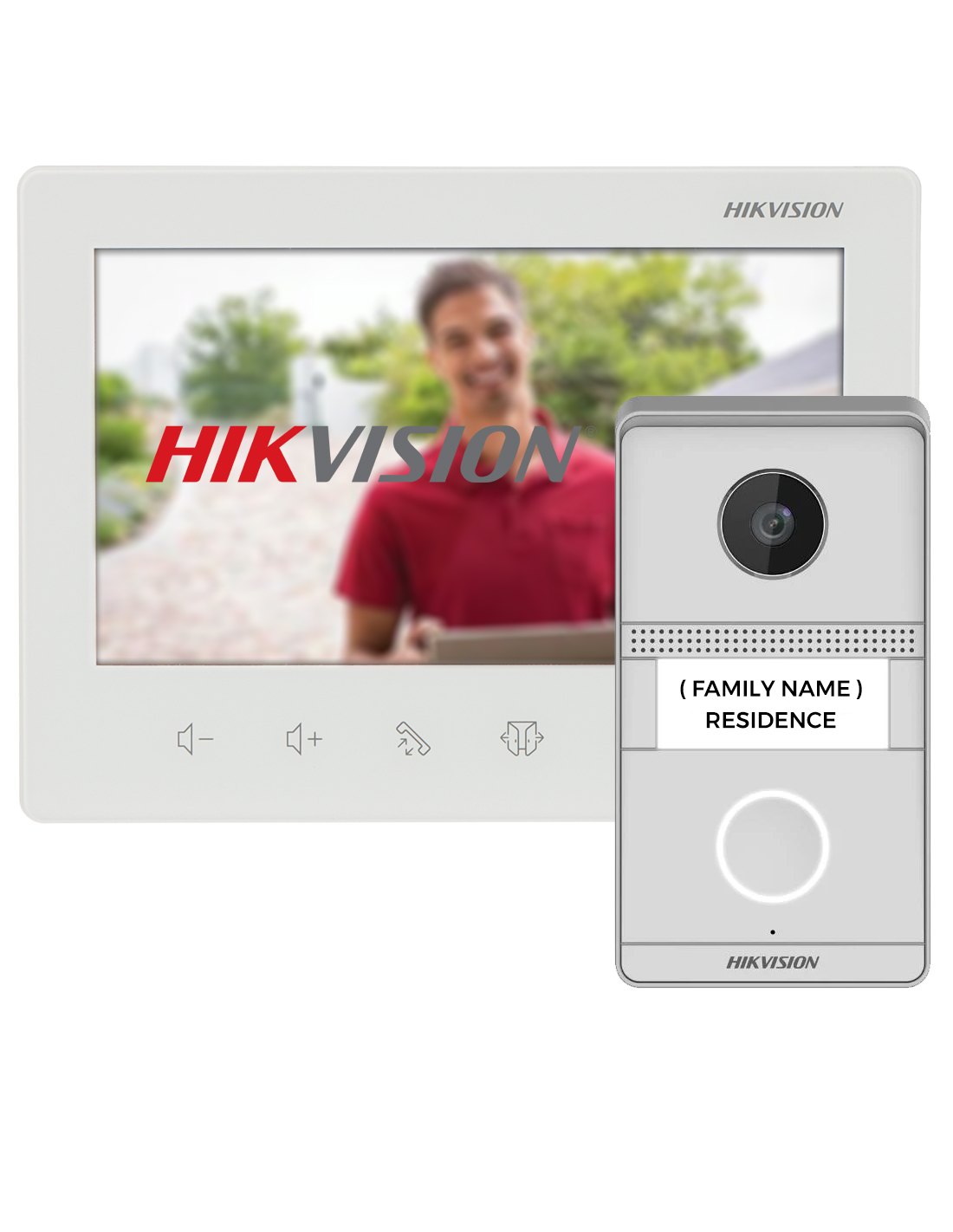

The Hikvision DS-KIS101-P/Surface is a 2-wire analog video intercom kit designed for straightforward installation and reliable performance. This system is ideal for residential and small business applications, offering clear communication and enhanced security.

Key Features:

Plug & Play Installation: Utilizes a 2-wire system for both power and data transmission, simplifying setup and reducing installation costs.
High-Resolution Display: Features a 7-inch TFT non-touch screen with a resolution of 1024 × 600, providing clear and detailed visuals.
HD Camera: Equipped with a 2 MP HD camera offering a 100° horizontal and 69° vertical field of view, ensuring comprehensive coverage.
Durable Design: Rated IP65 for water resistance and IK07 for vandal resistance, making it suitable for various environmental conditions.
Convenient Communication: Supports one-touch nametag calling and allows video calls and door unlocking via the indoor station.

Specifications:

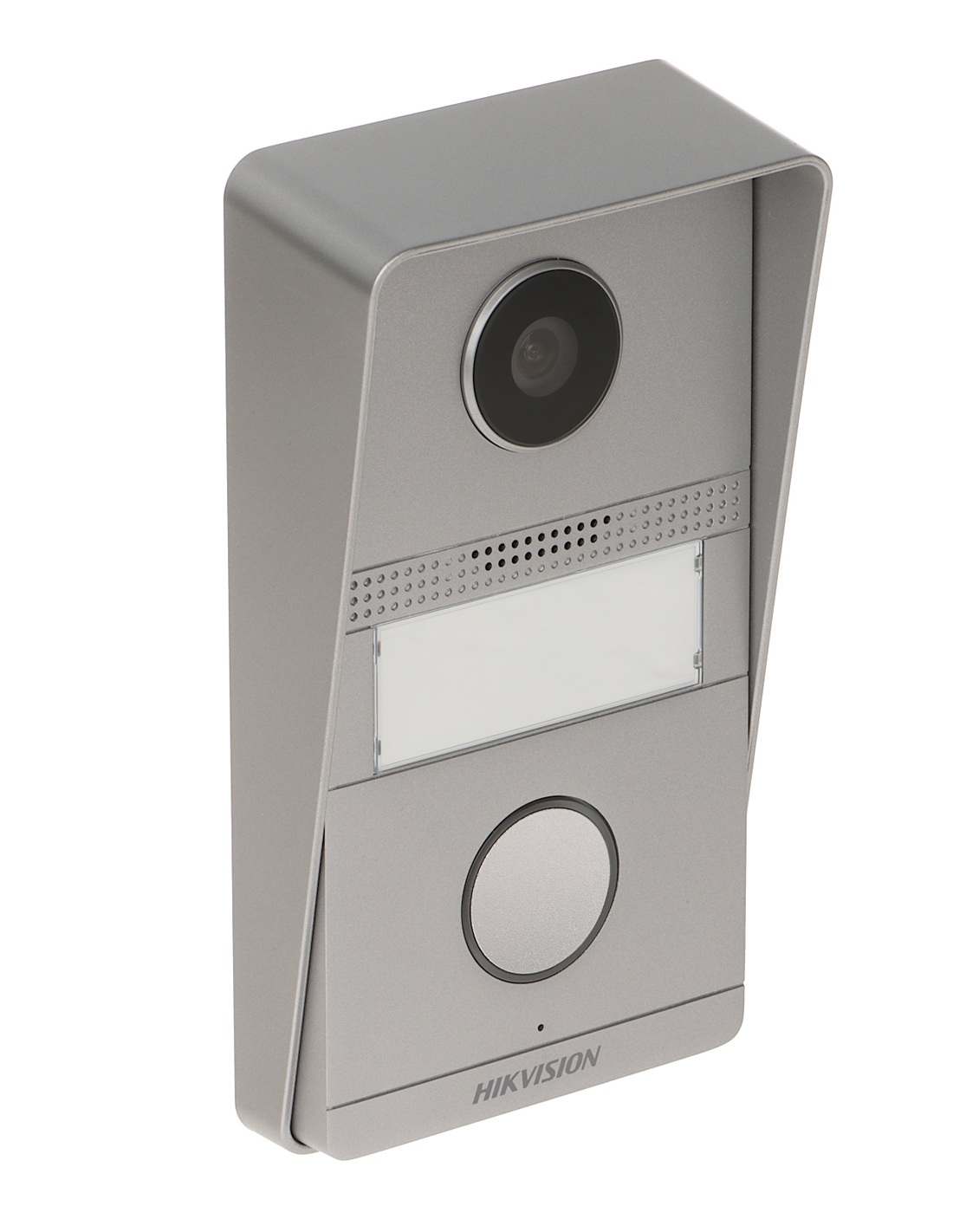

Outdoor Station (DS-KV1101-ME2/Surface):
- Camera: 2 MP HD with white light supplement.
- Field of View: Horizontal: 100°, Vertical: 69°.
- Audio: Built-in omnidirectional microphone and loudspeaker.
- Interfaces:
  - 4 alarm inputs.
  - 2 exit button inputs.
  - 2 lock control outputs (supports up to 12 V 1 A).
  - 2 door contact inputs.
- Power Supply for Lock: 1 output, Max. 12 V 1 A.
- Installation: Surface mounting with protective shield.
- Dimensions: 150 mm × 82 mm × 23.5 mm.

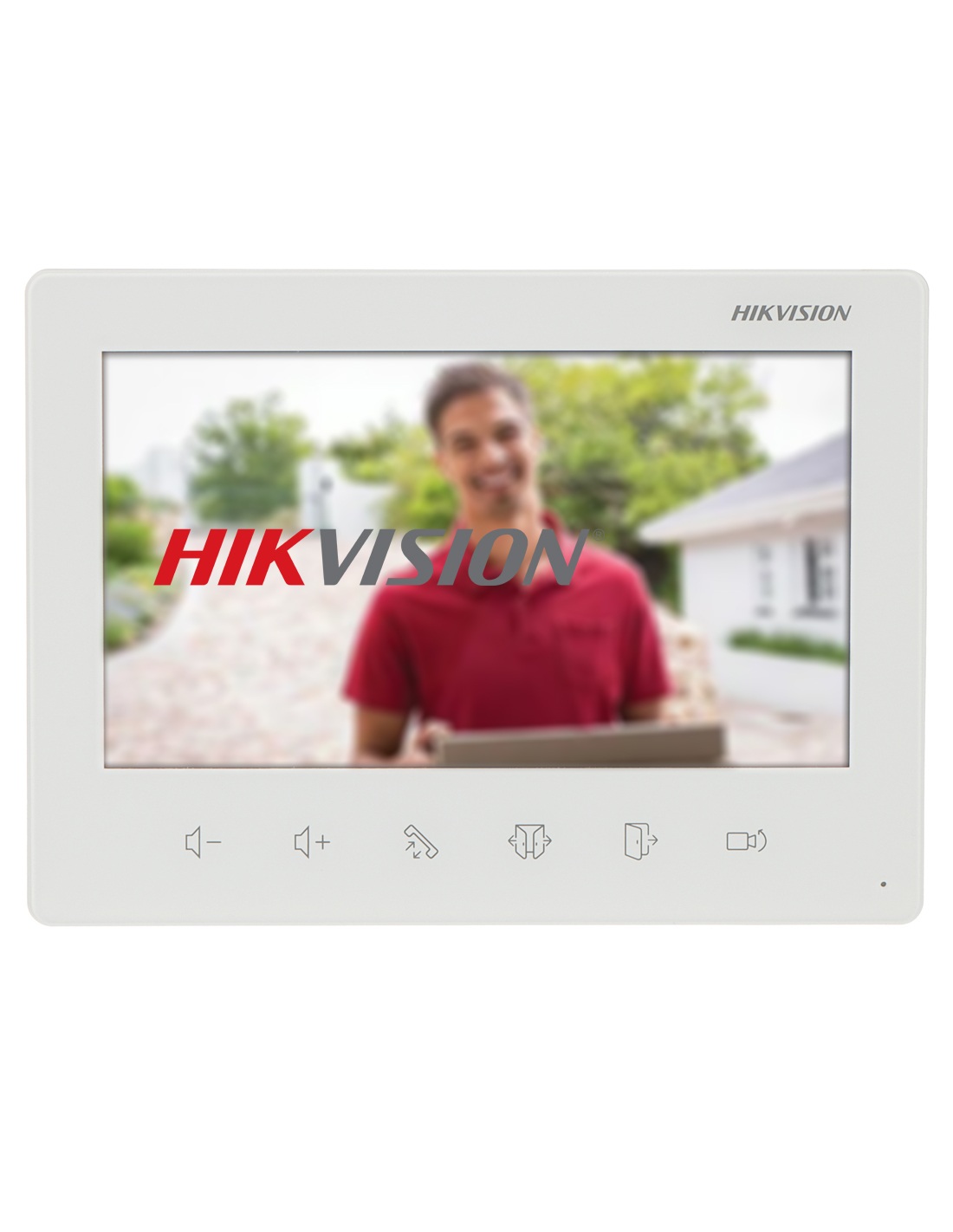

Indoor Station (DS-KH1200):
- Display: 7-inch TFT non-touch screen, 1024 × 600 resolution.
- Operation: 6 touch buttons.
- Audio: Built-in omnidirectional microphone and loudspeaker.
- Interfaces: 3 two-wire inputs (2 for outdoor stations, 1 for monitor), 1 analog camera input.
- Installation: Surface mounting.
- Dimensions: 187 mm × 137 mm × 25.4 mm.

Package Contents:

1 × Outdoor Station (DS-KV1101-ME2/Surface)
1 × Indoor Station (DS-KH1200)
1 × 48 V DC Power Supply

Warranty:

This product comes with a 3-year manufacturer warranty, ensuring peace of mind and reliable performance.

Dimensions: 150 mm 82 mm 23.5 mm (5.91" 3.23" 0.93")
Power Supply: 48 VDC, 0.5 A
Type: Colorful TFT screen
Volume: Adjustable via touch-button
Power Consumption: 12 W
Resolution: 2MP
Audio Input: Built-in omnidirectional microphone
Audio Output: Built-in loudspeaker (More than 80 dB within 20 cm)
Installation: Surface mounting with protective shield
Working Temperature: -30 C to +60 C (-22 F to 140 F)
Lens: Low Illumination 2 MP HD IR Camera
Alarm Input: 4
Working Humidity: 10% to 90%
Button: 1
WDR: Support
FOV: Horizontal: 100, Vertical: 69
Supplement light: White light supplement
Volume adjustment: Adjustable with screwdriver
Two-Wire: 1
TAMPER: 1
Exit button: 2
Lock control: 2 (lock duration adjustable via DIP switch, max 7 s)
Door contact input: 2
Power supply for lock: 1 (Max. 12 V, 1 A)
Debugging port: 1
Protective level: IP65, IK7
Application environment: Outdoor
Size: 7-inch TFT non-touch screen
Operation method: 6 touch buttons
Operation System (Door Station): Embedded analog operation system
Operation System (Indoor Station): Embedded analog operation system
Resolution (Indoor Station): 1024 600
Audio Input (Indoor Station): Built-in omnidirectional microphone
Audio Output (Indoor Station): Built-in loudspeaker (More than 80 dB within 20 cm)
Two-wire (Indoor Station): 3
Power Supply (Indoor Station): 48 VDC
Power Consumption (Indoor Station): 5 W
Working Temperature (Indoor Station): -10 C to 50 C (14 F to 122 F)
Working Humidity (Indoor Station): 10% to 90%
Dimensions (Indoor Station): 187 mm 137 mm 25.4 mm (7.36" 5.39" 1.00")
Installation (Indoor Station): Surface mounting
Button (Indoor Station): 6
