Hikvision KIS302-P Hybrid Intercom Kit, 4 Wire DS-KIS302-P

Hikvision KIS302-P Hybrid Intercom Kit, 4 Wire Door & 4-Wire/IP/WiFi Room with PSU

Name: Hikvision KIS302-P Hybrid Intercom Kit, 4 Wire Door & 4-Wire/IP/WiFi Room with PSU
Brand: HIKVision Australia
SKU: DS-KIS302-P
Price: 335 AUD
Availability: InStock

Reference DS-KIS302-P

In Stock - Ready to Ship

$ 335.00

inc-GST

Hybrid Technology – Supports both analog and IP video intercom protocols
7-Inch Colour Touchscreen Monitor – High-resolution 1024 x 600 display
Analog Door Station – With 2 MP HD camera and night vision capability
Remote Access via Hik-Connect App – Monitor and talk from anywhere
Easy Installation – 2-wire connection and no external power needed for doorbell
Expandable System – Add more indoor or outdoor stations as needed
Built-In Microphone and Speaker – Crystal-clear two-way audio communication
Sleek, Modern Design – Fits any home or office aesthetic

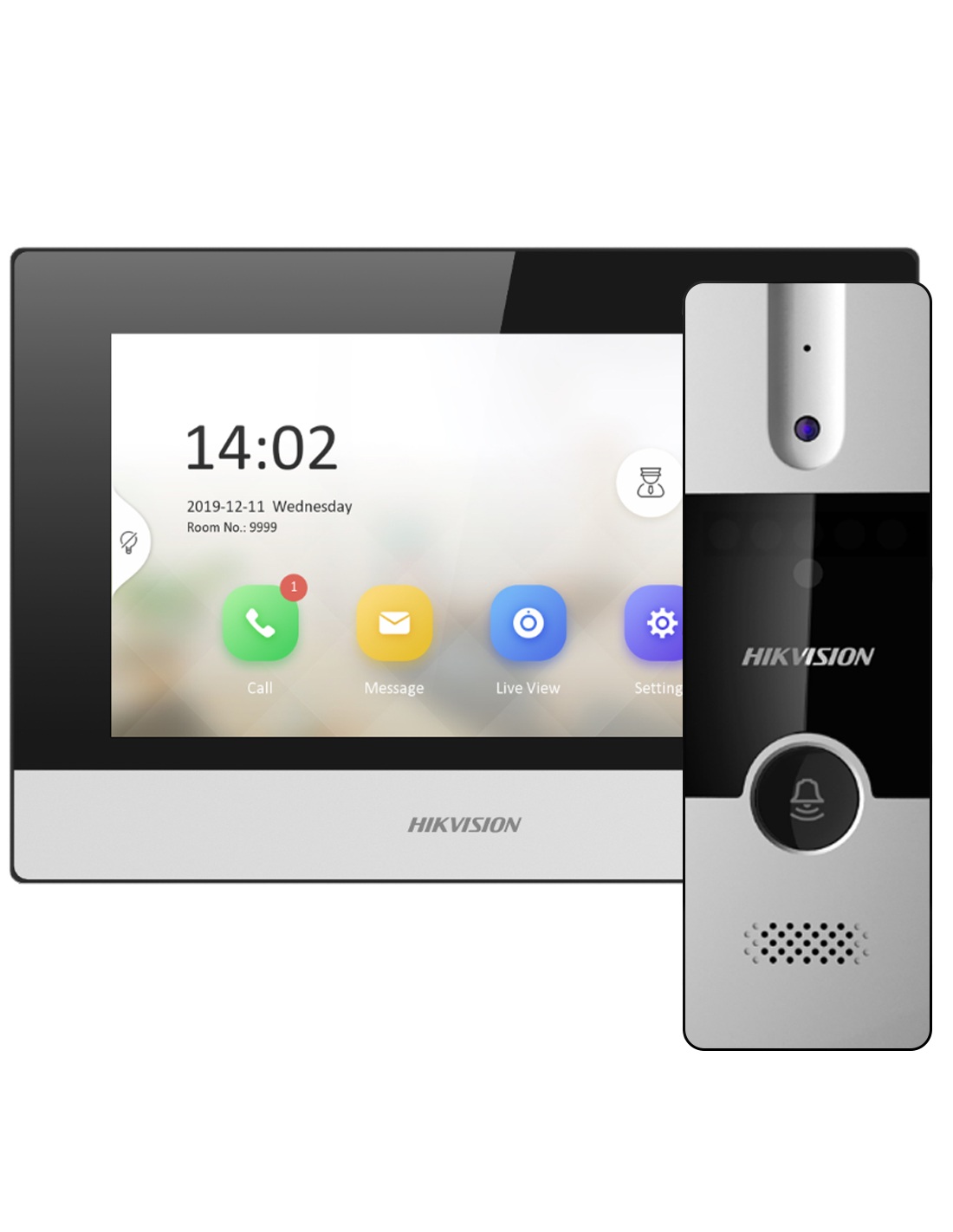

Hikvision DS-KIS302-P Hybrid Intercom Kit

7" Touchscreen | 2MP Door Station | WiFi/IP/4-Wire Support

Australia’s Trusted Source for Hikvision Intercom Kits

The Hikvision DS-KIS302-P Hybrid Video Intercom Kit is a versatile solution for residential and small business security, combining IP and analog connections in one powerful kit. With a 7-inch touchscreen monitor and a 2MP HD door station, stay connected and secure from anywhere using the Hik-Connect app.

Key Features

Hybrid Technology: Supports both analog and IP video protocols.
7-Inch Touchscreen Monitor: High-resolution 1024 × 600 display.
2MP Door Station: HD camera with night vision and two-way audio.
Remote Access via Hik-Connect App: Monitor and talk from anywhere.
Expandable System: Add more indoor or outdoor stations as needed.
Easy Installation: 2-wire connection; no external power needed for the doorbell.
Built-In Microphone & Speaker: Crystal-clear two-way communication.
Sleek, Modern Design: Blends seamlessly with any decor.

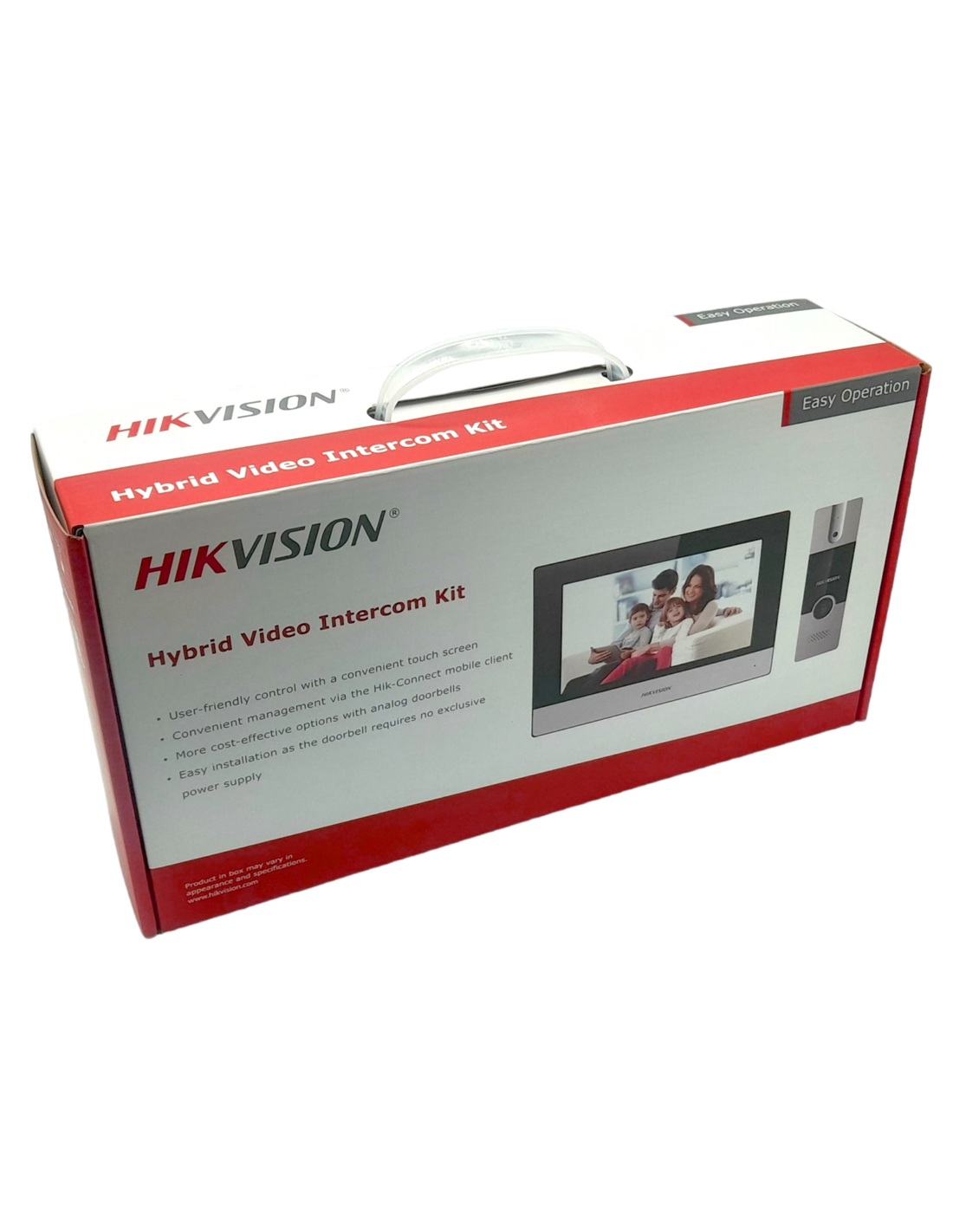

What’s in the Box?

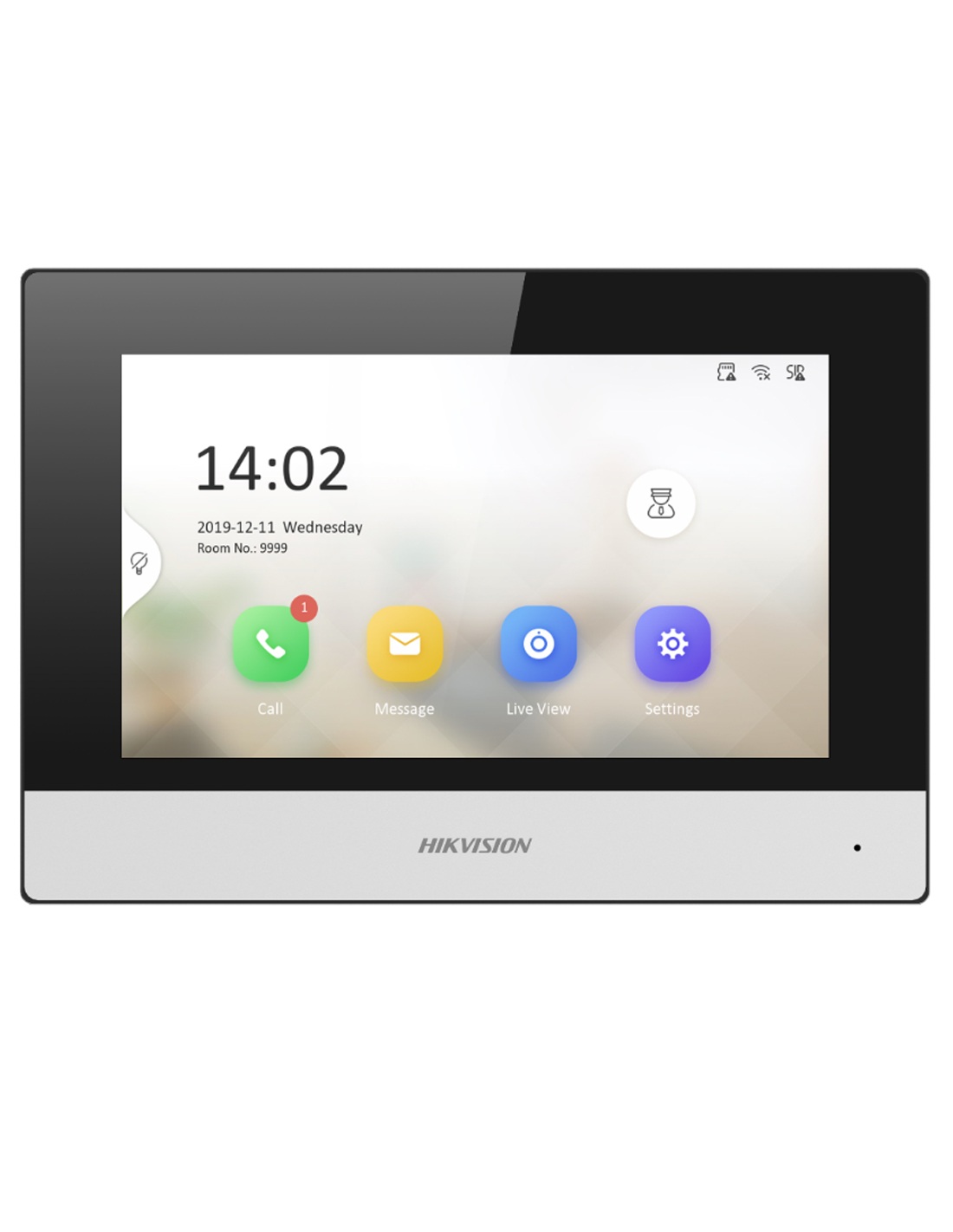

1 x DS-KH2220 Indoor Station (7” Touchscreen Monitor)

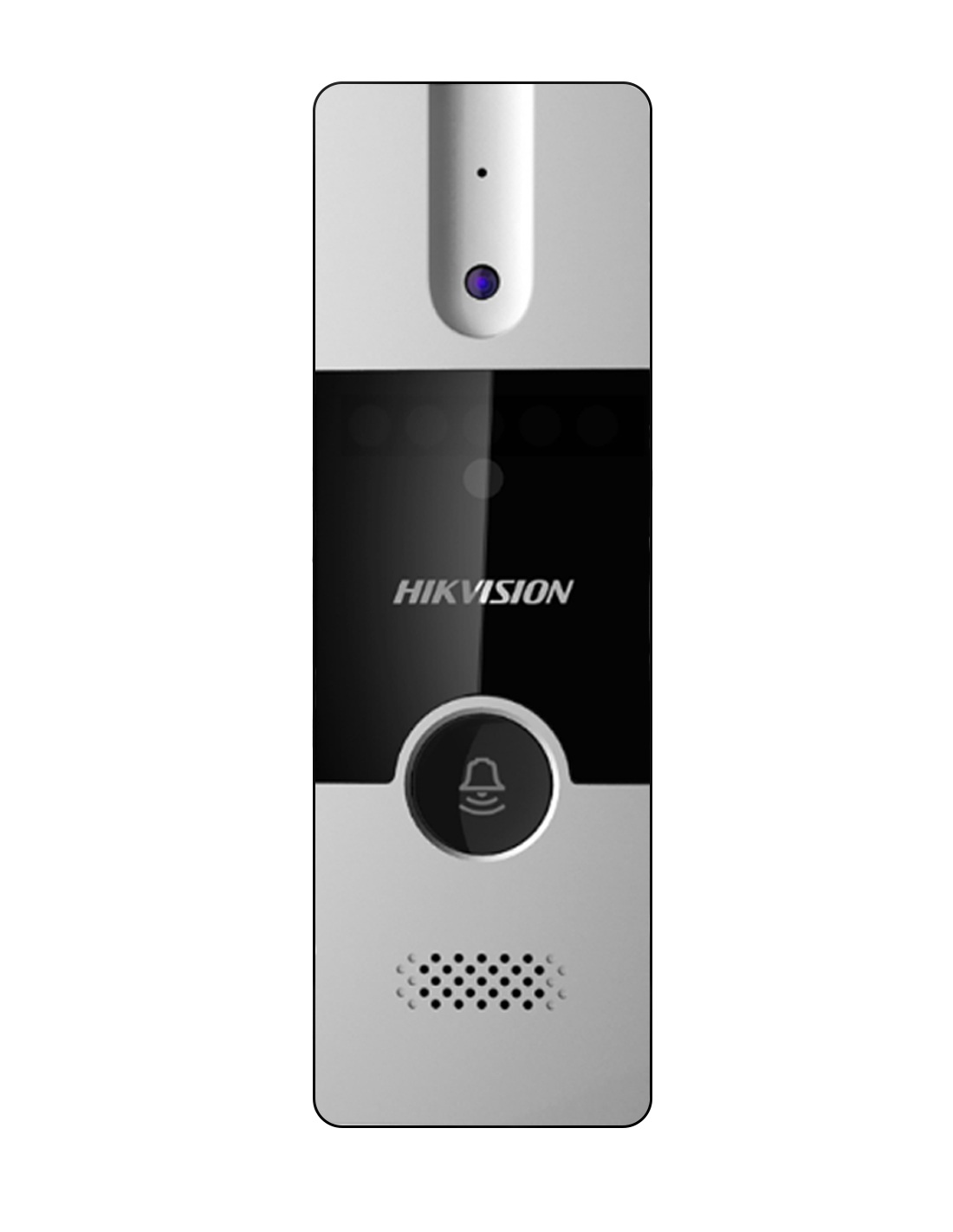

1 x DS-KB2421-IM Analog Door Station (2MP Camera)
1 x Power Supply
Mounting Accessories
User Manual & Quick Start Guide

Ideal For:

Residential Homes – Monitor front doors and entry gates.
Small Business Entry Points – Secure reception areas and gates.
Apartments & Villas – Convenient, central communication hub.
Front Gates – View, talk, and unlock doors remotely.

Technical Specifications

Component	Specifications
Indoor Station	7-inch TFT LCD Touchscreen
Resolution	1024 × 600
Door Station Camera	2MP, 720p, IR Night Vision
Audio	Built-in Mic & Speaker with Echo Cancellation
Power	12V DC (Included Power Adapter)
Network Access	Compatible with Hik-Connect App
Working Temperature	-10°C to +55°C

Why Buy From InFront Technologies?

✔ 100% Genuine Australian Stock
✔ Fast & Secure Shipping
✔ Expert Customer Support

Upgrade your entry security with the Hikvision DS-KIS302-P Intercom Kit – Trusted, Reliable, and Scalable.

Type: Video Intercom Kit

Category	Specification
Door station / Video parameters
Resolution	1920 x 1080
FOV	Horizontal: 66.2° Vertical: 37.2°
Door station / Audio parameters
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Door station / Device interfaces
I/O Output	1 relay output
Four-wire	1 for 4-wire interface
Door station / General
Power Supply	12 VDC
Power Consumption	Max. 5 W
Working Temperature	-10° C to 55° C (14° F to 131° F)
Working Humidity	10% to 90%
Dimensions	135.14 mm × 49.6 mm × 41.93 mm (5.32" × 1.95" × 1.65")
Indoor station / System parameters
Operation System	Embedded Linux operation system
RAM	128 MB
ROM	32 MB
Indoor station / Display parameters
Size	7-inch colorful TFT screen
Operation Method	Capacitive touch screen
Type	Colorful TFT screen
Resolution	1024 × 600
Indoor station / Video parameter
Resolution	/
Lens	/
WDR	/
FOV	/
Indoor station / Audio parameters
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Audio Compression Rate	64 Kps
Audio Compression Standard	G.711 U / G.711 A
Volume Adjustment	Adjustable
Audio Quality	Noise suppression and echo cancellation
Indoor station / Capacity parameters
Linked IPC Capacity	16
Notice Capacity	200
Linked Indoor Extensions Capacity	16
Linked Doorphone Capacity	2 analog doorphones, 15 IP doorphones Max.
Indoor station / Network parameters
Wired Network	10/100 Mbps self-adaptive
Wi-Fi	Wi-Fi 802.11 b/g/n
3G/4G	/
Bluetooth	/
Protocol	TCP/IP, SIP, RTSP
Indoor station / Device interfaces
Network Interface	1 RJ-45 10/100 Mbps self-adaptive
RS-485	1
Alarm Input	2-ch alarm inputs
Alarm Output	2
Power Input	1, 12 VDC
Four-wire Interface	2
TF Card	Max 128 G, SD 2.0 or lower version
USB Interface	/
Indoor station / General
Button	0
Power Supply	IEEE802.3af, Standard PoE, 12V DC
Power Consumption	≤ 6 W
Working Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Working Humidity	10% to 90%
Dimensions (W × H × D)	187 mm × 137 mm × 25.4 mm (7.36" × 5.39" × 1.00")
Installation	Surface mounting
Button	6
