7" Touchscreen | 2MP Fisheye Camera | IP65 | PoE-Powered

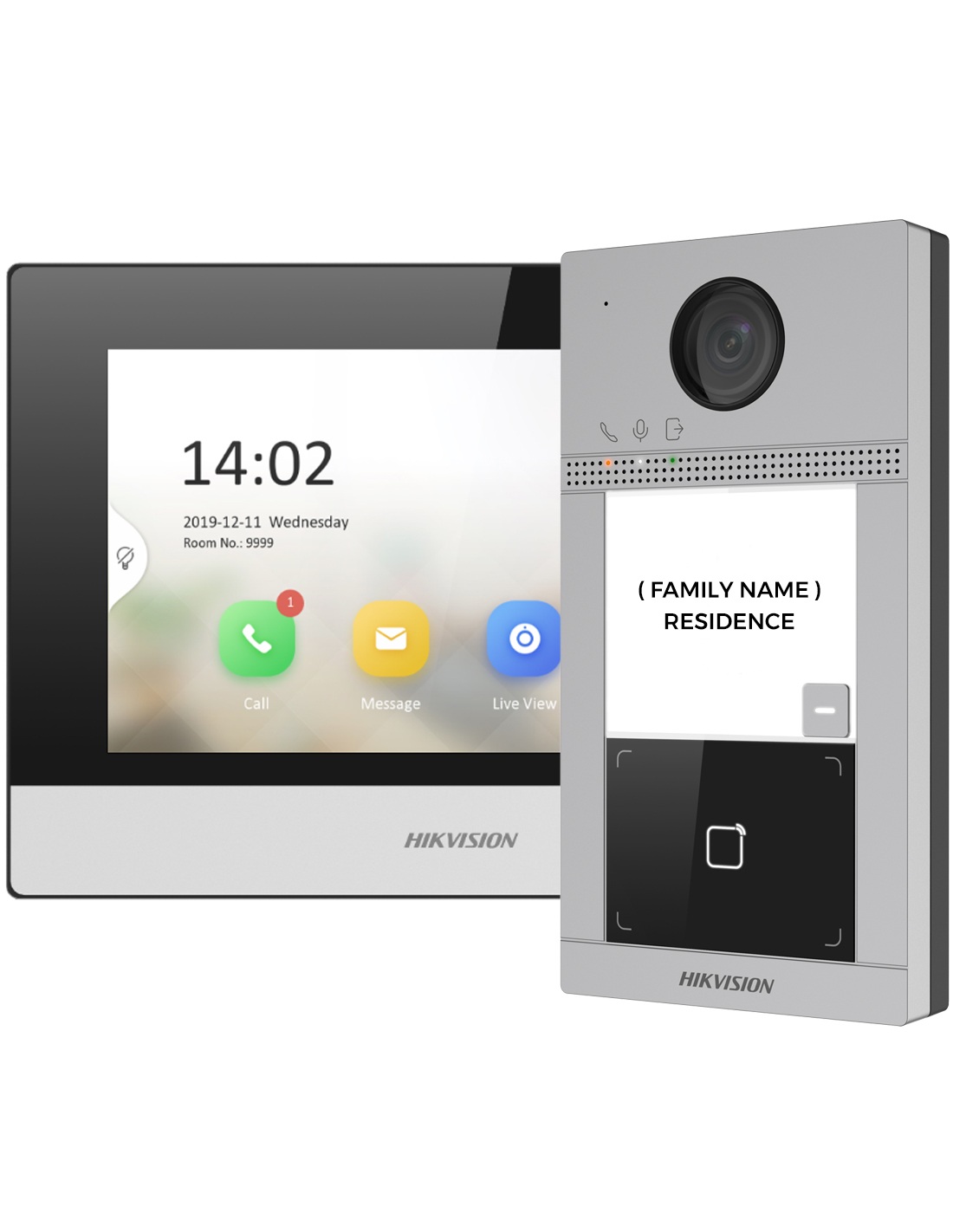

The Hikvision DS-KIS604-P(C) delivers a modern IP video intercom solution for homes and small businesses. This all-in-one kit includes a 7” touchscreen indoor monitor, a 2MP fisheye camera outdoor station, and a PoE distributor for seamless power and data transmission.
| Component | Specifications |
|---|---|
| Indoor Monitor | 7" Capacitive Touchscreen, 1024 × 600 resolution |
| Camera (Outdoor Station) | 2MP Fisheye Lens, IR Night Vision, Wide Field of View |
| Audio | Built-in Microphone & Speaker with Echo Cancellation |
| Connectivity | 2-Wire IP via DS-KAD704Y-S Distributor |
| Power Supply | PoE Powered via distributor |
| Weatherproof Rating | IP65 (Outdoor Station) |
| Operating Temperature | -40°C to +60°C |
This product includes a 3-year manufacturer warranty for complete peace of mind.
| Category | Specification |
|---|---|

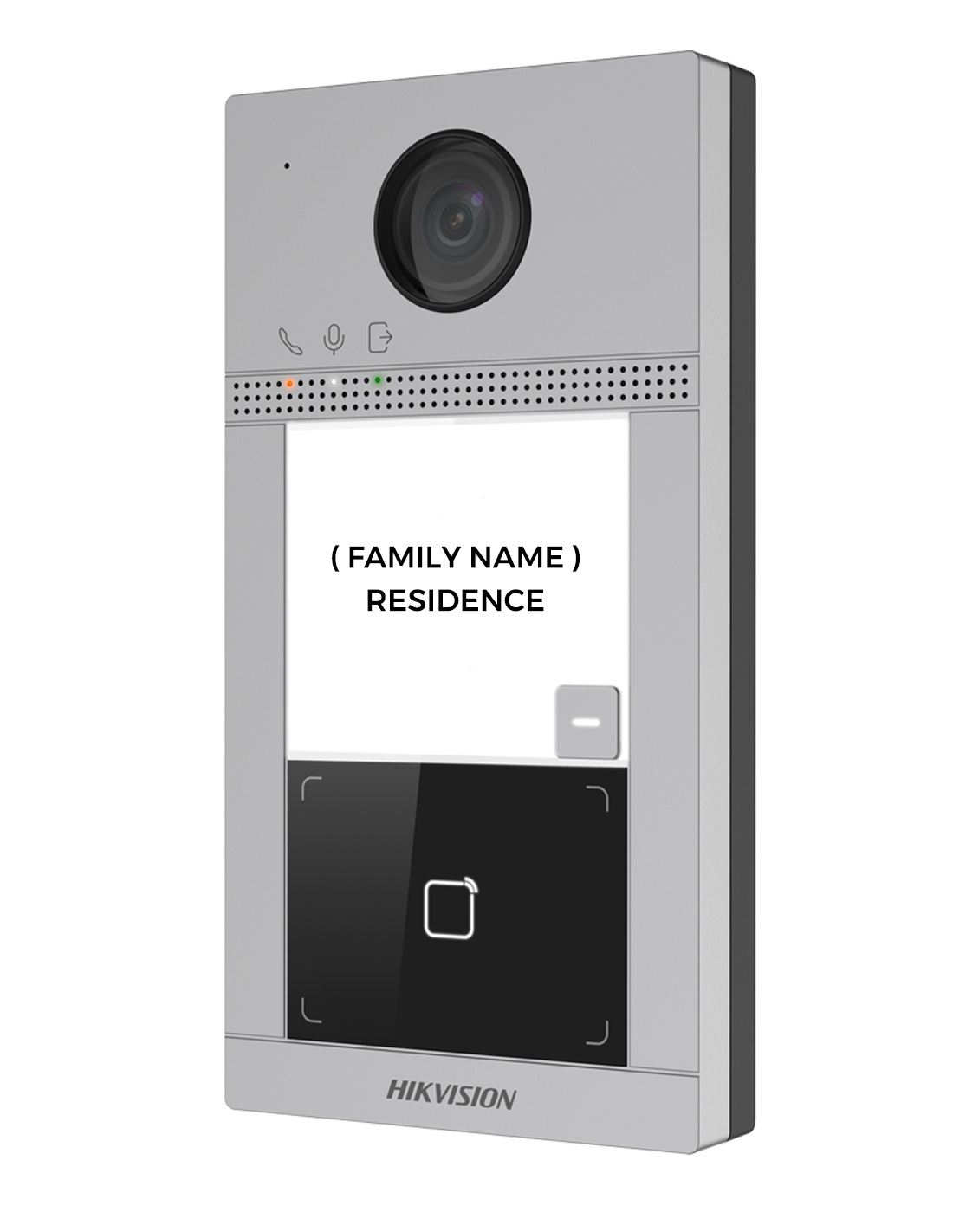

| Door station / System parameters | |
| Operation system | Embedded Linux operation system |
| Flash | 32 M |
| RAM | 256 M |
| Door station / Video parameters | |
| Supplement light | IR supplement |
| Resolution | Main stream: 1920 x 1080 Sub stream: 640 x 480 |
| Lens | 1 |
| WDR | Support |
| FOV | Horizontal: 124° Vertical: 75° |
| Video compression standard | H.264 |
| Door station / Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (more than 80 dB within 30 cm) |
| Volume adjustment | Adjustable |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression Rate | 64 Kbps |
| Audio intercom | Two-way audio communication |
| Audio quality | Noise suppression and echo cancellation |
| Door station / Capacity parameters | |
| User capacity | 2000 |
| Door station / Network parameters | |
| Network protocol | TCP/IP, RTSP |
| Wi-Fi | Wi-Fi 802.11 b/g/n |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| 3G/4G | / |
| Bluetooth | / |
| Door station / Device interfaces | |
| Network interface | 1 |
| RS-485 | 2 |
| Wiegand | 0 |
| Lock control | 2 |
| Exit button | 2 Max. |
| Door contact | 2 |
| Alarm input | 4 |
| Alarm output | 0 |
| Power interface | 1 |
| TAMPER | 1 |
| USB interface | 0 |
| TF card | 1 (reserved) |
| Door station / General | |
| Button | 1 |
| Indicator | 3 |
| Power consumption | < 10 W |
| Power supply | Standard PoE/12 VDC; IEEE802.3af, standard PoE; 12 VDC |
| Working temperature | -40 °C to 53 °C (-40 °F to 127.4 °F) |
| Working humidity | 10% to 95% |
| Dimensions | 174 mm × 91 mm × 29 mm |
| Installation | Surface mounting |
| Application environment | Outdoor |
| Protection level | IP65, IK08 |
| Weight | 380 g |

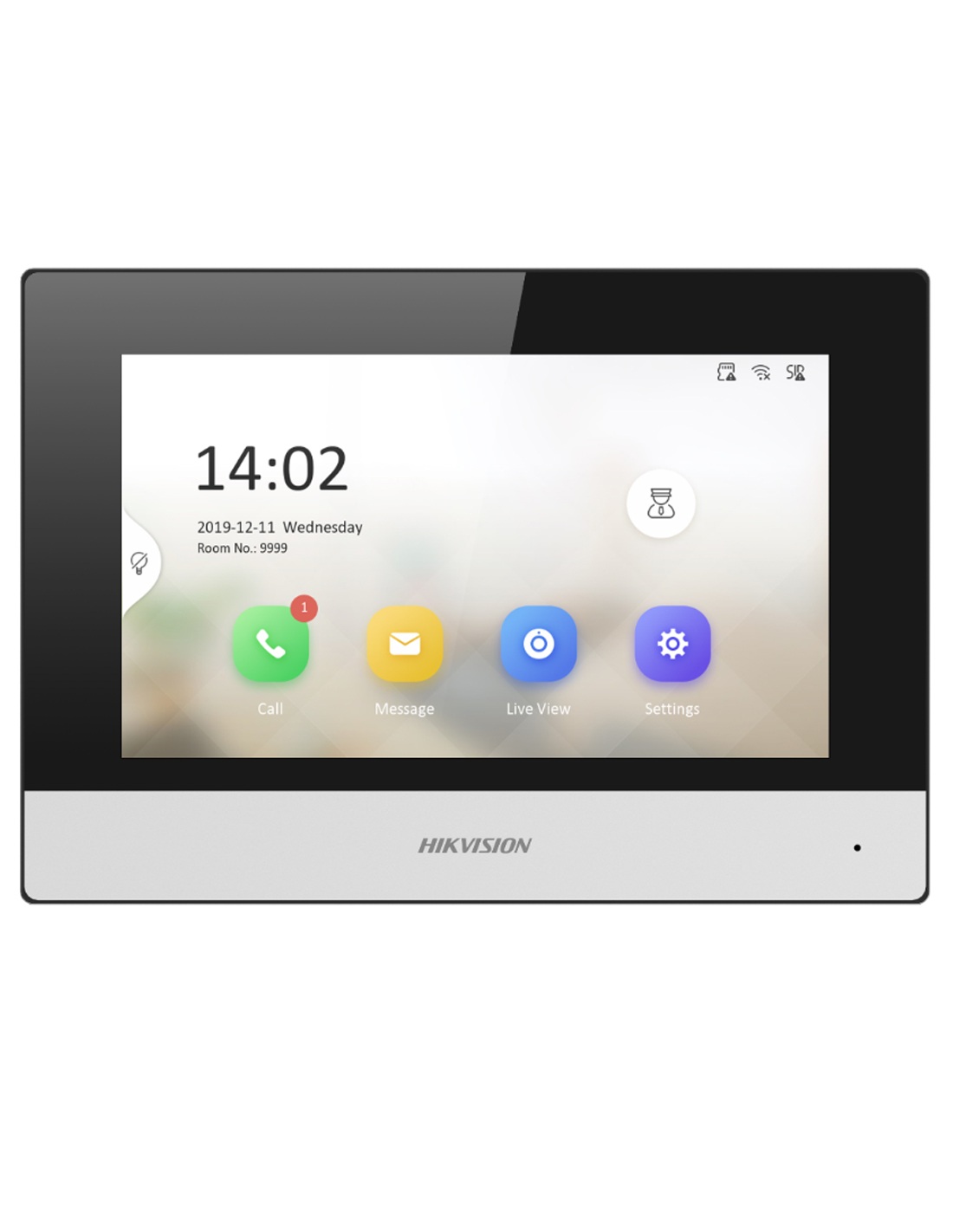

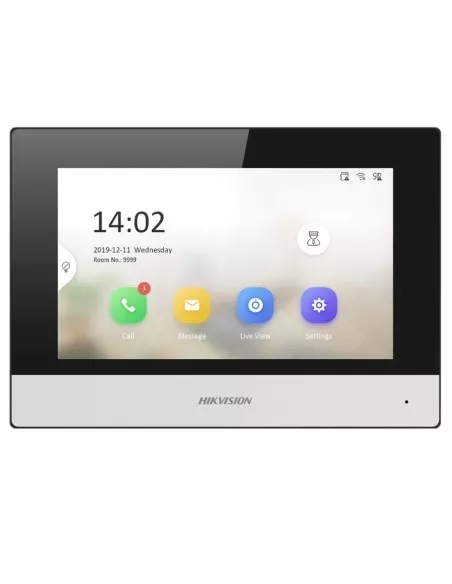

| Indoor station / System parameters | |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Indoor station / Display parameters | |
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Indoor station / Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Indoor station / Network parameters | |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| Wired network | 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| Indoor station / Device interfaces | |
| RS-485 | 1 |
| Alarm input | 8-ch alarm inputs |
| Relay output | 2 |
| TF card | Max 32 G, SD 2.0 or lower version |
| Indoor station / General | |
| Power consumption | ≤ 6 W |
| Power supply | Standard PoE, 12VDC |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimensions (L × W × D) | 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6") |
| Installation | Surface mounting |
| Button | 6 |
