Hikvision Gen 2 IP Video Intercom Vandal-Resistant Door Station - DS-KB8113-IME1
- Standard PoE
- Compatible with Hikvision Gen2 Intercoms= monitors
- 2 MP HD camera
- Noise suppression and echo cancellation
- Low illumination
- Access control functions
- Configuration remotely via Web

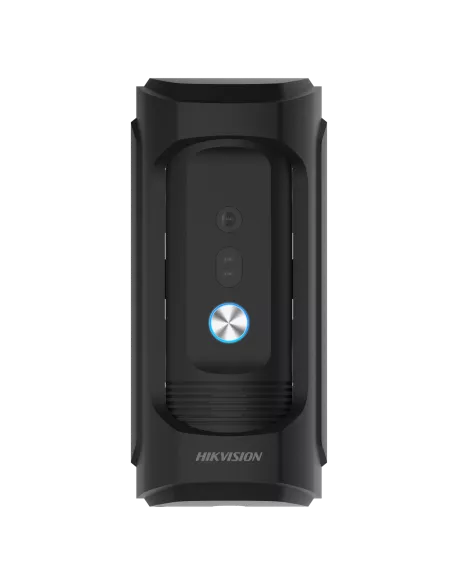

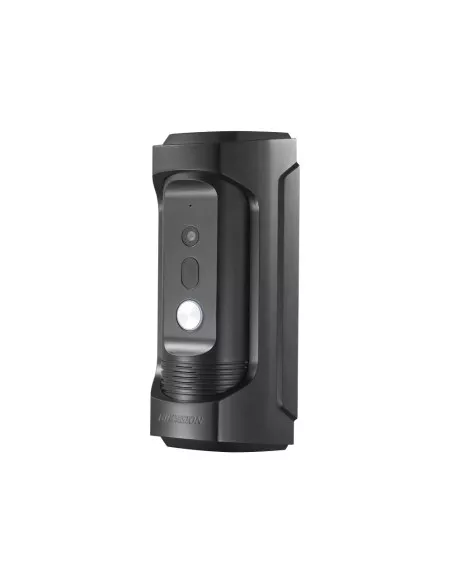

Hikvision Gen 2 IP Video Intercom Vandal-Resistant Door Station
DS-KB8113-IME1
The Hikvision DS-KB8113-IME1 2MP Gen2 IP Anti-vandal intercom doorbell is a single-button module that is designed for the 2-wire range, which offers the advantages for retrofitting existing sites.

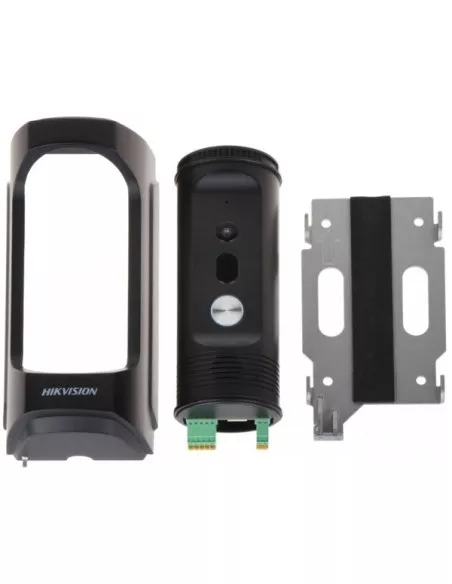

This Hikvision anti-vandal doorbell has a robust design, it is made from zinc alloy material that can be mounted in 12 different positions in 7.5-degree increments, covering a range of 90 degrees. With a protection rating of IP65 and IK09, this doorbell can withstand harsher than normal conditions.
Features:
Video Doorbell to Monitor Front Door
Built-In Microphone & Speaker
Noise Suppression & Echo Cancellation
1920 x 1080 Recording Resolution
IR Supplement for Low-Light Conditions
88° Horizontal Field of View
Motion Detection
IP65 Rated for Water Protection
IK09-Rated Vandal Resistance
Functions:
Network parameters
- Ethernet PoE, 10/100 Mbps self-adapted
- Network protocol TCP/IP, RSTP

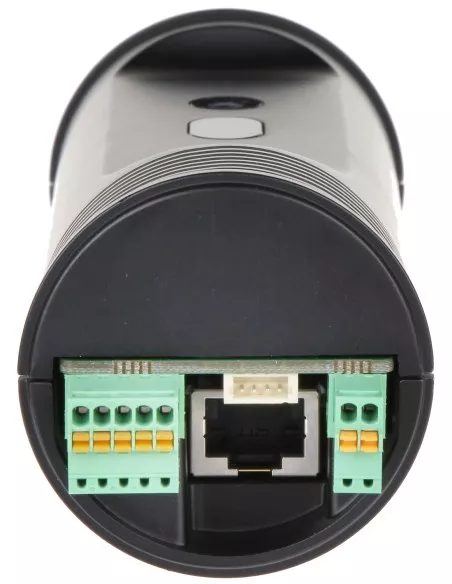

Device interfaces
- Alarm input 1
- Debugging port 1
General
- Power supply IEEE802.3af, standard PoE
12 VDC
- Working temperature -30° C to +50° C(-22° F to 122° F)
- Ingress protection level IP 65
- Impact protection IK 09
- Power consumption< 10 W
- Dimensions (L x W x H) 161.85 mm × 24.13 mm × 53.2 mm(6.37″ × 1.02″ × 2.09″)
- Installation Surface mounting
- Working humidity 10% to 90%
