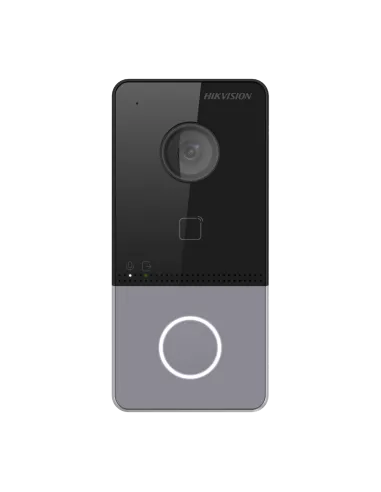

Hikvision 2MP Gen2 Intercom 1 Button Door Station Wi-Fi Mifare

DS-KV6113-WPE1

The Hikvision DS-KV6113-WPE1 is a single button, apartment door entry solution that incorporates the sleek and modern Gen2 look. The cutting-edge feature of this door station is onboard Wi-Fi. Simply supply power to the unit and add a Wi-Fi connection to the router – configure the software, then you will have a professionally installed solution.

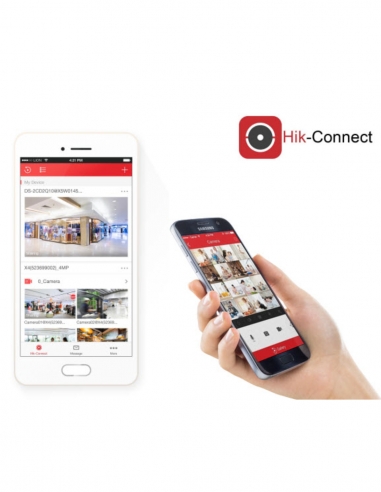

This range suits the Hik-Connect app with a room station. It also integrates with other Hikvision CCTV solutions and the Inner Range access control systems, which then provides a comprehensive building management solution that is unrivaled in the market today.

Includes, Single Button Villa Door Station, Plastic Housing, 2MP (1080P) extreme wide-angle Camera, 10M/100M Self-adaptive Ethernet, LAN, 12 VDC / 48V PoE, 1-ch Indoor station access.

Video Door Station Features:

Support Wifi (Only available in DS-KV6113-WPE1 model), convenient setup and no wiring required

Support web configuration

Nice industry design, IP65, 2 indicators integrated;

Internal Mifare card reader, 1-ch Indoor station access control;

Noise suppression and echo cancellation

2MP HD Camera with IR supplement

Standard PoE/ 12 VDC

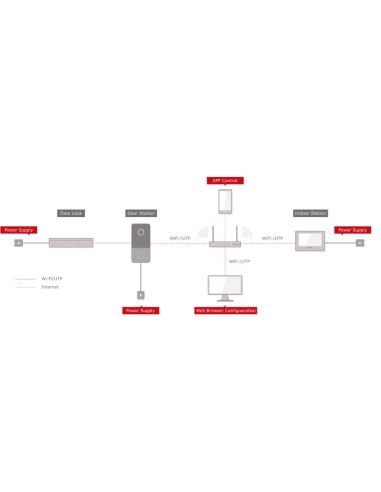

WIRING REQUIREMENTS;

• ethernet cable from Door Station to Poe Switch
• ethernet cable from the indoor Monitor to Poe Switch
• ethernet cable Poe Switch to the modem (if you wish to set up remote communication)
