240W Sports Flood Lighting ENSA InFrontTech

Ensa 240W Adjustable LED Flood Light (5000K) - LFL-G240-C2

Ensa 240W Adjustable LED Flood Light (5000K) - LFL-G240-C2

Name: Ensa 240W Adjustable LED Flood Light (5000K) - LFL-G240-C2
Brand: ENSA
SKU: LFL-G240-C2
Price: 569.9 AUD
Availability: InStock

Reference LFL-G240-C2

In Stock - Ready to Ship

$ 569.90

inc-GST

240 W ENSA™ LED sports floodlight unleashes 38 400 lm, 5000 K daylight over mid-size arenas & work zones.
60 ° × 100 ° forward-throw optic + twin tiltable modules & 180 ° U-bracket nail perfect aim for tennis, netball, pickleball, half-court basketball, rugby training, 7-a-side soccer, cricket nets, skateparks, equestrian arenas, motocross pads, boat ramps, warehouse aprons, truck depots, farm sheds & security car-parks.
Instant-on, flicker-free & DALI / DMX dimmable—ditch 400 W metal-halides and cut energy 40 %.
IP67 / IK10 die-cast housing, 100–277 VAC driver (PF > 0.95) & 100 000 h L₇₀ life mean bright, trouble-free game nights year-round.

LFL-G240-C2 • 240 W Adjustable LED Flood Light

38 400 lm • 160 lm/W • 60° × 100° beam • 5000 K • IP67 / IK10 • DALI & DMX

Need metal-halide punch without the power bill? The ENSA™ LFL-G2 family is purpose-built for Aussie sports courts, container depots, construction lay-downs and high-mast car-parks. 5050 LEDs drive a brutal 38 400 lumens while the dual-module head lets you tilt and pan each array independently for perfect spill-control. A Mean Well driver accepts 100 – 277 VAC, supports DALI-2 or DMX-512 dimming and maintains PF > 0.95. With IP67 / IK10 aluminium casting and certified 100 000 h L₇₀ life, it’s built for decades of dusk-till-dawn punishment.

Why Spec the LFL-G240-C2?

160 lm/W efficacy – half the energy of 400 W MH & no re-lamp downtime.
60° × 100° asymmetric optic – throws forward, keeps neighbours & players squint-free.
Dual 90° rotatable modules + 180° U-bracket – aim light exactly where it’s needed.
DALI-2 or DMX-512 built-in – tie into BMS, daylight-harvesting or show-lighting rigs.
IP67 / IK10 aluminium body – hose-down safe, salt-spray & impact resistant.
Mean Well driver, 5050 LEDs – rock-solid thermal & electrical reliability.
100 000 h L₇₀ + field-replaceable driver for lifetime value.
3-year warranty (extendable) & full RCM / CE / RoHS compliance.

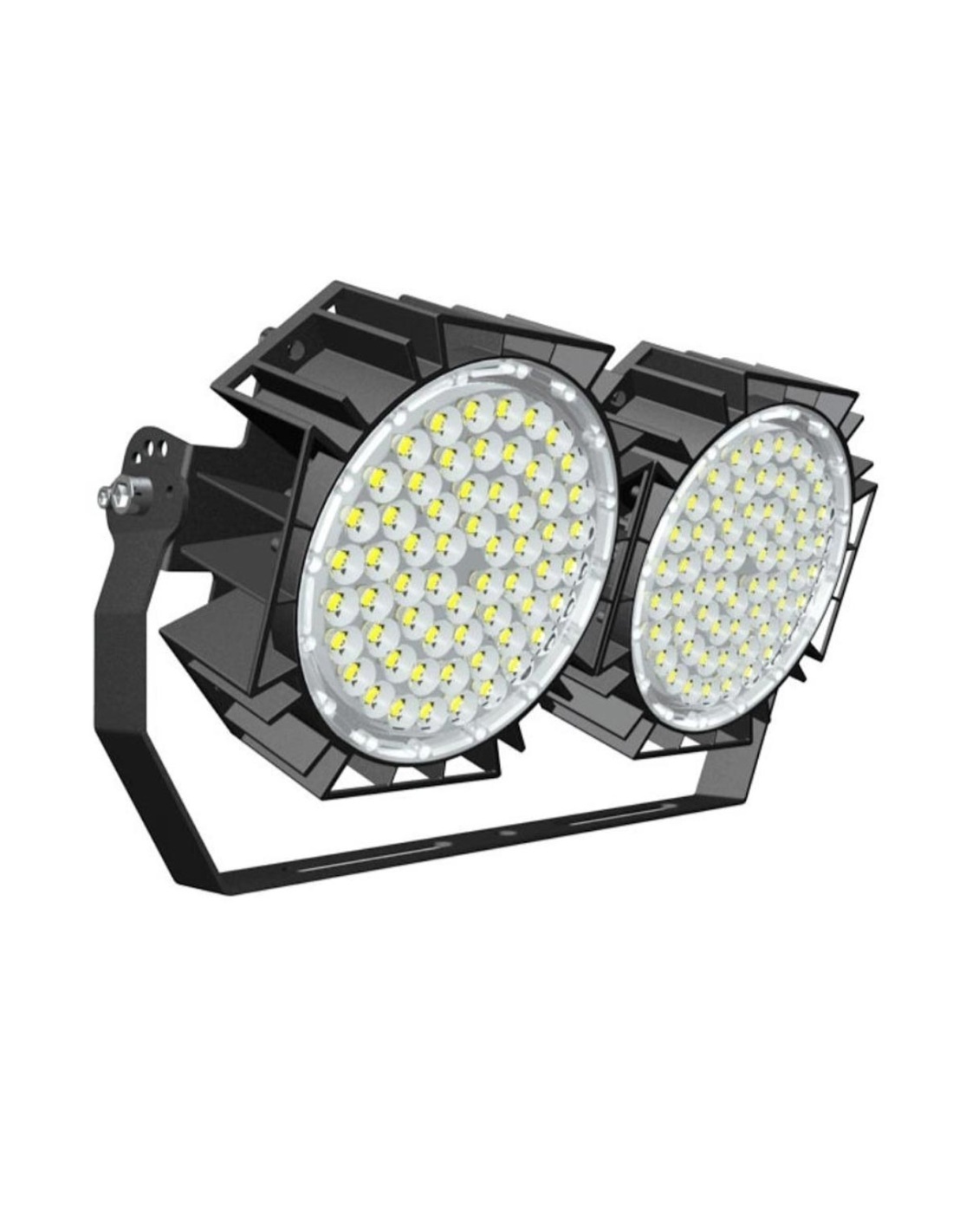

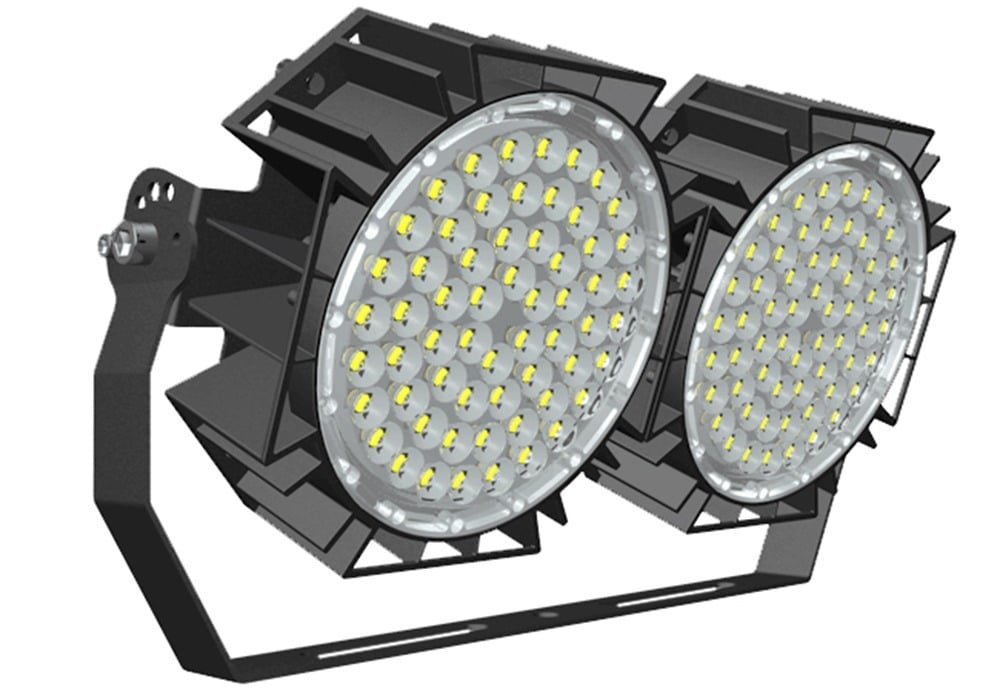

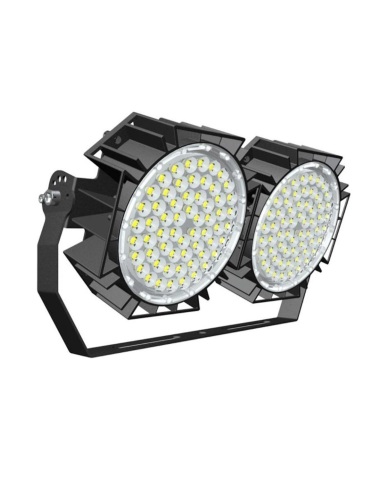

ENSA LFL-G240-C2 floodlight

Common Installations & Pole Guides

Recreation Tennis / Netball (8 m poles). Four units per court deliver ~130 lx average (AS 2560 Class III), replacing eight 400 W MH floods and saving ≈ 1.3 kW every playing hour.

Rooftop Retail Car-Park (12 m poles). Three 360 W siblings per pole hit 120 lx across 14 m aisles; the 240 W model fills adjacent bays at 80 lx for a uniformity ratio < 1 : 2.

Container Yard / Logistics Hub (18 m high-mast). Six lights on a cross-arm create 50 lx average over 50 × 50 m bays; asymmetric optics minimise port-crane glare.

Rural Stock-Yard (9 m poles, off-grid). Powered via 2 kW solar array + 48 V inverter-charger. DMX dims to 30 % after curfew while PIR triggers 100 % when a ute pulls in.

How Bright with One Light?

Horizontal Distance*	10 m	20 m	30 m	50 m	70 m	100 m	150 m
Centre-beam Lux	≈ 250 lx	≈ 63 lx	≈ 28 lx	≈ 10 lx	≈ 5 lx	≈ 2.5 lx	≈ 1 lx

*Calculated from IES peak intensity (~25 000 cd) with E = I / d² for quick guidance.

Multiple-Fixture Lux Estimator

Approximate centre-zone lux when fixtures are symmetrically aimed & **spaced 10 m apart** (2 lights), **15 m apart** (3 lights) or **20 m apart** (4 lights) on the same pole height:

Distance	1 × 240 W	2 × 240 W*	3 × 240 W †	4 × 240 W ‡
10 m	≈ 250 lx	≈ 425 lx	≈ 600 lx	≈ 750 lx
20 m	≈ 63 lx	≈ 110 lx	≈ 150 lx	≈ 185 lx
30 m	≈ 28 lx	≈ 50 lx	≈ 70 lx	≈ 85 lx
50 m	≈ 10 lx	≈ 17 lx	≈ 23 lx	≈ 28 lx
70 m	≈ 5 lx	≈ 8 lx	≈ 12 lx	≈ 15 lx
100 m	≈ 2.5 lx	≈ 4 lx	≈ 6 lx	≈ 7.5 lx
150 m	≈ 1 lx	≈ 1.7 lx	≈ 2.4 lx	≈ 3 lx

*2 lights 10 m apart; †3 lights 15 m apart; ‡4 lights 20 m apart. Gains assume 20 % beam overlap & cosine aiming – use Dialux for mission-critical design.

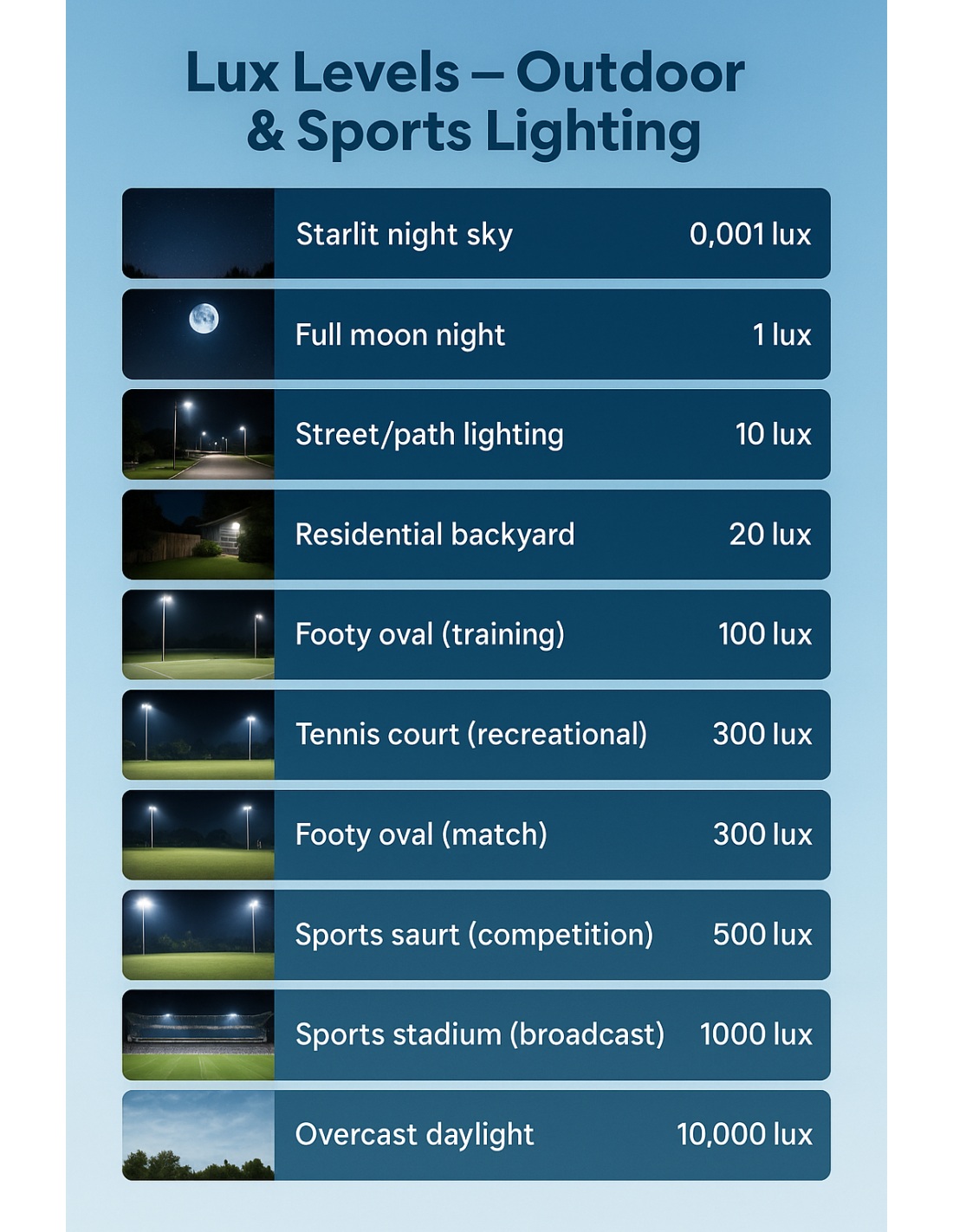

What Those Lux Levels Mean

• < 5 lx – Perimeter security / B&W CCTV.

• 10 lx – Yard patrol, basic vehicle movement.

• 20 – 30 lx – Colour CCTV, forklift loading, social play.

• 50 lx – Amateur tennis, basketball (AS 2560 Class III).

• 100 lx+ – Warehouse pick zones, televised sport fill.

Quick Specs

Optical Output	38 400 lm • 160 lm/W
Beam / Lens	60° × 100° PC lens (asymmetric)
CCT / CRI	5000 K cool white • > 80 Ra
Driver / Input	Mean Well, 100 – 277 VAC, PF > 0.95
Controls	DALI-2 or DMX-512 dimming 0–100 %
Housing	IP67 / IK10 aluminium, PC lens
Adjustments	90° module tilt • 180° U-bracket
Size / Weight	460 × 230 × 75 mm • 12.5 kg
Life & Warranty	100 000 h L₇₀ • 3 yr std / ext opt

Cheat-Sheet Mounting Options

6 – 8 m pole: single fixture, 20° down-tilt – lights 25 × 25 m to ~50 lx (half-court basketball, BBQ areas).
10 – 12 m pole: twin back-to-back fixtures, 15° tilt – 40 × 40 m to ~30 lx (retail car-park aisles, truck bays).
15 m mast cross-arm: triple fixtures, 10° tilt – 50 m radius ~20 lx (container stacks, lay-down yards).
18 m ring-mount mast: six fixtures, 8° tilt – 60 × 60 m to 50 lx centre, 30 lx edge (Class III sports ovals).
12 m wall façade: single fixture, 10° outward – throws 40 m to ~10 lx (loading docks, perimeter roadway).
8 m mobile light tower: two fixtures, 60° combined beam – 60 × 25 m work-zone at ~80 lx (construction / emergency).

Tip: keep the hotspot just ahead of the activity zone, overlap beams ≈ 20 % for best uniformity.

LFL-G datasheet page 1
LFL-G datasheet page 2

Ready to relight smarter?
Swap legacy floods for the LFL-G240-C2 and deliver pro-grade lux, instant-on reliability and DALI/DMX smarts – all on a mid-tier budget. Click “Add to Cart” and ship today.
