360 W ENSA™ LED stadium floodlight unleashes 51 200 lm of crisp 5000 K daylight for next-level area lighting.
Asymmetric 60 ° × 100 ° optic, three tiltable panels & 180 ° U-bracket throw glare-free light 70 m—perfect for football ovals, rugby pitches, hockey fields, pickleball & tennis courts, equestrian arenas, skate parks, container depots, logistics yards, warehouse aprons & mine hardstands.
Instant, flicker-free start-ups with DALI-2 / DMX-512 dimming to tailor light shows or training modes.
IP67 / IK10 die-cast body, wide-range 100–277 VAC driver (PF > 0.95) and 100 000 h L70 lifespan slash HID maintenance and energy bills.
51 200 lm • 160 lm/W • 60° × 100° beam • 5000 K • IP67 / IK10 • DALI & DMX
Chasing stadium-grade illumination without stadium-grade bills? Step up to the ENSA™ LFL-G2 360 W. Three independently tiltable LED panels unleash 51 200 lumens through an asymmetric 60° × 100° optic, punching clear, glare-controlled light 70 + metres down-range. A Mean Well driver sips 100 – 277 VAC, talks DALI-2 / DMX-512 and keeps PF > 0.95. Wrapped in an IP67 / IK10 aluminium chassis and rated 100 000 h L70, it’s the go-to workhorse for club courts, freight yards and high-mast car-parks.
1 | Semi-Pro Football Pitch (16 m poles). Sixteen lights (4 × corner clusters) average ≈ 140 lx across 100 × 64 m, meeting AS 2560 Class II match-play.
2 | Warehouse Loading Apron (10 m wall-mount). Two rows, 25 m apart, angled 20°, give 80 lx on dock doors and 30 lx in truck lanes – forklift-safe CCTV colour.
3 | Regional Airport Apron (18 m masts). Eight fixtures in a ring keep spill off taxiways yet maintain 25 lx minimum on stand-by aircraft – MOS 139 compliant.
4 | Council Skate & BMX Park (9 m poles). Twelve DMX-linked fixtures surround the bowl, delivering 100 lx centre, 50 lx perimeter with < 30 % glare rating, plus event light-shows.
5 | Open-Cut Mine Workshop (12 m rafters). Four lights per bay flood a 45 × 25 m service zone to 120 lx, enabling tyre changes and hydraulic rebuilds after sundown.
Need a Dialux map? Email your CAD pole plan – 24 h turnaround.
| Horizontal Distance | 10 m | 20 m | 30 m | 50 m | 70 m | 100 m | 150 m |
|---|---|---|---|---|---|---|---|
| Centre-beam Lux | ≈ 333 lx | ≈ 84 lx | ≈ 37 lx | ≈ 13 lx | ≈ 7 lx | ≈ 3.3 lx | ≈ 1.3 lx |
*Based on IES peak intensity ≈ 33 000 cd (E = I / d²). Use Dialux / AGi 32 for final design.
Centre-zone illuminance with fixtures evenly spaced & beams overlapped ≈ 20 %:
| Distance | 1 × 360 W | 2 × 360 W (10 m apart) | 3 × 360 W (15 m apart) | 4 × 360 W (20 m apart) |
|---|---|---|---|---|
| 10 m | ≈ 333 lx | ≈ 565 lx | ≈ 800 lx | ≈ 1 000 lx |
| 20 m | ≈ 84 lx | ≈ 143 lx | ≈ 202 lx | ≈ 252 lx |
| 30 m | ≈ 37 lx | ≈ 63 lx | ≈ 89 lx | ≈ 111 lx |
| 50 m | ≈ 13 lx | ≈ 22 lx | ≈ 31 lx | ≈ 39 lx |
| 70 m | ≈ 7 lx | ≈ 12 lx | ≈ 17 lx | ≈ 21 lx |
| 100 m | ≈ 3.3 lx | ≈ 5.6 lx | ≈ 7.9 lx | ≈ 9.9 lx |
| 150 m | ≈ 1.3 lx | ≈ 2.2 lx | ≈ 3.2 lx | ≈ 4 lx |
Overlap beams 15 – 25 % for < 1 : 2 uniformity; final aiming via Dialux.

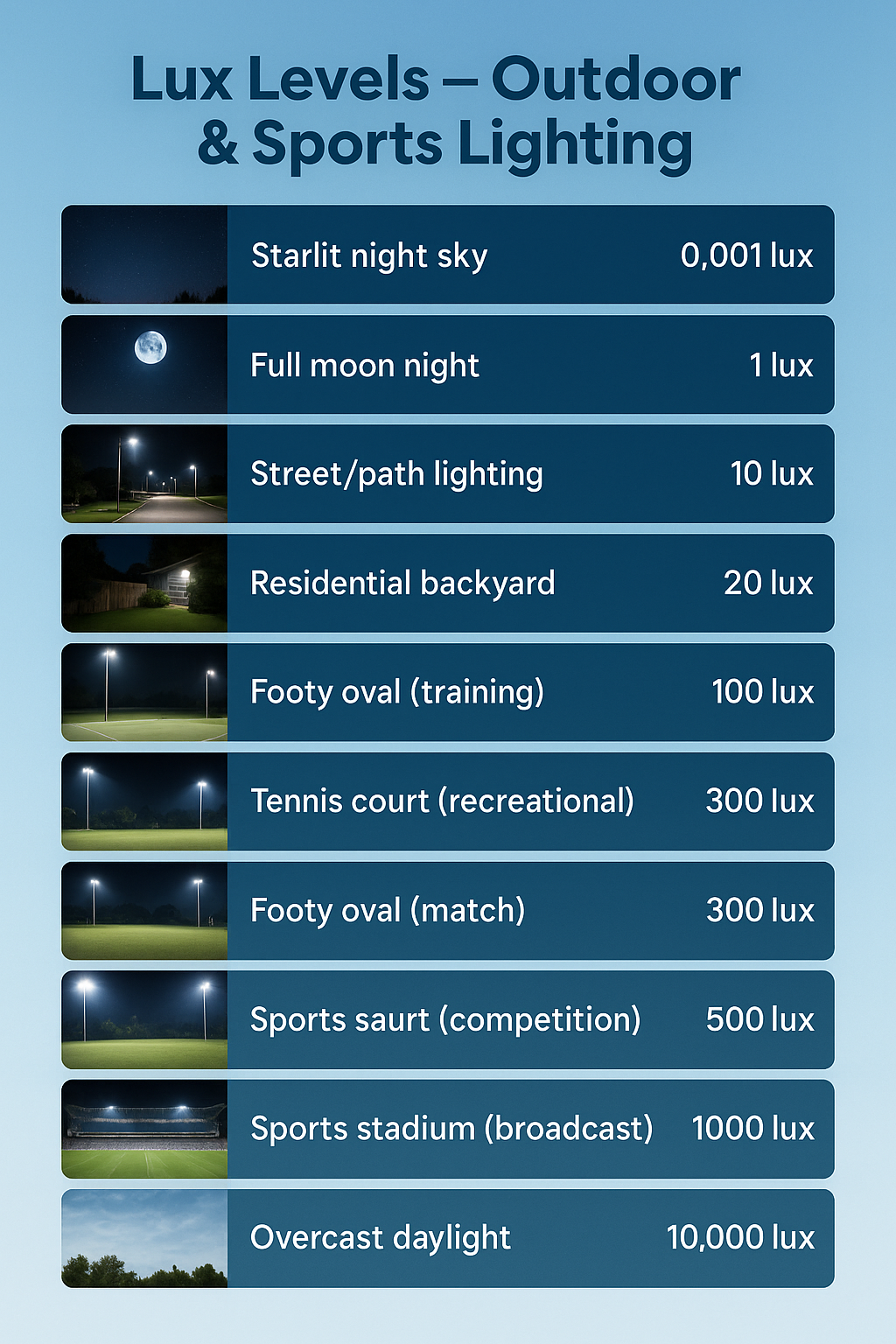

• 5 lx – basic security visibility; B&W CCTV workable.
• 10 – 20 lx – vehicle circulation, colour surveillance, wayfinding.
• 30 – 50 lx – social-level court play, loading docks, shared paths.
• 100 lx + – competitive sport, detailed maintenance bays, HD broadcast.
| Optical Output | 51 200 lm • 160 lm/W |
|---|---|
| Power / Input | 360 W @ 100 – 277 VAC 50/60 Hz • PF > 0.95 |
| Beam / Lens | 60° × 100° PC lens (asymmetric) |
| CCT / CRI | 5000 K cool white • > 80 Ra |
| Controls | DALI-2 or DMX-512 0 – 100 % |
| Housing | IP67 / IK10 aluminium, PC lens |
| Adjustments | 3 × 90° panel tilt • 180° U-bracket |
| Size / Weight | 690 × 230 × 75 mm • 14.5 kg |
| Life & Warranty | 100 000 h L70 • 3 yr std / ext opt |
| Scenario | Fixture Setup & Aiming | Approx. Area & Avg Lux |
|---|---|---|
| 8 m pole | 1 × 360 W @ 20° tilt | 40 × 30 m yard • ~60 lx |
| 12 m pole | 2 × back-to-back | 40 × 60 m car-park • ~45 lx |
| 15 m mast | 3 × fan-aimed | 60 × 60 m pad • ~35 lx |
| 18 m ring-mount | 6 × even spacing | Ø 140 m oval • ~25 lx (AS 2560 Cls III) |
| Wall façade 10 m | 1 × 360 W @ 12° | 45 m drive lane • ~15 lx |
| Mobile tower 9 m | 2 × 60° overlap | 70 × 30 m work-zone • ~100 lx |

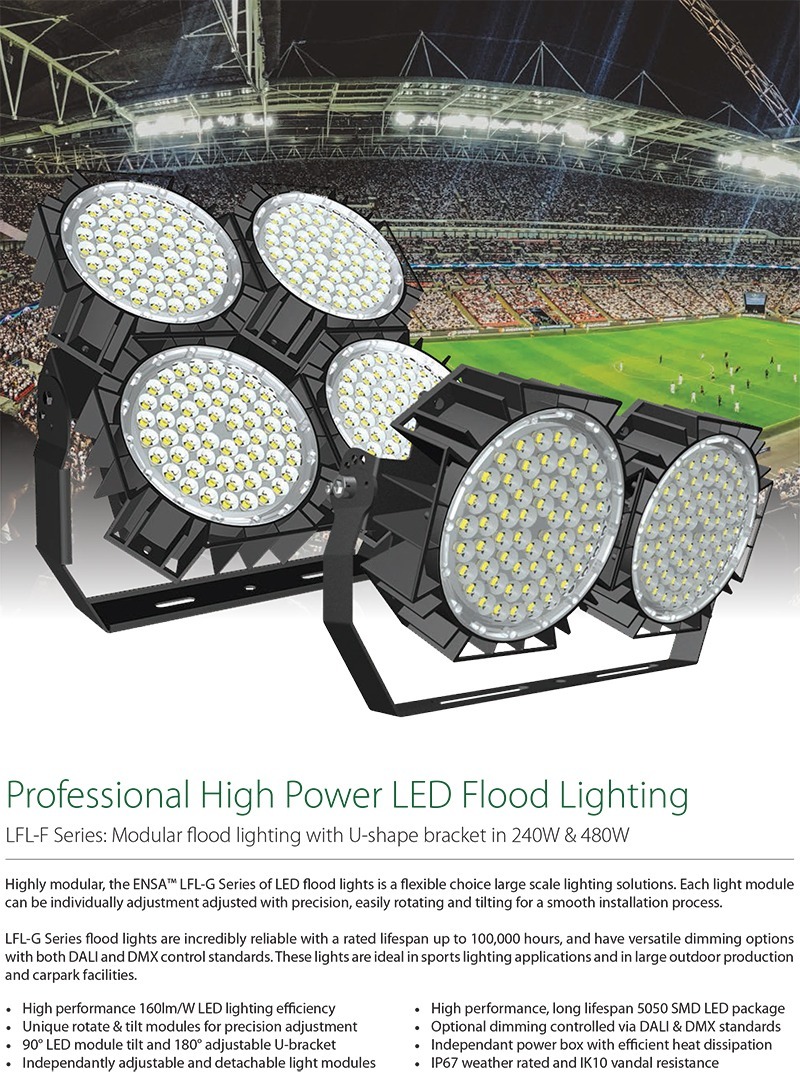

-1.jpg)

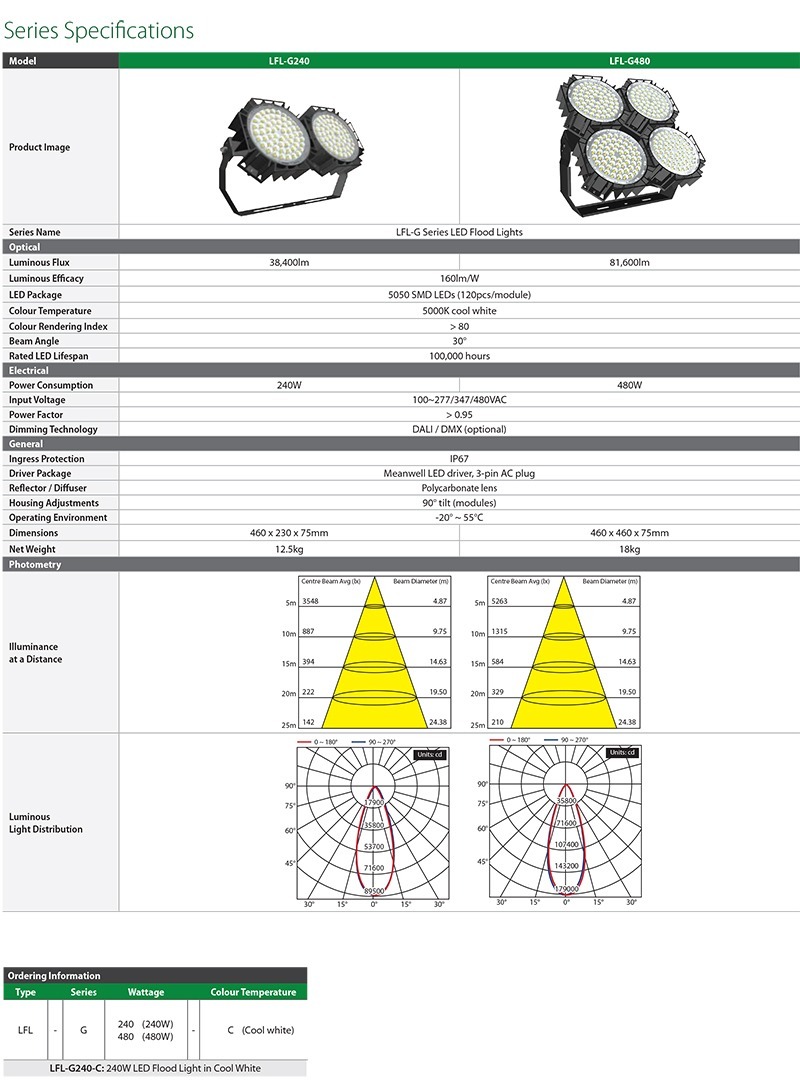

-2.jpg)
Upgrade once, save for years.
Deploy the LFL-G360-C2 for instant-on 5000 K brilliance, DALI/DMX smarts and 60 % energy savings over HID. Add to cart & light like a pro.
