Securview Mobile Series 2MP HD 1080p Fixed HDCVI Twin Dash Camera - VSCVIM-2TT
- Stream 2.0MP / Full HD 1080p (1920 x 1080) at 25fps
- Fixed lens - 109° external and 132° internal
- Innovative dual-lens design records 2 images at once
- HDCVI / AHD / TVI / Analog switchable
- Smart in-vehicle infrared illumination up to 3m
- Features built-in microphone for audio evidence
- 4-in-1 aviation connector cable transmits power, audio, video & ground
- Slimline design with shock resistant housing

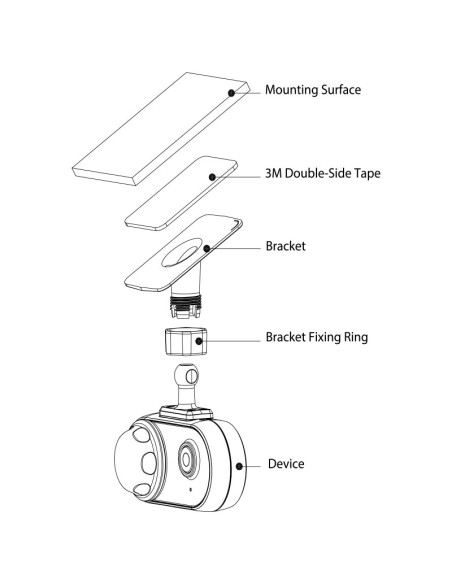

- Easy installation to the inside of the windscreen

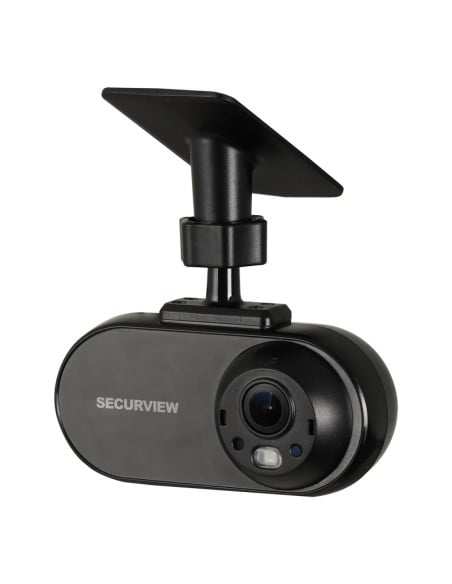

Securview Mobile Series 1080p Fixed HDCVI Twin Dash Camera
VSCVIM-2TT
Designed for windscreen mounting, the VSCVIM-2TT is a dual-lens camera capable of simultaneously recording Full HD evidence inside and outside the vehicle. Equipped with a built-in microphone and features durable shock-resistant housing.
Camera Features:
• Stream 2.0MP / Full HD 1080p (1920 x 1080) at 25fps
• Fixed lens - 109° external and 132° internal
• Innovative dual-lens design records 2 images at once
• HDCVI / AHD / TVI / Analog switchable
• Smart in-vehicle infrared illumination up to 3m
• Features built-in microphone for audio evidence
• 4-in-1 aviation connector cable transmits power, audio, video & ground
• Slimline design with shock resistant housing
• Easy installation to the inside of the windscreen

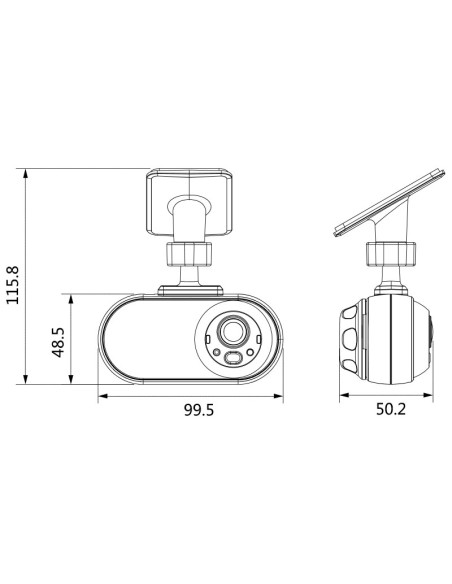

- Dimensions
- 116 x 100 x 50mm
- Housing
- Plastic
- Power input
- 12VDC ±30%
- Ingress Protection
- N/A
- Operating Environment
- -30° to 60°C / RH95% (max)
- Weight
- 0.17kg
- Power Consumption
- Video Output
- 2 x M12 HDCVI output (Yellow: front / Black: rear)
- Resolution
- 1080p (1920 x 1080)
- Audio Input
- Built-in microphone
- Vandal Resistant
- N/A
- Series
- Mobile
- Angle of View
- Front: 109° (H), 58° (V), 127° (D) / Rear: 132° (H), 69° (V), 164° (D)
- Focus
- Fixed Focus / 0.5m Min. Focus Distance
- Frame Rate
- 25fps (1080p and lower)
- Effective Pixels
- 1920 (H) x 1080 (V)
- Image Sensor
- 1/2.7” 2.0 Megapixel CMOS
- Lens
- Front: 2.8mm F2.0 Fixed Lens / Rear: 2.1mm F2.0 Fixed Lens
- Minimum Illumination
- 0.02 Lux at F2.0 (Colour) / 0 Lux IR Active
- Alarm Interface
- N/A
- Camera Type
- Vehicle
- Max. Resolution
- 2.0 Megapixel
- Lighting Compensation
- BLC / HLC / Digital WDR
- Transmission Distance
- 3m / 6m / 12m / 18m heavy duty cables available
- Analogue Support
- N/A
- Day/Night
- Front: Color / Rear: Auto (IRC)
- Detect (25px/m)
- Front: 43m / Rear: 36m
- Electronic Shutter
- 1/25 ~ 1/100,000s
- Gain Control
- Auto
- Identify (250px/m)
- Front: 4m / Rear: 3m
- Infrared Range
- Front: 3m Infrared / Rear: N/A
- Lens Type
- Fixed
- Mode Switching
- OSD (via HDCVI recorder) / VSSELECT101 (UTC connector)
- Modes Supported
- HDCVI, AHD, HDTVI & Composite
- Noise Reduction
- 2D
- Observe (63px/m)
- Front: 18m / Rear: 14m
- OSD Menu
- Support
- Recognise (125px/m)
- Front: 9m / Rear: 7m
- Signal Noise Ratio
- > 65dB
- Synchronisation
- N/A
- Tri-Axis Mounting
- No
- White Balance
- Auto / Manual
