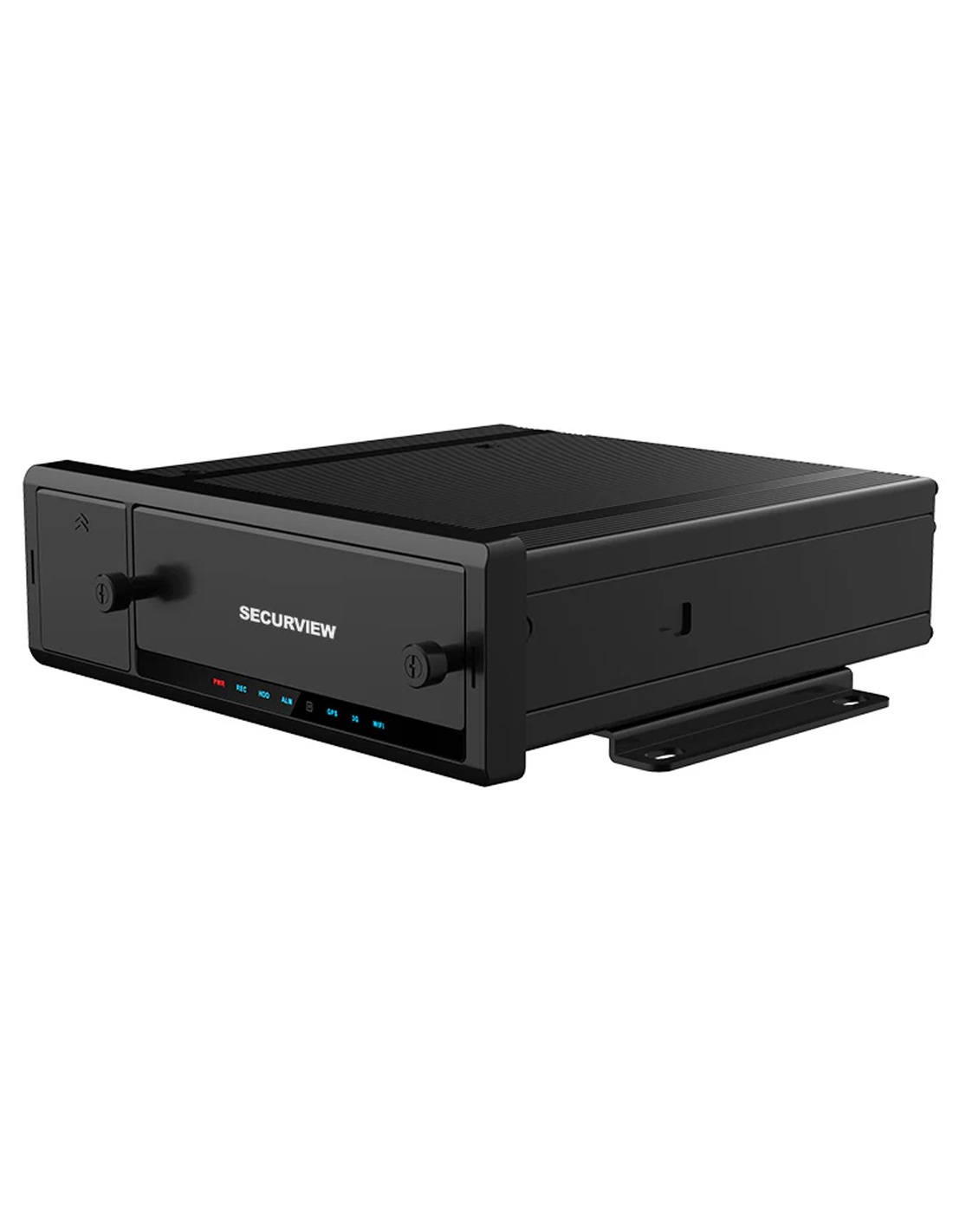

Securview 8 Channel Mobile HDCVI Recorder with GPS, 4G and WiFi - MXVR-GPS8GW
MXVR-GPS8GW
In Stock - Ready to Ship $ 2,148.00
inc-GST
- 8CH HDCVI DVR with support for AHD, TVI, analog & up to 4 IP cameras
- Records Full HD 1080p at up to 25fps per channel
- GPS/GLONASS tracking with coordinate overlay (antenna included)
- Built-in 4G (SIM required) & 2.4GHz WiFi for remote access
- Dual SATA + SD storage up to 512GB
- VGA, composite & coaxial video outputs
- 8 alarm inputs, 1 pulse input, relay & controllable outputs
- Audio via HDCVI cams & external mic
- RS485, RS232 & CAN interfaces
- Rugged, lockable housing with shock protection
- Single DIN size for vehicle installs with M12 connectors
Various Payment Types at Checkout.
All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep
Securview MXVR-GPS8GW Mobile DVR
Model MXVR-GPS8GW | 8 Channel • GPS • 4G & WiFi • Full HD
The Securview MXVR-GPS8GW is an 8-channel mobile DVR engineered for vehicle surveillance. Combining Full HD recording, GPS/GLONASS tracking, and built-in 4G/WiFi, this DVR supports a wide range of analog and IP camera types for complete mobile coverage and remote management on the road.
Advanced Mobile Surveillance

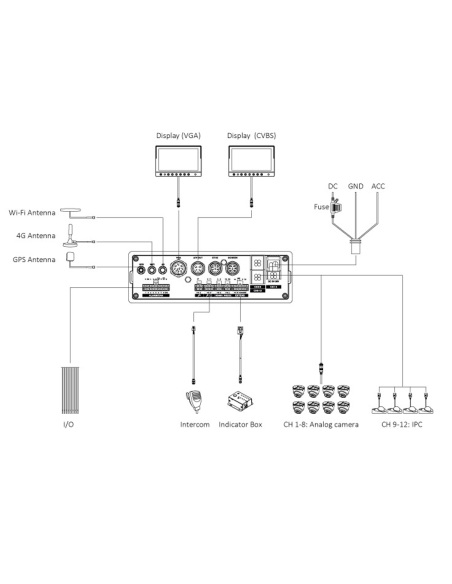

Record up to 8 channels at 1080p via HDCVI, AHD, TVI, or analogue cameras with rugged M12 connectors. Add up to 4 additional IP cameras through RJ45 ports or via a switch (sold separately).
Real-Time GPS Tracking
Overlay GPS coordinates directly onto recorded video using the included GPS antenna. Support for GLONASS ensures global positioning accuracy, ideal for fleet management or law enforcement applications.
Stay Connected Anywhere
4G LTE radio and built-in WiFi allow remote viewing, data access and system management from PCs or mobile devices. Insert a standard SIM card for mobile connectivity on the go.
Rugged & Reliable
- Heavy-duty housing with vibration-dampening design.
- Wide operating temperature range from -30 °C to +70 °C.
- Single DIN form factor for easy integration into vehicles.
- Lockable design with robust M12 connectors for secure operation.
Flexible Video Outputs
Choose from VGA, composite, or coaxial video outputs to match your in-vehicle display. Real-time display resolutions up to 1080p with split view support for up to 16 channels.
Expandable Storage
Dual 2.5" SATA HDD bays and an SD card slot (up to 512GB) offer flexible recording storage. Back up footage easily via USB or over a network.
Specifications
| Video Input | 8 x HDCVI/Analogue + 4 x IP (via RJ45 or optional switch) |
|---|---|
| Recording Resolution | Up to 1080p @ 25fps |
| Video Compression | H.265 / H.264 |
| GPS | GPS/GLONASS with SMA antenna |
| Wireless | Built-in 4G & 2.4GHz WiFi |
| Storage | 2 x 2.5" SATA HDD + 1 x SD card slot (up to 512GB) |
| Audio | Supports HDCVI camera audio + 1 mic input |
| Alarm I/O | 8 alarm inputs, 1 pulse input, 1 relay & 1 12V output |
| Auxiliary I/O | 2 x RS232, 1 x RS485, 1 x CAN |
| Power | 6 ~ 36VDC, <12W (no peripherals) |
| Operating Temp. | -30 °C ~ +70 °C |
| Dimensions (W × D × H) | 180 x 190 x 50 mm |
| Weight | 3.2 kg (without HDD) |
| Warranty | 4 Years |
Drive with confidence. Add the MXVR-GPS8GW to your fleet today and experience reliable, full-featured mobile surveillance tailored to your vehicle needs.
- Ethernet
- 1 x RJ45 port 100/1000M (front), 4 x RJ45 port 100M & 1 x 6-pin ETH2 port (rear)
- Main Processor
- Embedded Processor
- Operating Conditions
- -30 ~ +70°C / 0~90%RH
- Power Supply
- 6 ~ 36VDC
- Weight
- 3.2kg (without HDD)
- WiFi
- Built-in WiFi module, 1 x 2.4GHz WiFi SMA Antenna
- Auxiliary Inputs
- 2 x RS232, 1 x RS485, 1 x CAN
- Backup Modes
- USB Device / Network
- Display Resolution
- 1920 x 1080 to 800 x 600
- Display Split
- 1 / 4 / 8 / 9 / 16
- Max. User Access
- 128 users
- Network Functions
- TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server
- Operating System
- Embedded Linux
- OSD
- Channel, time, GPS position, license plate
- Playback Sync
- 1 / 4
- Power Consumption
- Remote View
- iOS (iPhone, iPad); Android devices; PC applications and via web interface
- USB Interface
- 2 x USB3.0 (front), 1 x USB2.0 (rear, via extend port)
- Video Compression
- H.265 / H.264
- Video Input
- 8 channels HDCVI / Analogue (M12, 4-pin), 4 channels IP (RJ45)
- Video Output

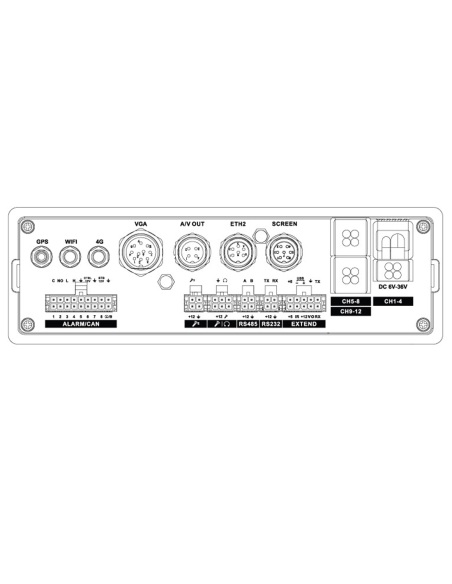

- 1 x VGA (M16, 10-pin), 1 x Composite (M12, 4-pin), 1 x Coaxial (M12, 7-pin)

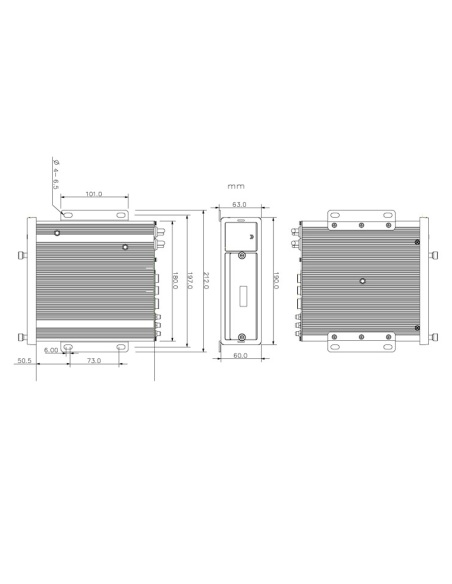

- Dimensions (WxDxH)
- 180 x 190 x 50mm / 1 DIN (Front Panel 190 x 60mm)
- GPS
- GPS/GLONASS Satellite Positioning, 1 x SMA GPS Antenna
- Frame Rate
- 1 ~ 25fps
- Recording Resolution
- Main: Up to 1080p (1920 x 1080), Sub: Up to D1 (720 x 576)
- Alarm Interface
- Up to 8 channels local input and 1 channel pulse input, 1 controllable 12V 0.75A output, 1 relay output
- Audio Interface
- Supports HDCVI audio cameras and 1 external microphone input
- Storage Capacity
- 2 x 2.5’’ SATA ports for HDD/SSD, 1 x SD card slot, up to 512GB
- Camera Configuration (Coaxial)
- 8 channels, up to 2.0MP / 1080p resolution
- Camera Configuration (Network)
- 4 channels, up to 2.0MP / 1080p resolution (via 4 x RJ45 input, or via 6-pin ETH2 port cable/switch sold separately)
