- New
VIP Vision Professional AI Series 6MP Motorised 24/7 Colour Vandal Dome - VSIPP-6DIRMD-I3
- Stream up to 6MP (3288 × 1850) at 25fps
- 2.7 ~ 13.5mm motorised lens with 114~32° viewing angles
- Intelligent search across all Acupick cameras
- Warm LED light triggers on person/vehicle detection
- H.265 encoding for efficient storage & streaming
- Up to 50m infrared range; true day/night (auto ICR)
- MicroSD slot for recording at the edge up to 512GB
- AI powered perimeter protection & smart motion detection (SMD 4.0)
- Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
- AI weather and anti-flicker scene self-adaption
- IP67 weather rated housing for outdoor use
- IK10 vandal resistant metal housing

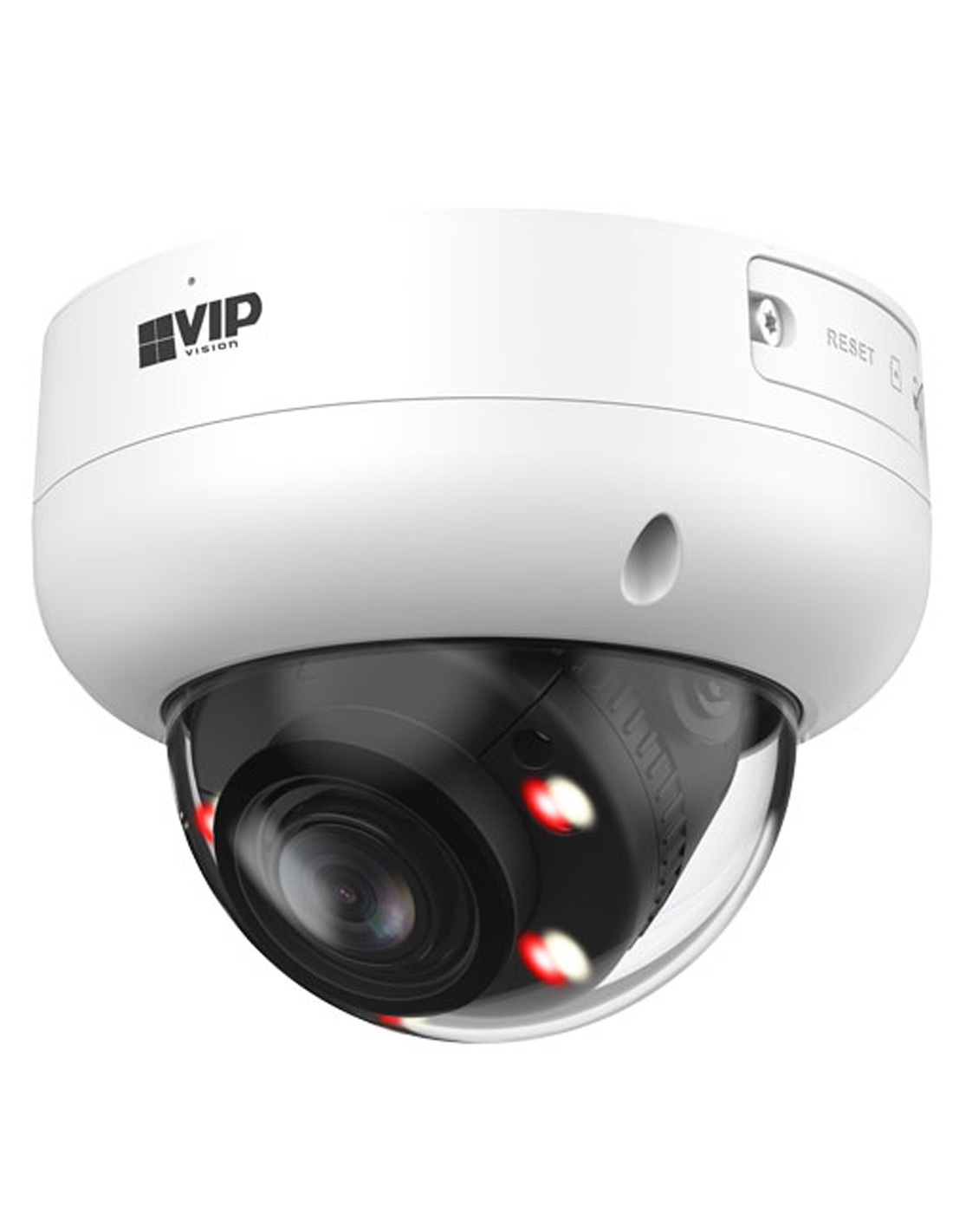

Professional AI 6 MP Motorised Vandal Dome Camera with Smart Illumination
Part of the Professional AI Series
Deliver intelligent, high-resolution surveillance with the Professional AI 6 MP Motorised Vandal Dome Camera. Featuring a motorised varifocal lens with AI people/vehicle detection, warm LED deterrence, and edge storage—this robust, vandal-resistant dome is built for critical environments.
Key Features & Benefits
- 6 MP Ultra-HD Resolution — stream 3288 × 1850 at up to 25 fps for crystal clarity.
- Motorised 2.7–13.5 mm Lens — flexible zoom with 114° to 32° field of view.
- AI Perimeter Protection — tripwire/intrusion detection with human & vehicle recognition (SMD 4.0).
- Warm LED Deterrent & Full‑Colour Night Vision — triggers during AI detection events.
- 50 m IR + True Day/Night ICR — automatic switching ensures vivid clarity in all lighting.
- Edge Recording — MicroSD support up to 512 GB for local backup.
- Smart Compression — H.265, Smart H.265+, AI-optimized codecs for efficiency.
- Rugged Design — IP67 weatherproof and IK10 vandal resistance for high-risk zones.
- 4‑Year Warranty — full Australian coverage included.
Ultimate protection with intelligent flexibility.
Ideal for high-security locations, this dome delivers zoom, ruggedness, and proactive deterrence—all in one system.
Real‑World Applications
Public Infrastructure — robust protection for stations, utilities, and transport hubs.
Retail & Commercial Buildings — flexible zoom to monitor entrances and stockrooms.
Parks & Perimeter Fences — smart illumination deters intruders and records events.
Educational & Government Facilities — vandal-resistant surveillance with AI insight.
Quick Specs
Camera Type | Motorised Vandal Dome |
---|---|
Resolution | 6.0 MP (3288 × 1850) |
Lens | 2.7–13.5 mm Motorised Varifocal |
Field of View | 114°–32° Horizontal |
IR Range | 50 m + Warm LED |
AI Features | Tripwire, Intrusion, People/Vehicle ID, Smart Detection |
Storage | MicroSD up to 512 GB |
Weatherproof / Vandal | IP67 / IK10 |
Power | 12 VDC / PoE (802.3af) |
Warranty | 4 Years |
Enhance protection with the Professional AI Vandal Dome — combining high resolution, zoom, and next‑gen analytics in rugged housing, backed by full Australian warranty and support.

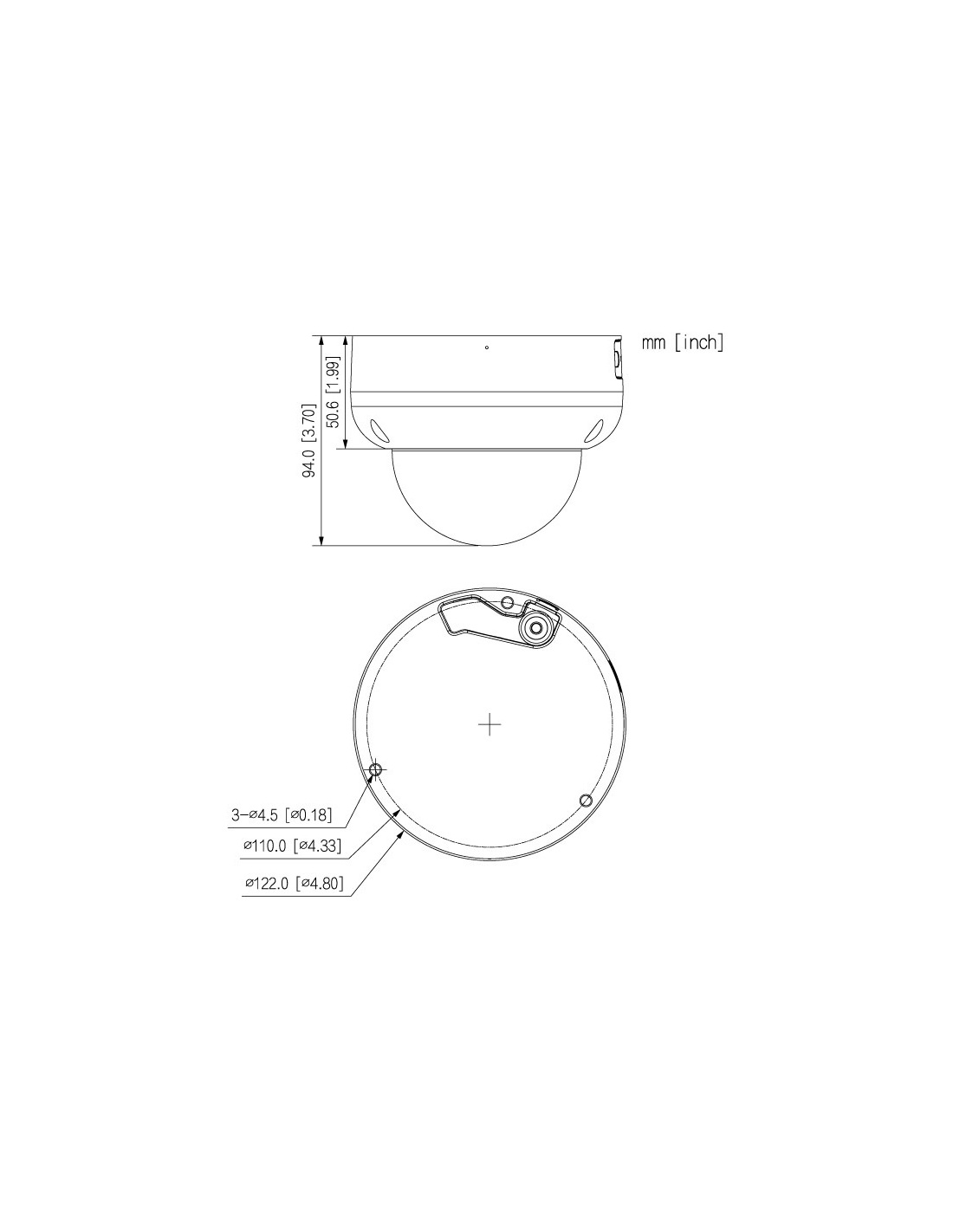

- Dimensions
- Ø122mm x 94mm
- Ethernet
- RJ-45 (10/100Base-T)
- Housing
- Metal
- Net Weight
- 0.56kg
- Operating Conditions
- -30°C ~ +60°C / ≤95% RH
- Power Supply
- 12VDC / PoE (802.3af)
- Ingress Protection
- IP67
- Vandal Resistance
- IK10
- Bit Rate
- H.265: 3 ~ 16384 Kbps / H.264: 3 ~ 16384 Kbps
- Frame Rate (Main)
- 6.0MP (1 ~ 25fps)
- Frame Rate (Sub)
- 1080p (1 ~ 25fps)
- Frame Rate (Third)
- 1080p (1 ~ 25fps)
- Max. User Access
- 20 Users (Total bandwidth: 64MB)
- Power Consumption
- Max
- Video Compression
- H.265; H.264; H.264H; H.264B; MJPEG; Smart H.265+; Smart H.264+; AI H.265; AI H.264
- Resolution
- 6.0MP (3288 × 1850) to CIF (352 x 288)
- Series
- Professional AI Series
- Focus
- Auto Focus / 0.1m Min. Focus Distance
- Interoperability
- ONVIF / P2P / CGI
- Effective Pixels
- 3288 (H) × 1850 (V)
- Image Sensor
- 1/2.7’’ 6.0MP Progressive Scan CMOS
- RS485
- N/A
- Alarm Interface
- 1 channel in: 3- 5mA 5VDC / 1 channel out: 300mA 12VDC
- Camera Type
- Dome
- Max. Resolution
- 6.0 Megapixel
- Field of View
- Horizontal: 114°~32°, Vertical: 58°~17°
- Lighting Compensation
- BLC / HLC / WDR (120dB) / AI SSA
- Day/Night
- Auto (ICR) / Color / B&W
- Detect (25px/m)
- 85m (wide) / 280m (tele)
- Gain Control
- Auto
- Identify (250px/m)
- 8m (wide) / 28m (tele)
- Lens Type
- Motorised Varifocal
- Noise Reduction
- 3D DNR
- Observe (63px/m)
- 34m (wide) / 112m (tele)
- Recognise (125px/m)
- 17m (wide) / 56m (tele)
- White Balance
- Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
- Audio Interface
- 1 input (RCA Port) / 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; PCM
- Bit Rate Control
- Constant bit rate (CBR) / Variable bit rate (VBR)
- Edge Storage
- MicroSD Card (up to 512GB) / NAS
- ePoE
- No
- Infrared System
- 4x warm LED light, 4 x Infrared LED, 50m range, auto/manual on/off control
- Intelligent Functions
- Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
- Lens / Iris
- 2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Fixed Iris
- Min Illumination
- 0.007 Lux/F1.4 (Color), 0.0007 Lux/F1.4 (B/W), 0 lux (illuminator on)
- Pan/Tilt/Rotation
- Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°
- Picture Control
- Mirror / Flip (0°, 90°, 180°, 270°)
- Protocol
- IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
- RAM / ROM
- 1GB / 256MB
- S/N Ratio
- > 56dB
- Smart Scene Adaptive (SSA)
- Yes
- Streaming Method
- Multicast
- Video Interface
- N/A
- Event Trigger
- Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
- Face Attributes
- N/A
- Face Detection
- N/A
- Heat Map
- N/A
- Intelligent Search
- Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
- People Counting
- N/A
- Perimeter Protection
- Tripwire & Intrusion (Add recognition of humans & vehicles)
