VSBKTA123

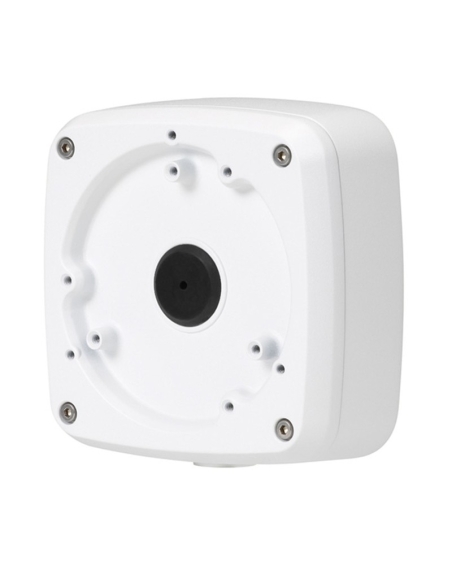

Aluminium adapter/junction box used as a spacer or as a connector for corner & pole mounts. This bracket is compatible with the following cameras from VIP Vision and/or Securview Victory Series.
VIP Vision™ IP Surveillance Cameras
As junction box or as adapter for corner & pole mount brackets. Compatible models: VSIP1/3MPDIR/ V2, VSIP1/3MPVDMINIIRC, VSIP1MPFBIRM, VSIP3MPFBIRM2.8-12, VSIP1/3MPFBIR/MINIIR/V2.
Securview Victory Series™ HD Over Coax Cameras
As junction box or as adapter for pole mount brackets. Compatible models: VSCVI1/2MPFBIRV2, VSCVI1/2MPFBIRM.
| Warranty (Years) | 4 |
| Bracket Type | Junction Box |

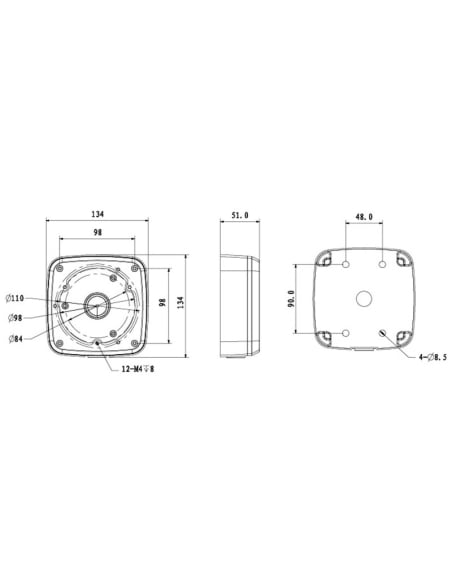

| Dimensions | 134 x 134 x 51mm |
| Load Bearing Capacity | 3.00kg |
| Materials | Aluminum |
| Operating Conditions | -40° ~ 60°C / 90% RH (max) |
| Pipe Thread | N/A |
| Weather Resistance | IP66 rated |
| Weight | 0.60kg |
