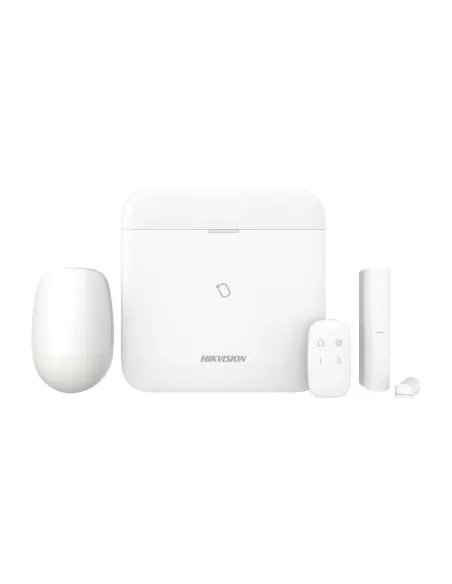

Hikvision Ax Pro Wireless Alarm Kit, 1x PIR, 1x Key Fob, 1x Reed Switch, 3x Mifare Tags



HIK-PWA96-KIT



The Hikvision HIK-PWA96-KIT wireless alarm hub kit supports up to 96 devices in a combination of wireless detection devices or wireless outputs and forms an integral part of the Hik-Connect all in one Eco-System. The hub incorporates Wi-Fi, TCP/IP, and GPRS/3G/4G communication methods allowing it to report to control rooms and mobile devices whether through hardwired or GSM based internet services. The PIR cameras can take a series of snap shots and send them to the Hik-Connect mobile app for video verification of the alarm condition. Hik-Connect now becomes the complete end user interface by integrating the AX PRO hub, with Hikvision IP cameras and IP Intercoms, to provide an all in one security solution. This kit is a great starting point for most installations.

N.B. The AX PRO system is not compatible with the Axiom system.



Kit Features:

Wi-Fi, TCP/IP, and GPRS/3G/4G communications

Wireless protocol Tri-X/Cam-X

Two-way communication with AES-128 encryption

Fully remote configurable through the Hik-Connect app

Stay and away modes

Push notifications

Frequency hopping



Kit Specifications:

Wireless zones: up to 96 in conjunction with wireless outputs

Wireless outputs: up to 96 in conjunction with wireless zones

Users: 48

Areas / Partitions: 32

PIR Cameras: 48

Readers & Keypads: Up to 8

Frequency: 433Mhz

Encryption: AES-128

Battery type: 4520mAh lithium-ion

Battery: 12 hours on standby

Size: 170mm x 170mm x 38.6mm

Weight: 557.5g

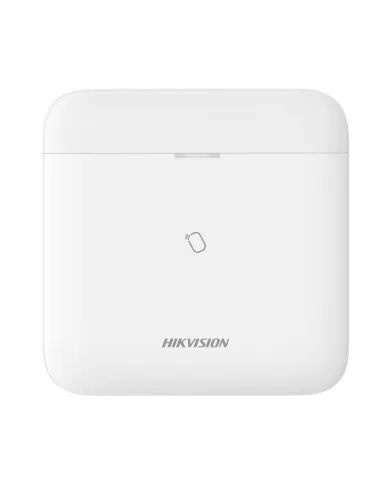

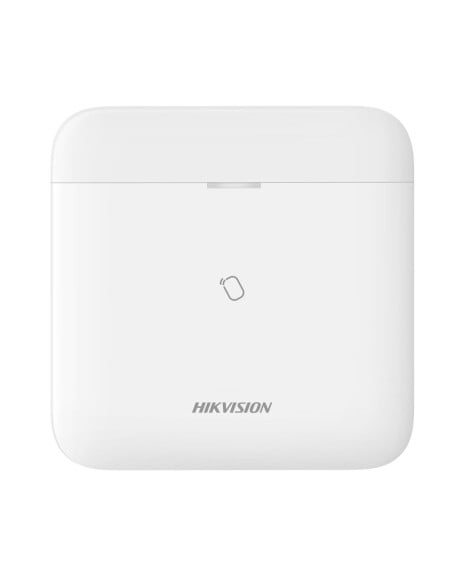

HIK-PWA96-M AX PRO (433MHz)

TCP/IP, Wi-Fi, and 3/4G network

New generation wireless protocol: Tri-X/Cam-X

Long RF transmission distance

Two-way communication with AES-128 encryption

Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders (3 internal+3 external), 8 tag readers & keypads.

Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users

Voice prompt

Configuration via Web client, mobile client, and Convergence Cloud

Hik-Connect and Hik-ProConnect configuration depends on the user access level

Pushes alarm notifications via messages or phone calls

Views live videos from Hik-Connect

Alarm video clips via emails and APP

Supports LED indicator to indicate system status

4520 mAh lithium backup battery

SIA-DC09 protocol, and supports both Contact ID and SIA data format

Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

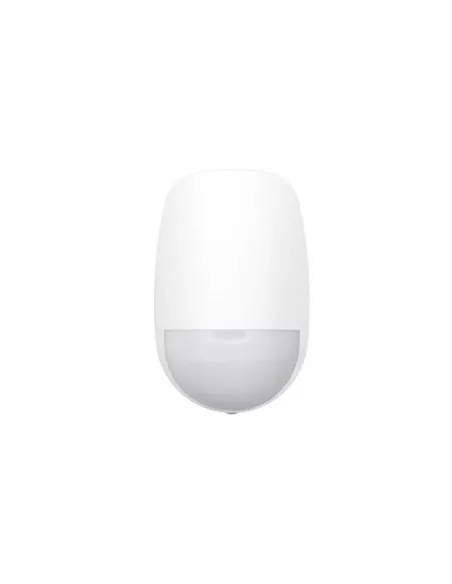

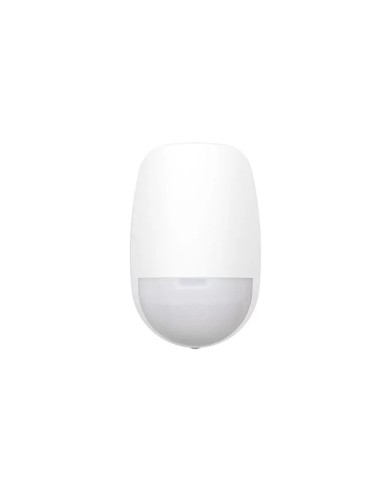

HIK-PDP15P-EG2 Wireless PIR Detector:

Detection Range: 15m / 85.9°

Up to 30KG pet immunity

SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics

Fully remote configurable through the App

Multiple enrollment methods and easy installation design

Easily replaceable battery with PCB-protected

Frequency hopping against jamming for reliable transmission

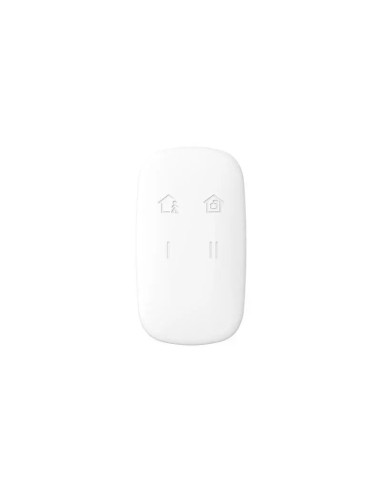

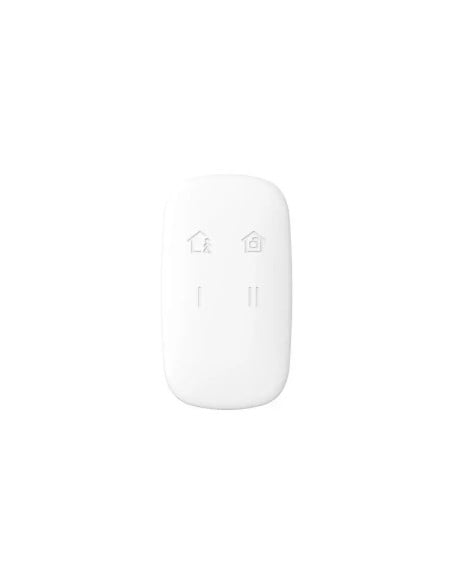

HIK-PKF1 Wireless Keyfob:

Operation: stay/away from arming and disarming

Keyfob lock and unlock function

Fully remote configurable through the App

Multiple enrollment methods and easy installation design

Easily replaceable battery with PCB-protected

Frequency hopping against jamming for reliable transmission

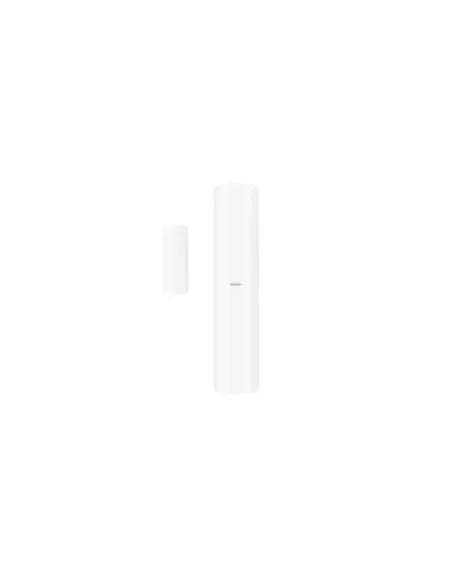

HIK-PDMC-EG2 Wireless Magnet Detector:

Slim design for an unobtrusive (unnoticeable) installation

Fully remote configurable through APP

Multiple enrollment methods and easy installation design

Frequency hopping against jamming for reliable transmission

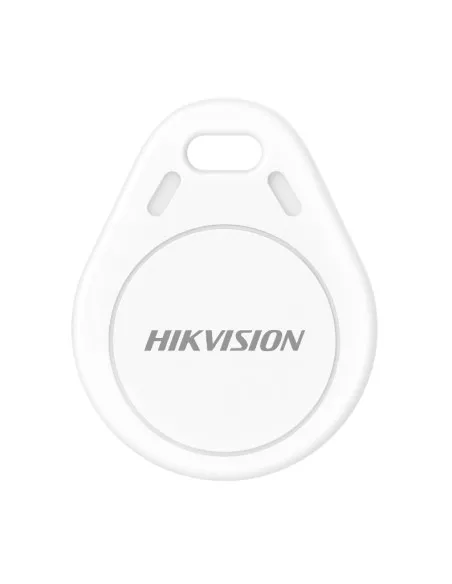

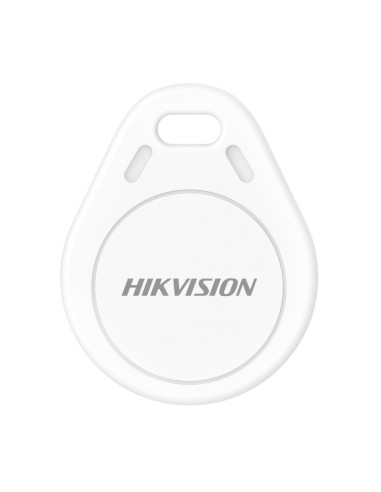

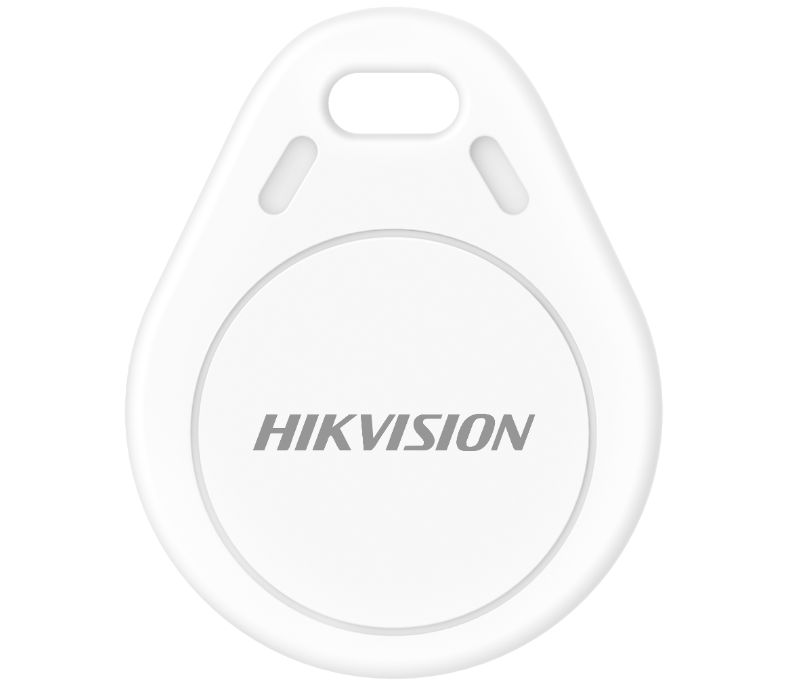

AX PRO DS-PT-M1 MIfare Key Tag:

DS-PT-M1 Tag is used on products that support tag reader, you can arm/disarm the system by swiping tap

Small and solid structure

Convenient to carry with

13.56 MHz working frequency
