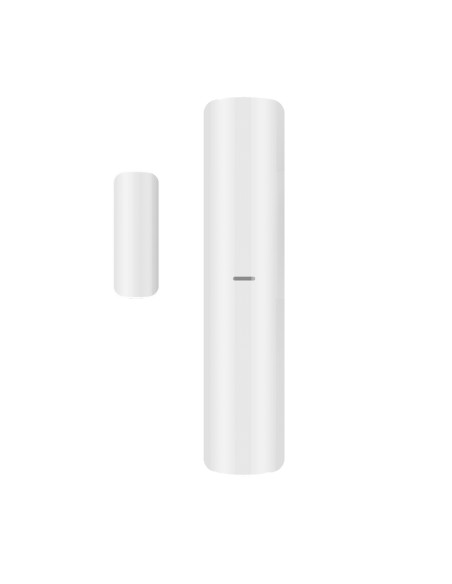

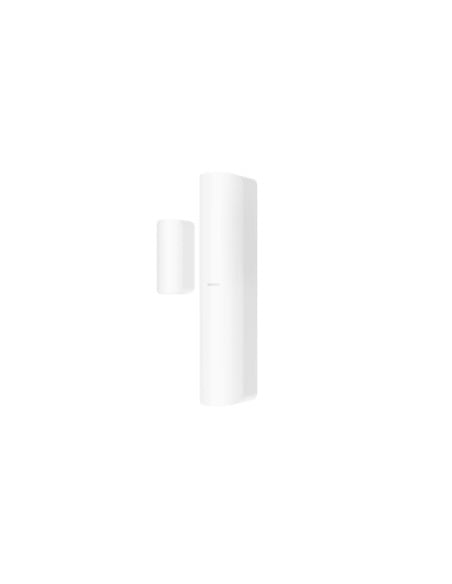

Hikvision Ax Pro Wireless Reed Switch and Shock Detector

HIK-PDMCK-EG2

The Hikvision HIK-PDMCK-EG2 multi-input reed switch with a combined shock sensor has two-way wireless communication featuring tamper protection, low battery, and RF supervision. It can analyse shocks and tilting motions and has a slim and unobtrusive design with 2 external inputs allowing the user to extend its applications by wiring it to different wired sensors and is fully remote configurable through the Hik-Connect app.

N.B. The AX PRO system is not compatible with the Axiom system.

Product Features:

Magnetic contact combined with shock and tilt detection

2 wired inputs extension

Fully remote configurable through APP

Multiple enrollment methods and easy installation design

Frequency hopping against jamming for reliable transmission

Product Specifications:

Detection method: opening contact, shock sensor

Shock detection: high, normal, low

Tilt detection: up to 25 degrees

Transmission range: 1km (open area)

Frequency: 433Mhz

Encryption: AES-128

Battery type: CR123A x 1

Battery life: 3 years

Sensor: 22.5mm x 103mm x 23.2mm

Magnet: 13mm x 34.4mm x 11.4mm

Weight: 60g
