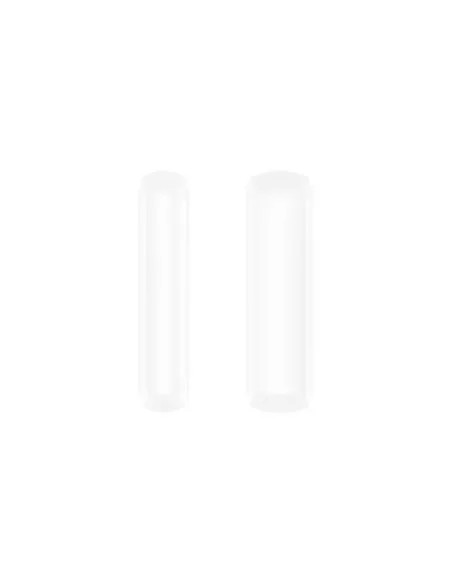

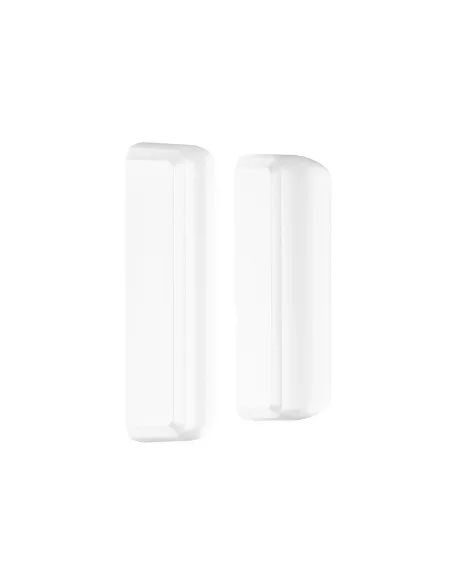

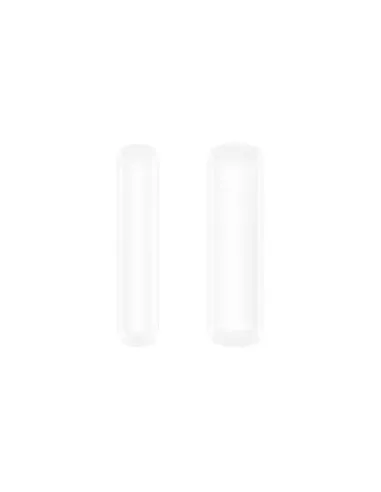

Hikvision Ax Pro Wireless Outdoor Reed Switch, Large, IP66

HIK-PDSMK-S

The Hikvision HIK-PDMCX-E outdoor reed switch has two-way wireless communication featuring tamper protection, low battery, and RF supervision. It has a slim and unobtrusive design, has an ingress protection rating of IP66 for outdoor use and is fully remote configurable through the Hik-Connect app.

N.B. The AX PRO system is not compatible with the Axiom system.

Product Features:

IP66 protective level, UV stable

Fully remote configurable through APP

Multiple enrollment methods and easy installation design

Frequency hopping against jamming for reliable transmission

Product Specifications:

Detection method: opening contact

Detection gap: 76mm max

Transmission range: 1km (open area)

Frequency: 433Mhz

Encryption: AES-128

Battery type: CR123A x 1

Battery life: 5 years

Sensor: 40.5mm x 146mm x 40.9mm

Magnet: 30.5mm x 146mm x 40.9mm

Weight: 247g

Ingress protection: IP66
