TP-Link EAP215-Bridge KIT AC900 Outdoor Long Range Access Point

EAP215-Bridge KIT
Very Low Stock
$ 248.00
inc-GST

EAP215-Bridge KIT Specifications:

  • Wireless Standard: 802.11ac, 5 GHz
  • Data Rate: Up to 867 Mbps
  • Range: Up to 5 km line of sight
  • Antenna Gain: 11 dBi dual-polarized directional

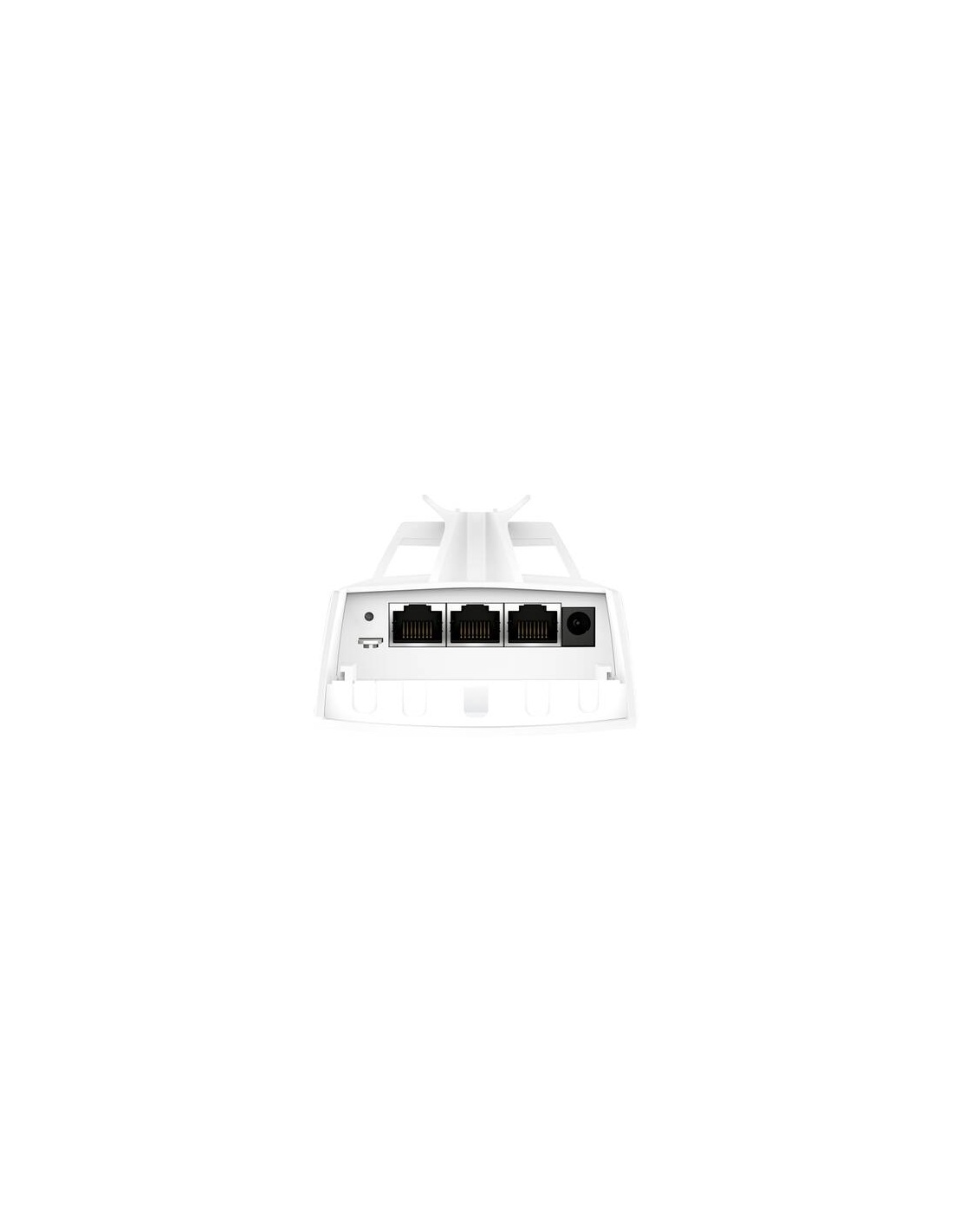

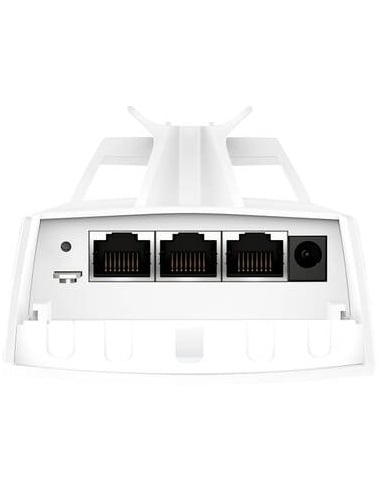

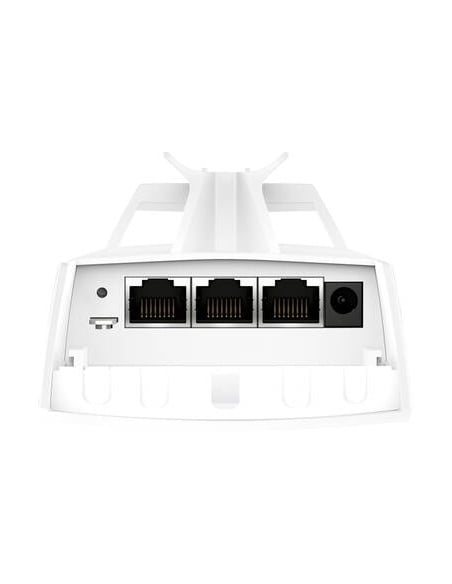

  • Ethernet Ports: 3× Gigabit LAN ports
  • Power Supply: 12V DC / 24V Passive PoE (adapter included)
  • Weatherproof Rating: IP65 with 6kV lightning protection
  • Operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Mounting: Pole mounting (included), wall mounting (optional)



TP-Link EAP215 Bridge Kit – Outdoor AC900 Point-to-Point Wi-Fi Solution

Robust dual-band link for farms, parks, construction sites & more

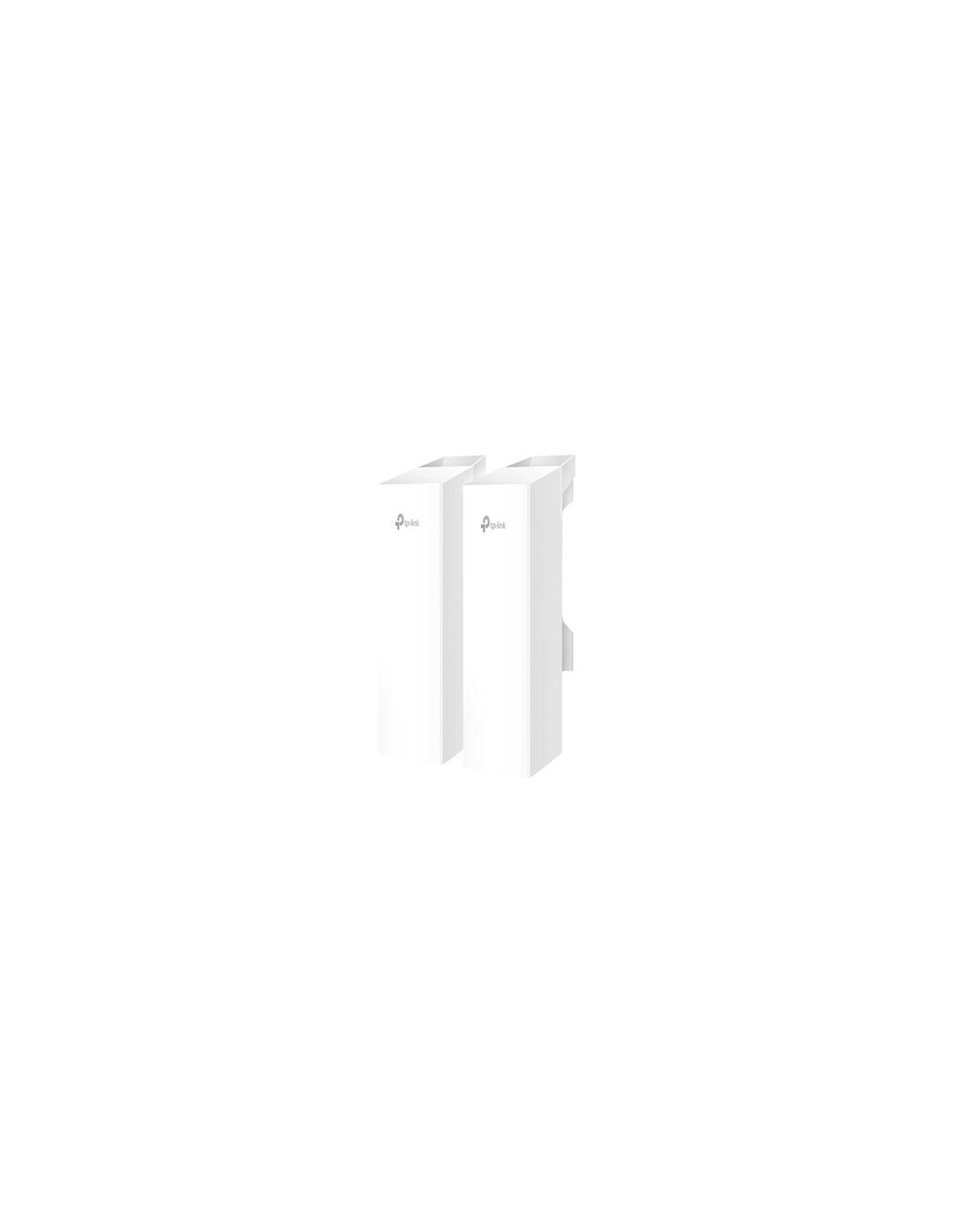

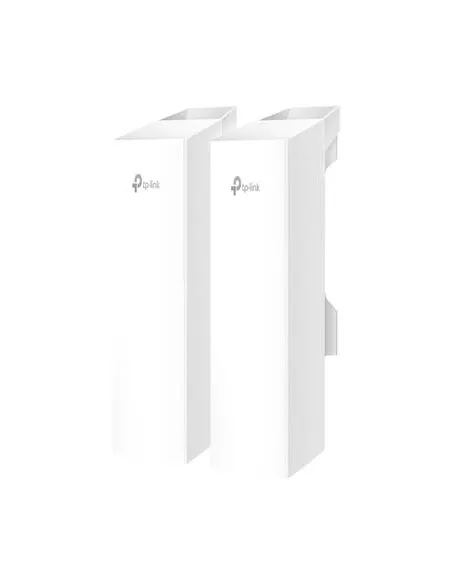

EAP215 outdoor bridge kit front view

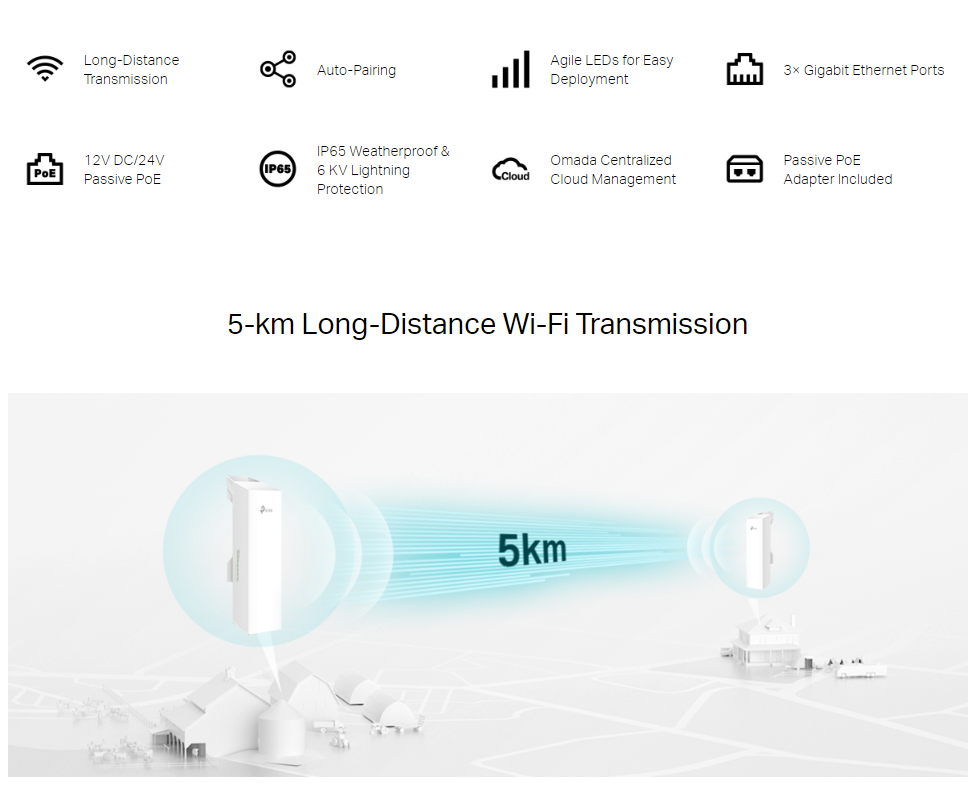

The TP-Link EAP215 Bridge Kit pairs two weather-sealed APs in a ready-to-deploy bundle, delivering an outdoor point-to-point wireless link up to 5 km*. Dual-band AC900 throughput, powerful directional antennas and PoE power-injectors make extending high-speed internet to remote sheds, gates, cameras or guest zones effortless and affordable.

Key Features

  • AC900 Dual-Band – 300 Mb/s @ 2.4 GHz + 867 Mb/s @ 5 GHz †
  • Point-to-Point & Point-to-Multi-Point bridging with built-in 23 dBi directional antennas
  • Weatherproof IP65 enclosure, UV-resistant housing & wide -30 °C – 70 °C operating range
  • Passive PoE (24 V) injectors included – single-cable power + data up to 60 m
  • TP-Link Omada SDN – cloud / local controller & app make management a breeze
  • Auto - Negotiation Grey-Channel technology minimises interference on busy farm sites
  • Adjustable RF Power & transmit beam-control for perfect alignment
  • Surge-Protected Ethernet & grounding kit safeguard against lightning strikes

EAP215 bridge kit packaging contents

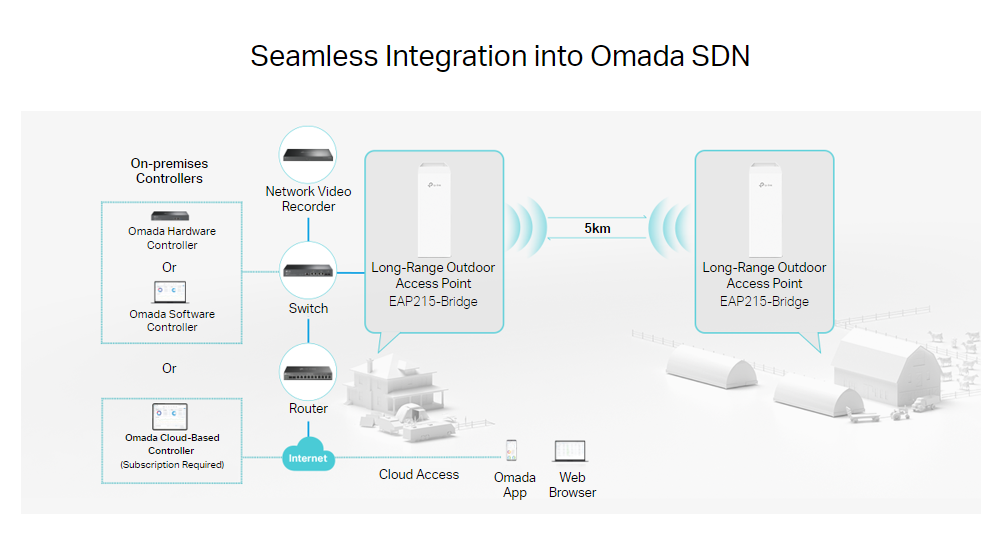

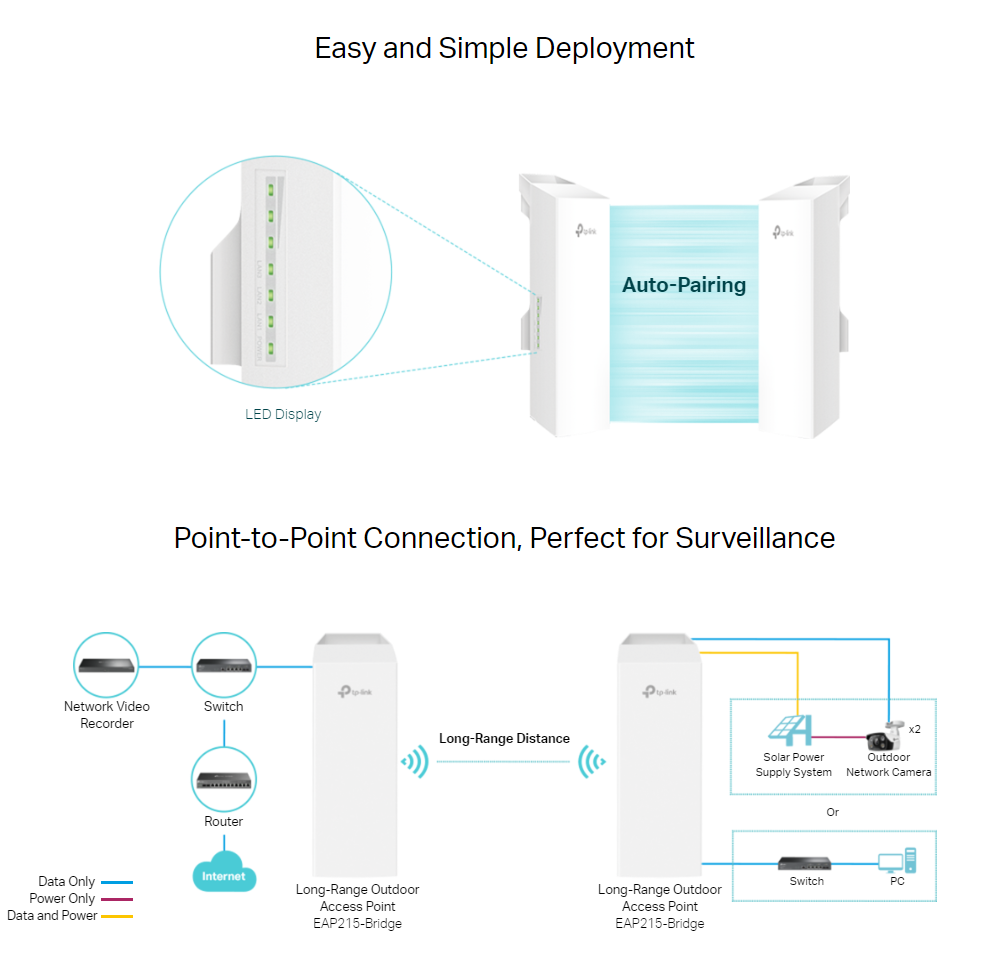

Bridge topology example with EAP215

Real-World Applications

  • Farm & Homestead Back-haul : link a remote dairy shed, workshop or IP camera cluster back to the main farmhouse network.
  • Campsite / Holiday Park : blanket tent sites, amenities and kiosks with seamless guest Wi-Fi.
  • Marina or Jetty : provide POS connectivity and CCTV feeds over long piers without costly fibre trenching.
  • Construction Compounds : temporary high-speed internet between site office and security gate cabins.
  • School & Campus Sports Fields : stream scoreboard data or surveillance footage to the main building.
Specification Details
Wireless Standards 802.11ac/n/a 5 GHz • 802.11n/g/b 2.4 GHz
Max Throughput† 867 Mb/s (5 GHz) + 300 Mb/s (2.4 GHz)
Antenna 23 dBi integrated directional panel
PoE Power 24 V passive PoE injector (x2) included
Outdoor Rating IP65 weatherproof, -30 °C to 70 °C
Management Omada Controller • Web UI • Omada App

Package Contents

  • 2 × EAP215-Outdoor Units (pre-paired)
  • 2 × 24 V Passive PoE Injectors + AC Cords
  • Pole Mount Kits & Grounding Accessories
  • Quick Installation Guide

*Range figure based on unobstructed line-of-sight and may vary with terrain and interference.
†Maximum wireless rates are the physical rates derived from IEEE 802.11 standards. Actual throughput will vary.
