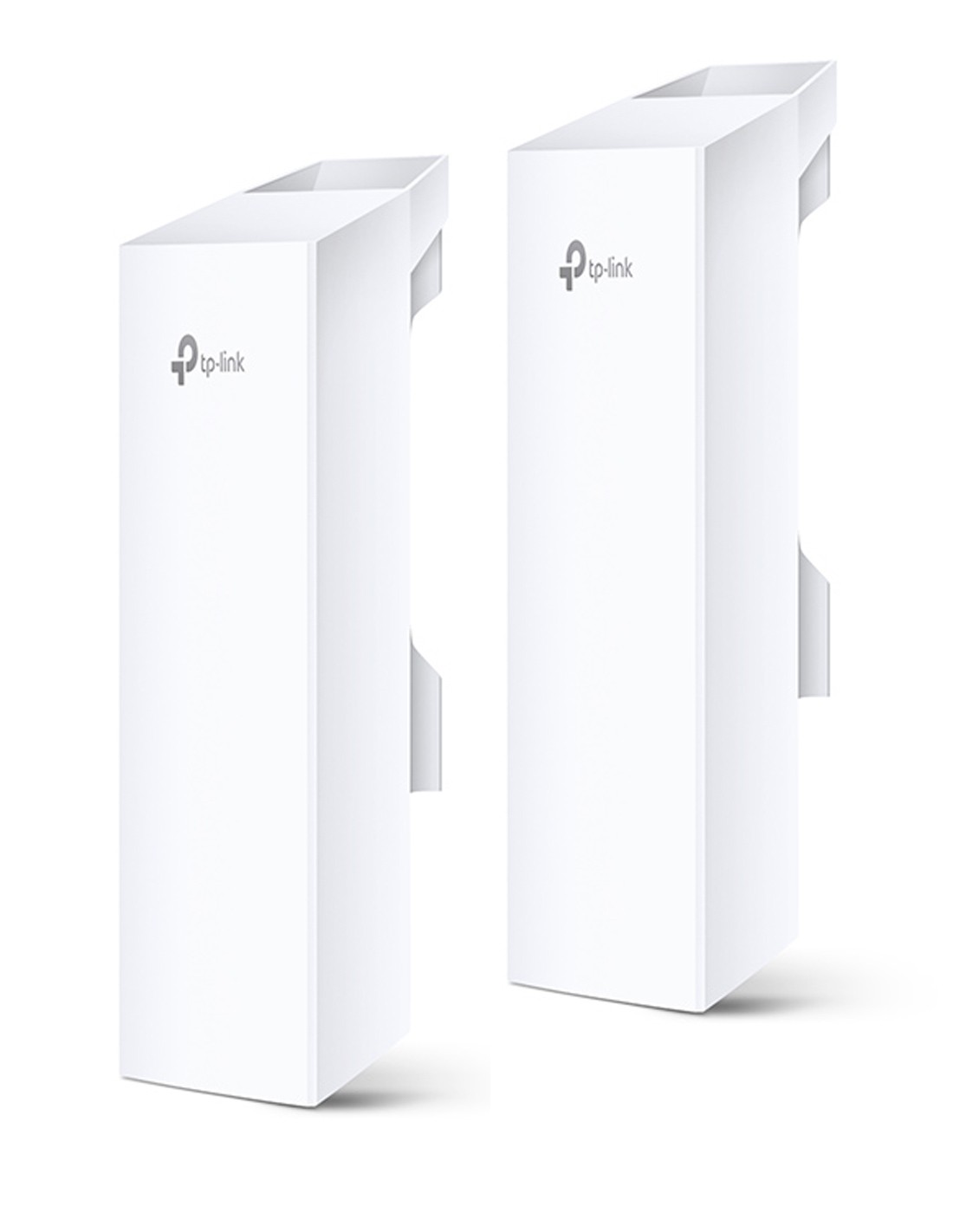

Omada 2.4GHz Wireless Bridge Kit (300Mbps • 500m LOS) — EAP100-Bridge KIT
Model EAP100-Bridge KIT
Create a fast and reliable point-to-point 2.4GHz wireless link up to 500m line-of-sight with the TP-Link Omada EAP100-Bridge KIT. Pre-paired out of the box for plug-and-play installation, this dual-unit bridge kit delivers up to 300Mbps throughput, supports PoE(802.3af) and 12V DC power options or 24/48 Passive(Adapters not included), and features an IP65 weatherproof enclosure for dependable indoor/outdoor use.
With SmartBridging auto-pairing, app-assisted alignment, 3× LAN ports per unit, and Omada SDN centralised management, this is the ideal solution for CCTV links, farm sheds, remote buildings, gates, intercoms, and hard-to-cable network locations.
Key Features & Benefits
- Long-range wireless bridge — up to 500m LOS (environment dependent).
- 300Mbps 2.4GHz Wi-Fi — 802.11b/g/n with 2×2 MIMO directional antennas.
- Pre-paired out of the box — plug-and-play InstantLink setup.
- App-guided alignment — optimise signal using Omada app + signal LEDs.

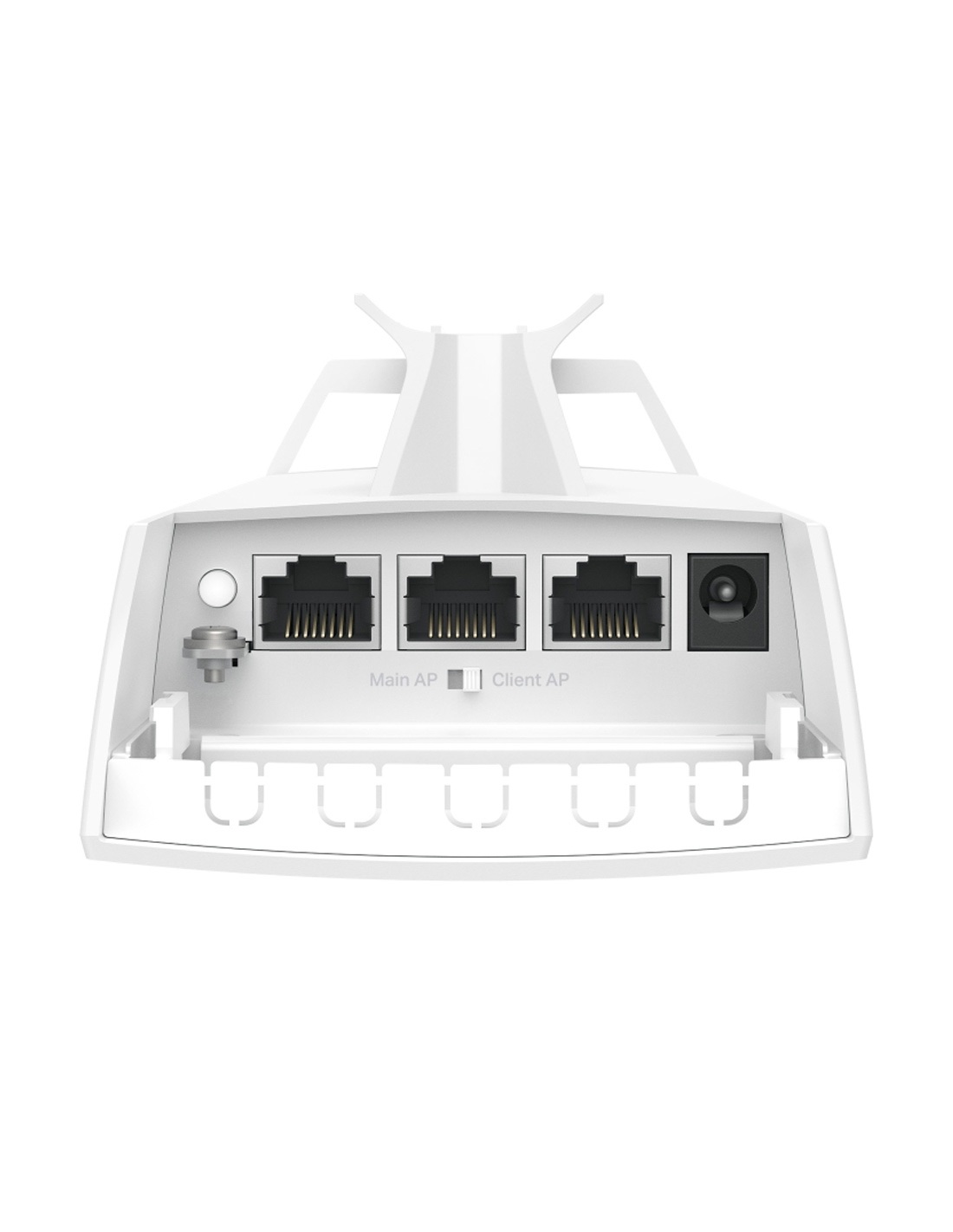

- Multiple LAN ports — 3× Fast Ethernet per unit for cameras/clients.
- Flexible powering — supports 12V DC, 802.3af PoE, 24V/48V passive PoE.
- IP65 weatherproof for outdoor installation.
- Omada SDN support — cloud, hardware, software controller or standalone mode.
- Perfect for CCTV — reliable camera backhaul for farms, car parks, warehouses.
Built for long-range CCTV & remote buildings.
Connect cameras, sheds, gates, outbuildings and Wi-Fi devices without trenching cable.
Real-World Applications
CCTV Backhaul — link remote IP cameras across driveways, sheds, farms, car parks and perimeter fences.
Building-to-Building Links — extend LAN/WAN to workshops, secondary structures or temporary installations.
Remote Device Connectivity — perfect for gates, intercoms, access control and environmental sensors.
Quick Specs
| Wireless Standard |
802.11b/g/n (2.4GHz) |
| Max Wireless Throughput |
Up to 300Mbps |
| Bridge Range |
Up to 500m LOS (environment dependent) |
| Antenna |
2×2 MIMO directional, ~8dBi gain |
| Ethernet Ports |
3× 10/100Mbps RJ45 per bridge unit |
| Power Options |
12V DC, 802.3af PoE, 24V/48V passive PoE (max ~4.8W) - Adapters NOT included |
| Weather Rating |
IP65 outdoor-rated enclosure |
| Operating Temperature |
−40°C to 70°C |
| Management |
Standalone, Omada SDN (Cloud / Hardware / Software), Omada App |
| Mounting |
Pole or wall mount (hardware included) |
What’s in the Box
- 2× EAP100-Bridge V3 Units (pre-paired)
- Pole Mounting Kits
- Wall Mounting Hardware
- Installation Guide
- Part Number 0153501459
Choose the EAP100-Bridge KIT (V3) for stable, long-range Wi-Fi bridges that make remote buildings and CCTV easy to connect — no trenching required.
