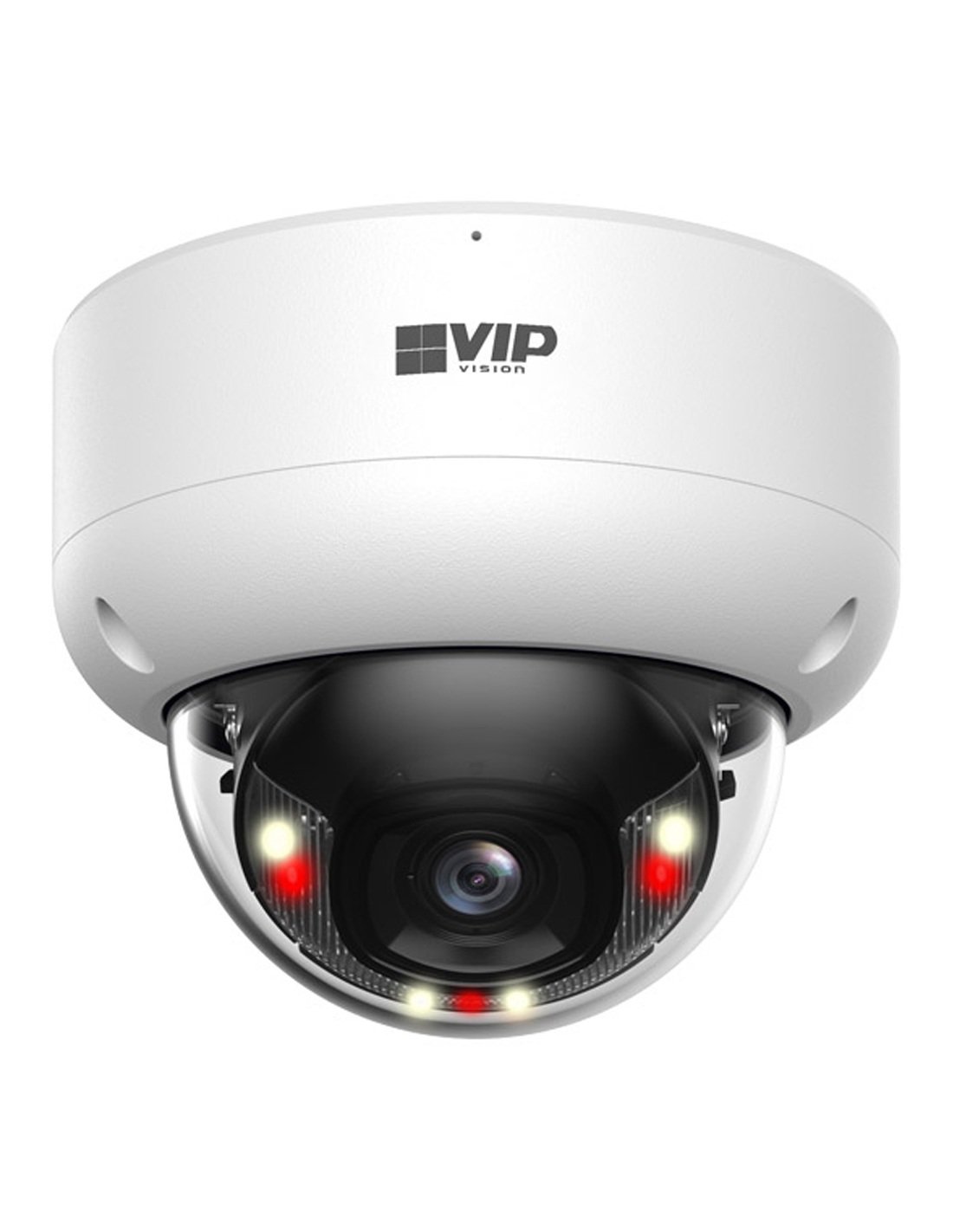

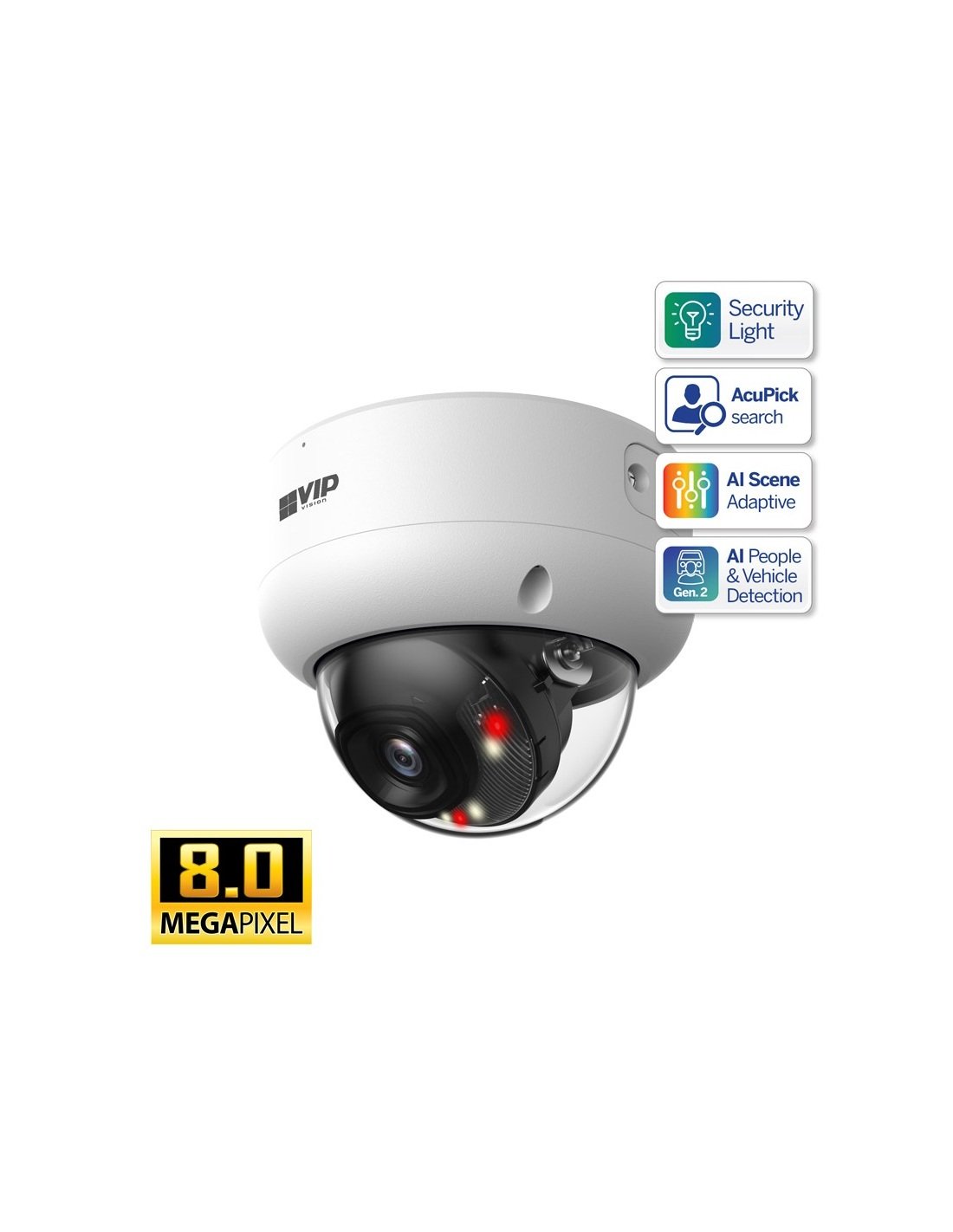

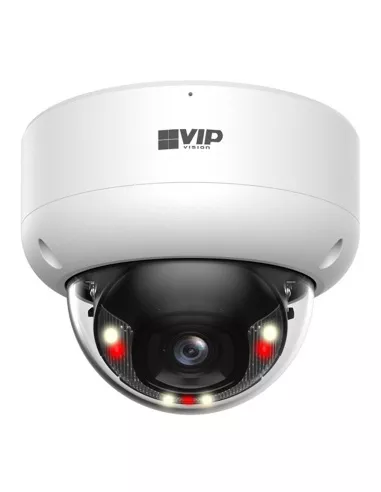

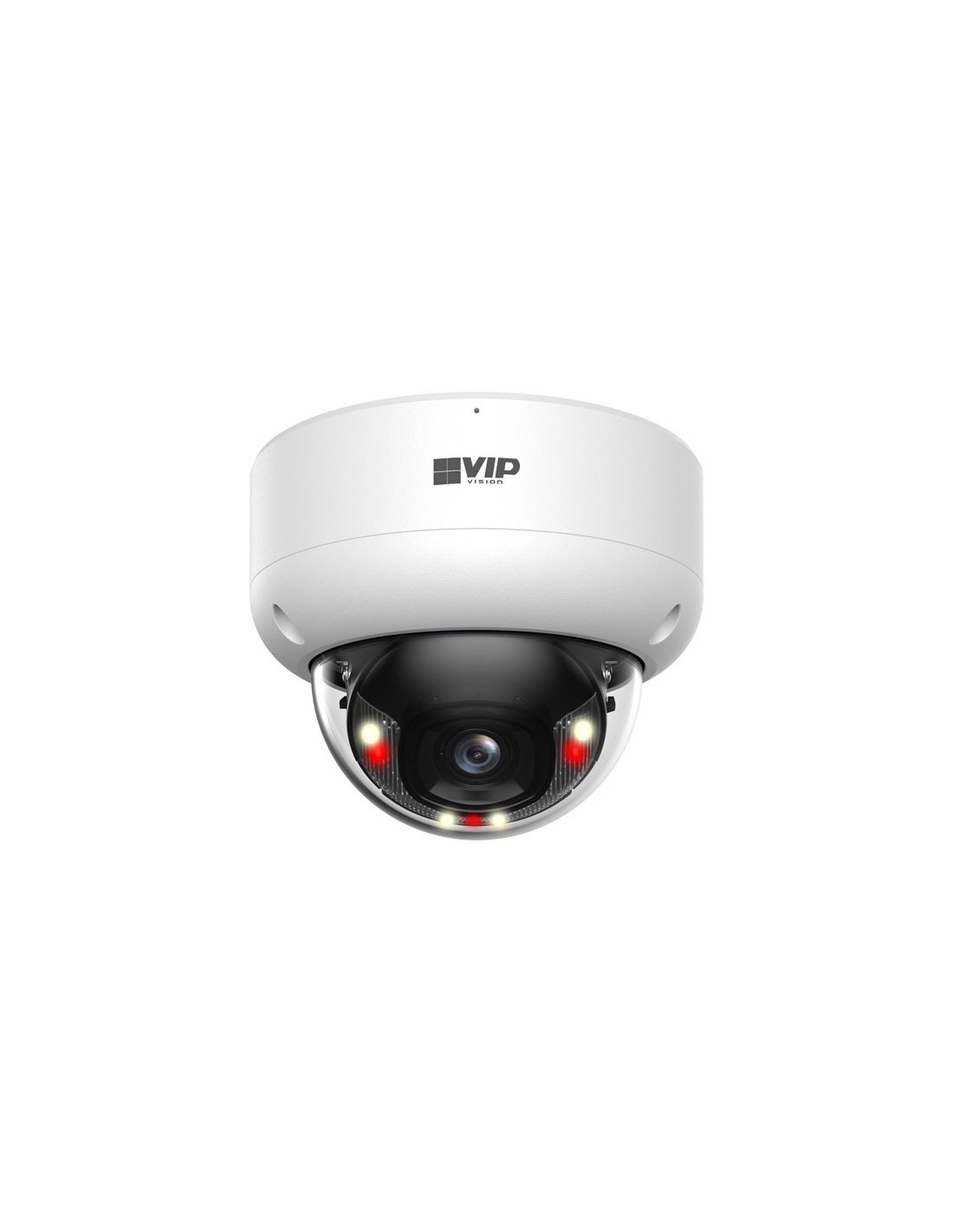

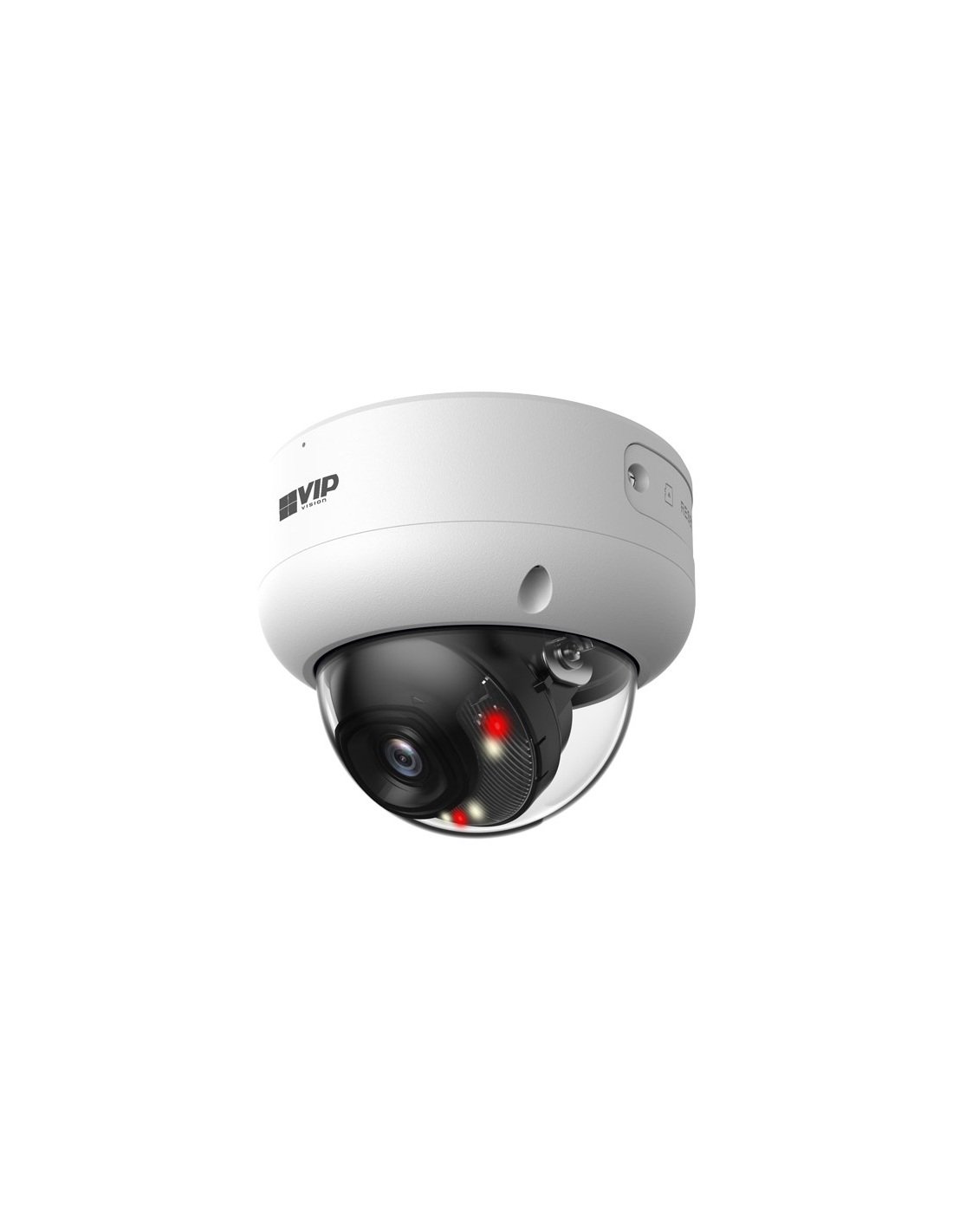

VIP Vision Professional AI Series 8MP 4K-UHD Fixed Vandal Dome - VSIPP-8DIRD-I3
The Professional AI CCTV camera range combines the latest in AI surveillance and a security light into one housing. During AI people and vehicle detection events, the camera will trigger a warm LED light to deter intruders and capture footage in full colour. Quickly search and track people & vehicles throughout entire sites across all Acupick CCTV cameras in your security system.
Camera features:
• Stream up to 8.0MP (3840 x 2160) at 25fps
• 2.8mm fixed lens with 110° viewing angle
• Up to 30m infrared range; true day/night (auto ICR)
• Intelligent search across all Acupick cameras
• Warm LED light triggers on person/vehicle detection
• H.265 encoding for efficient storage & streaming
• MicroSD slot for recording at the edge up to 512GB
Various Payment Types at Checkout.
All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep
VIP Vision VSIPP-8DIRD-I3 | 8MP Fixed Lens Vandal-Resistant Dome Camera • AI Smart Detection • IR 30m
The VIP Vision VSIPP-8DIRD-I3 is a high-resolution 8MP fixed lens dome camera with a vandal-resistant IK10 housing, ideal for commercial and public area surveillance. Featuring AI-powered smart analytics, true WDR, and 30m IR night vision, it provides reliable performance day or night, indoors or outdoors.
Key Features & Benefits
- 8.0 Megapixel Resolution — 3840 × 2160 Ultra HD clarity for critical surveillance zones
- 2.8mm Fixed Wide-Angle Lens — Wide field of view perfect for entryways and open areas
- AI Smart Detection — Human & vehicle classification, perimeter intrusion & motion detection
- 30m IR Night Vision — Clear black & white footage in complete darkness with Smart IR
- True WDR (120dB) — Balanced exposure in high contrast lighting environments
- H.265 Compression — Saves bandwidth and storage without compromising video quality
- IK10 Vandal-Resistant — Anti-tamper dome housing designed for high-risk installations
- IP67 Weatherproof Rating — Built for reliable performance in rain, dust, and temperature extremes
- PoE Power — Simple single cable for power and data, compatible with NVRs and switches
Ideal Applications
- Public buildings, retail shops & reception areas
- Car parks, apartment complexes & shared entrances
- Warehouse entry points and industrial perimeters
- Educational & government facilities with high foot traffic
Specifications at a Glance
- Model: VSIPP-8DIRD-I3
- Resolution: 8MP (3840 x 2160)
- Lens: 2.8mm Fixed
- IR Night Vision: Up to 30m
- AI Detection: Yes – Human/Vehicle/Perimeter
- Video Compression: H.265/H.264
- Ingress Protection: IP67
- Vandal Rating: IK10
- Power: PoE (802.3af) or 12V DC
- Warranty: 3 Years
Protect your premises with the confidence of AI surveillance and vandal-resistant performance. The VSIPP-8DIRD-I3 is built for security professionals looking for advanced analytics and rugged reliability.

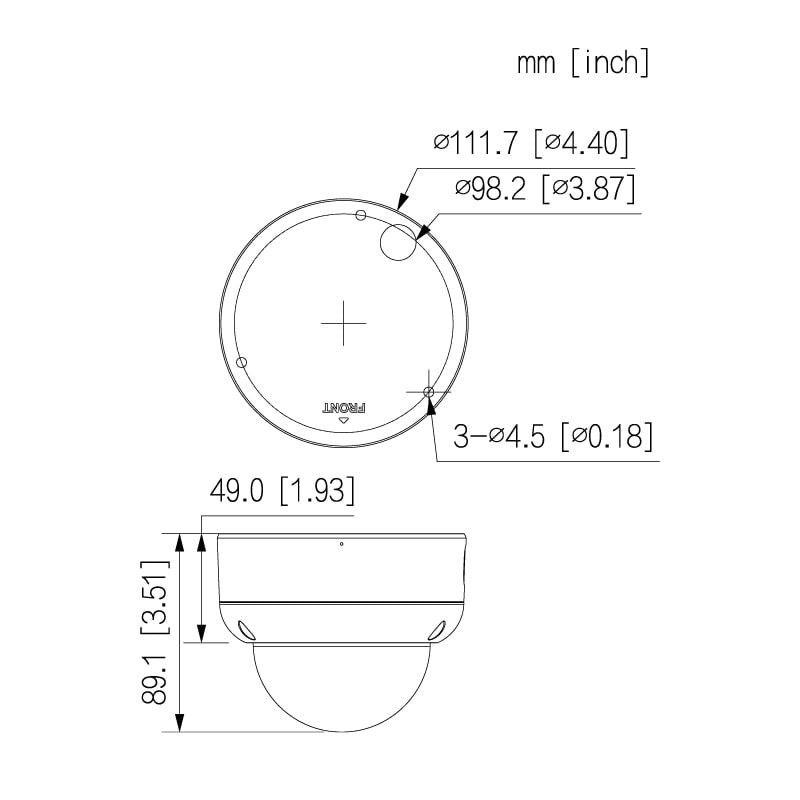

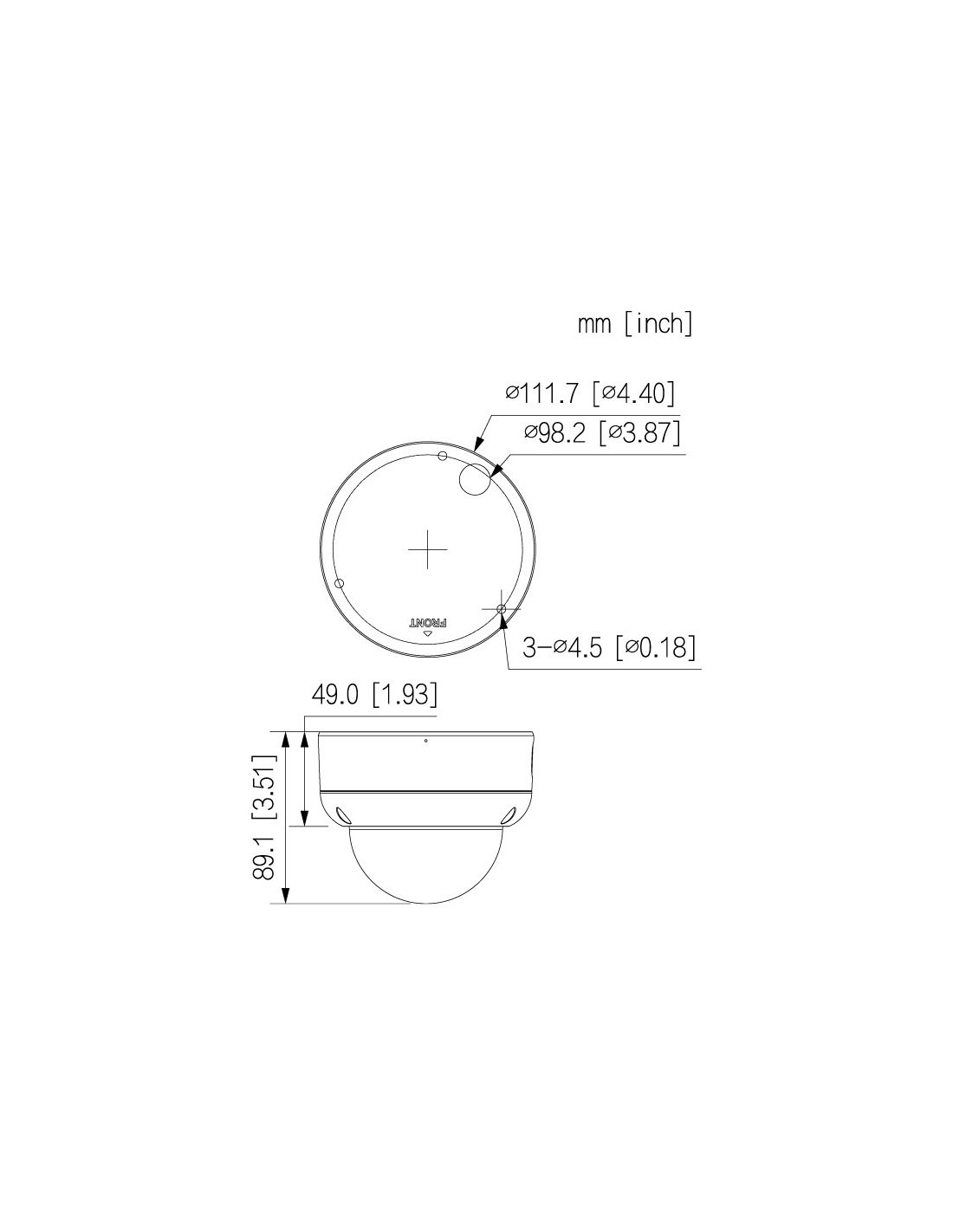

- Dimensions
- Ø89mm x 112mm
- Ethernet
- RJ-45 (10/100Base-T)
- Housing
- Metal
- Net Weight
- 0.53kg
- Operating Conditions
- -40°C ~ +60°C / ≤95% RH
- Power Supply
- 12VDC / PoE (802.3af)
- Ingress Protection
- IP67
- Vandal Resistance
- IK10
- Bit Rate
- H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
- Frame Rate (Main)
- 8.0MP (1 ~ 25fps)
- Frame Rate (Sub)
- 1080p (1 ~ 25fps)
- Frame Rate (Third)
- 1080p (1 ~ 25fps)
- Max. User Access
- 20 Users (Total bandwidth: 64MB)
- Power Consumption
- Video Compression
- H.265 / H.264 / H.264H / H.264B / MJPEG / Smart H.265+ / Smart H.264+ / AI H.265 / AI H.264
- Resolution
- 8.0MP (3840 x 2160) to CIF (352 x 288)
- Series
- Professional AI Series
- Focus
- Fixed / 1.4m Min. Focus Distance
- Interoperability
- ONVIF / P2P / CGI
- Effective Pixels
- 3840 (H) x 2160 (V)
- Image Sensor
- 1/2.8’’ 8.0MP Progressive Scan CMOS
- RS485
- N/A
- Alarm Interface
- 1 channel in: 5mA 3-5VDC/ 1 channel out: 300mA 12VDC
- Camera Type
- Vandal Dome
- Max. Resolution
- 8.0 Megapixel
- Field of View
- Horizontal: 110°, Vertical: 58°
- Lighting Compensation
- BLC / HLC / WDR (120dB) / AI SSA
- Day/Night
- Auto (ICR) / Color / B&W
- Detect (25px/m)
- 85m
- Gain Control
- Auto/Manual
- Identify (250px/m)
- 8m
- Lens Type
- Fixed
- Noise Reduction
- 3D DNR
- Observe (63px/m)
- 34m
- Recognise (125px/m)
- 17m
- White Balance
- Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
- Audio Interface
- 1 input (RCA Port) / 1 output (RCA Port) / Built-in MIC / Audio Compression - G.711a; G.711Mu; PCM; G.726; G.723
- Bit Rate Control
- Constant bit rate (CBR) / Variable bit rate (VBR)
- Edge Storage
- MicroSD Card (up to 512GB) / NAS
- ePoE
- No
- Infrared System
- 2x warm LED light, 2 x Infrared LED, 30m range, Auto/manual on/off control
- Intelligent Functions
- Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
- Lens / Iris
- 2.8mm F1.4 Fixed Lens
- Min Illumination
- 0.007 Lux/F1.4 (Color), 0.0007 Lux/F1.4 (B/W), 0 lux (illuminator on)
- Pan/Tilt/Rotation
- Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
- Picture Control
- Mirror / Flip (0°, 90°, 180°, 270°)
- Protocol
- IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
- RAM / ROM
- 1GB / 256MB
- S/N Ratio
- > 56dB
- Smart Scene Adaptive (SSA)
- Yes
- Streaming Method
- Multicast
- Video Interface
- N/A
- Event Trigger
- Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
- Face Attributes
- N/A
- Face Detection
- N/A
- Heat Map
- N/A
- Intelligent Search
- Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
- People Counting
- N/A
- Perimeter Protection
- Tripwire & Intrusion (Add recognition of humans & vehicles)
