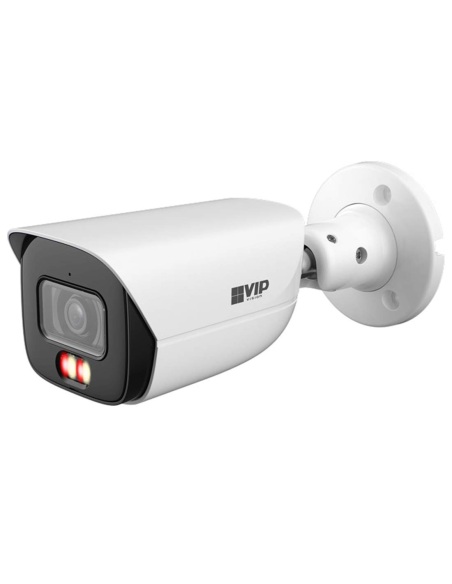

VIP Vision VSIPP-8BIRG-I3 white 8MP bullet, front three-quarter view on its bracket

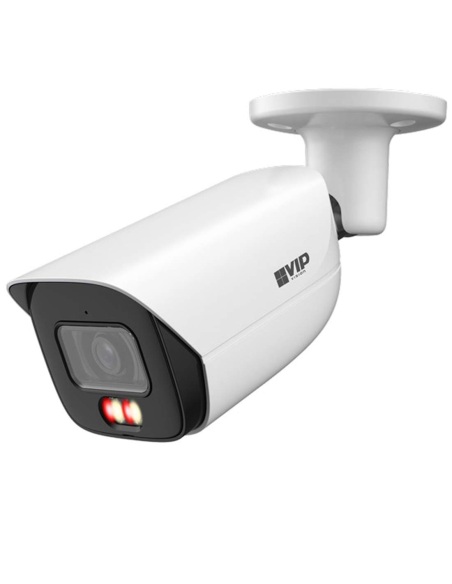

VSIPP-8BIRG-I3 angled view from below with the bracket above

VSIPP-8BIRG-I3 side view, sunshield, metal body and bracket

VSIPP-8BIRG-I3 close-up of the lens window and warm LED and IR window

VSIPP-8BIRG-I3 dimension drawing, 192.7 mm long, 70 mm base with three mounting holes

1 / 5

VIP Vision ID3 Professional AI Series 8MP 25fps 24/7 Colour Fixed Bullet Camera - VSIPP-8BIRG-I3

Name: VIP Vision ID3 Professional AI Series 8MP 25fps 24/7 Colour Fixed Bullet Camera - VSIPP-8BIRG-I3
Brand: VIP Vision
SKU: VSIPP-8BIRG-I3
Price: 227.5 AUD
Availability: InStock

SKU VSIPP-8BIRG-I3 In Stock - Ready to Ship

$227.50 inc GST

VIP Vision VSIPP-8BIRG-I3: a white 8MP metal bullet with a 2.8 mm lens, AI people and vehicle detection and two warm LEDs that light the scene in colour when someone is detected.

✓8MP, 3840 × 2160 at 25 fps, 2.8 mm F1.4, 110° view
✓SMD 4.0 and perimeter protection for people and vehicles
✓2 warm LEDs and 2 IR LEDs, 30 m
✓Built-in mic, RCA audio and alarm in/out
✓microSD up to 512 GB, IP67 metal housing, PoE
✓4-year VIP Vision warranty

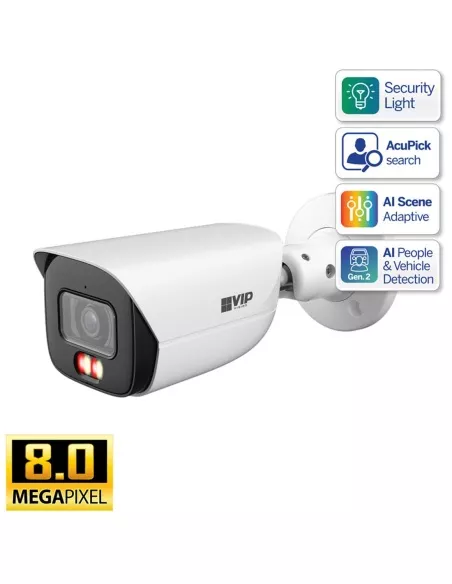

VIP Vision VSIPP-8BIRG-I3 white 8MP bullet camera on its bracket, warm LEDs lit under the lens

VIP Vision · Professional AI · I3 bullet

8MP bullet with a built-in light.
Colour footage when someone walks in.

This is the VSIPP-8BIRG-I3: a white metal 4K bullet with a 2.8 mm lens, AI people and vehicle detection, two warm LEDs that switch on for people and vehicles, and audio and alarm connections.

In one sentence: the VSIPP-8BIRG-I3 is a VIP Vision Professional AI 8MP (3840 × 2160) fixed bullet with a 2.8 mm F1.4 lens, a 110° view, AI people and vehicle detection, warm LED plus 30 m IR lighting, microSD to 512 GB and an IP67 metal housing.

Camera only. Recorder and cabling are separate.

This listing is one bullet camera. It needs a PoE port or a 12 VDC supply for power, and a recorder, NAS or microSD card for the footage.

In the box

VSIPP-8BIRG-I3 bullet camera

You also need

A PoE NVR, or an 802.3af PoE switch
Cat5e or Cat6 cable to the camera
A recorder, NAS or microSD card (up to 512 GB) for the footage

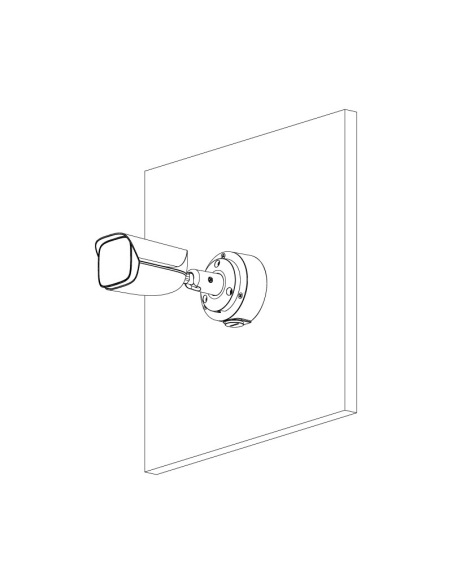

The VSBKTA130E junction box if the cable can't go straight into the wall

A camera and a security light in one housing.

When the camera picks up a person or a vehicle, its two warm LEDs switch on. The intruder knows they have been seen, and the footage turns to full colour. The rest of the night, two IR LEDs cover up to 30 m. Smart Motion Detection 4.0 only flags people and vehicles, which cuts false alarms from other movement.

Front

2.8 mm, F1.4, 110° across.

3840 × 2160 at up to 25 fps from a 1/2.7" 8MP sensor. The view is 110° across and 58° up and down. VIP Vision rates it to detect at 85 m and identify at 8 m.

VSIPP-8BIRG-I3 close-up of the lens window with the warm LED and IR window below it

Lens and lights

Two warm LEDs, two IR LEDs.

The window under the lens holds two warm LEDs and two IR LEDs with a 30 m range, under auto or manual control. Colour works down to 0.007 lux, and the camera records at 0 lux with the lights on. 120 dB true WDR, BLC and HLC handle headlights and bright doorways.

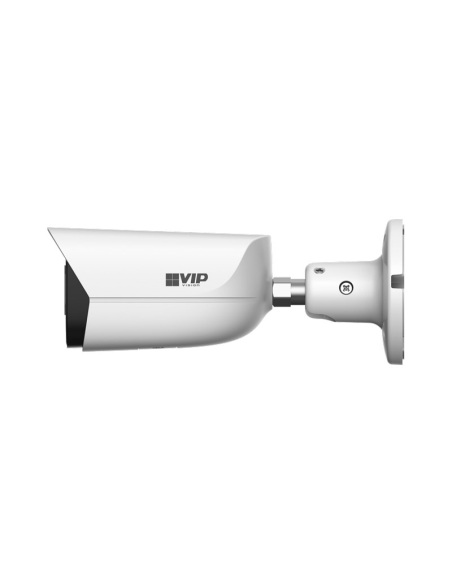

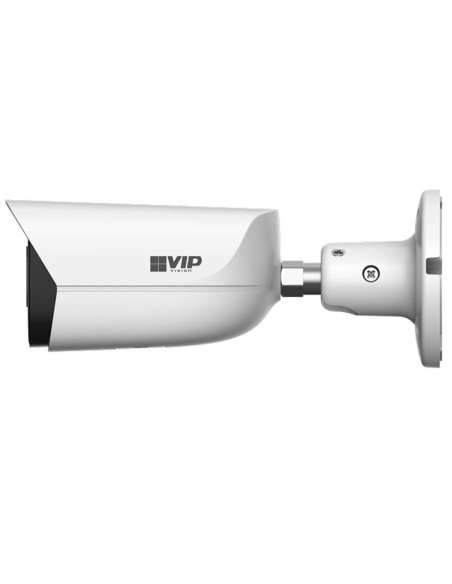

VSIPP-8BIRG-I3 side view showing the sunshield, metal body and bracket

Housing

193 mm long, metal, IP67.

193 × 71 × 66 mm and 0.61 kg, rated IP67 and −40 °C to 60 °C. The bracket pans 0–360°, tilts 0–90° and rotates 0–360°.

How it goes in

From cable to first alert.

Run one cable

Cat5e or Cat6 to a PoE NVR or an 802.3af switch. The camera draws up to 9.5 W on PoE, or under 7.4 W from 12 VDC.

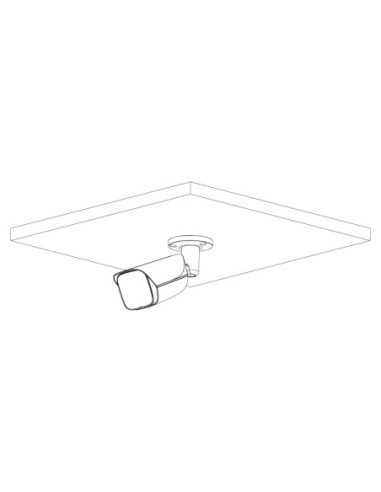

Fix the bracket

Ø70 mm base with three Ø4.5 mm holes on a Ø56 mm circle. Use the VSBKTA130E junction box, adding VSBKTA151 for a corner or VSBKTA152E for a pole.

Add it to the recorder

Add it to a VIP Vision NVR or an ONVIF recorder, set a strong password and record the 8MP main stream.

Set the AI rules

Turn on SMD 4.0, or draw tripwire and intrusion zones, tick people, vehicles or both, and choose when the warm LEDs come on.

At a glance

VSIPP-8BIRG-I3

Show specs

Resolution

8MP, 3840 × 2160, up to 25 fps

Lens

2.8 mm F1.4 fixed, 110° horizontal, 58° vertical

Image sensor

1/2.7" 8MP progressive scan CMOS

DORI

Detect 85 m, observe 34 m, recognise 17 m, identify 8 m

Low light

Colour 0.007 lux at F1.4; black and white 0.0007 lux; 0 lux with the lights on

Lighting

2 warm LEDs and 2 IR LEDs, 30 m range, auto or manual on/off; Smart Dual Light

Day and night

Auto (ICR), colour or black and white


120 dB true WDR, BLC, HLC, AI scene adaptive (SSA), 3D DNR

Compression

H.265, H.264, H.264H, H.264B, Smart H.265+, Smart H.264+, AI H.265, AI H.264; MJPEG on the sub-stream

Streams

Main 8MP at 1–25 fps; sub and third 1080p at 1–25 fps

Bit rate

3 to 16,384 Kbps, CBR or VBR

SMD 4.0 people and vehicle detection; perimeter protection (tripwire, intrusion); AcuPick attribute search

Other functions

Motion detection (4 zones), region of interest (4), privacy masks (8), Smart Infrared

Audio

Built-in microphone; 1 RCA audio input and 1 RCA output; G.711a, G.711Mu, G.726, G.723

Alarm

1 input (5 mA, 3–5 VDC), 1 output (300 mA, 12 VDC)

Storage

microSD up to 512 GB, NAS, FTP, SFTP

Network

RJ45 10/100 Mbps, up to 20 users; ONVIF, P2P, CGI

Power

12 VDC (under 7.4 W) or PoE 802.3af (9.5 W)

Protection

IP67, metal housing

Adjustment

Pan 0–360°, tilt 0–90°, rotation 0–360°

Size and weight

193 × 71 × 66 mm, 0.61 kg

Operating range

−40 °C to 60 °C, humidity 95% or less

Warranty

4 years (VIP Vision Pro AI Series)

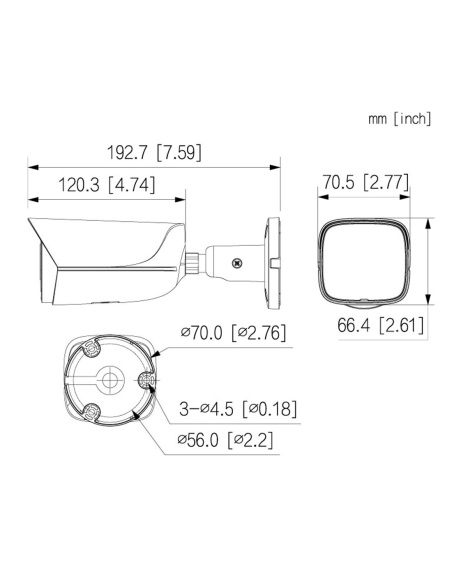

VSIPP-8BIRG-I3 dimensions: 192.7 mm long, 70.5 by 66.4 mm body, Ø70 mm base with three Ø4.5 mm holes on a Ø56 mm circle

192.7 mm long, body 70.5 × 66.4 mm. Ø70 mm base with three Ø4.5 mm holes on a Ø56 mm circle. Units mm [inch].

Pair it with

What this camera does not include

Recorder

A VIP Vision Professional AI NVR

Powers and records the camera on one cable. VIP Vision lists SMD 4.0, perimeter protection and AcuPick search with its own NVRs.

Power

An 802.3af PoE switch

If the recorder has no PoE ports. Allow 9.5 W for this camera.

Mounting

VSBKTA130E junction box

VIP Vision's listed junction box for this bullet. Add VSBKTA151 for a corner or VSBKTA152E for a pole.

Storage

A microSD card

Optional, up to 512 GB, for recording in the camera or as a backup.

Where it is used

Where a bullet with its own light fits.

Homes

Driveways, side passages and back yards, where a light that switches on for people puts most intruders off.

Warehouses and yards

Fence lines, gates and roller doors, with tripwire and intrusion rules for after hours.

Shops and laneways

Rear doors and loading bays, with colour footage of faces and clothing.

Car parks

People and vehicle detection on driveways and bays, with 120 dB WDR for headlights.

Construction sites

Site sheds and gates, recording to microSD where the network drops.

Farms and rural sheds

Machinery sheds and fuel tanks, in an IP67 housing rated −40 °C to 60 °C.

VSIPP-8BIRG-I3 or VSIPP-6BIRG-I3

	VSIPP-8BIRG-I3 (this camera)	VSIPP-6BIRG-I3
Resolution	8MP, 3840 × 2160	6MP, 3288 × 1850
Image sensor	1/2.7" 8MP	1/2.7" 6MP
Colour sensitivity	0.007 lux at F1.4	0.005 lux at F1.4
Lens and view	2.8 mm F1.4, 110°	2.8 mm F1.4, 110°
Lights	2 warm + 2 IR LEDs, 30 m	2 warm + 2 IR LEDs, 30 m
DORI detect / identify	85 m / 8 m	85 m / 8 m
Power	Under 7.4 W 12 VDC, 9.5 W PoE	Under 8 W 12 VDC, 10 W PoE

Both columns come from VIP Vision's Professional AI Series Fixed Bullets datasheet (May 2025). The 4MP VSIPP-4BIRG-I3 on the same sheet has a 100° view and 50 m lighting.

Common questions

Is this part of VIP Vision's ID3 deterrence range?

No. VIP Vision calls this bullet part of its Professional AI I3 range. It has warm LEDs but no siren or strobe; those are on VIP Vision's ID3 and ID4 deterrence models.

Does it record in colour 24/7?

It records colour whenever there is enough light or the warm LEDs are on. The LEDs switch on when a person or vehicle is detected, or you can control them manually. Otherwise the IR LEDs give black-and-white footage out to 30 m.

Is a recorder included?

No. This listing is the camera only. It records to a PoE NVR, a NAS or FTP server, or a microSD card of up to 512 GB.

How is it powered?

By PoE (IEEE 802.3af), drawing 9.5 W. It can also run from 12 VDC at under 7.4 W, using a supply bought separately.

How far does it see?

With the 2.8 mm lens VIP Vision rates it to detect at 85 m, observe at 34 m, recognise at 17 m and identify at 8 m. The lights reach 30 m.

What does the AI detection do?

Smart Motion Detection 4.0 and perimeter protection (tripwire and intrusion) tell people and vehicles apart from other movement, so you get fewer false alarms. VIP Vision lists these with its own NVRs.

What is AcuPick?

A search on a VIP Vision NVR that finds people or vehicles by attributes such as colour and follows their movements across all AcuPick cameras on the system.

Does it record sound?

Yes. It has a built-in microphone, plus one RCA audio input and one RCA output for an outside microphone or speaker. Check your state's surveillance laws before recording sound.

Can it trigger other devices?

Yes. It has one alarm input (5 mA, 3–5 VDC) and one alarm output (300 mA, 12 VDC), for example a door sensor in or a light or buzzer out.

Will it work with a non-VIP Vision recorder?

VIP Vision lists ONVIF, so most ONVIF recorders can record its video. SMD 4.0 and AcuPick searches are listed for VIP Vision NVRs.

How does it mount?

The Ø70 mm base has three Ø4.5 mm holes on a Ø56 mm circle. VIP Vision lists the VSBKTA130E junction box, with VSBKTA151 for a corner and VSBKTA152E for a pole.

What is the difference from the VSIPP-6BIRG-I3?

Resolution. This camera is 8MP (3840 × 2160); the 6BIRG-I3 is 6MP (3288 × 1850) and a little more sensitive in colour (0.005 lux). Lens, lights and housing are the same.

Supported by InFront Technologies.

Help choosing the recorder, switch or bracket: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Low-voltage camera. PoE (802.3af, 9.5 W) or 12 VDC (under 7.4 W). There is no mains connection on the camera. A new power point for a 12 V supply needs a licensed electrician.

Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Audio and privacy. Recording conversations is covered by state and territory surveillance laws. Check them, and use signage, before you switch the microphone on.

What it does not do. No siren, no strobe, no built-in speaker, no Wi-Fi and no gigabit network port (10/100 Mbps).

Figures. From VIP Vision's Professional AI Series Fixed Bullets datasheet (May 2025).

Dimensions: 193mm x 71mm x 66mm
Ethernet: RJ-45 (10/100Base-T)
Housing: Metal
Net Weight: 0.61kg
Operating Conditions: -40°C ~ +60°C / ?95% RH
Power Supply: 12VDC / PoE (802.3af)
Ingress Protection: IP67
Vandal Resistance: N/A
Bit Rate: H.265: 3 ~ 16384Kbps / H.264: 3 ~ 16384Kbps
Frame Rate (Main): 8.0MP (1 ~ 25fps)
Frame Rate (Sub): 1080p (1 ~ 25fps)
Frame Rate (Third): 1080p (1 ~ 25fps)
Max. User Access: 20 Users (Total bandwidth: 64MB)
Power Consumption
Video Compression: H.265 / H.264 / H.264H / H.264B / MJPEG / Smart H.265+ / Smart H.264+ / AI H.265 / AI H.264
Resolution: 8.0MP (3840 x 2160) to CIF (352 x 288)
Series: Professional AI Series
Focus: Fixed / 1.4m Min. Focus Distance
Interoperability: ONVIF / P2P / CGI
Effective Pixels: 3840 (H) x 2160
Image Sensor: 1/2.7’’ 8.0MP Progressive Scan CMOS
RS485: N/A
Alarm Interface: 1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC
Camera Type: Bullet
Max. Resolution: 8.0 Megapixel
Field of View: Horizontal: 110°, Vertical: 58°
Lighting Compensation: BLC / HLC / WDR (120dB) / AI SSA
Day/Night: Auto (ICR) / Color / B&W
Detect (25px/m): 85m
Gain Control: Auto/Manual
Identify (250px/m): 8m
Lens Type: Fixed
Noise Reduction: 3D DNR
Observe (63px/m): 34m
Recognise (125px/m): 17m
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Audio Interface: 1 input (RCA Port) / 1 output (RCA Port) / Built-in Mic / Audio Compression - G.711a; G.711Mu; G726
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage: MicroSD Card (up to 512GB) / NAS
ePoE: No
Infrared System: 2x warm LED light, 2 x Infrared LED, 30m range, Auto/manual on/off control
Intelligent Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (8 zones), Smart Infrared
Lens / Iris: 2.8mm F1.4 Fixed Lens
Min Illumination: 0.007 Lux/F1.4 (Color), 0.0007 Lux/F1.4 (B/W), 0 lux (illuminator on)
Pan/Tilt/Rotation: Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
Picture Control: Mirror / Flip (0°, 90°, 180°, 270°)
Protocol: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
RAM / ROM: 1GB / 256MB
S/N Ratio: > 56dB
Smart Scene Adaptive (SSA): Yes
Streaming Method: Multicast
Video Interface: N/A
Event Trigger: Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Face Attributes: N/A
Face Detection: N/A
Heat Map: N/A
Intelligent Search: Search for people/vehicles across all Acupick cameras, via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
People Counting: N/A
Perimeter Protection: Tripwire & Intrusion (Add recognition of humans & vehicles)
