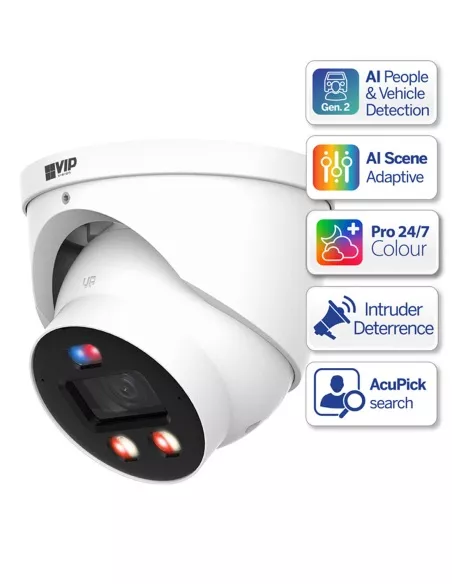

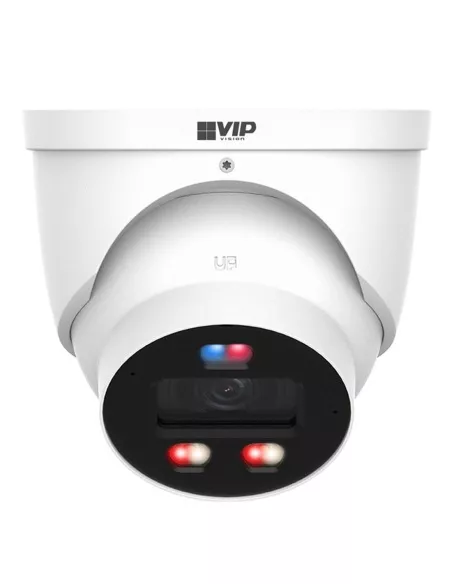

VIP Vision 8MP 4K AI Professional AI Series Fixed Deterrence Turret Pro - VSIPP-8DG-ID4-P
VIP Vision VSIPP-8DG-ID4-P 8MP deterrence turret Pro. A 1/1.8" sensor and F1.0 lens for colour in very low light, with spotlights, strobe and siren on people or vehicles.
- ✓8MP (3840 × 2160) at 25 fps, 1/1.8" sensor
- ✓Colour down to 0.0008 lux, 2.8 mm F1.0 lens, 109° view
- ✓Spotlights, red and blue strobe and siren on people or vehicles
- ✓30 m infrared and 30 m spotlights, AcuPick search
- ✓Dual mics and speaker, microSD up to 512GB
- ✓IP67 metal turret, PoE or 12 V DC, 4-year warranty
Description

4K colour after dark.
Spotlights, strobe and siren.
This is the VSIPP-8DG-ID4-P, the Pro version of VIP Vision's deterrence turret. A large 1/1.8" 8MP sensor behind an F1.0 lens keeps colour in very low light, and a person or vehicle on your rule turns on the spotlights, the red and blue strobe and the siren.
In one sentence: the VSIPP-8DG-ID4-P is a VIP Vision Professional AI 8MP (3840 × 2160) fixed turret with a 1/1.8" sensor, 2.8 mm F1.0 lens, people and vehicle detection, AcuPick search, warm white spotlights, a red and blue strobe and siren, 30 m infrared, IP67 and PoE.
Camera only. Recording and power are separate.
Video, power and audio run over one network cable from a PoE recorder or switch.
- VSIPP-8DG-ID4-P camera
- A PoE port (802.3af) on a VIP Vision NVR or PoE switch, or a 12 V DC supply
- Cat6 cable to the camera
- A microSD card up to 512GB to record on the camera
- A junction box, wall, ceiling or pole mount if the site needs one
Colour footage when it counts.
The 1/1.8" sensor and F1.0 lens record colour down to 0.0008 lux. When someone crosses your line at night, the camera switches from infrared to colour, lights the scene with its two warm white spotlights, flashes red and blue and plays a siren tone or message you set.

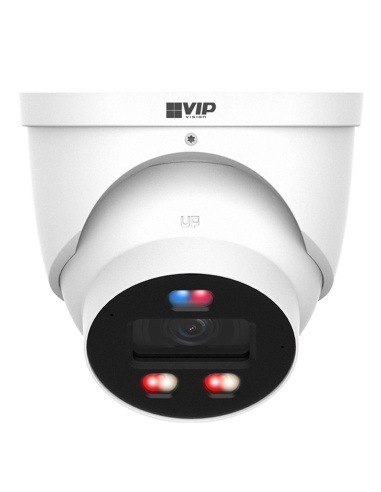

Front
8MP through an F1.0 lens.
3840 × 2160 at up to 25 fps from a 1/1.8" sensor. The 2.8 mm lens covers 109° across and 59° high. VIP Vision rates it to identify at 8 m, recognise at 16 m, observe at 33 m and detect at 82 m.

Deterrence
Spotlights, red and blue strobe, siren.
Two warm white spotlights reach 30 m and two infrared LEDs also reach 30 m. The red and blue alarm light sits above the lens. The built-in speaker plays the siren tone or message, and dual built-in microphones record sound with the video.

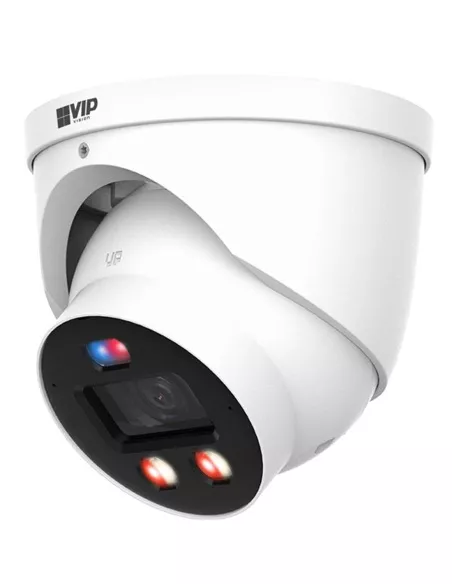

Design
A metal turret you can aim.

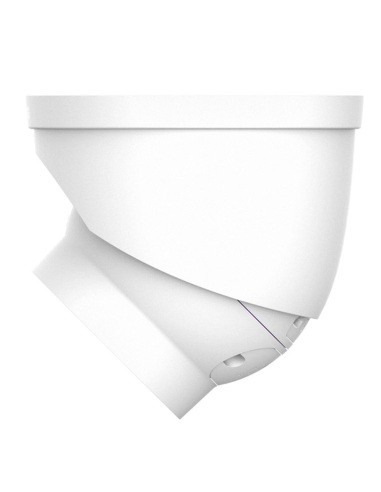

The head pans 360°, tilts 0–78° and rotates 360°, so it levels from an eave, a wall or a ceiling. Metal housing, IP67, −40 °C to +60 °C. Ø122 × 116 mm, 0.8 kg.
How it goes in
From the box to the first warning.
01
Pick the spot
Out of easy reach, about 2.5–3 m up, facing the area you want covered. Identify range is 8 m, so keep the door or gate inside that.
02
Fix and cable it

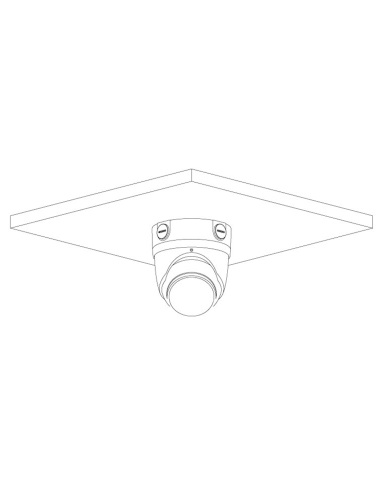

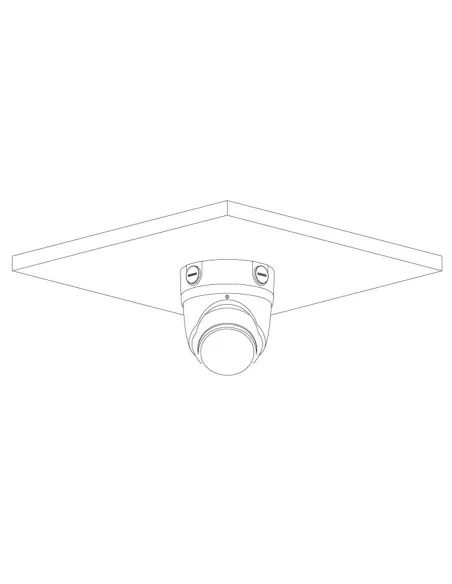

Screw the base to the eave or ceiling, or use the VSBKTA137 junction box or the VSBKTB205W-E wall mount. Run Cat6 to an 802.3af PoE port.
03
Add it to the NVR
A VIP Vision NVR adds SMD 4.0 and perimeter protection search. Other recorders can use ONVIF Profile S, G or T.
04
Draw the rules
Set tripwire or intrusion zones for people, vehicles or both, then link the spotlights, strobe and siren to them.
At a glance
VSIPP-8DG-ID4-P
Show specs
Resolution
8MP, 3840 × 2160, up to 25 fps
Sensor
1/1.8" 8MP progressive scan CMOS
Lens
2.8 mm F1.0 fixed, autofocus
View
109° across, 59° high, 131° diagonal
Detect / observe / recognise / identify
82 / 33 / 16 / 8 m
Low light
0.0008 lux colour, 0.0004 lux black and white (F1.0), 0 lux with illuminator
Infrared
2 × IR LED, up to 30 m
Spotlight
2 × warm white, up to 30 m
Deterrence
Red and blue alarm light, siren with programmable tone or message
AI
Perimeter protection: tripwire and intrusion with people and vehicle detection
Loitering
People gathering and parking detection
AcuPick
Search people or vehicles by attributes such as colour and track their movements
With a VIP Vision NVR
SMD 4.0 and perimeter protection search
True WDR 120 dB, BLC, HLC, AI SSA, 3D NR, defog
Compression
H.265+, H.264, H.264H, H.264B, MJPEG
Streams
Main 8MP up to 25 fps; sub and third 1080p up to 25 fps
Audio
Dual built-in mics and speaker, 1 audio in/out (RCA)
Alarm
1 in (5 mA 3–5 V DC), 1 out (300 mA 12 V DC)
Storage
microSD up to 512GB; NAS, FTP, SFTP
ONVIF
Profile S, G, T
Network
RJ45 10/100
Power
PoE (802.3af), under 10 W; or 12 V DC, under 8.2 W
Adjustment
Pan 0–360°, tilt 0–78°, rotate 0–360°
Housing
Metal, IP67
Operating
−40 °C to +60 °C, ≤95% RH

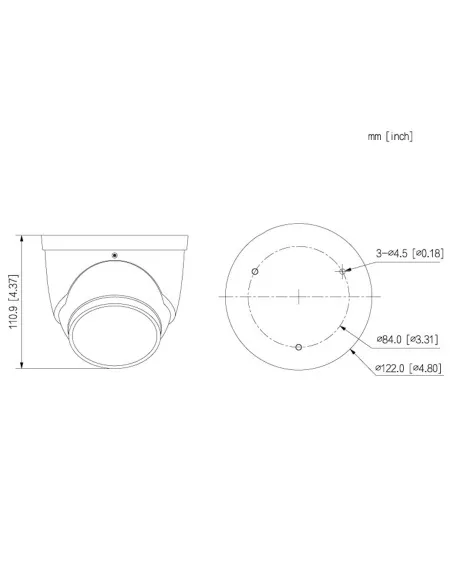

Size and weight
Ø122 × 116 mm, 0.8 kg
Warranty
4 years (VIP Vision Pro AI Series)
Pair it with
What this camera does not include
Recorder
VIP Vision PoE NVR
NVR8PRO-I or NVR16PRO16P-I3 powers it over one Cat6 cable and adds SMD 4.0 and perimeter protection search.
Mounting
VSBKTA137 junction box
Sits under the turret and encloses the cable joint where there is no roof cavity behind.
Wall and pole
Wall or pole mount

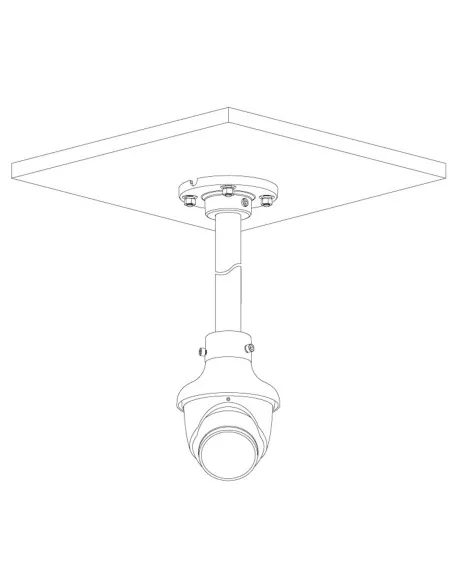

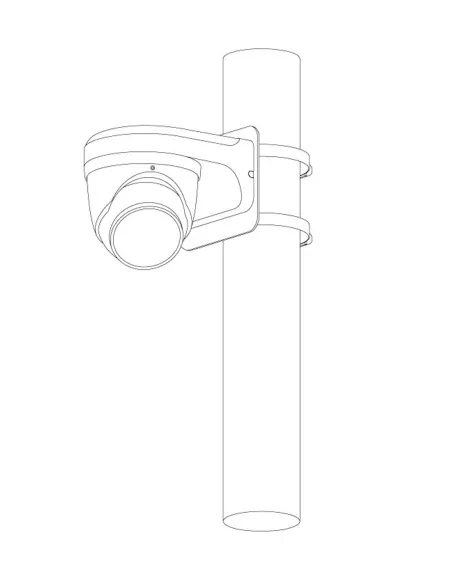

VSBKTB205W-E mounts it on a wall. Add VSBKTA152E for a pole. VSBKTA109 with VSBKTB220C drops it from a ceiling.
Storage
Hard drive or microSD
A surveillance drive in the NVR, or a microSD card up to 512GB in the camera.
Where it is used
Where a deterrence turret fits
Front doors and driveways
Identify a visitor at 8 m, and warn off anyone who walks up the drive after dark.
Backyards and side gates
Colour footage in very low light, with the spotlights and siren on the gate.
Shopfronts
An after-hours strobe and siren on the entry, and colour video of whoever set it off.
Car parks
People and vehicle rules on the entry, with AcuPick to find a car by colour later.
Warehouses and yards
Roller doors and fence lines, with 30 m infrared and 30 m spotlights.
Schools and clubs
Bin areas, back doors and sheds out of hours, warned off before anything happens.
VSIPP-8DG-ID4-P or VSIPP-6DG-ID4-P
| VSIPP-8DG-ID4-P (this camera) | VSIPP-6DG-ID4-P | |
|---|---|---|
| Resolution | 8MP, 3840 × 2160 | 6MP, 3288 × 1850 |
| Sensor | 1/1.8" 8MP | 1/1.8" 6MP |
| Colour low light | 0.0008 lux | 0.0005 lux |
| Detect / identify | 82 m / 8 m | 70 m / 7 m |
| Power, PoE | Under 10 W | Under 6 W |
| Lens, lights, housing | 2.8 mm F1.0, 30 m IR and spotlights, IP67 | 2.8 mm F1.0, 30 m IR and spotlights, IP67 |
Both columns come from the same VIP Vision Active Deterrence Turrets Pro (ID4) datasheet. Lens, view, deterrence, audio, storage and housing are the same.
Common questions
What does the -P (Pro) add?
A larger 1/1.8" sensor and image processor for colour in very low light, down to 0.0008 lux, plus AcuPick search across AcuPick cameras.
What sets off the spotlights, strobe and siren?
A person or vehicle crossing a tripwire or entering an intrusion zone you draw. The camera switches from infrared to colour, so the footage of the event is in colour.
Do I have to use the siren?
No. The spotlights, strobe and siren only run when you link them to a rule. Leave them off and it works as an 8MP camera with AI alerts.
How far can it see?
VIP Vision rates it to detect at 82 m, observe at 33 m, recognise at 16 m and identify at 8 m. At night the infrared and the spotlights each reach 30 m.
What is AcuPick?
A search that finds people or vehicles by attributes such as colour and tracks their movements across AcuPick cameras in your system. Ask us which recorder suits it.
How is it powered?
PoE (802.3af) from a VIP Vision PoE NVR or PoE switch, under 10 W. Or 12 V DC, under 8.2 W.
Does it have audio?
Yes. Dual built-in microphones and a speaker, plus one RCA audio input and output. The speaker plays the siren tone or message.
Will it work with my recorder?
VIP Vision NVRs add it with SMD 4.0 and perimeter protection search. Other recorders that support ONVIF Profile S, G or T can record it.
Can it record without an NVR?
Yes. To a microSD card of up to 512GB, or to NAS, FTP or SFTP.
Which mounts fit it?
VSBKTA137 junction box, VSBKTA109 with VSBKTB220C for a ceiling drop, VSBKTB205W-E wall mount, and VSBKTB205W-E with VSBKTA152E for a pole.
What is the warranty?
4 years, as VIP Vision states for its Pro AI Series, supported in Australia by InFront Technologies. The datasheet is on the Attachments tab.
Who can install the cabling?
Concealed Cat6 between the camera and the NVR or PoE switch is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Supported by InFront Technologies.
Datasheet on the Attachments tab. Send a photo of the area to [email protected] or call 1300 736 970 and we will suggest the spot and the mount.
Installation and safety
Power. PoE (802.3af) or 12 V DC. Use one or the other. There is no mains connection on the camera.
Cabling. Concealed Cat6 between the camera and the PoE switch or NVR is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new mains outlet for the recorder or switch needs a licensed electrician.
Audio and aiming. Recording sound is covered by state and territory surveillance laws. Mask or angle the view away from neighbouring yards and windows.
What it does not do. No Wi-Fi, no zoom (the 2.8 mm lens is fixed) and no pan or tilt motor.
Figures. From the VSIPP-8DG-ID4-P column of VIP Vision's Active Deterrence Turrets Pro (ID4) datasheet. The 6MP column is a different camera.
- Dimensions
- ?122 mm x 116 mm
- Ethernet
- RJ-45 (10/100Base-T)
- Housing
- Metal
- Net Weight
- 0.8kg
- Operating Conditions
- -40°C to +60°C / ?95% RH
- Power Supply
- 12VDC / PoE (820.3af)
- Ingress Protection
- IP67
- Vandal Resistance
- -
- Bit Rate
- H.264: 3 ~ 16384kbps / H.265: 3 ~ 16384kbps
- Frame Rate (Main)
- 8.0MP (1 ~ 25fps)
- Frame Rate (Sub)
- 1080p (1 ~ 25fps)
- Frame Rate (Third)
- 1080p (1 ~ 25fps)
- Max. User Access
- 20 Users (Total bandwidth: 64MB)
- Power Consumption
- < 8.6 W (12 VDC); < 10.1 W (PoE)
- Video Compression
- H.265+ / H.264 / H.264+ / H.264 / MJPEG
- Resolution
- 8.0MPMP (3840 x 2160) to CIF (352 x 288 / 352 x 240)
- Series
- Professional AI Series
- Focus
- Auto Focus / 3.2m Min. Focus Distance
- Interoperability
- ONVIF (Profile S, Profile G, Profile T) / P2P / CGI
- Effective Pixels
- 3840 (H) x 2160 (V)
- Image Sensor
- 1/1.8" CMOS
- RS485
- -
- Alarm Interface
- 1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC
- Camera Type
- Turret
- Max. Resolution
- 8.0 Megapixel
- Field of View
- Horizontal: 109°, Vertical: 59°, Diagonal: 131°
- Lighting Compensation
- BLC / HLC / WDR (120dB)
- Day/Night
- Auto (ICR) / Colour / B/W
- Detect (25px/m)
- 82m
- Gain Control
- Auto
- Identify (250px/m)
- 8m
- Lens Type
- Fixed
- Noise Reduction
- 3D NR
- Observe (63px/m)
- 33m
- Recognise (125px/m)
- 16m
- White Balance
- Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
- Audio Interface
- Built-in Mic & Built-in Speaker, 1 Audio In/Output (RCA) / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723
- Bit Rate Control
- Constant bit rate (CBR) / Variable bit rate (VBR) / Average Bit Rate (ABR)
- Edge Storage
- MicroSD Card (up to 512GB) / NAS / FTP / SFTP
- ePoE
- -
- Infrared System
- 1 x Infrared LED, 30m range, Auto/manual on/off control
- Intelligent Functions
- Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog, Object Abandoned / Missing
- Lens / Iris
- 2.8mm F1.0 Fixed Focal Lens with Fixed Iris
- Min Illumination
- 0.0008 [email protected] (Colour, 30 IRE) / 0.0004 [email protected] (B/W, 30IRE) / 0 lux (illumination on)
- Pan/Tilt/Rotation
- Pan: 0°-360° / Tilt: 0°-78° / Rotation: 0°-360°
- Picture Control
- Mirror / Flip (0°, 90°, 180°, 270°)
- Protocol
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
- RAM / ROM
- 256MB / 2G
- S/N Ratio
- > 56dB
- Smart Scene Adaptive (SSA)
- SSA
- Streaming Method
- Unicast / Multicast
- Video Interface
- -
- Event Trigger
- Motion Detection, Perimeter Protection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
- Face Attributes
- -
- Face Detection
- -
- Heat Map
- -
- Intelligent Search
- Search people or vehicle detection events (Perimeter Protection), Search by attributes, such as clothing/vehicle colour and vehicle type (AI Quick Pick)
- People Counting
- -
- Perimeter Protection
- People and vehicle detection using tripwire or intrusion rules
- Active Deterrence
- 1 x Red & Blue Strobe, 1 x Loudspeaker Siren
- White Light LED
- 2 x Spotlight (Warm White), 30m range, Auto/manual on/off control
