Watchguard Professional 8 Zone Alarm Panel & LCD Keypad (White) - WGAP864PW2
- 8 programmable, end of line supervised zone inputs & 8 alarm partitions
- 5 programmable outputs on alarm panel (expandable to 41 with Wired Zone Expander module)
- Programmable loop response time
- Auto arm/disarm capability per partition & by day - program to arm/disarm at pre-determined times
- Optional tamper reporting per zone using double end of line resistors (12k and 4k7)
- EEPROM memory retains all data in the event of a total power failure
- Dual reporting provides for duplicated reporting to two independent central base stations
- 3 quick arm modes: Away/Stay with no Exit delay/Stay with exit delay
- 128 user codes
- Log capable of 1000 events
- False alarm reduction features

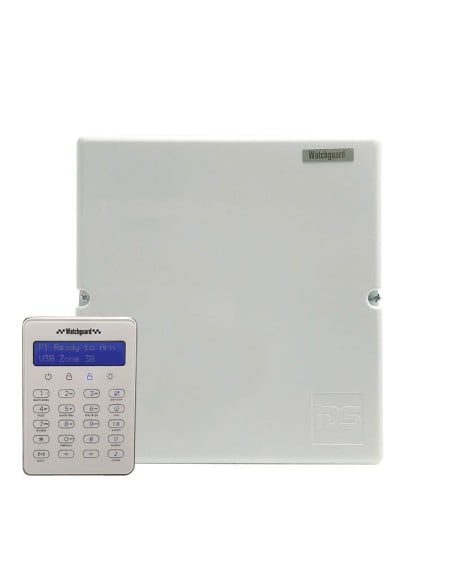

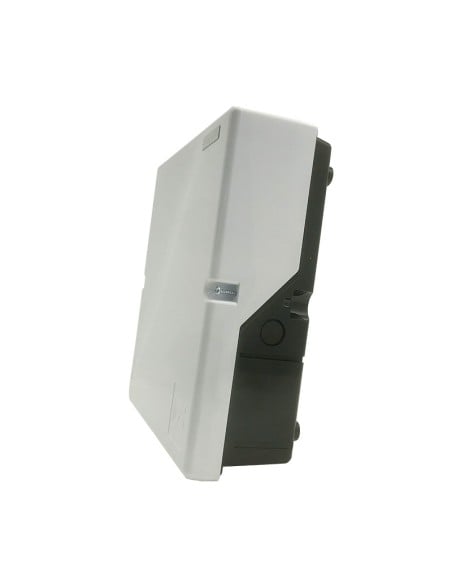

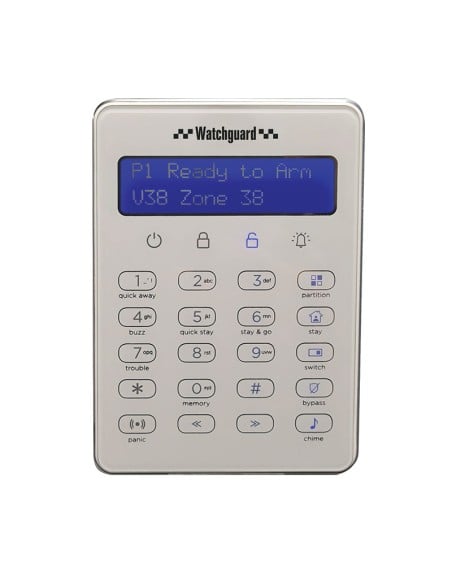

Watchguard Professional 8 Zone Alarm Panel & LCD Keypad (White)
WGAP864PW2
The WGAP864PW2 is a versatile, microprocessor-based, fully featured 8/64 Zone alarm panel, which has eight partitions. The alarm panel provides immediate notification of burglary, fire, medical & panic conditions. There is a dedicated panic zone, monitored siren output, auxiliary power outputs and five (expandable to 41) programmable outputs that may be programmed to perform various trigger/switching functions. Program via USB cable in less than 30 Seconds! USB Programming Cable Sold Separately (Model: WGAPCABLEUSB)
Product Features:
▪ 8 programmable, end of line supervised zone inputs & 8 alarm partitions
▪ 5 programmable outputs on alarm panel (expandable to 41 with Wired Zone Expander module)
▪ Programmable loop response time
▪ Auto arm/disarm capability per partition & by day - program to arm/disarm at pre-determined times
▪ Optional tamper reporting per zone using double end of line resistors (12k and 4k7)
▪ EEPROM memory retains all data in the event of a total power failure
▪ Dual reporting provides for duplicated reporting to two independent central base stations
▪ 3 quick arm modes: Away/Stay with no Exit delay/Stay with exit delay
▪ 128 user codes
▪ Log capable of 1000 events
▪ False alarm reduction features

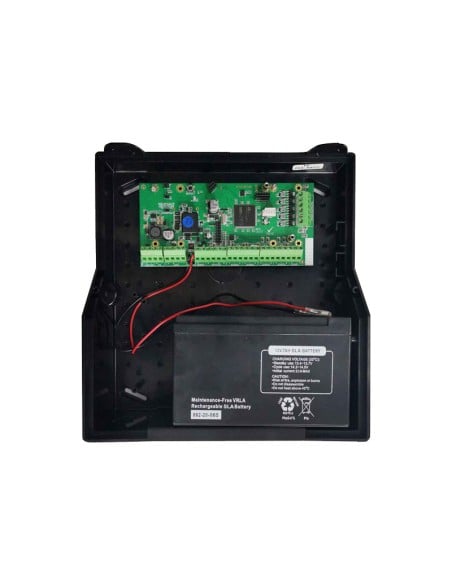

**Battery sold separately**
**This module uses a 24V DC power supply, previous alarm panels used a 16V AC power supply**
- Monitoring Service
- No (Optional Phone Reporting Module)
- Partitioning
- 8 partitions
- Remote Programming
- No (Optional Phone Programming Module)
- Sensors
- Wired
- Zones
- 8 expandable to 64
