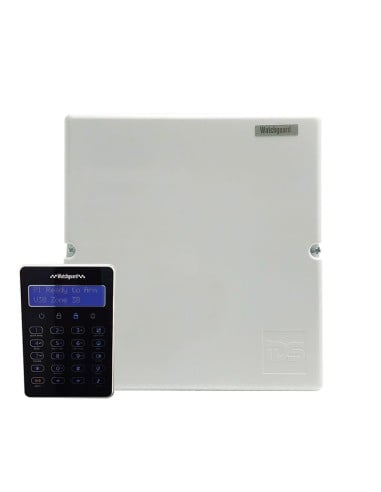

Watchguard Professional 8 Zone Alarm Panel & LCD Keypad (Black)

Watchguard Professional 8 Zone Alarm Panel & LCD Keypad (Black)

WGAP864PB2

The WGAP864PB2 is a versatile, microprocessor-based, fully featured 8/64 Zone alarm panel, which has eight partitions. The alarm panel provides immediate notification of burglary, fire, medical & panic conditions. There is a dedicated panic zone, monitored siren output, auxiliary power outputs and 5 (expandable to 41) programmable outputs that may be programmed to perform various trigger/switching functions. Program via USB cable in less than 30 Seconds! USB Programming Cable Sold Separately (Model: WGAPCABLEUSB)

Product Features:

▪ 8 programmable, end-of-line supervised zone inputs & 8 alarm partitions

▪ 5 programmable outputs on the alarm panel (expandable to 41 with Wired Zone Expander module)

▪ Programmable loop response time

▪ Auto arm/disarm capability per partition & by day - program to arm/disarm at pre-determined times

▪ Optional tamper reporting per zone using double end-of-line resistors (12k and 4k7)

▪ EEPROM memory retains all data in the event of a total power failure

▪ Dual reporting provides for duplicated reporting to two independent central base stations

▪ 3 quick arm modes: Away/Stay with no Exit delay/Stay with exit delay

▪ 128 user codes

▪ Log capable of 1000 events

▪ False alarm reduction features

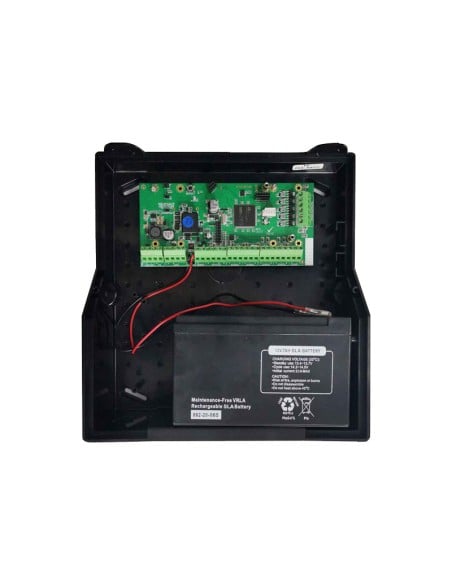

**Battery sold separately**

**This module uses a 24V DC power supply, previous alarm panels used a 16V AC power supply**
