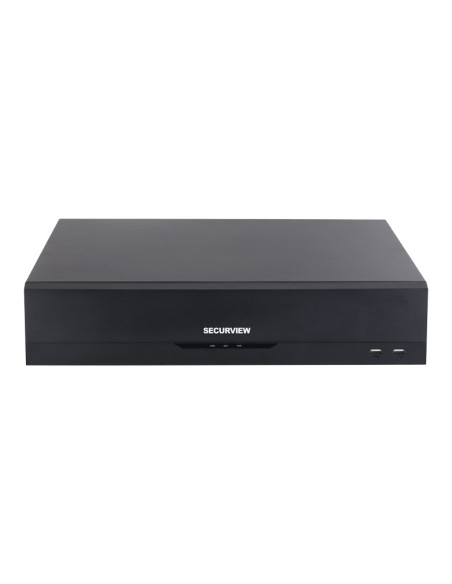

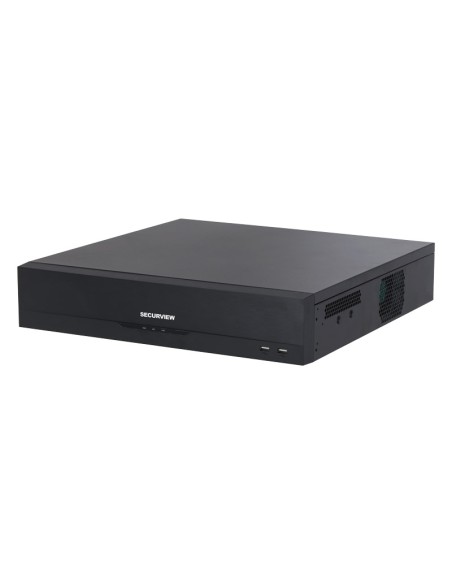

Securview Professional Series 32 Channel 8MP CVR32PRO5

Securview Professional Series 32 Channel 8MP HDCVI AI Digital Video Recorder - CVR32PRO5

Name: Securview Professional Series 32 Channel 8MP HDCVI AI Digital Video Recorder - CVR32PRO5
Brand: Securview Victory Series
SKU: CVR32PRO5
Price: 1700.27 AUD
Availability: InStock

Reference CVR32PRO5

In Stock - Ready to Ship

$ 1,700.27

inc-GST

Records 32 channels up to 8.0MP (3840 x 2160) at 7fps
Supports H.265+ highly efficient video compression
8 x SATA ports up to 16TB, max. 128TB HDD capacity
Support for HDCVI, Analogue, and IP video inputs
Substitute up to 32CH coax for IP
Identify people with up to 6 channels of face recognition
AI person and vehicle detection using smart motion detection or intrusion/tripwire rules
Receive face recognition & people/vehicle detection alerts on your device
Alarm system integration with 16 channel input and 5 relay outputs
Configure iOS/Android remote view in seconds via QR code
HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output
Backup via an external USB device or local network

Securview Professional Series 32 Channel 8.0MP HDCVI AI Digital Video Recorder

CVR32PRO5

Transform your existing low-resolution surveillance system into an Ultra HD AI system with the Securview Professional Series. Upgrade coaxial-based systems to HDCVI (high definition composite video interface) and gain access to AI functionality*, 4K recording at 7fps, and cross-compatibility for IP, analogue and other coax technologies. These DVRs are fantastic for existing coax cable system upgrades and for upgrades on a budget that wishes to use existing cameras.

Product Features:

• Records 32 channels up to 8.0MP (3840 x 2160) at 7fps

• Supports H.265+ highly efficient video compression

• 8 x SATA ports up to 16TB, max. 128TB HDD capacity

• Support for HDCVI, Analogue and IP video inputs

• Substitute up to 32CH coax for IP (No additional IP channels)

• Identify people with up to 6 channels of face recognition (BNC inputs only)

• AI person and vehicle detection using smart motion detection or intrusion/tripwire rules

• Receive face recognition & people/vehicle detection alerts to your device

• Alarm system integration with 16 channel input and 5 relay outputs

• Configure iOS/Android remote view in seconds via QR code

• HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output

• Backup via external USB device or local network

*Enabling IP channels disables AI / IVS functions

**IP cameras with built-in AI cannot use AI functions on HDCVI DVRs.

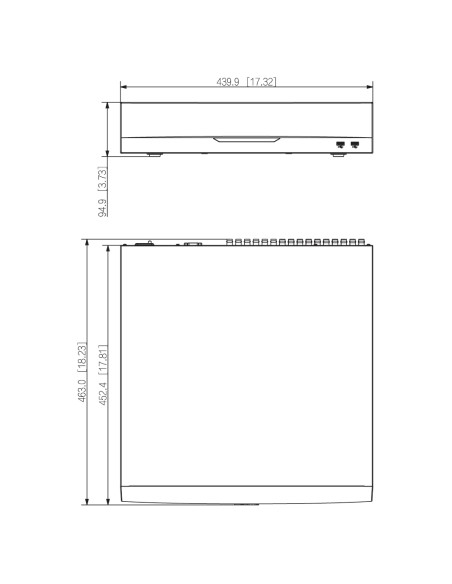

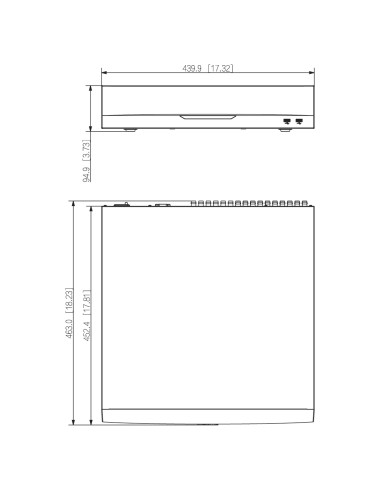

Dimensions: 439.9mm × 463mm × 94.9mm
Ethernet: 1x RJ-45 port (1000M)
Main Processor: Embedded Processor
Power Supply: 12VDC / 5A
Operating Environment: -10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH
Weight: 7kg (without HDD)
AI Functions: Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)
AI Search (Face Recognition): Up to 8 target face images at the same time
AI Search (Perimeter Protection): Search by target classification (Human, Vehicle)
AI Search (SMD+): Search by target classification (Human, Vehicle)
Alarm Input / Output: 16 channel input / 5 relay output
Audio In/Out: 16 channel input / 1 channel output (BNC)
Auxiliary Inputs: 1 x RS485 port (for PTZ)
Backup Modes: USB Device / Network
Bit Rate: 32Kbps ~ 6144Kbps Per Channel
Coax Input Support: 32 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)
Database Application: Each database can be applied to video channels independently
Database Management: Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Display Resolution: 3840 x 2160 to 1280 x 720
Display Split: 1/4/8/9/16/25/36
Frame Rate (Main): 4K (1~7fps); 6.0MP (1~10fps); 5MP (1~12fps); 4MP/3MP (1~15fps) / 1080p (1 ~25fps)
Frame Rate (Sub): 960H (1 ~15fps) / D1 (1~25fps)
Frame Rate (Third): N/A
Internal HDD: 8 x SATA ports up to 16TB, max. 128TB HDD capacity
IP Input Max. Bandwidth: 128Mbps
IP Input Max. Resolution: 8.0MP
IP Input Support: Substitute up to 32CH coax for IP (No additional IP channels)
Max. User Access: 128 users
Maximum Resolution: 8.0MP (3840 x 2160) / 4.0MP (2560 x 1440) / 1080p (1920 x 1080)
Network Functions: HTTP, HTTPS, IPv4/IPv6, TCP/IP, Wi-Fi, 3G/4G, SNMP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server, P2P, IP Search
Object Classification (Perimeter Protection): Human / vehicle secondary recognition for tripwire and intrusion
Operating System: Embedded Linux
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Performance (Face Recognition): Max. 12 face pictures per second (modeling and comparing), Approx. 6 channels face recognition (BNC inputs only) (Performance varies depending on camera and resolution)
Performance (Perimeter Protection): 6 Channels, 10 IVS rules for each Channel
Performance (SMD+): 32 Channels
Playback Sync: 1/4/9/16/25/32
Power Consumption
Rackmount Units: 1RU
Rackmountable: No
Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Record Modes: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Remote View: iOS (iPhone, iPad); Android devices
Search Modes: Time /Date, Alarm, MD and Exact Search (accurate to second)
Stranger Mode: Detect strangers face (not in database)
Supported Video Inputs: HDCVI / HDTVI / AHD / Composite / IP
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Trigger Events (Face Recognition): Buzzer, Voice Prompts, Email, snapshot, Recording, Alarm Out, PTZ activation, etc.
Two-way Talk: 1-channel BNC
USB Interface: 4 ports: 2x USB2.0, 2x USB3.0
Video Compression: AI Coding / H.265+ / H.265 / H.264+ / H.264
Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

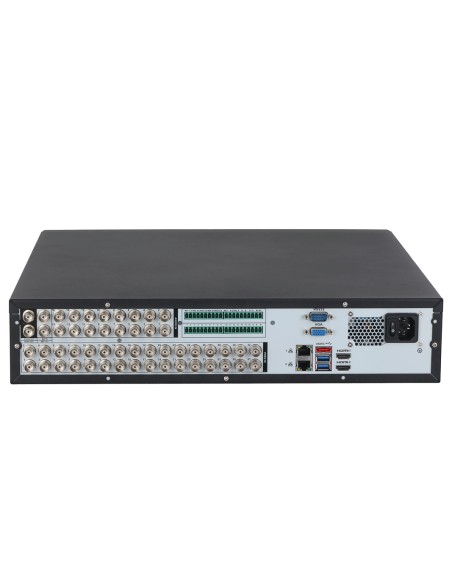

Video Input: 32 channel BNC
Video Output: 2 HDMI / 1 VGA
