Securview Professional Series 8 Channel 8MP HDCVI CVR8PRO5

Securview Professional Series 8 Channel 8MP HDCVI AI Digital Video Recorder - CVR8PRO5

Name: Securview Professional Series 8 Channel 8MP HDCVI AI Digital Video Recorder - CVR8PRO5
Brand: Securview Victory Series
SKU: CVR8PRO5
Price: 548 AUD
Availability: InStock

Reference CVR8PRO5

In Stock - Ready to Ship

$ 548.00

inc-GST

Records 8 channels up to 8.0MP (3840 x 2160) at 7fps
Supports H.265+ highly efficient video compression
2 x SATA ports up to 16TB, max. 32TB HDD capacity
Support for HDCVI, Analogue, and IP video inputs
Add 8 additional IP channels up to 8.0MP to allow a total of 16 cameras*
Identify people with up to 2 channels of face recognition (BNC inputs only)
AI person and vehicle detection using smart motion detection or intrusion/tripwire rules
Receive face recognition & people/vehicle detection alerts to your device
Alarm system integration with 8 channel input and 3 relay outputs
Configure iOS/Android remote view in seconds via QR code
HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output
Backup via external USB device or local network

Securview Professional Series 8 Channel 8.0MP HDCVI AI Digital Video Recorder

CVR8PRO5

Transform your existing low-resolution surveillance system into an Ultra HD AI system with the Securview Professional Series. Upgrade coaxial-based systems to HDCVI (high definition composite video interface) and gain access to AI functionality*, 4K recording at 7fps, and cross-compatibility for IP, analogue, and other coax technologies. These DVRs are fantastic for existing coax cable system upgrades and upgrades on a budget that wishes to use current cameras.

Product Features:

• Records 8 channels up to 8.0MP (3840 x 2160) at 7fps

• Supports H.265+ highly efficient video compression

• 2 x SATA ports up to 16TB, max. 32TB HDD capacity

• Support for HDCVI, Analogue and IP video inputs

• Add 8 additional IP channels up to 8.0MP to allow a total of 16 cameras*

• Identify people with up to 2 channels of face recognition (BNC inputs only)

• AI person and vehicle detection using smart motion detection or intrusion/tripwire rules

• Receive face recognition & people/vehicle detection alerts to your device

• Alarm system integration with 8 channel input and 3 relay outputs

• Configure iOS/Android remote view in seconds via QR code

• HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output

• Backup via external USB device or local network

*Enabling the addition of IP Cameras disables AI / IVS functions

Pro Series HDCVI DVR Product Datasheet (PDF)-1.jpg

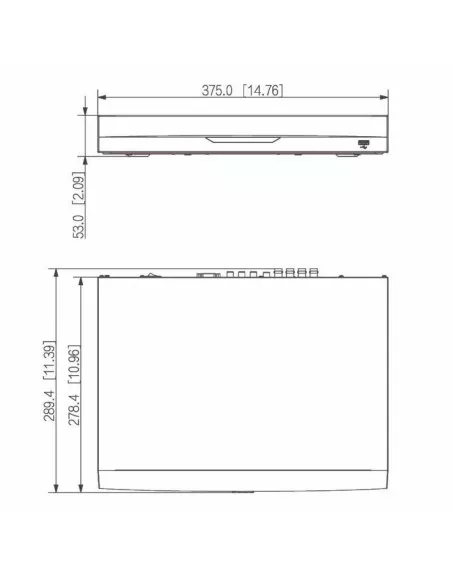

Dimensions: 375mm x 288mm x 53mm
Ethernet: 1x RJ-45 port (1000M)
Main Processor: Embedded Processor
Power Supply: 12VDC / 4A
Operating Environment: -10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH
Weight: 1.6kg (without HDD)
AI Functions: Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)
AI Search (Face Recognition): Up to 8 target face images at the same time
AI Search (Perimeter Protection): Search by target classification (Human, Vehicle)
AI Search (SMD+): Search by target classification (Human, Vehicle)
Alarm Input / Output: 8 channel input / 3 relay output
Audio In/Out: 4 channel input / 1 channel output (RCA)
Auxiliary Inputs: 1 x RS485 port (for PTZ)
Backup Modes: USB Device / Network
Bit Rate: 32Kbps ~ 6144Kbps Per Channel
Coax Input Support: 8 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)
Database Application: Each database can be applied to video channels independently
Database Management: Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Display Resolution: 3840 x 2160 to 1280 x 720
Display Split: 1/4/8/9 (16 with IP extension mode enabled)
Frame Rate (Main): 4K (1~7fps); 6.0MP (1~10fps); 5MP (1~12fps); 4MP/3MP (1~15fps) / 1080p (1 ~25fps)
Frame Rate (Sub): 960H (1 ~15fps) / D1 (1~25fps)
Frame Rate (Third): N/A
Internal HDD: 2 x SATA ports up to 16TB, max. 32TB HDD capacity
IP Input Max. Bandwidth: 128Mbps
IP Input Max. Resolution: 8.0MP
IP Input Support: 8 channels
Max. User Access: 128 users
Maximum Resolution: 8.0MP (3840 x 2160) / 4.0MP (2560 x 1440) / 1080p (1920 x 1080)
Network Functions: HTTP, HTTPS, IPv4/IPv6, TCP/IP, Wi-Fi, 3G/4G, SNMP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server, P2P, IP Search
Object Classification (Perimeter Protection): Human / vehicle secondary recognition for tripwire and intrusion
Operating System: Embedded Linux
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Performance (Face Recognition): Max. 12 face pictures per second (modeling and comparing), Approx. 2 channels face recognition (BNC inputs only) (Performance varies depending on camera and resolution)
Performance (Perimeter Protection): 2 Channels, 10 IVS rules for each Channel
Performance (SMD+): 8 channels
Playback Sync: 1/4/9
Power Consumption
Rackmount Units: 1RU
Rackmountable: No
Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Record Modes: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Remote View: iOS (iPhone, iPad); Android devices
Search Modes: Time /Date, Alarm, MD and Exact Search (accurate to second)
Stranger Mode: Detect strangers face (not in database)
Supported Video Inputs: HDCVI / HDTVI / AHD / Composite / IP
Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Trigger Events (Face Recognition): Buzzer, Voice Prompts, Email, snapshot, Recording, Alarm Out, PTZ activation, etc.
Two-way Talk: Reuse channel 1 audio input/output
USB Interface: 2 ports: 1x USB2.0, 1x USB3.0
Video Compression: AI Coding / H.265+ / H.265 / H.264+ / H.264
Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Video Input: 8 channel BNC
Video Output: 1 HDMI / 1 VGA
