TP-Link InSight 8MP 4K-UHD Full-Colour Dome IP Security Camera - InSight-S485(4mm)

InSight-S485(4mm)
In Stock - Ready to Ship
$ 239.00
inc-GST
  • PROFESSIONAL RANGE (VIGI-INSIGHT) INSIGHT S485
  • 4K (8MP) Ultra HD and 24h Full-Colour
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • IP67 Waterproof
  • H.265+ Compression Technology
  • 12V DC/PoE
  • 4mm Lens
  • 3-Year Warranty
  • InSight is the New Name for VIGI PRO - this is the latest model from TPLINK replacing the VIGI-C485(4mm)

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep



TP-Link VIGI 8MP Full-Colour Dome IP Camera - InSight-S485 (4mm)

4K Ultra HD | 24/7 Full-Colour | AI Detection | Smart Video Enhancement | IP67 Weatherproof

InSight-S485 4mm Camera

The InSight-S485 4mm Dome Camera offers 8MP Ultra HD resolution, 24/7 full-colour performance, and AI-powered human and vehicle detection, all in a rugged IP67 weatherproof dome design. With advanced video enhancements and active defence capabilities, it's ideal for entrances, public spaces, and perimeter security.

Key Features & Benefits

  • 8MP Ultra HD Resolution — Stunning 3840 × 2160 video for detailed, reliable surveillance.
  • 24/7 Full-Colour Monitoring — Crystal-clear colour footage, day and night, with integrated lighting.
  • AI Human & Vehicle Classification — Distinguishes people and vehicles to reduce false alarms.
  • Smart Detection Suite — Detects motion, tampering, boundary breaches and more.
  • Active Defence & Two-Way Audio — Deter intruders with sound/light alerts and communicate remotely.
  • IP67 Weatherproof Protection — Dependable outdoor operation, rain or shine.
  • H.265+ Compression — Efficient storage and bandwidth management without sacrificing image quality.
  • 12V DC/PoE Power — Simplified installation using a single cable for power and data.
  • 4mm Lens — ideal for fixed, focused views of gates, entrances, or targeted zones.
  • NDAA Compliant — Approved for regulated and sensitive environments.

Real-World Applications

Shops & Retail Spaces — Secure entrances, customer areas, and stockrooms with sharp AI-enhanced monitoring.

Building Entrances & Lobbies — High-definition, full-colour video for effective entry point surveillance.

Perimeter & Outdoor Spaces — Enhance safety and deter threats with proactive alerts in all weather.

Public Areas & Car Parks — Accurate 24/7 monitoring with smart human and vehicle detection.

Schools & Facilities — Ideal for securing playgrounds, campuses, and shared outdoor spaces.

Human & Vehicle Classification

Only Human Classification On Only Vehicle Classification On

Smart Video Enhancement

  • True WDR — Ensures balanced lighting in scenes with strong contrast.
  • Smart IR — Dynamic infrared illumination for optimal low-light performance.
  • 3D DNR — Reduces noise while preserving crucial details.
  • White Balance Correction — Maintains accurate colour representation in all conditions.

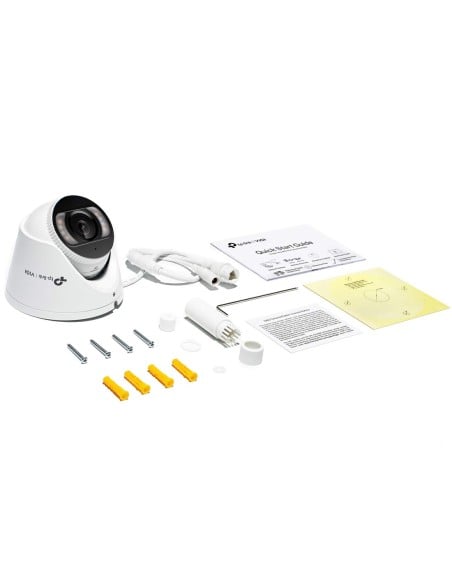

What’s in the Box

InSight-S485 Box Contents

Powerful, AI-enhanced surveillance for entrances and outdoor spaces — The InSight-S485 provides Ultra HD video, smart detection, active defence, and full-colour clarity, ideal for retail, entrances, car parks, and perimeter monitoring.

Camera Resolution
8MP
CAMERA
Image Sensor 1/2.7” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV

• 4 mm:
Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°
Lens Mount M12*P 0.5
DORI Distance

• 4 mm
Detect: 107 m (350 ft)
Observe: 44 m (146 ft)
Recognize: 21 m (70 ft)
Identify: 11 m (35 ft)
Angle Adjustment (Manual)
Range Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
ILLUMINATOR
IR LED Quantity: 4
Range: 30m
Wavelength: 850nm
White LED Quantity: 4
Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 3840 X 2160
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
848x480, 704x576, 640x480, 640x360, 352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 8 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120 dB
Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF Yes
API ONVIF Profile S/T/G
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm Linkage • Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
Linkage Method N/A
Output Notification Message Push
Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material Metal
Net Weight 0.48 Kg
Power Supply 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 12.5 W
Protection IP67
Product Dimensions (L x W x H) 4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm)
Certifications CE, NTRA, VCCI, KC, BSMI, FCC, IC
