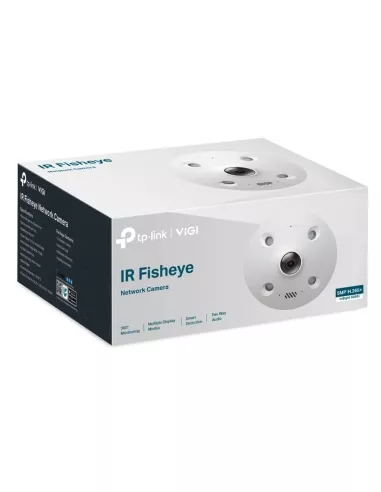

VIGI 5MP HD AI IR Fisheye IP Network Camera 360° InSight-S655I

VIGI 5MP HD AI IR Fisheye IP Network Camera 360° 2-Way Audio - InSight-S655I

Name: VIGI 5MP HD AI IR Fisheye IP Network Camera 360° 2-Way Audio - InSight-S655I
Brand: TP-Link
SKU: InSight-S655I
Price: 349 AUD
Availability: InStock

Reference: InSight-S655I

In Stock - Ready to Ship

$ 349.00

inc-GST

5MP Super-High Definition and IR Night Vision
360° Coverage without Blind Spots
Supports Multiple Display Modes△ and ePTZ
Supports Ceiling Mount / Wall Mount / Pendant Mount§
Smart Detection
Smart Video Enhancement Technology
Built-In Microphone & Speaker
IP67 Waterproof and IK10 Vandal-Proof
H.265+ Compression Technology
Suitable for Small Indoor Areas like Retail Shops and Offices

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

TP-Link VIGI InSight-S655I 5MP IR Fisheye Network Camera

360° Panoramic View | AI Smart Detection | Two-Way Audio | IP67 & IK10 Vandal Resistance

TP-Link VIGI S655I Fisheye Camera

Deliver comprehensive, high-definition security coverage with the VIGI InSight-S655I. This compact fisheye network camera offers 360° panoramic surveillance, advanced AI detection, multiple viewing modes, and two-way audio. Designed for both indoor and outdoor applications, it features IP67 weatherproofing and IK10 vandal resistance for dependable operation in challenging environments.

Key Features & Benefits

5MP Super-HD Resolution — Crisp 2560 × 1920 video clarity with 30fps smooth playback.
360° Panoramic Coverage — Fisheye lens with multiple viewing modes including 180° panorama, quad view, and ePTZ digital zoom.
AI-Powered Smart Detection — Intrusion, line crossing, region entry/exit, and motion analytics for proactive alerts.
Two-Way Audio — Integrated microphone and speaker for real-time communication or deterrence.
IR Night Vision — Up to 10m infrared illumination for round-the-clock security.
Weather & Vandal Resistance — IP67-rated weatherproof and IK10 vandal-proof housing for tough environments.
Edge Recording — Supports MicroSD storage up to 512GB for local video backup.
PoE or 12V DC Power Options — Flexible installation with standard PoE (802.3af/at) support.

Real-World Applications

Retail Stores & Showrooms — Monitor entire interiors with minimal blind spots using one panoramic camera.

Warehouses & Industrial Facilities — Oversee wide open spaces for safety, security, and operations monitoring.

Offices & Commercial Buildings — Secure entrances, lobbies, or common areas with AI-enhanced coverage.

Public Infrastructure — Ideal for stations, transit hubs, or civic spaces needing wide-area surveillance with minimal cameras.

Schools & Educational Institutions — Cost-effective 360° monitoring of halls, libraries, or playgrounds with smart alerts.

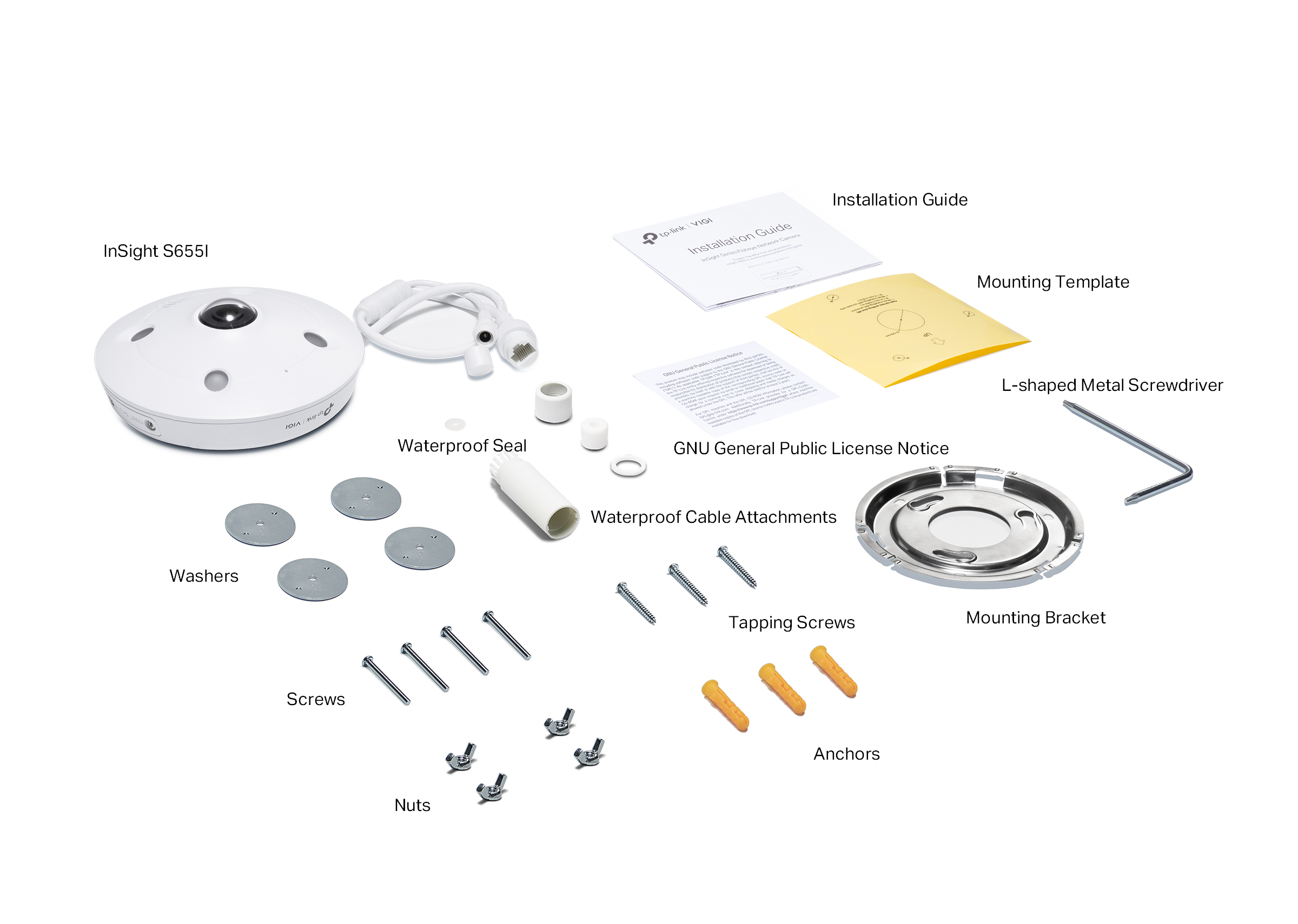

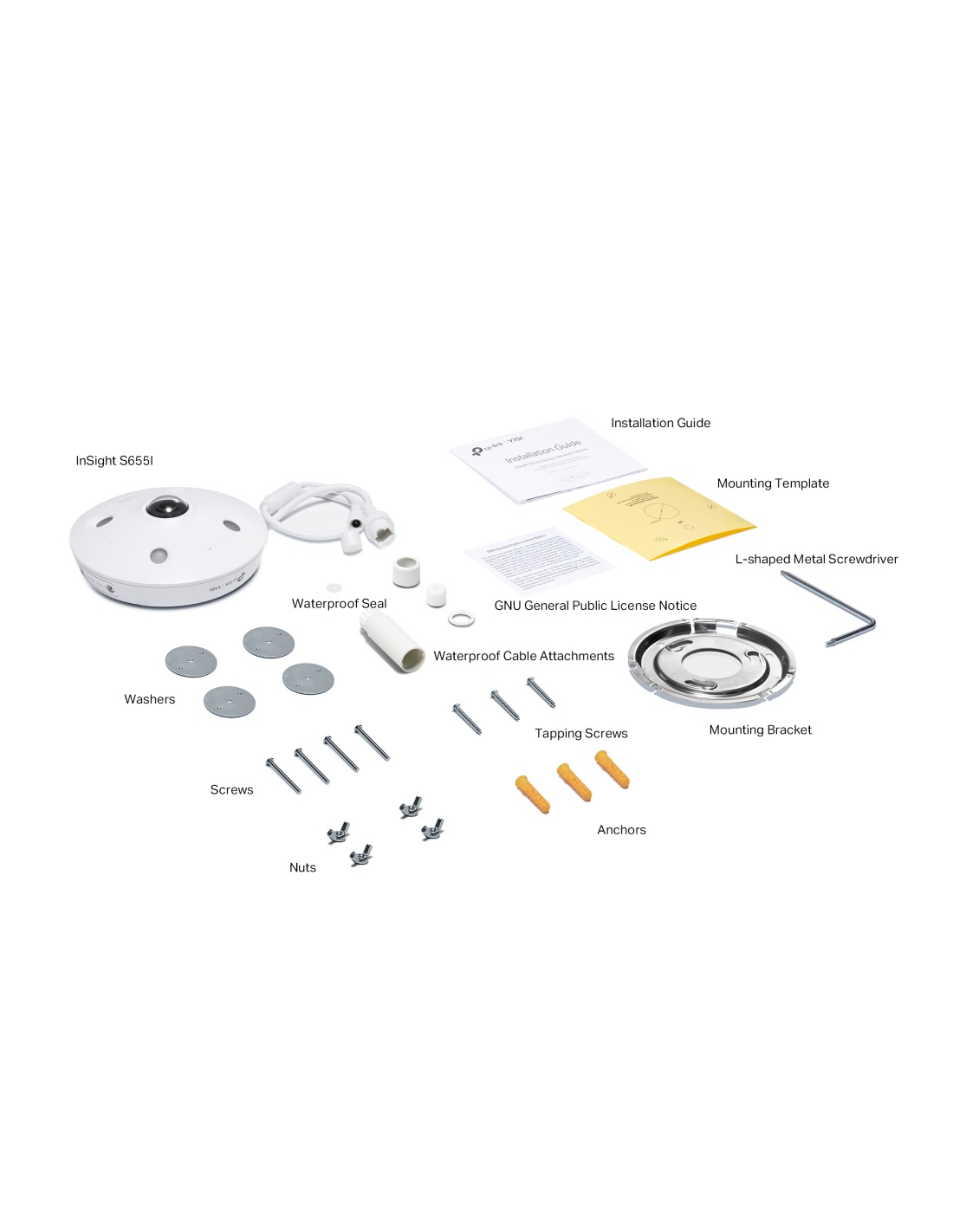

What’s in the Box

VIGI S655I Camera Box Contents

Maximise coverage and minimise blind spots — The VIGI InSight-S655I delivers intelligent 360° monitoring with AI-powered alerts and robust construction, ideal for indoor and outdoor professional security applications.

CAMERA
Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	Color: 0.01 Lux; 0 Lux with IR light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

LENS
Type	Fixed Focal Lens
Focal Length	1.44 mm
Aperture	F2.0
FOV	Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180°
Lens Mount	M12*P0.5
DORI Distance	Detect: 28.8 m (94 ft) Observe: 12 m (39 ft) Recognize: 5.7 m (19 ft) Identify: 2.8 m (9 ft)

Fisheye Display
Installation	Ceiling Mount; Wall Mount; Pendant Mount§
Display Mode	• Ceiling Mount: Fisheye, AR Dewarp, 180 Panorama, 360 Panorama, Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ • Wall Mount: Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZ

Angle Adjustment (Manual)
Range	N/A

ILLUMINATOR
IR LED	• Quantity: 4 • Range: 10m • Wavelength: 850nm
White LED	N/A
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	2560 × 1920
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2560 × 1920, 2256 × 1696, 2048 × 1536, 1280 × 960 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If WDR is on, the frame rate only supports up to 15fps.
Sub-Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 640 × 480, 320 × 240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If WDR is on, the frame rate only supports up to 15fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	• Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Abnormal Sound Detection
Basic Event	• Motion Detection • Video Tampering Detection • Exception ( Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Message Push • Audible Warning
Linkage Method	N/A
Output Notification	• Message Push • Email Alarm • Upload Capture to FTP

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A

GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories
Material	Metal
Net Weight	• 0.44 Kg (without Mounting Accessories) • 0.48 Kg (with Mounting Accessories)
Power Supply	• 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 12.14W
Protection	IP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	5.2 × 5.2 × 2.2 in (132 × 132 × 56mm)
Certifications	CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF; IP67; IK10
