TP-Link VIGI 4MP 4G Outdoor Full-Colour Bullet InSight-S345-4G

TP-Link VIGI 4MP 4G Outdoor Full-Colour Bullet Camera - InSight-S345-4G

Name: TP-Link VIGI 4MP 4G Outdoor Full-Colour Bullet Camera - InSight-S345-4G
Brand: TP-Link
SKU: InSight-S345-4G
Price: 399 AUD
Availability: InStock

Reference: InSight-S345-4G

In Stock - Ready to Ship

$ 399.00

inc-GST

4MP 4G full-colour bullet
Weather / protection: IP66
Max resolution: 2688 X 1520
See specifications for lens options
Standalone camera — NVR and mounts sold separately

TP-Link VIGI InSight S345-4G

4MP 4G full-colour bullet

TP-Link VIGI 4MP 4G Outdoor Full-Colour Bullet Camera - InSight-S345-4G

Overview

The InSight-S345-4G is a Off-grid InSight bullet with 4G, colour night vision and IP66 weather protection.

Standalone IP camera — NVR / PoE switch / mounts sold separately. Specs below match TP-Link Australia.

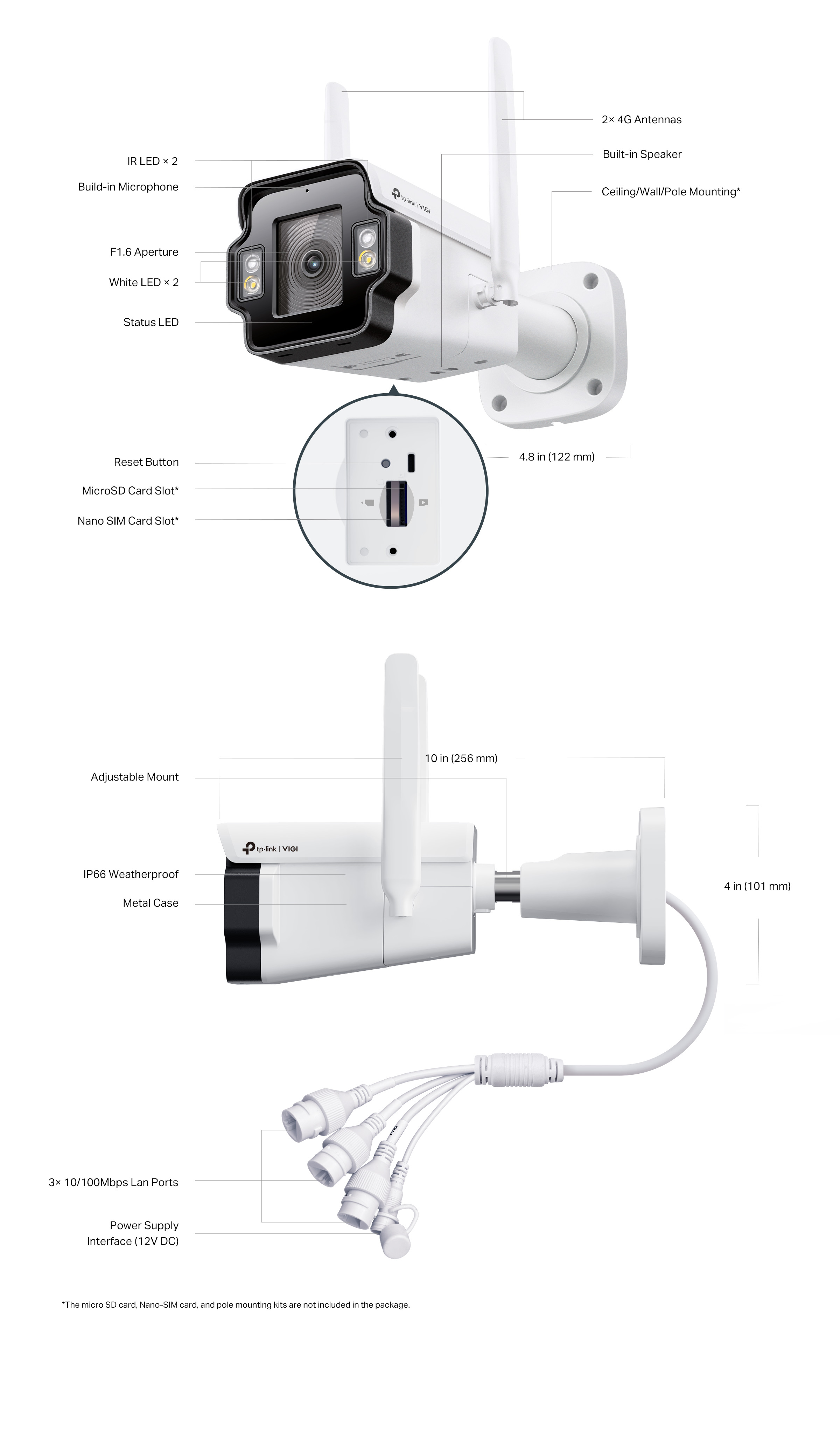

BUILD

4MP 4G full-colour bullet

Off-grid InSight bullet with 4G, colour night vision and IP66 weather protection. Official protection: IP66.

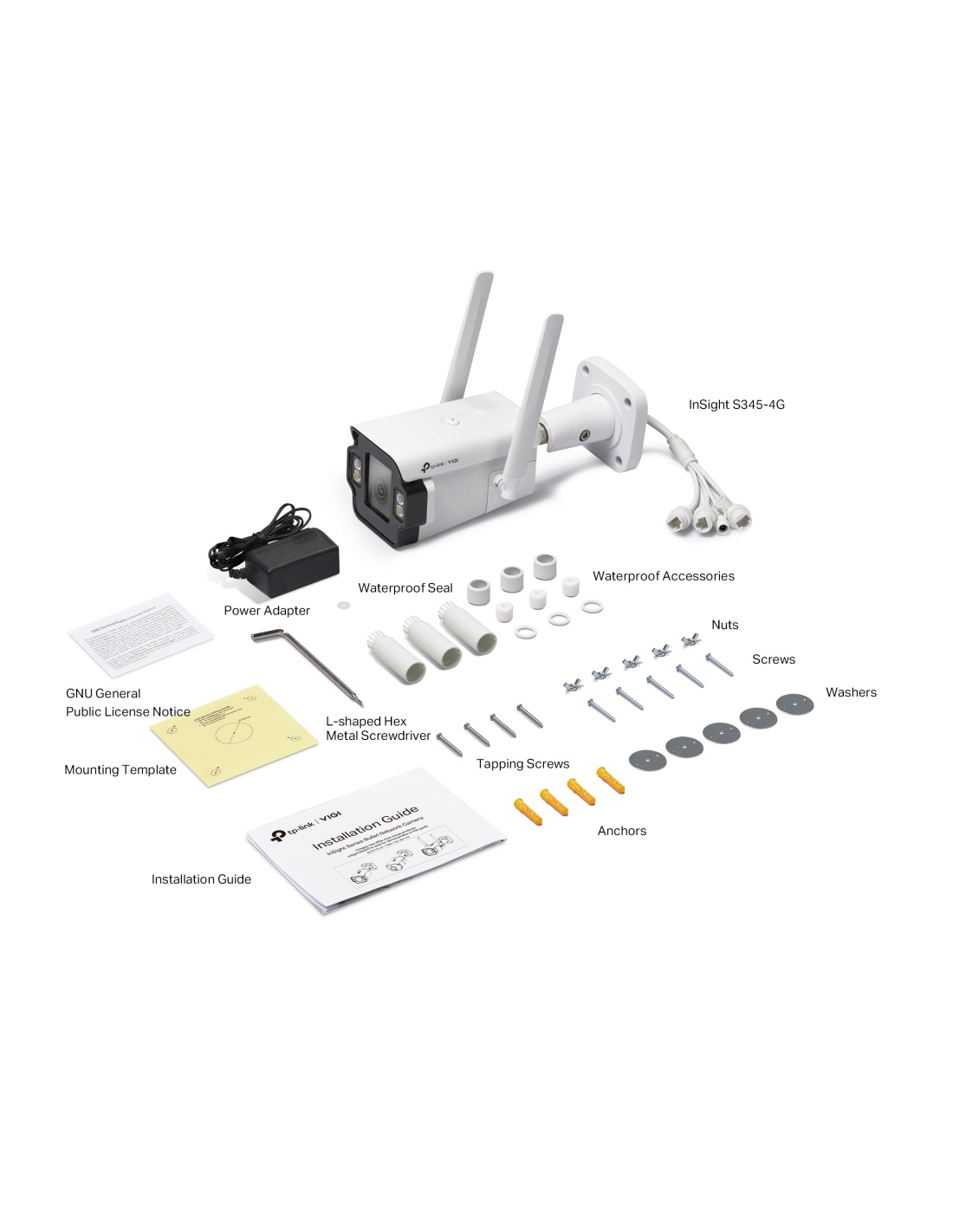

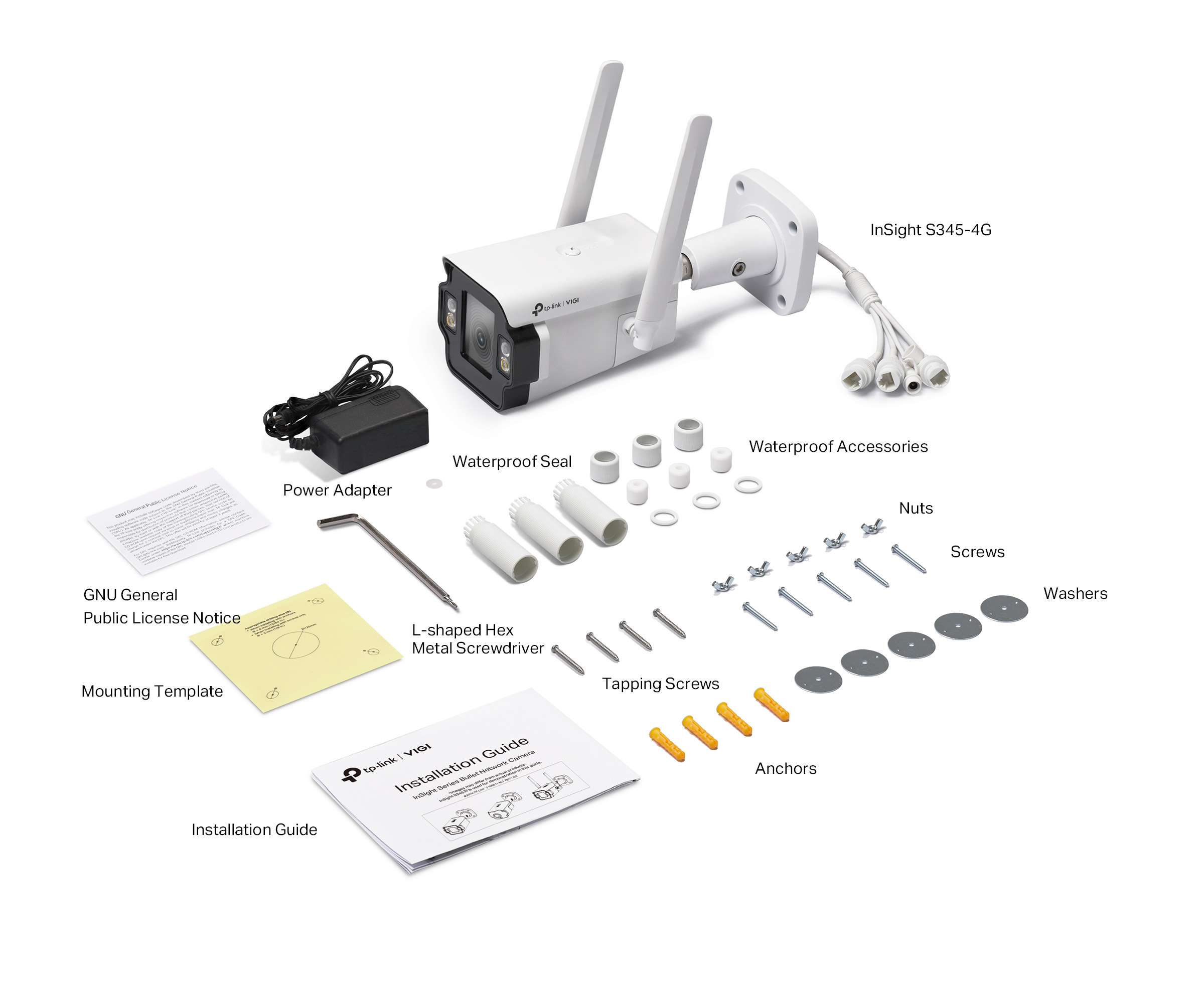

IN THE BOX

What ships with the camera

• VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories• Power Adapter

Key specs

Specification	Detail
Max. resolution	2688 X 1520
Focal length	4 mm
Image sensor	1/2.7“ Progressive Scan CMOS
Protection	IP66 Weatherproof
Power	• 12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug
Net weight	1.09 Kg

Full specifications are in the Specifications tab. Source: TP-Link Australia.

Recommended mounts

Official AU accessory matrix. Confirm your exact model before ordering.

VJB-305 — larger InSight junction box where listed
VMB-350 — pole bracket for 70–130 mm poles (bullet / PT)

Frequently asked questions

What weather / vandal rating does TP-Link publish?

TP-Link Australia lists IP66 for this model.

Which junction box or pole mount do I need?

On the AU accessory matrix this camera maps to: VJB-305 — larger InSight junction box where listed; VMB-350 — pole bracket for 70–130 mm poles (bullet / PT).

Is this a kit?

No — this listing is the standalone camera. NVR, cable and mounts are sold separately unless the product title says Kit.

Need help matching this camera to an NVR or mount?
Infront Technologies stocks and supports TP-Link VIGI across Australia — call 1300 736 970 or email [email protected].

Install note. Use an ACMA-registered cabler for concealed customer cabling (AS/CA S009). Specs and imagery can change at TP-Link’s discretion — verify against the current AU product page before ordering.

Net Weight: 1.09 Kg
Power Supply: 12V DC 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug
Ingress Protection: IP66
Frequency: LTE-FDD: B 1/3/5/7/8/20/28, LTE-TDD: B 38/40/41, WCDMA: B 1/5/8
Operating temperature: -30 to 60C
Power: • 12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug
Antenna: Quantity: 2, Type: 690~960 & 1710~2690MHz Dipole Omni-Directional Antenna, Gain: Ant1: 0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz; Ant2: 0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Audio Input: Yes (Built-in Microphone)
Audio Output: Yes (Built-in Speaker)
Category: 4
Brand: TP-Link
Certifications: WPS, WHQL, Energy Star, RoHS, CE, NCC, NTRA, KC, RCM, ONVIF, IP66
Image Sensor: 1/2.7“ Progressive Scan CMOS
Lens: 4 mm
Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
Max. Resolution: 2688 X 1520
Protection: IP66 Weatherproof
Storage Temperature: -40 to 60C
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
DORI Distance: Detect: 80 m (262 ft)

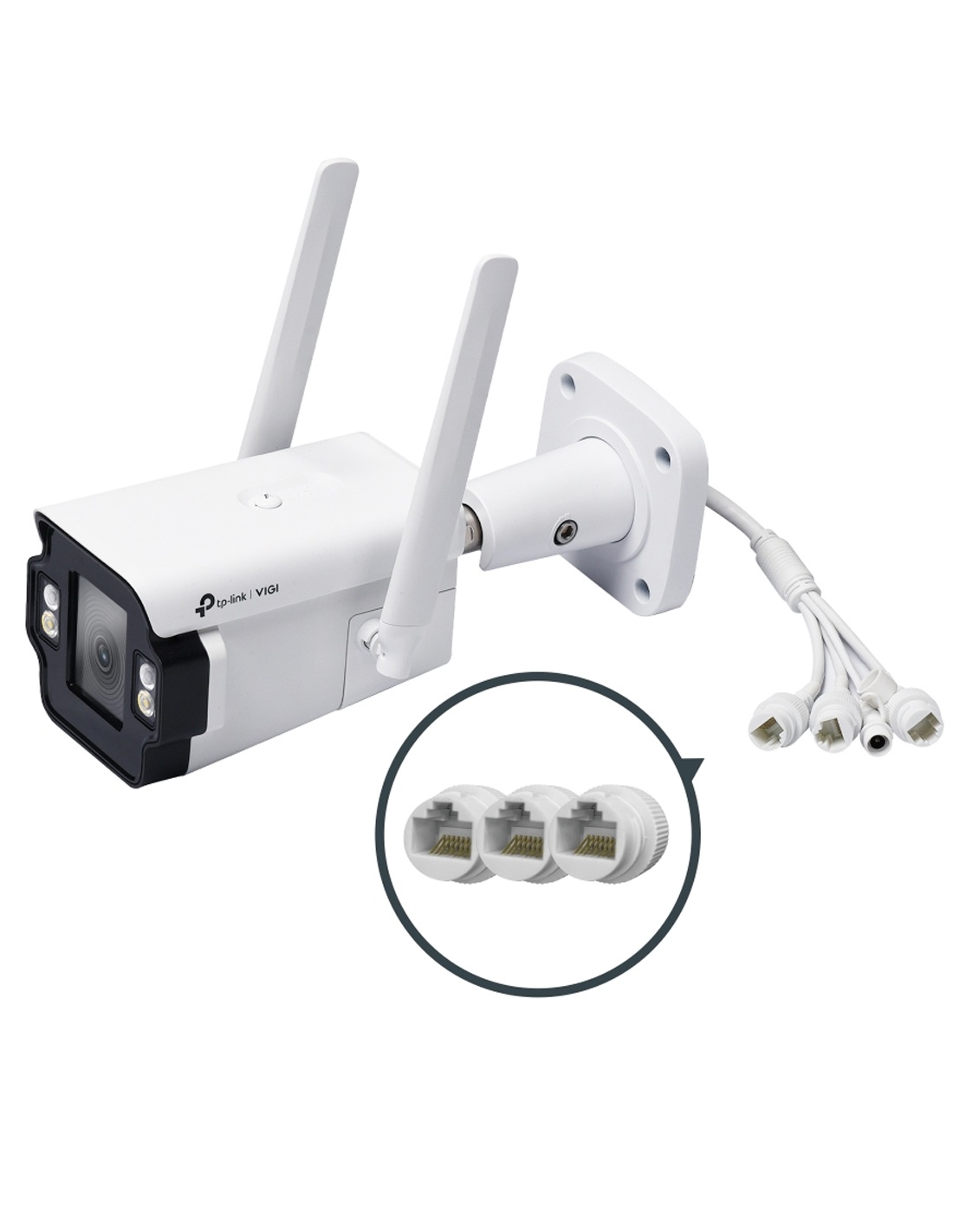

Network Interface: 3 RJ45 10/100M LAN Ports
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light
Aperture: F1.6
Focal Length: 4 mm
FOV: Horizontal: 80.4, Vertical: 41.8, Diagonal: 98.7
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual) - Range: Pan: 0 to 360, Tilt: 0 to 90, Rotate: 0 to 360
IR LED: Quantity: 2, Range: 50m, Wavelength: 850nm
White LED: Quantity: 2, Range: 30m
Main Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Main Stream Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Video Bit Rate: Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Wide Dynamic Range: 120dB
ROI: 1 Region
API: Open Network Video Interface (Profile S/G/T)
Standard: LTE-TDD/LTE-FDD/WCDMA
SIM Type: Nano SIM*1
Basic Event: Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login)
Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing, Upload to FTP server, Send to Alarm Server, Email Alarm
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB*1

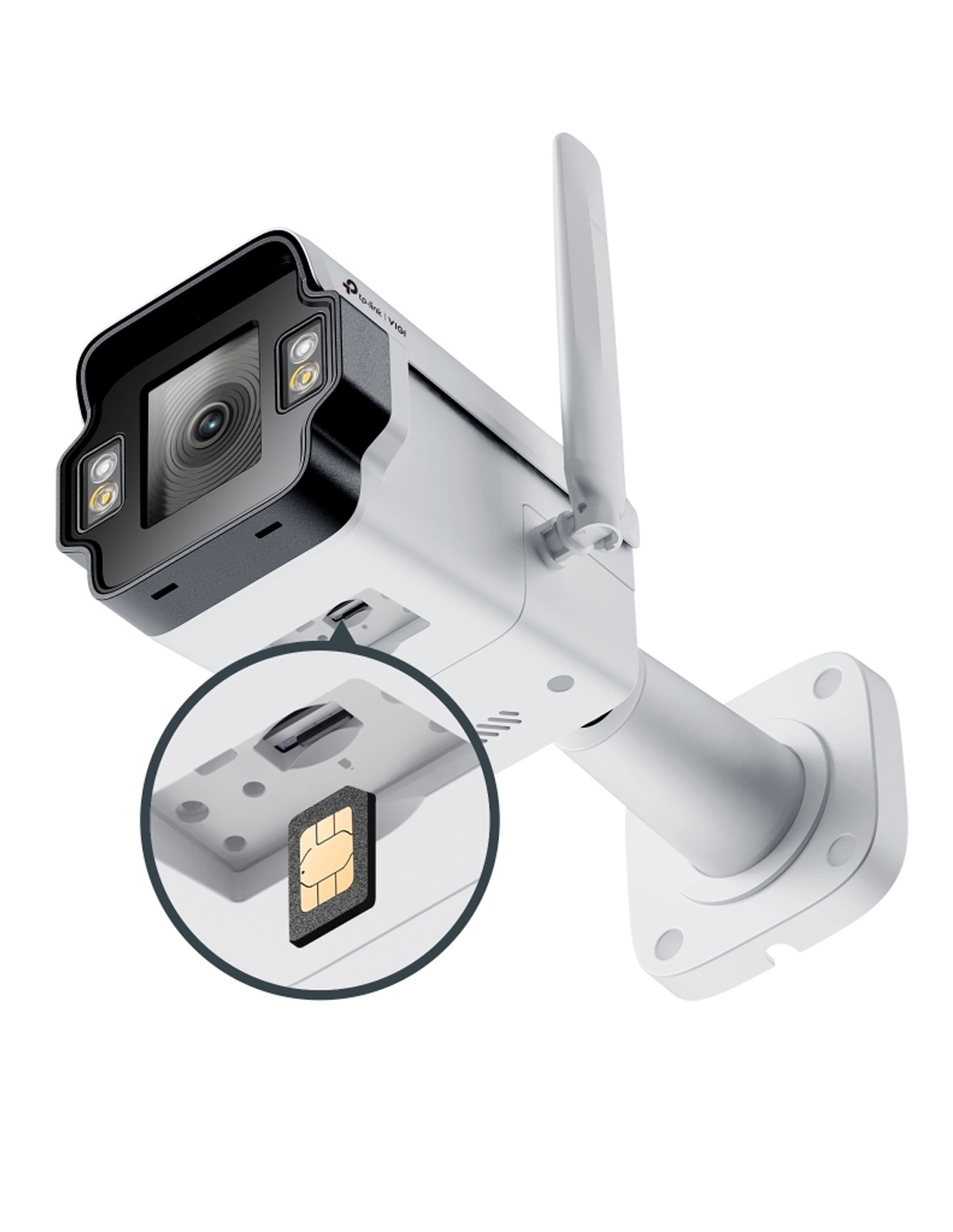

Built-in Nano-SIM Card Slot: Yes

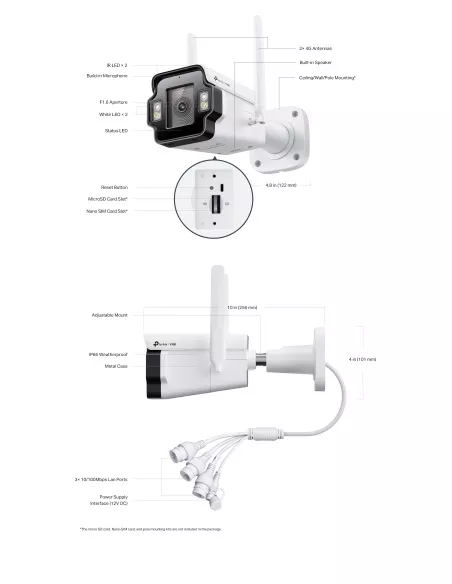

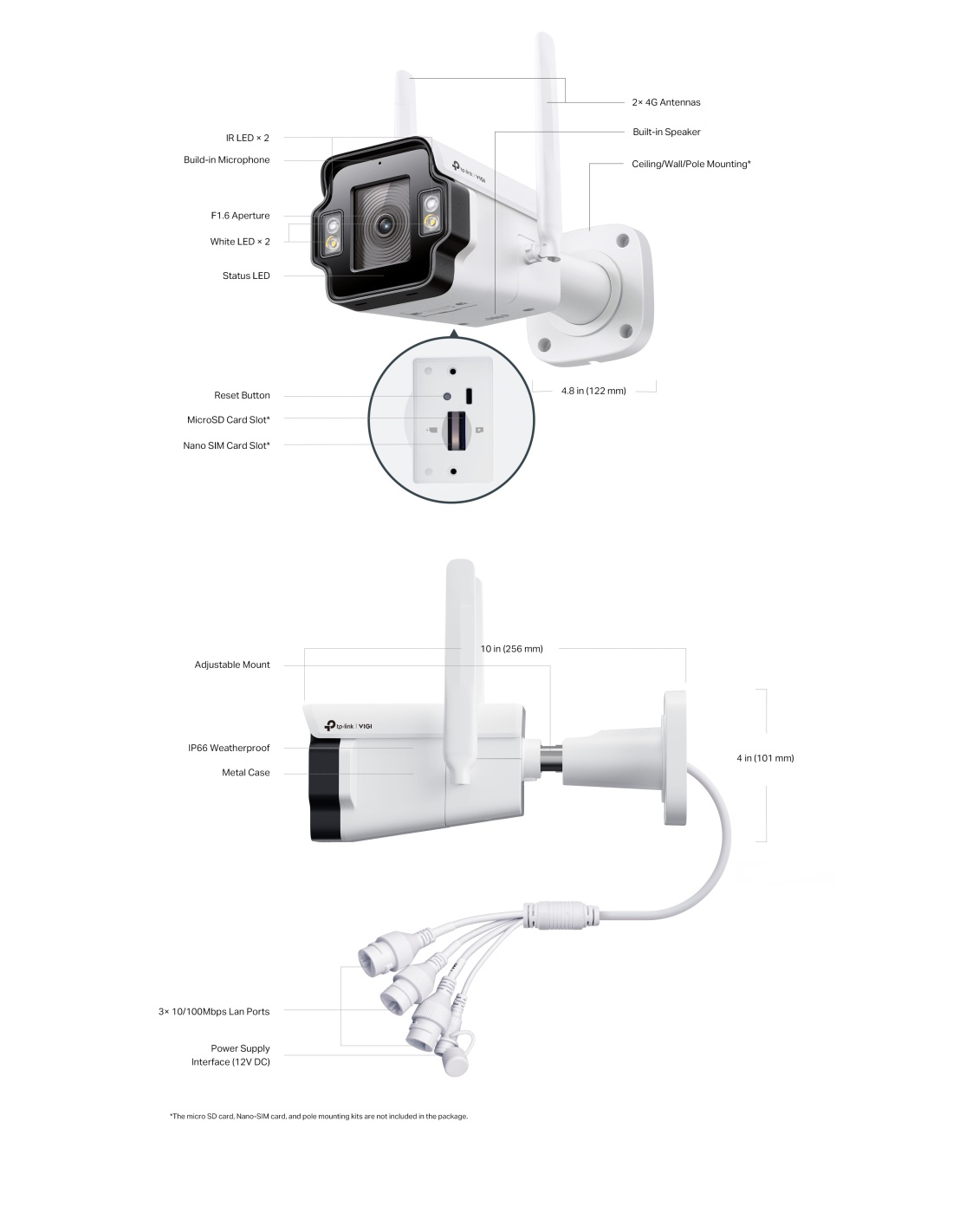

Product Dimensions (L x W x H): 10 4.8 4.0 in (256 122 101 mm) (excluding antennas)
Warranty: Australian Warranty via Infront Technologies
Product Family: VIGI InSight
Model: S345-4G

TP-Link VIGI Network Camera Junction Box - VJB-305VJB-305

TP-Link VIGI Network Camera Junction Box - VJB-305VJB-305 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Junction Box - VJB-305

TP-Link

VJB-305

$ 49.00

Larger aluminium alloy network camera junction box Indoor / outdoor wall or ceiling mounting Dimensions: 155.56 × 150 × 51 mm (6.1 × 5.9 × 2.0 in) Weight: 416 g · VIGI White For listed InSight models only (see description) Not a drop-in for VIGI C-series — use VJB-300 for those

TP-Link VIGI Network Camera Pole Mounting Bracket - VMB-350VMB-350

TP-Link VIGI Network Camera Pole Mounting Bracket - VMB-350VMB-350 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Pole Mounting Bracket - VMB-350

TP-Link

VMB-350

$ 39.00

SGCC galvanised + stainless steel pole mounting bracket Fits poles 70–130 mm diameter Dimensions: 105 × 100 × 39 mm (4.1 × 3.9 × 1.5 in) Weight: 392.25 g · VIGI White For listed bullet and pan-tilt cameras only Not a junction box — pair with VJB-300 / VJB-305 for cable enclosure



Category	Specification
CAMERA
Image Sensor	1/2.7“ Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	Horizontal: 80.4°, Vertical: 41.8°, Diagonal: 98.7°
Lens Mount	M12
DORI Distance	Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
Angle Adjustment (Manual) - Range	• Pan: 0° to 360° • Tilt: 0° to 90° • Rotate: 0° to 360°
ILLUMINATOR
IR LED	• Quantity: 2 • Range: 50m • Wavelength: 850nm
White LED	• Quantity: 2 • Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2688 X 1520
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Note: If image rotation is set to 90° or 270°, frame rate supports only up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes (Built-in Microphone)
Audio Output	Yes (Built-in Speaker)
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps (G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/G/T)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
Standard	LTE-TDD/LTE-FDD/WCDMA
SIM Type	Nano SIM*1
Category	4
Frequency	• LTE-FDD: B 1/3/5/7/8/20/28 • LTE-TDD: B 38/40/41 • WCDMA: B 1/5/8
ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception (Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing • Upload to FTP server • Send to Alarm Server • Email Alarm
INTERFACES
Network Interface	3 RJ45 10/100M LAN Ports
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB*1
Built-in Nano-SIM Card Slot	Yes
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30℃ to 60°C
Storage Temperature	-40℃ to 60°C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories • Power Adapter
Material	Metal
Net Weight	1.09 Kg
Power Supply	• 12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug
Antenna	• Quantity: 2 • Type: 690~960 & 1710~2690MHz Dipole Omni-Directional Antenna • Gain: Ant1: 0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz; Ant2: 0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Protection	IP66 Weatherproof
Product Dimensions (L x W x H)	10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas)
Certifications	WPS, WHQL, Energy Star, RoHS, CE, NCC, NTRA, KC, RCM, ONVIF, IP66
