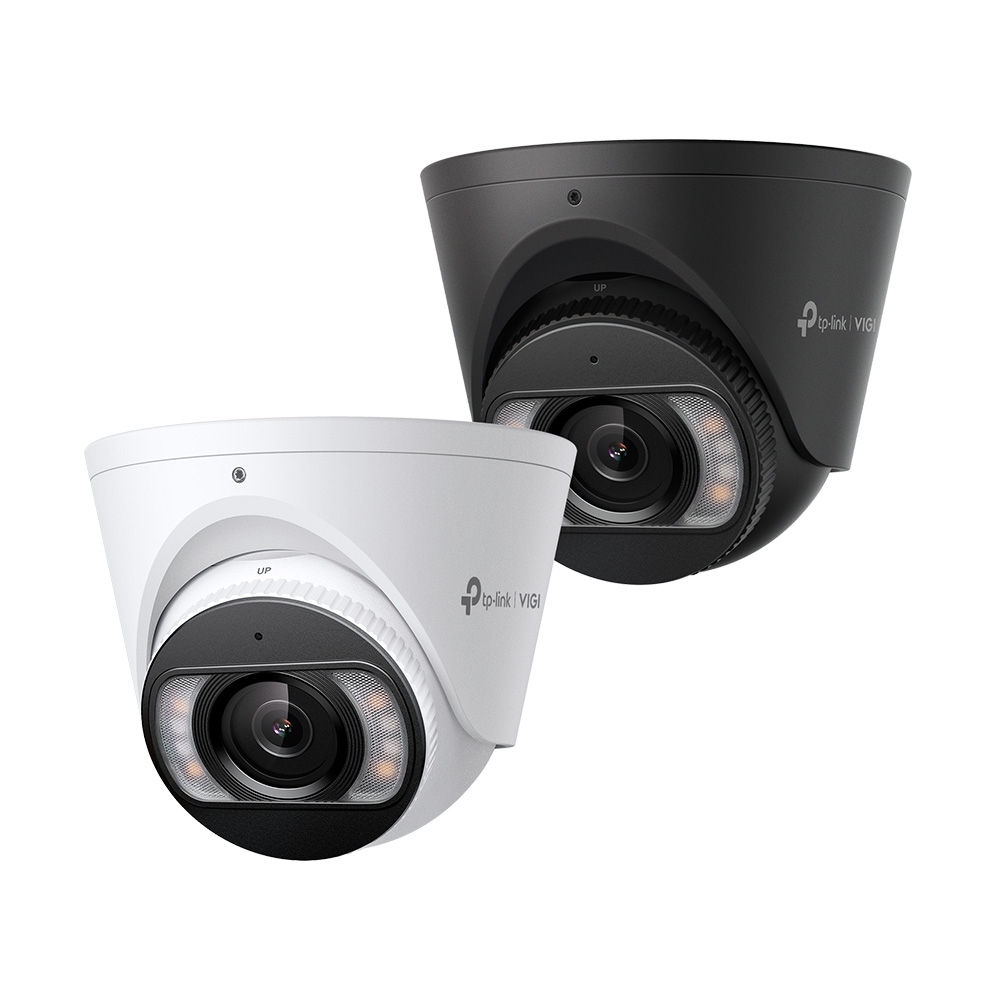

TP-Link InSight 8MP 4K-UHD Full-Colour Dome IP InSight-S485(2.8mm)

TP-Link InSight 8MP 4K-UHD Full-Colour Dome IP Security Camera - InSight-S485(2.8mm)

Name: TP-Link InSight 8MP 4K-UHD Full-Colour Dome IP Security Camera - InSight-S485(2.8mm)
Brand: TP-Link
SKU: InSight-S485(2.8mm)
Price: 239 AUD
Availability: InStock

Reference: InSight-S485(2.8mm)

In Stock - Ready to Ship

$ 239.00

inc-GST

8MP / 4K full-colour dome
Weather / protection: IP67
Max resolution: 3840 X 2160
Lens: 2.8 mm
Standalone camera — NVR and mounts sold separately

TP-Link VIGI InSight S485(2.8mm)

8MP / 4K full-colour dome · 2.8 mm

TP-Link InSight 8MP 4K-UHD Full-Colour Dome IP Security Camera - InSight-S485(2.8mm)

Overview

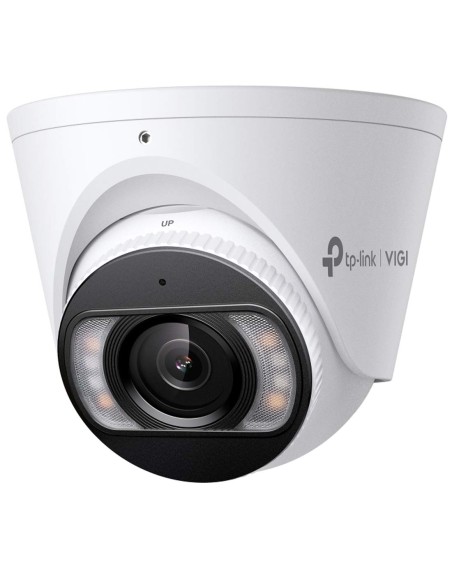

The InSight-S485(2.8mm) is a 4K colour InSight dome with AI detection and IP67 protection.

Standalone IP camera — NVR / PoE switch / mounts sold separately. Specs below match TP-Link Australia.

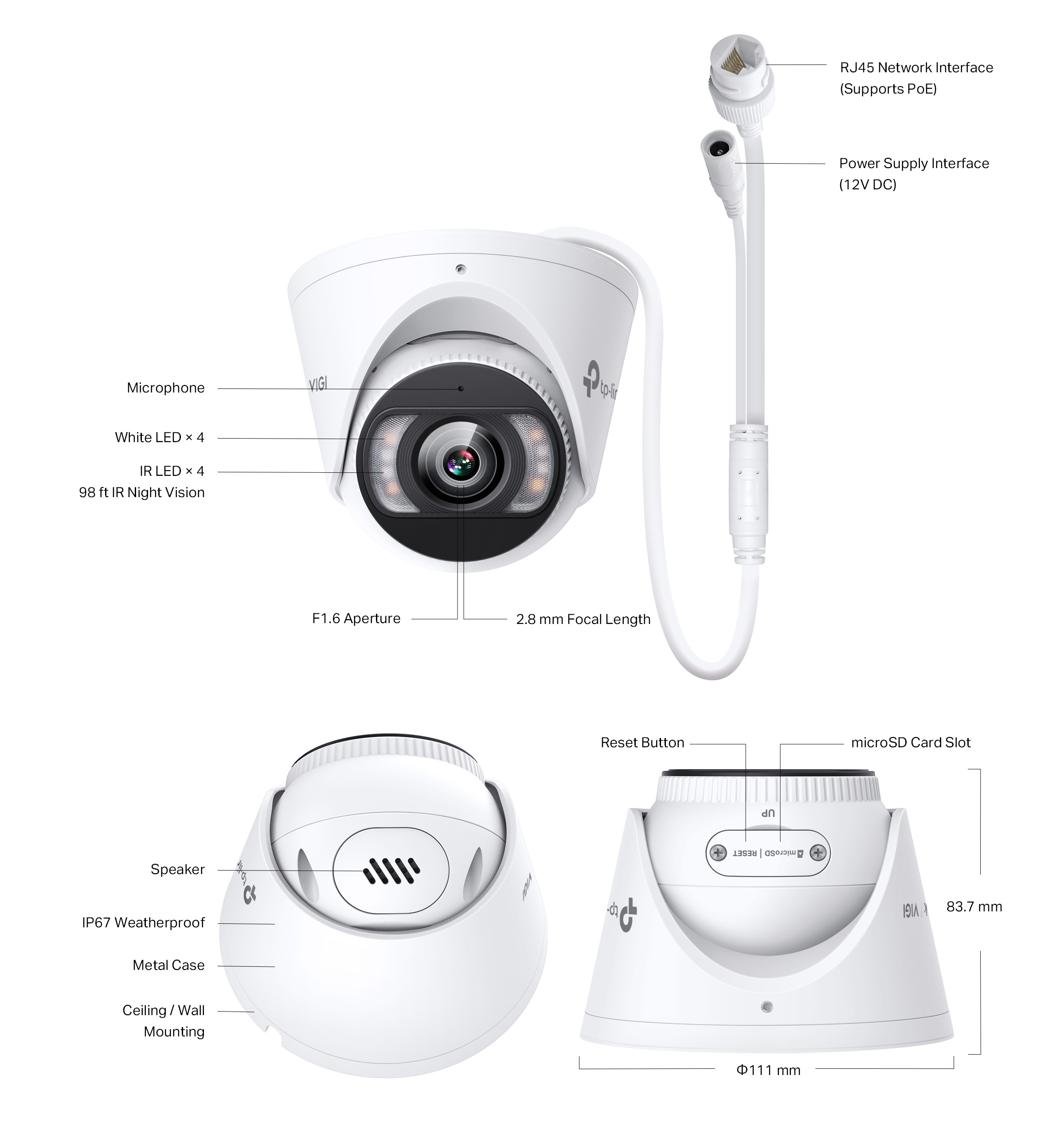

BUILD

8MP / 4K full-colour dome

4K colour InSight dome with AI detection and IP67 protection. Official protection: IP67.

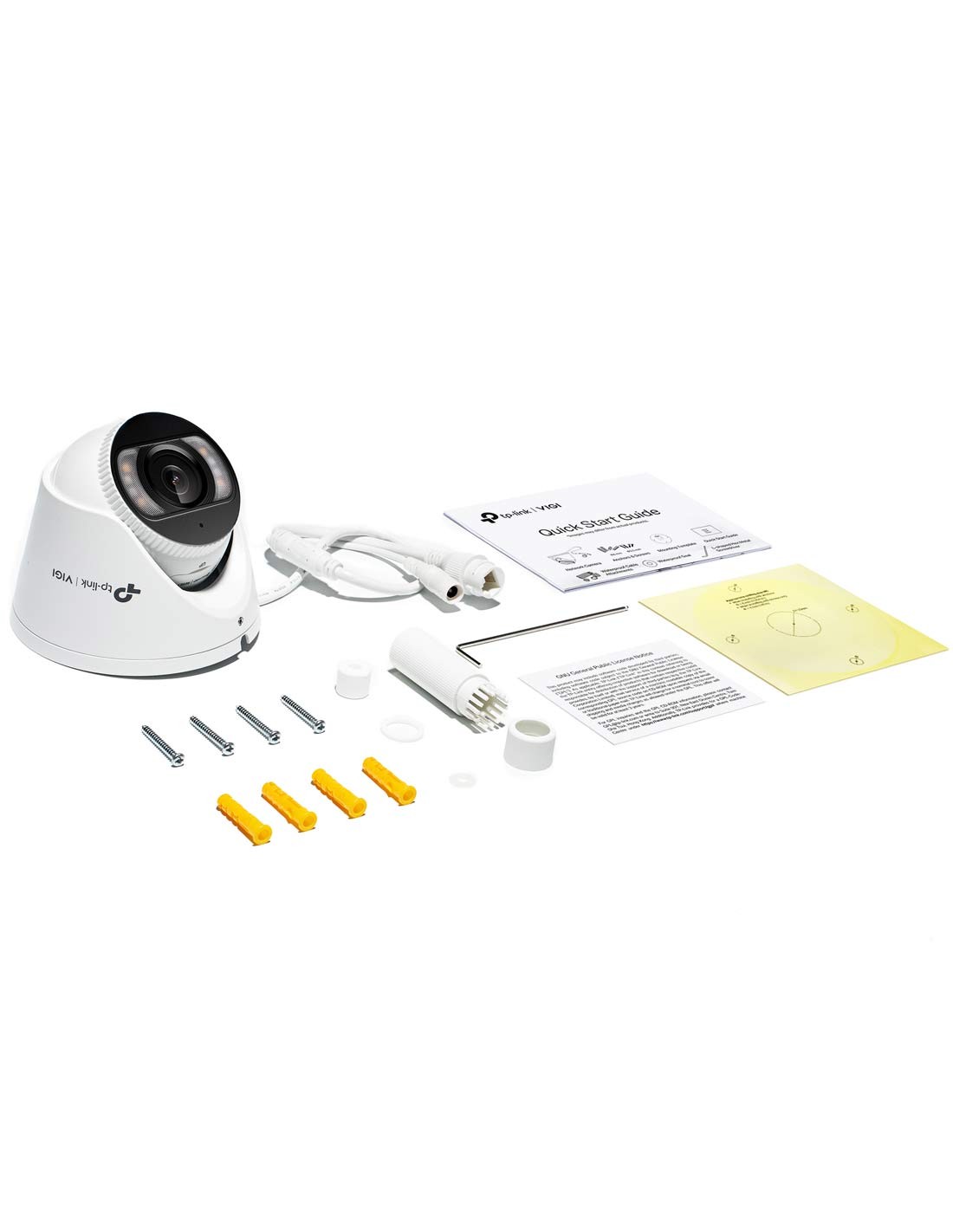

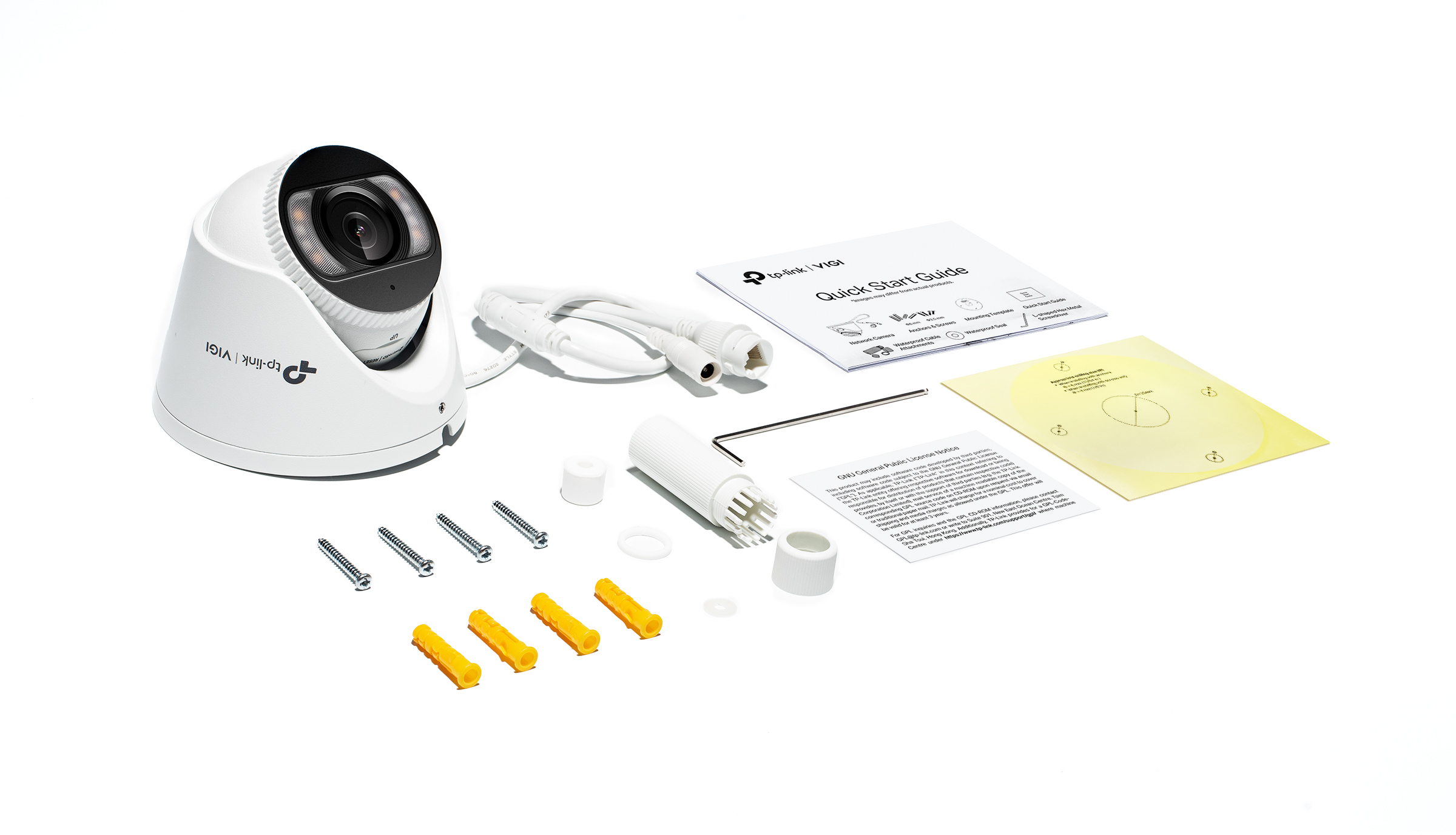

IN THE BOX

What ships with the camera

VIGI Network CameraQuick Start GuideWaterproof Cable AttachmentsMounting Accessories

Key specs

Specification	Detail
Max. resolution	3840 X 2160
Lens	2.8 mm
Image sensor	1/2.7” Progressive Scan CMOS
Protection	IP67
Power	12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power PlugPoE: 802.3af/at, class 0, Max. 12.5 W
Net weight	0.48 Kg

Full specifications are in the Specifications tab. Source: TP-Link Australia.

Recommended mounts

Official AU accessory matrix. Confirm your exact model before ordering.

VJB-240 — wall junction for listed dome / turret / fisheye bodies
VJB-300 — compact general junction box on the AU matrix

Frequently asked questions

What weather / vandal rating does TP-Link publish?

TP-Link Australia lists IP67 for this model.

Which junction box or pole mount do I need?

On the AU accessory matrix this camera maps to: VJB-240 — wall junction for listed dome / turret / fisheye bodies; VJB-300 — compact general junction box on the AU matrix.

Is this a kit?

No — this listing is the standalone camera. NVR, cable and mounts are sold separately unless the product title says Kit.

Need help matching this camera to an NVR or mount?
Infront Technologies stocks and supports TP-Link VIGI across Australia — call 1300 736 970 or email [email protected].

Install note. Use an ACMA-registered cabler for concealed customer cabling (AS/CA S009). Specs and imagery can change at TP-Link’s discretion — verify against the current AU product page before ordering.

Net Weight: 0.48 Kg
Ingress Protection: IP67
Power: 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power PlugPoE: 802.3af/at, class 0, Max. 12.5 W
Brand: TP-Link
Image Sensor: 1/2.7” Progressive Scan CMOS
Lens: 2.8 mm
Max. Resolution: 3840 x 2160
Camera Resolution: 8MP
Warranty: Australian Warranty via Infront Technologies
Product Family: VIGI InSight
Model: S485

TP-Link VIGI Network Camera Junction Box - VJB-300VJB-300

TP-Link VIGI Network Camera Junction Box - VJB-300VJB-300 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Junction Box - VJB-300

TP-Link

VJB-300

$ 43.00

Aluminium alloy network camera junction box Indoor / outdoor wall or ceiling mounting Dimensions: ∅125 × 130.47 × 45.7 mm (4.92 × 5.14 × 1.80 in) Weight: 364 g · VIGI White Waterproof design for cable concealment Compatible models listed in full description (broad VIGI / InSight range)

TP-Link VIGI Network Camera Junction Box - VJB-240VJB-240

TP-Link VIGI Network Camera Junction Box - VJB-240VJB-240 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Junction Box - VJB-240

TP-Link

VJB-240

$ 34.00

Aluminium alloy + SGCC network camera junction box Wall mounting for listed dome, turret and fisheye cameras Dimensions: 181 × 134 × 59 mm (7.1 × 5.3 × 2.3 in) Weight: 533 g · VIGI White Hides cables and connectors for a clean install Compatible models listed in full description (InSight + VIGI C2xx/C4xx)

CAMERA
Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

LENS
Type	Fixed Focal Lens
Focal Length	2.8/4 mm
Aperture	F1.6
FOV	• 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° • 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°
Lens Mount	M12*P 0.5
DORI Distance	• 2.8 mm Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognize: 17 m (56 ft) Identify: 8 m (28 ft) • 4 mm Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft)

Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

ILLUMINATOR
IR LED	Quantity: 4 Range: 30m Wavelength: 850nm
White LED	Quantity: 4 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	3840 X 2160
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps.
Sub-Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	ONVIF Profile S/T/G
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing
Linkage Method	N/A
Output Notification	Message Push

Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§

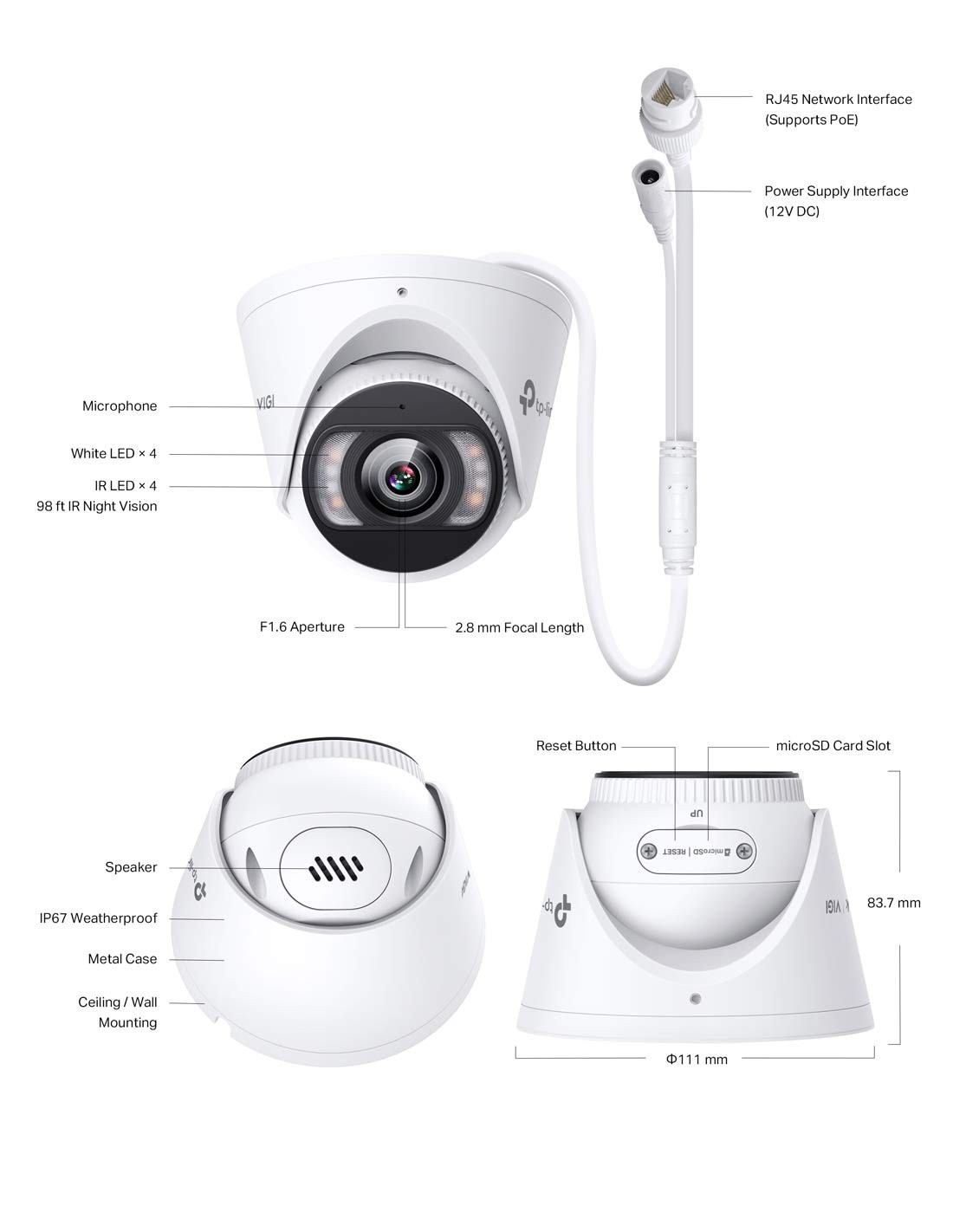

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A

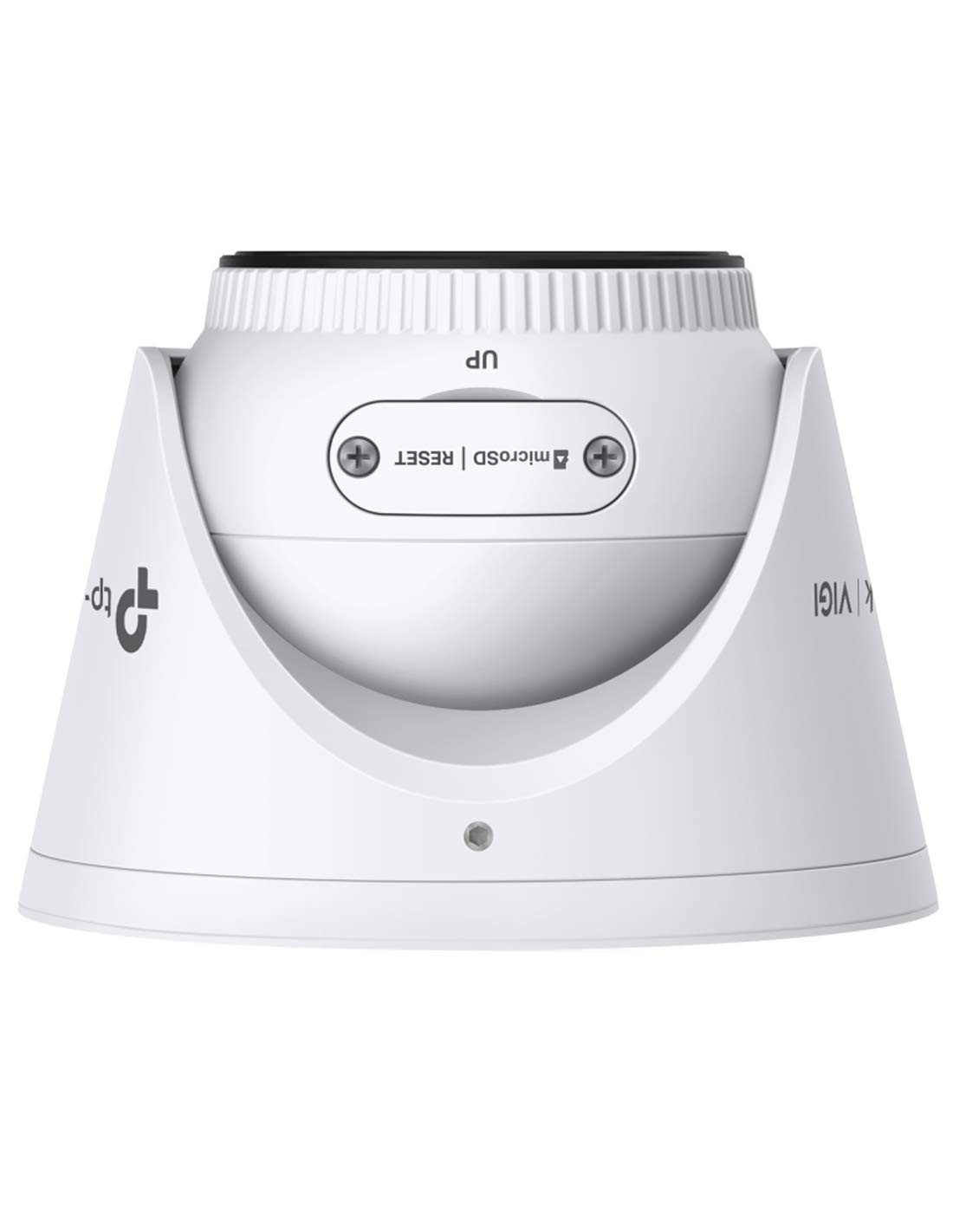

Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera

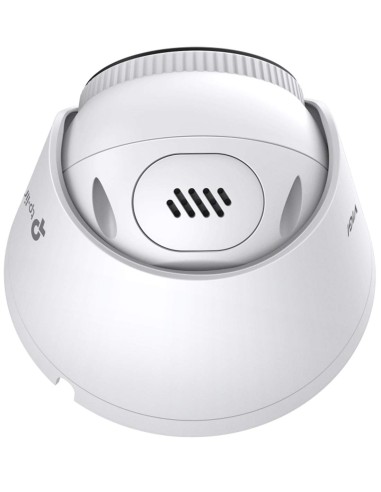

Built-in Speaker	Yes
Audio	N/A

GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Material	Metal
Net Weight	0.48 Kg
Power Supply	12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.5 W
Protection	IP67
Product Dimensions (L x W x H)	4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm)
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC
