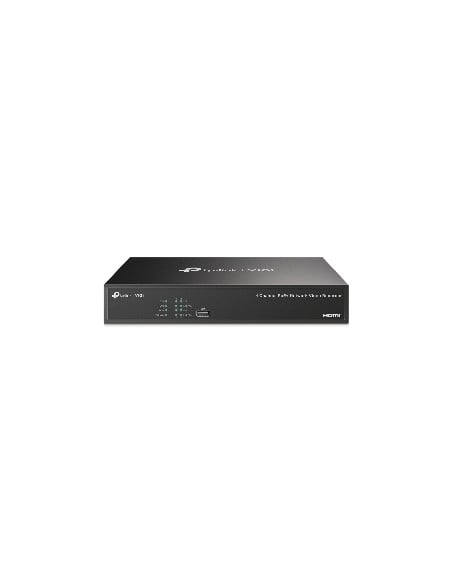

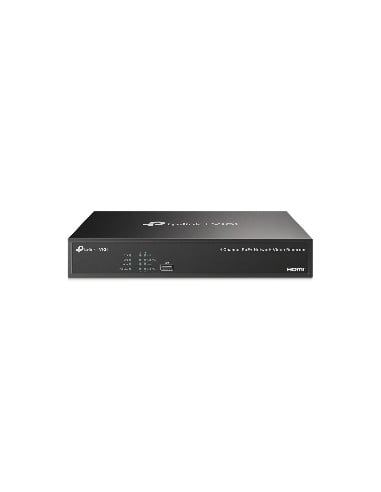

VIGI NVR1004H-4P front panel with status lights and USB port

VIGI NVR1004H-4P rear panel with four PoE ports, LAN, HDMI, VGA and audio

VIGI NVR1004H-4P dimensions 246.2 x 148.2 x 45 mm

1 / 4

TP-Link VIGI 8MP 4K-UHD VIGI 4 Channel PoE+ Network Video Recorder - VIGI-NVR1004H-4P

Name: TP-Link VIGI 8MP 4K-UHD VIGI 4 Channel PoE+ Network Video Recorder - VIGI-NVR1004H-4P
Brand: TP-Link
SKU: VIGI-NVR1004H-4P
Price: 199 AUD
Availability: InStock

SKU VIGI-NVR1004H-4P-0T In Stock - Ready to Ship

$199.00 inc GST

Log in for a savingAccount holders pay less on this item. Log in to see your price.

TP-Link VIGI NVR1004H-4P: a compact 4-channel recorder with four built-in PoE+ ports and one drive bay. Choose the drive size in the options.

✓4 IP channels, recording up to 8MP
✓4 PoE+ ports, 53 W total
✓80 Mbps incoming bandwidth
✓1 SATA bay, up to 10TB
✓4K HDMI and VGA output
✓VIGI app for remote viewing

Hard Disk Options

No HDD $199 2TB HDD Upgrade ✓ Supplied $479 4TB HDD Upgrade ✓ Supplied $519 8TB HDD Upgrade ✓ Supplied $1,027 10TB HDD Upgrade ✓ Supplied $1,179

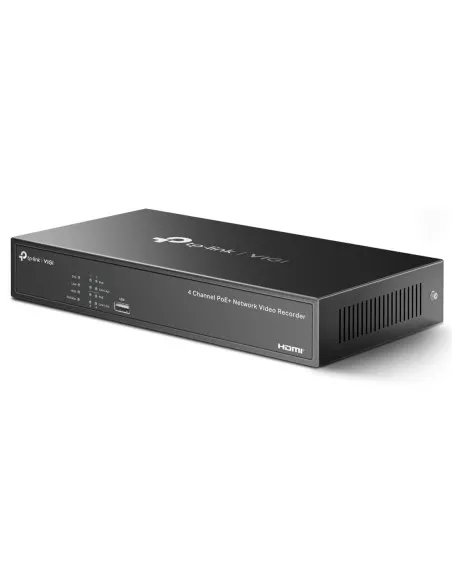

TP-Link VIGI NVR1004H-4P 4-channel PoE recorder, front three-quarter view of the compact desktop chassis

TP-Link · VIGI · 4 channel PoE recorder

Four cameras, one cable each.
4 PoE+ ports. 53 W. Up to 8MP.

This is the VIGI NVR1004H-4P: a compact recorder that powers and records up to four IP cameras through its own four PoE+ ports, with one drive bay of up to 10TB.

In one sentence: the VIGI-NVR1004H-4P is a TP-Link VIGI 4-channel network video recorder in a compact desktop case, with 4 PoE+ ports sharing 53 W, recording up to 8MP per camera, 80 Mbps incoming bandwidth and one SATA bay of up to 10TB.

Recorder only, unless you choose a drive.

The recorder needs a hard drive to record. Choose the drive size in the options above, or select No HDD and fit your own surveillance drive in the single bay.

In the box

VIGI NVR1004H-4P recorder
Power adapter and power cables
Mouse
Rubber feet
Quick installation guide
Hard drive, only if chosen in the options

You also need

IP cameras, up to four
A Cat5e or Cat6 cable from each camera
A TV or monitor with HDMI or VGA
A network cable to your router, for the VIGI app

A small PoE switch and a recorder in one box.

Four PoE+ ports (802.3af/at) on the back supply up to 30 W each and 53 W in total, so each camera needs only one network cable. The recorder takes up to 80 Mbps from the cameras and records up to 8MP per channel in H.265+, H.265, H.264+ or H.264.

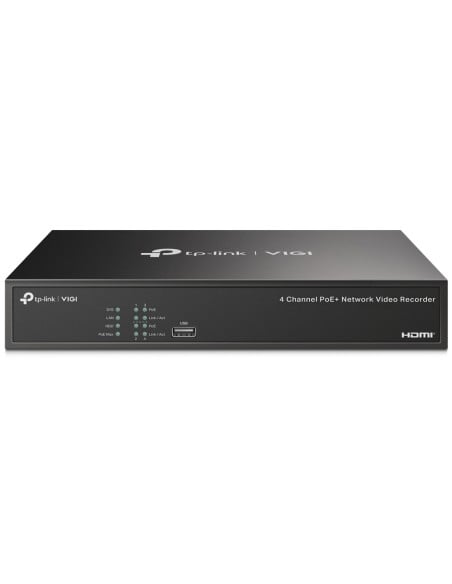

Front

A light for every port.

Status lights for system, network, drive and PoE load, plus link and PoE lights for each of the four cameras. One USB 2.0 port on the front for the mouse or a backup stick.

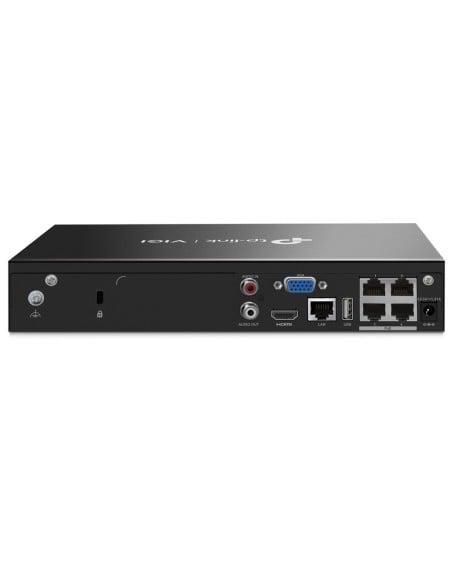

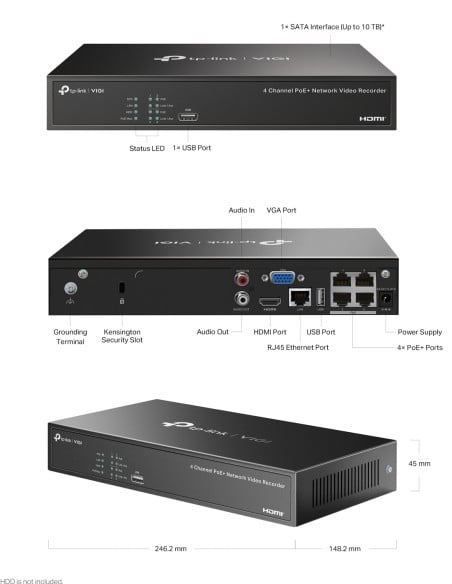

Rear panel of the TP-Link VIGI NVR1004H-4P labelled: grounding terminal, security slot, audio in and out, VGA, HDMI, LAN, USB, four PoE ports and power

Connections

Four PoE+ ports and a 4K HDMI output.

4 × 10/100 Mbps PoE+ ports and one 10/100 Mbps LAN port to your router. HDMI up to 3840 × 2160 and VGA up to 1920 × 1080, both at once. RCA audio in and out, a rear USB 2.0 port, a grounding terminal and a security slot.

How it goes in

From the shelf to the first camera.

Place the recorder

246.2 × 148.2 × 45 mm. Put it on a shelf or in a cabinet with air around it, near your router, and plug in the power adapter.

Fit the drive

One SATA drive of up to 10TB. If you chose a drive in the options, it comes with the recorder. A drive must be fitted for it to record.

Plug in the cameras

One network cable from each camera to a PoE+ port. Keep within 30 W per port and 53 W in total.

Set it up

Connect a screen and the mouse, run the start-up wizard, add the cameras, then add the recorder to the VIGI app on your phone.

At a glance

VIGI NVR1004H-4P

Show specs

Model

VIGI NVR1004H-4P (hardware V1)

Channels

4 IP cameras

PoE

4 × 10/100 Mbps PoE+ ports, 802.3af/at; 30 W per port, 53 W total

Recording

Up to 8MP per channel (8MP, 5MP, 4MP, 3MP, 1080p and lower)

Compression

H.265+ / H.265 / H.264+ / H.264

Bandwidth

80 Mbps incoming, 60 Mbps outgoing

Decoding

25 fps: 2-ch @ 8MP or 4-ch @ 4MP; 30 fps: 4-ch @ 4MP or 3-ch @ 5MP

Playback

Up to 4 channels at once (fewer if the total is over 16MP)

Live view

1/4 split

Video output

1 × HDMI (up to 3840 × 2160), 1 × VGA (up to 1920 × 1080), simultaneous

Drive

1 × SATA, up to 10TB

Network

1 × 10/100 Mbps LAN port

USB

1 front USB 2.0, 1 rear USB 2.0

Audio

1 RCA input, 1 RCA output

Alarm terminals

None (smart alarms come from the cameras)

Smart alarms with cameras

Motion, tampering, line crossing, intrusion, region entering and exiting, loitering, object left or removed, human, vehicle, abnormal sound

Interoperability

ONVIF Profile S, CGI; VIGI app for Android and iOS

Power

53.5 V DC, 1.31 A adapter; 4.25 W without a drive, 13.10 W with

Chassis

246.2 × 148.2 × 45 mm (W × D × H)

Environment

−10 °C to 55 °C, 10–90% RH non-condensing

Warranty

3 years, TP-Link Australia

TP-Link VIGI NVR1004H-4P dimensions: 246.2 mm wide, 148.2 mm deep, 45 mm high

246.2 × 148.2 × 45 mm. Units mm.

Pair it with

What this recorder does not include

Storage

A surveillance drive

Choose the drive size in the options above. The single bay takes one SATA drive of up to 10TB.

Cameras

VIGI cameras

TP-Link recommends VIGI cameras for the best results with this recorder. Other ONVIF Profile S cameras also record.

Security

A lockable cabinet

Keep the recorder out of reach so a thief can't take the footage with it. Ask us about the 24SECCAB security cabinet.

Growing

More than four cameras

For more cameras, step up to an 8 or 16-channel VIGI recorder, or ask us about a PoE switch for the extra runs.

Where it is used

Sites that need up to 4 cameras.

Homes

Front door, driveway, side gate and back yard, all powered from the recorder.

Small shops

Counter, entry, stockroom and rear door.

Cafes and takeaways

Small offices

Reception, the front door and the car park.

Sheds and garages

Roller doors and the tool store.

Holiday houses

Check the entries from your phone with the VIGI app while you are away.

VIGI NVR1004H-4P or VIGI NVR1008H-8MP

	VIGI NVR1004H-4P (this recorder)	VIGI NVR1008H-8MP
Channels and PoE+ ports	4 and 4	8 and 8
PoE budget	53 W	113 W
Incoming bandwidth	80 Mbps	80 Mbps
Drive bay	1, up to 10TB	1, up to 16TB
Live view split	1/4	1/4/6/8
Size	246.2 × 148.2 × 45 mm	294 × 180 × 44 mm

Figures come from each recorder's own TP-Link datasheet. The NVR1004H-4P-2TB on the same datasheet is the same recorder with a 2TB drive already fitted.

Common questions

Does this NVR power the cameras?

Yes. It has 4 PoE+ ports (802.3af/at) supplying up to 30 W per port and 53 W in total.

Is a hard drive included?

Only if you choose one. Pick the drive size in the options above, or choose No HDD and fit your own. A drive must be fitted for the recorder to work.

How much storage can it hold?

One SATA drive of up to 10TB.

What resolution can it record?

Up to 8MP per camera, within 80 Mbps of incoming bandwidth in total.

How many cameras can it play back at once?

Up to 4 channels at the same time. Fewer, or none, if the total resolution is over 16MP.

Can I connect a TV and a monitor?

Yes. It has one HDMI output up to 3840 × 2160 and one VGA output up to 1920 × 1080, and both work at the same time.

Can I watch the cameras on my phone?

Yes. Connect the LAN port to your router and add the recorder to the VIGI app on Android or iOS. The web interface works in Chrome, Firefox and Edge.

Will it work with other camera brands?

It supports ONVIF Profile S, so most ONVIF cameras record. TP-Link recommends VIGI cameras, as some features may not work fully with other brands.

Does the recorder do person and vehicle detection itself?

No. Smart alarms such as human, vehicle and line-crossing detection come from the camera; the recorder records and alerts on them.

Does it have alarm input terminals?

No. Alarm in and out is not available on this model. The VIGI NVR2008H-8MP and NVR2016H-16MP have 6 alarm inputs and 4 outputs.

What warranty does it have?

3 years, under TP-Link Australia's warranty. Contact us first and we will look after the claim.

Who can install the camera cabling?

Concealed cabling between the cameras and the recorder is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Plugging the recorder into an existing power point is normal use.

Supported by InFront Technologies.

Not sure which cameras or drive size to choose? Send us your camera list and how long you want to keep footage: call 1300 736 970 or email [email protected].

Installation and safety

Power. The recorder runs from its 53.5 V DC power adapter plugged into an existing power point. A new circuit or any switchboard work needs a licensed electrician. Unplug it before fitting or removing the drive.

Camera cabling. Concealed cabling between the cameras and the recorder is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Privacy and audio. Recording people and conversations is covered by state and territory surveillance laws. Point cameras at your own property and check the rules before you record audio.

What it does not do. It has no alarm terminals, no eSATA port and no analogue (coax) inputs. The LAN port is 10/100 Mbps. PoE stops at 53 W in total.

Figures. From the TP-Link VIGI NVR1004H-4P datasheet (hardware V1).
