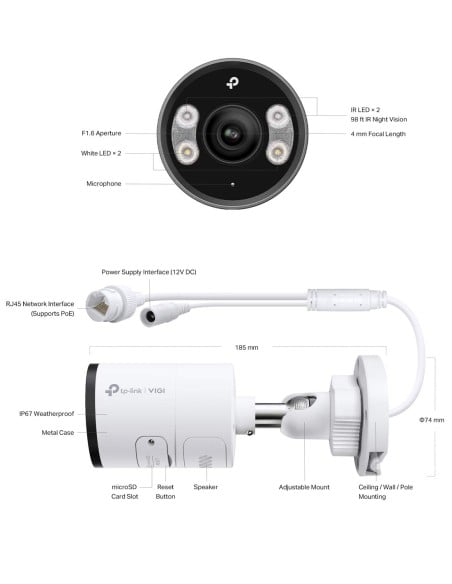

TP-Link VIGI 8MP 4K-UHD Full-Colour Bullet IP Security Camera - Insight-S385(4mm)
- PROFESSIONAL RANGE (VIGI-INSIGHT)
- 4K (8MP) Ultra HD and 24h Full-Colour
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
- 12V DC/PoE
- 4mm Lens
- 3-Year Warranty

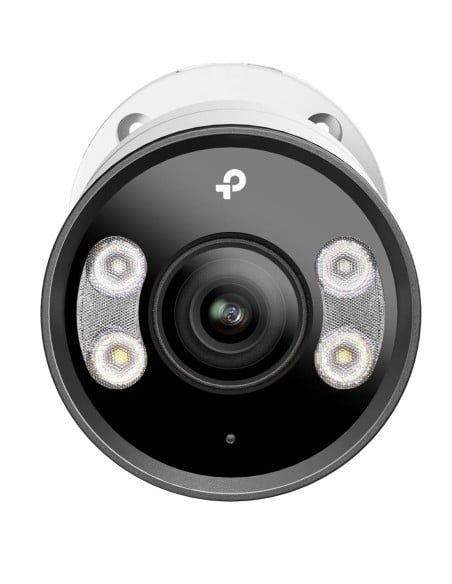

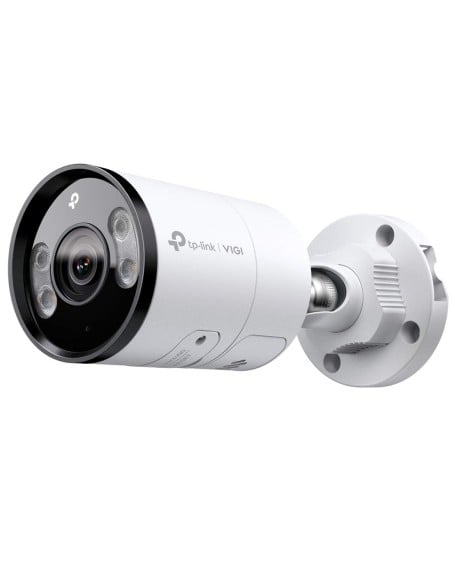

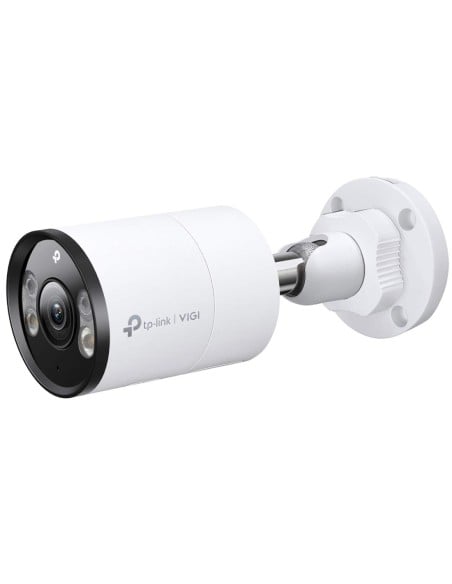

TP-Link VIGI Insight-S385 8MP Full-Colour Bullet IP Camera (4mm Lens)
Ultra HD 4K • 24/7 Full-Colour • AI Human & Vehicle Detection • Active Defence • IP67 Rated
The TP-Link VIGI Insight-S385 8MP Full-Colour IP Camera delivers ultra-high-definition surveillance with advanced AI detection and robust outdoor protection. Capture crystal-clear detail day or night with 24/7 colour footage, proactive defence features, and smart video enhancements, ideal for securing entrances, perimeters, and critical outdoor zones.
Key Features & Benefits
- 8MP Ultra HD 4K Resolution — Capture incredible 3840 × 2160 clarity for forensic-level detail.
- 24/7 Full-Colour Monitoring — Integrated illumination delivers vibrant, colour images even at night.
- AI-Powered Human & Vehicle Detection — Accurate alerts by distinguishing real threats from false alarms.
- Smart Detection Suite — Motion, tampering, line crossing, intrusion, and more.
- Active Defence with Two-Way Audio — Deter intruders with sound & light alerts and communicate remotely.
- IP67 Weatherproof Housing — Reliable outdoor performance, rain or shine.
- H.265+ Video Compression — Save storage space and bandwidth without sacrificing quality.
- Power via PoE or 12V DC — Flexible installation options for any environment.
- 4mm Fixed Lens — Ideal for monitoring entrances, gates, or focused security zones.
- NDAA Compliant — Suitable for government, educational, or regulated projects.
Next-generation 4K clarity with AI intelligence — ideal for entrances, car parks, critical infrastructure, and perimeter protection requiring round-the-clock, colour-rich security footage.
Real-World Applications
Commercial Entrances & Shopfronts — Monitor access points with sharp detail and proactive AI alerts.
Perimeter & Outdoor Security — Safeguard boundaries with full-colour visibility and active defence.
Industrial Yards & Loading Zones — Maintain visibility and monitor high-value areas 24/7.
Public Spaces & Car Parks — Enhance safety with AI detection and full-colour monitoring in all light conditions.
Education & Government Facilities — NDAA-compliant for sensitive projects requiring reliable protection.
Smart Video Enhancement
- True WDR — Balances exposure for clear images in bright or backlit environments.
- Smart IR — Optimises infrared intensity for superior night-time performance.
- 3D DNR — Reduces image noise while preserving critical detail in low light.
- White Balance Correction — Delivers true-to-life colour reproduction across scenes.

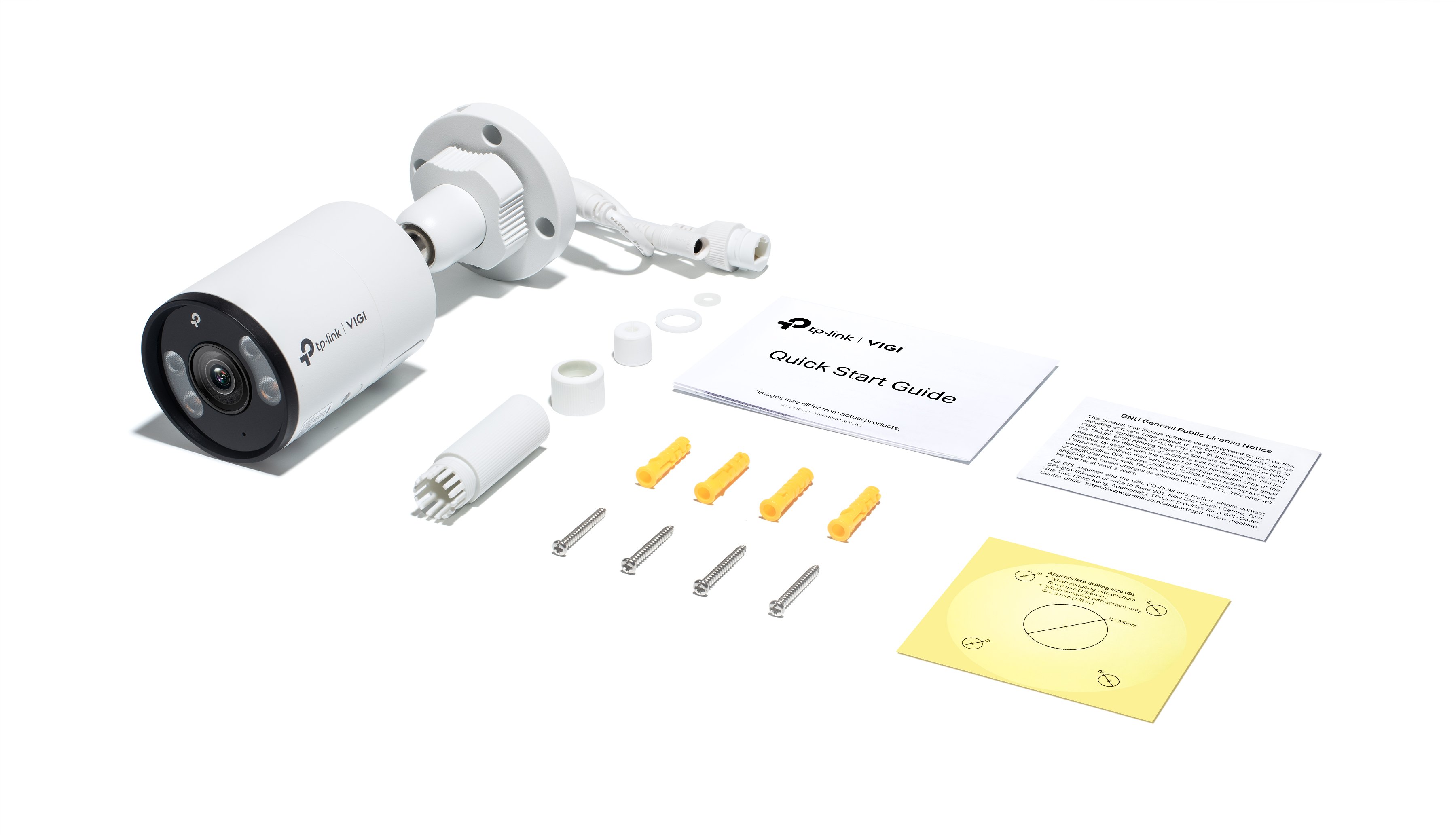

What’s in the Box
Protect your premises with 4K clarity, proactive deterrence, and AI-powered detection — the Insight-S385 delivers professional-grade, full-colour surveillance designed for your most demanding outdoor security needs.
- Camera Resolution
- 8MP
Category | Specification |
---|---|
CAMERA | |
Image Sensor | 1/2.7” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified/ Scheduled/ Auto |
LENS | |
Type | Fixed Focal Lens |
Focal Length | 2.8/4 mm |
Aperture | F1.6 |
FOV | • 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° • 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° |
Lens Mount | M12*P 0.5 |
DORI Distance | • 2.8 mm Detect: 85 m (278 ft) Observe: 35 m (116 ft) Recognize: 17 m (56 ft) Identify: 8 m (28 ft) • 4 mm Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft) |
Angle Adjustment (Manual) | Range: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
ILLUMINATOR | |
IR LED | • Quantity: 2 • Range: 30m • Wavelength: 850nm |
White LED | • Quantity: 2 • Range: 30m |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
Max. Resolution | 3840 X 2160 |
Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
Bit Rate Control | CBR, VBR |
Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
H.264 Type | High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile* |
H.265+ | Main Stream Supported* |
Video Bit Rate | • Main Stream: 256 Kbps to 8 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
IMAGE | |
Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 1 Region |
OSD Setting | Yes |
AUDIO | |
Audio Communication | Two-Way Audio |
Audio Input | Yes |
Audio Output | Yes |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps (G.711 alaw) |
NETWORK | |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
ONVIF | Yes |
API | ONVIF (Profile S/T/G) |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
Cloud | Yes |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT | |
Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception ( Illegal Login) |
Alarm Linkage | • Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing |
Deep Learning Function People & Vehicle Analytics |
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§ |
INTERFACES | |
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Alarm | N/A |
Reset Button | Yes |
Power | DC Power Port |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
Built-in Speaker | Yes |
Audio | N/A |
GENERAL | |
Operating Temperature | -30–60 °C |
Storage Temperature | -40–60 °C |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |

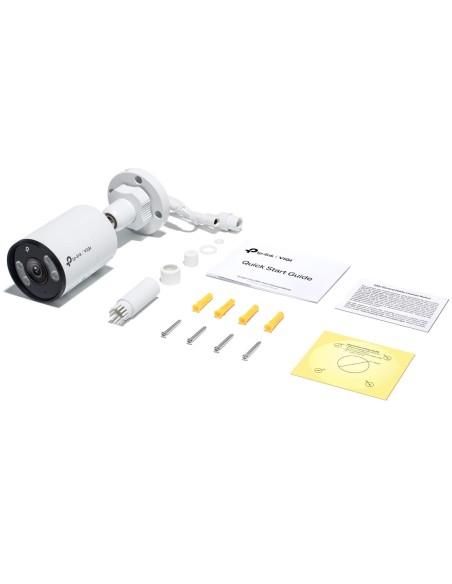

Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
Material | Metal |
Net Weight | 0.525 Kg |
Power Supply | • 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 11.5 W |
Protection | IP67 |

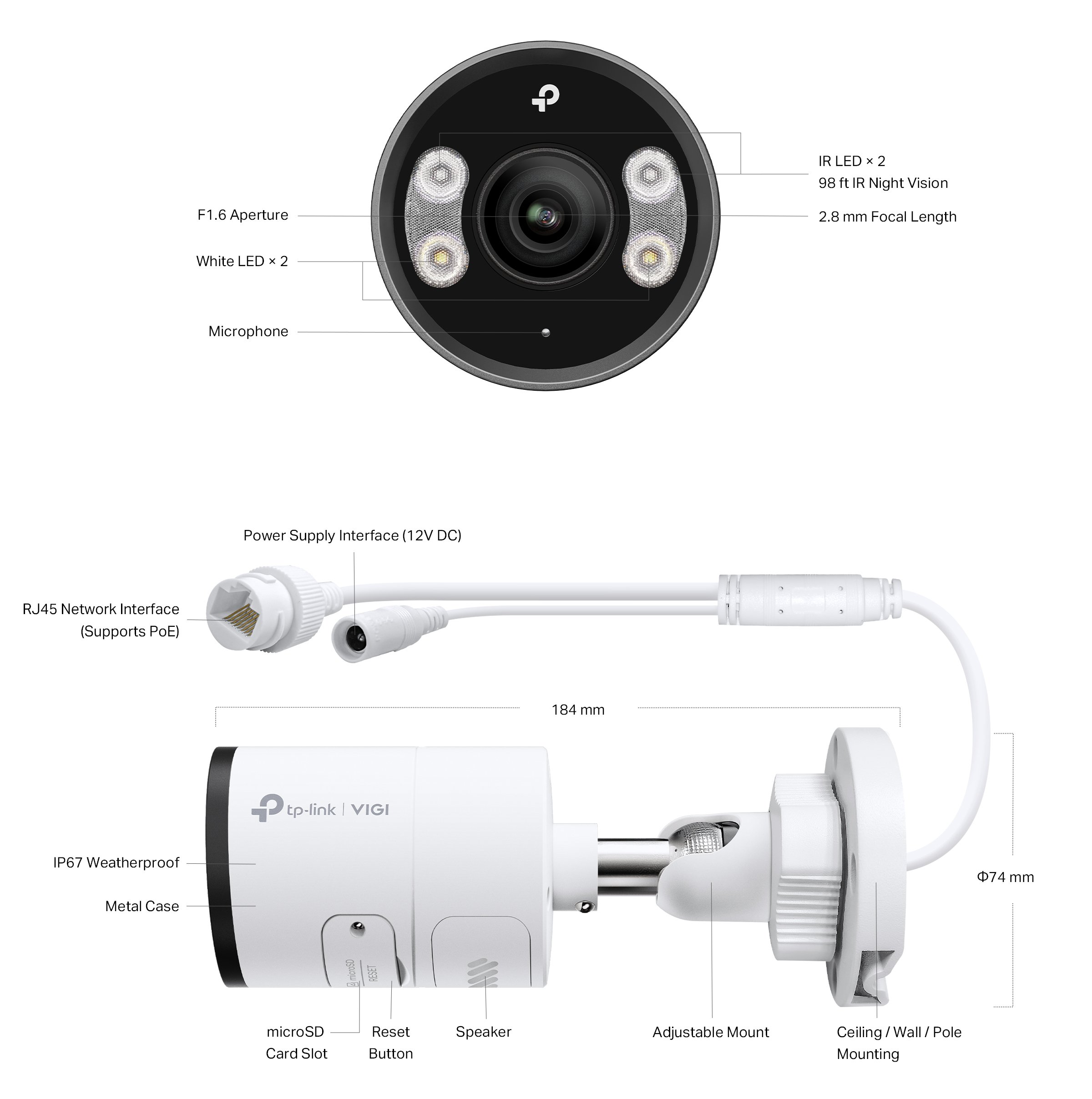

Product Dimensions (L x W x H) | 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm) |
Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
