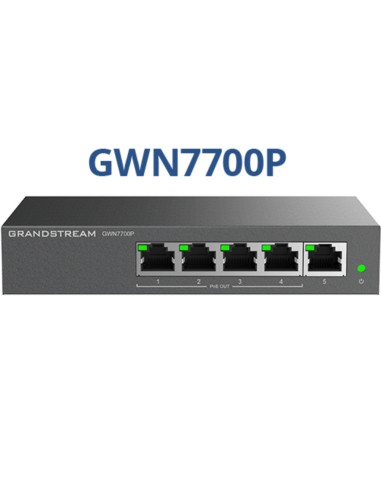

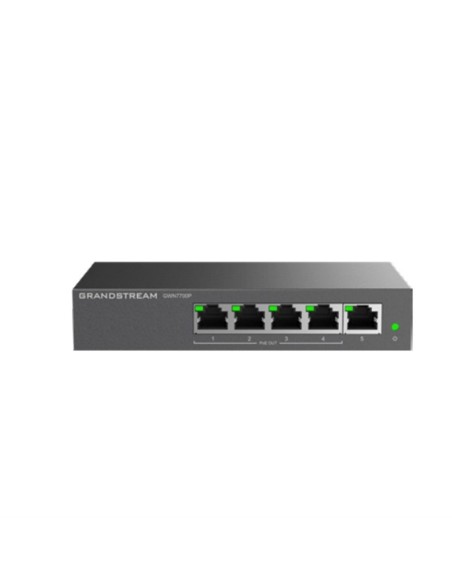

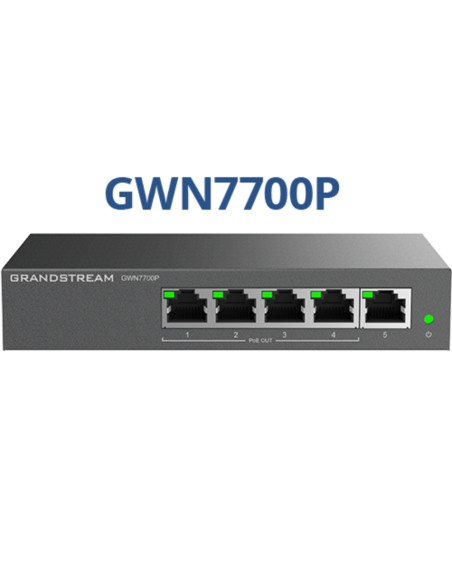

Grandstream Unmanaged Network Switch, 5 X Gige (4 X Poe)
GR-GWN7700P
The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables.
.jpg)
Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
|
5 and 8 Multi-Gigabit
Copper Ports provide
100/1000/2500Mbps
connectivity
|
|
Green technology reduces
power consumption
|
|
LED Indicators;
Per port: Link/Activity
Per device: Power
|
|
Auto MDI/MDIX crossover
for all ports
|
|
|
|
|
|
|
|
|
|
802.3 af/at compliant
Up to 30W on each port,
(GWN7700P/GWN7701P/
GWN7701PA only)
|
|
Broadcast/Multicast/
Unicast Storm Control (fixed
to 100Mbps) to monitor traffic
levels
|
|
Supports long cable
connection
|
|
QoS - Supports Default Strict
Priority when present
|
Features:
- 5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
- Green technology reduces power consumption
- LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
- Auto MDI/MDIX crossover for all ports
- 802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/
- GWN7701PA/GWN7702P only)
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Supports long cable connection
- QoS - Supports Default Strict Priority when present
Specifications:
