Tenda 5GHz 23dBi 11ac Outdoor CPE — TN-08

Tenda 5GHz 23dBi 11ac Outdoor CPE — TN-O8

Name: Tenda 5GHz 23dBi 11ac Outdoor CPE — TN-O8
Brand: Tenda
SKU: TN-O8
Price: 89 AUD
Availability: InStock

Reference: TN-O8

In Stock - Ready to Ship

$ 89.00

inc-GST

Outdoor 5GHz 11ac CPE
23dBi directional antenna

Tenda outdoor wireless CPE for long-range 5GHz point-to-point links, specified with an integrated 23dBi antenna and 433Mbps 11ac wireless rate.

✓5GHz wireless band✓23dBi integrated antenna✓IEEE 802.11ac✓433Mbps wireless rate✓Outdoor CPE form factor✓Directional link deployment

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

Description
Product Details

Tenda · 5GHz Outdoor CPE

20 km point-to-point.
One link. No excuses.

The Tenda TN-08 (O8) is a 5 GHz outdoor CPE with a 23 dBi directional antenna — built for WISP backhaul and long-range site-to-site links across open terrain.

Product shot may differ from the actual product.

20+km transmission Range

O8 adopts of the independent power amplifier and 23dBi vertical polarization directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 20km.

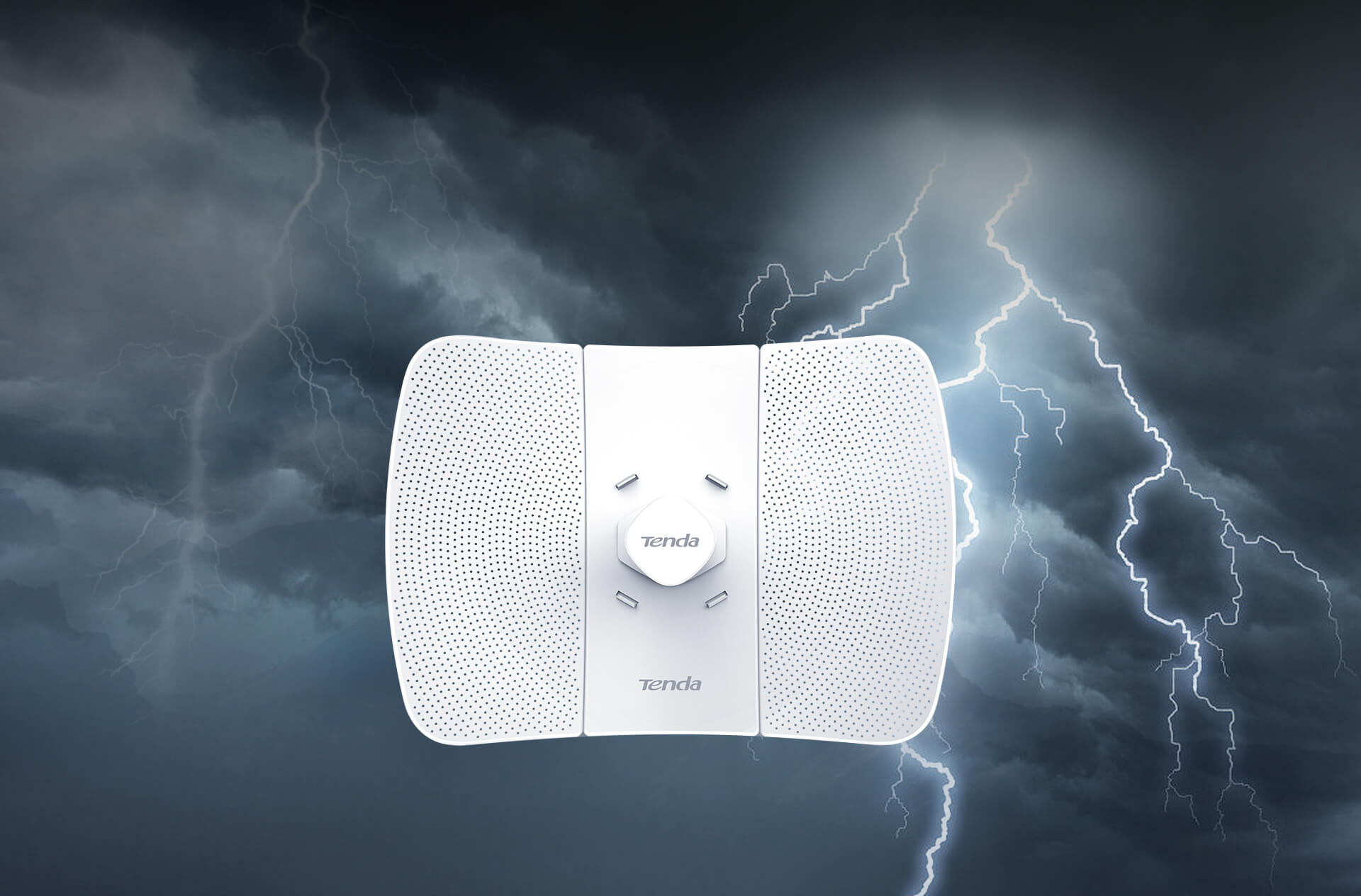

6000V Surge Protection Design

O8 adopts of 6000V ethernet port surge protection design, It can be more robust in the thunder season.

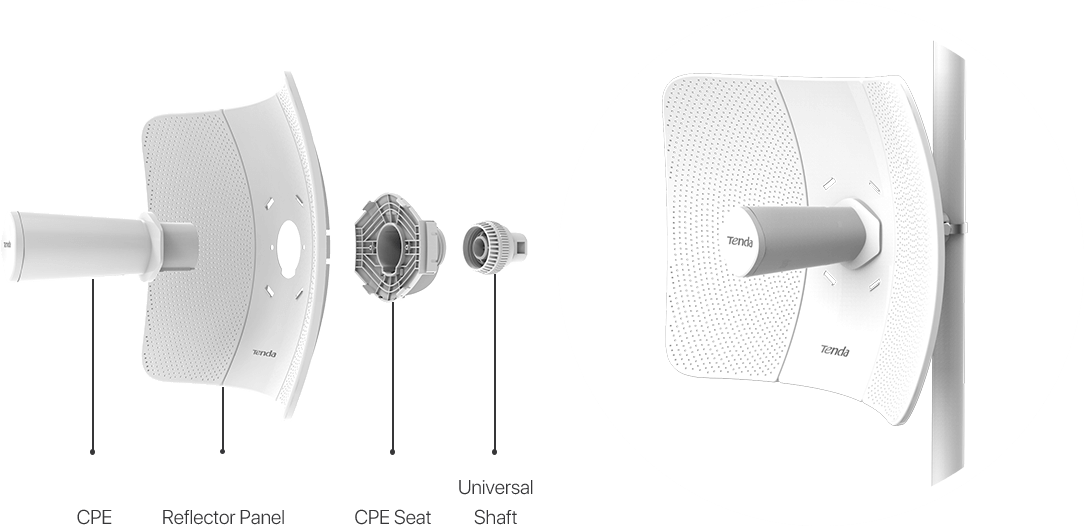

Easy to Assemble and Install

O8 adopts of three-axis alignment, it is easy to assemble in seconds – no tools needed. Only a single screw driver is required for pole-mounting.

TD-MAX-Tenda TDMA proprietary protocol

TD-MAX is Tenda TDMA (Time Division Multiple Access) proprietary protocol
to improve performance and capacity for wireless WISP outdoor application scenarios.
In the outdoor environment, the CPE uses highly directional antennas to connect
to the Basestation from distances that can span several kilometers. the CPE ca"t sense each other,
they become“hidden nodes” and cannot coordinate access to the wireless channel.
Thus the Basestation experiences frequent collisions from stations transmitting simultaneously.
As the network scales, these collisions build up exponentially, increasing latency and lowering throughput.
With TD-MAX, it coordinates all the data transmission and allocates time to active clients to
provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA
(Carrier Sense Multiple Access / Collision Avoidance) protocol.

* Real throughput depends on the actual application environment

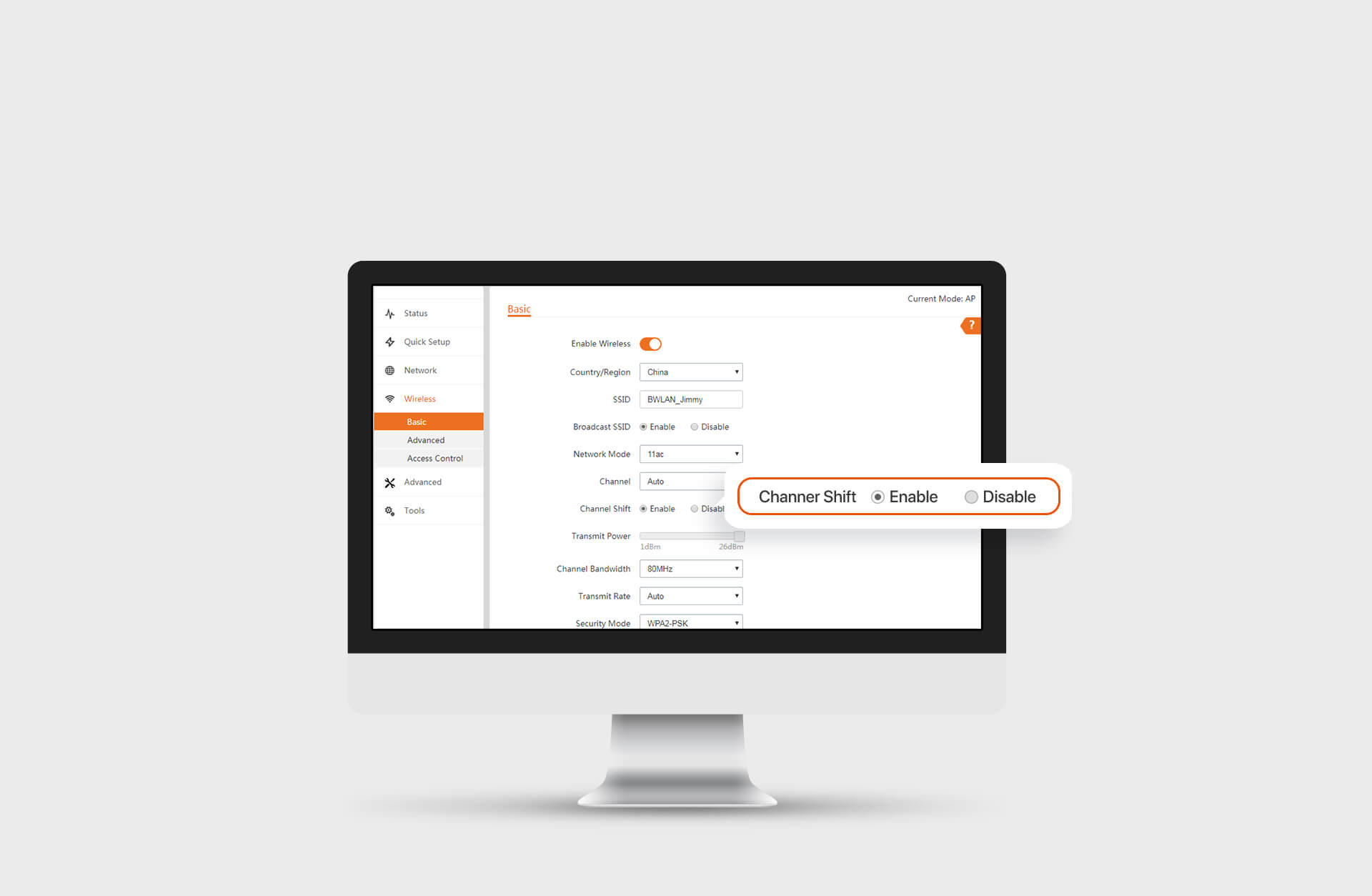

Channel shift to avoid interferrence

O8 provides the Channel Shift feature to offset the central frequency 5MHz upper.
It can avoid interference from nearby AP and deliver higher throughput.

CPE Assistant-Centralized Management Platform

O8 equipped with centralized management software that helps users easily manage
all the devices in their network from a single PC - CPE Assistant. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using CPE Assistant.

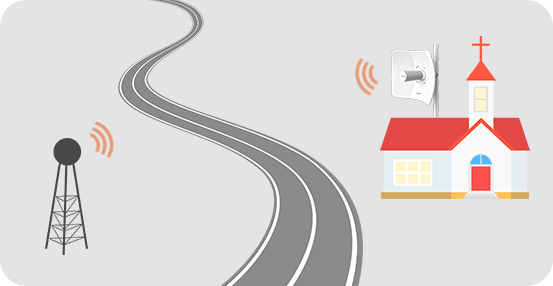

Multiple Application Scenarios

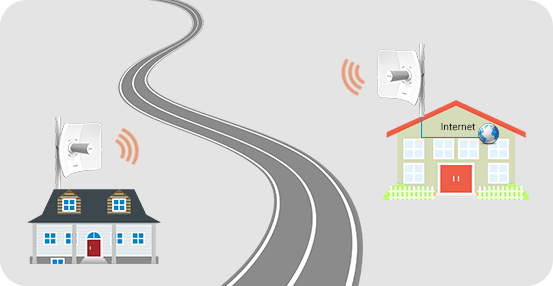

Long-Distance Wireless Connection

One works as AP mode and another works as Station mode to create a long distance PtP wireless connection for private ISP wireless connectivity, CCTV surveillance and data transmission.
