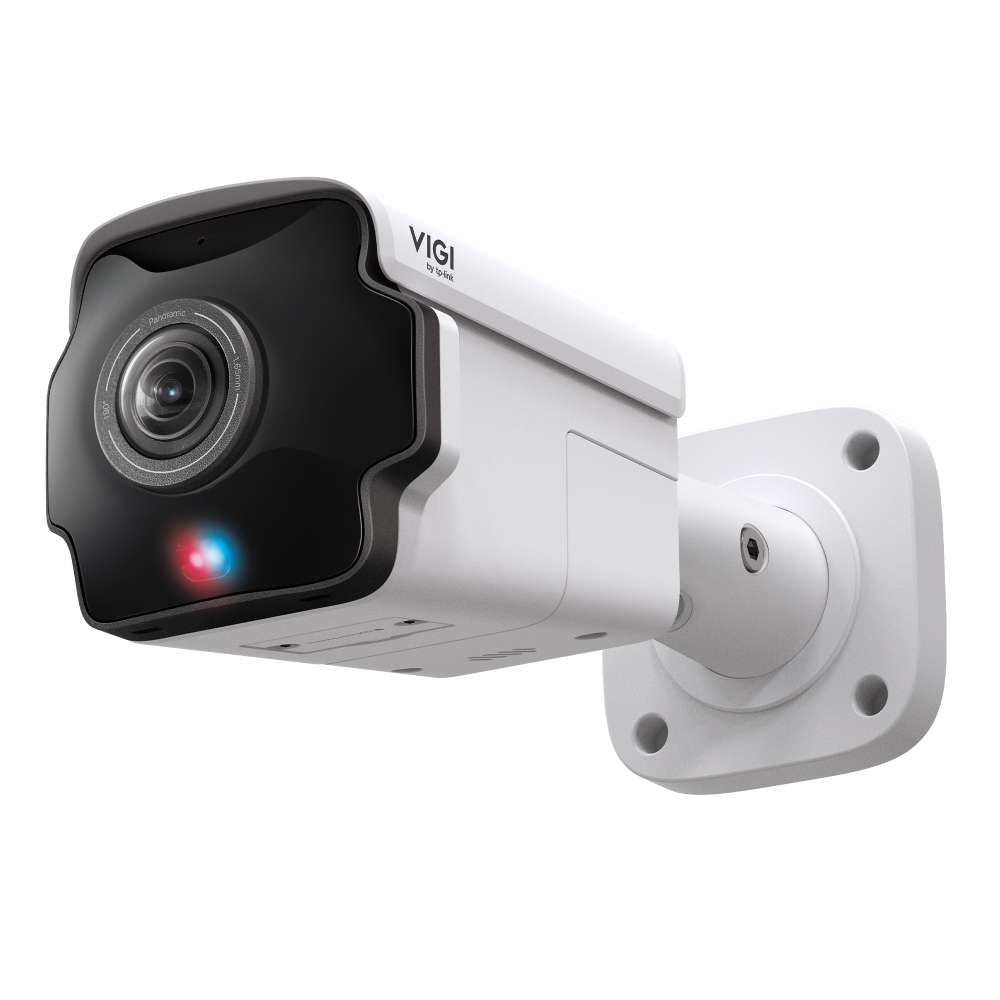

VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic InSight-S385PI

VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Bullet IP Network Camera - InSight-S385PI

Name: VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Bullet IP Network Camera - InSight-S385PI
Brand: TP-Link
SKU: InSight-S385PI
Price: 449 AUD
Availability: InStock

Reference: InSight-S385PI

In Stock - Ready to Ship

$ 449.00

inc-GST

8MP IR panoramic bullet
Weather / protection: IP67 · IK10
Max resolution: 3840 x 2160
See specifications for lens options
Standalone camera — NVR and mounts sold separately

TP-Link VIGI InSight S385PI

8MP IR panoramic bullet

VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Bullet IP Network Camera - InSight-S385PI

Overview

The InSight-S385PI is a 180° panoramic IR bullet with AI, active defence, IP67 + IK10.

Standalone IP camera — NVR / PoE switch / mounts sold separately. Specs below match TP-Link Australia.

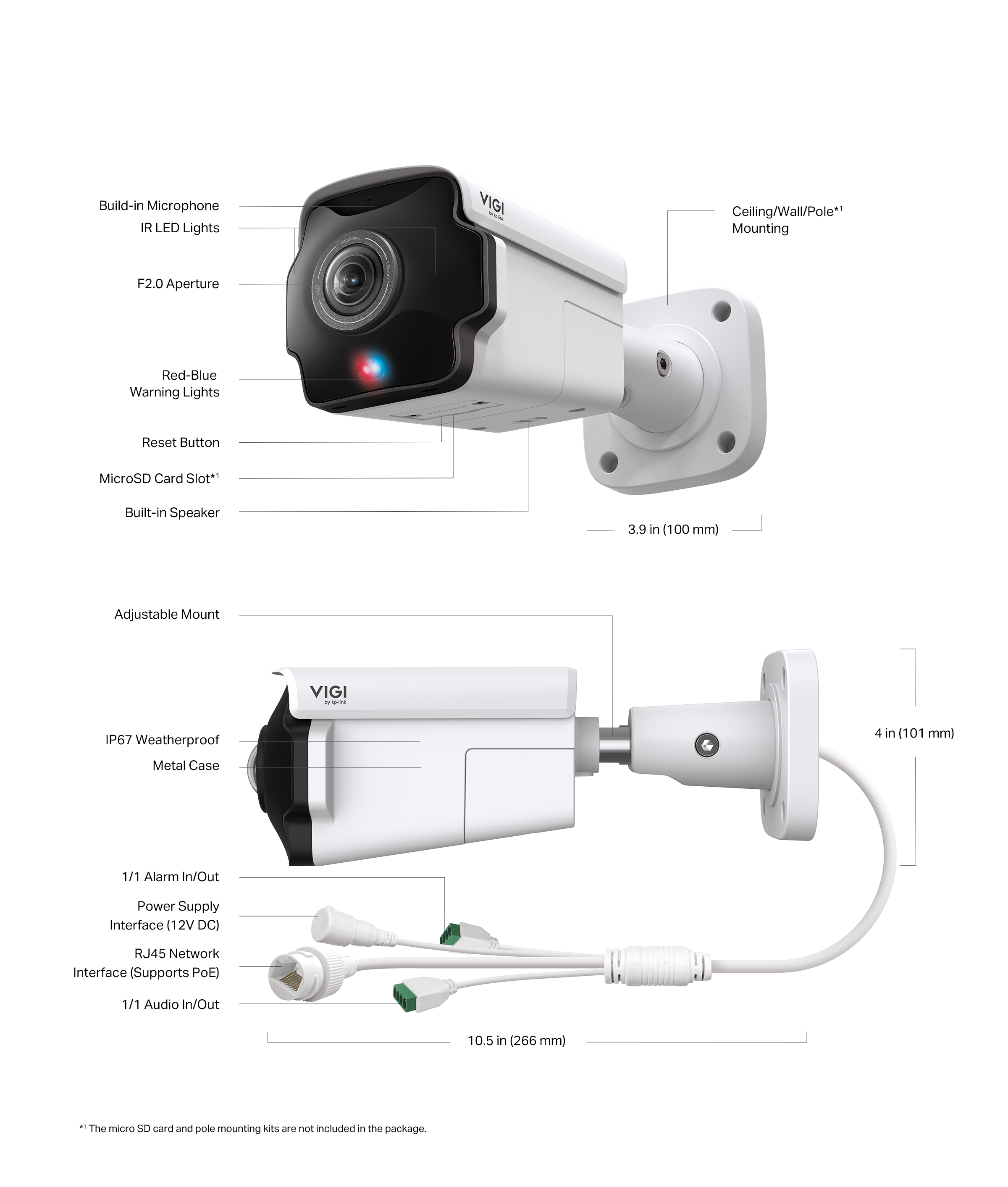

BUILD

8MP IR panoramic bullet

180° panoramic IR bullet with AI, active defence, IP67 + IK10. Official protection: IP67 · IK10.

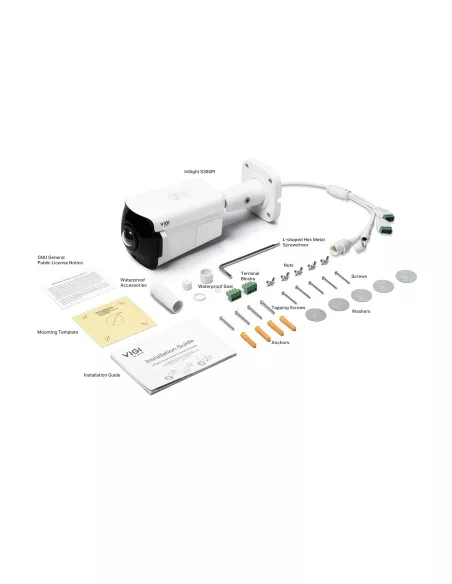

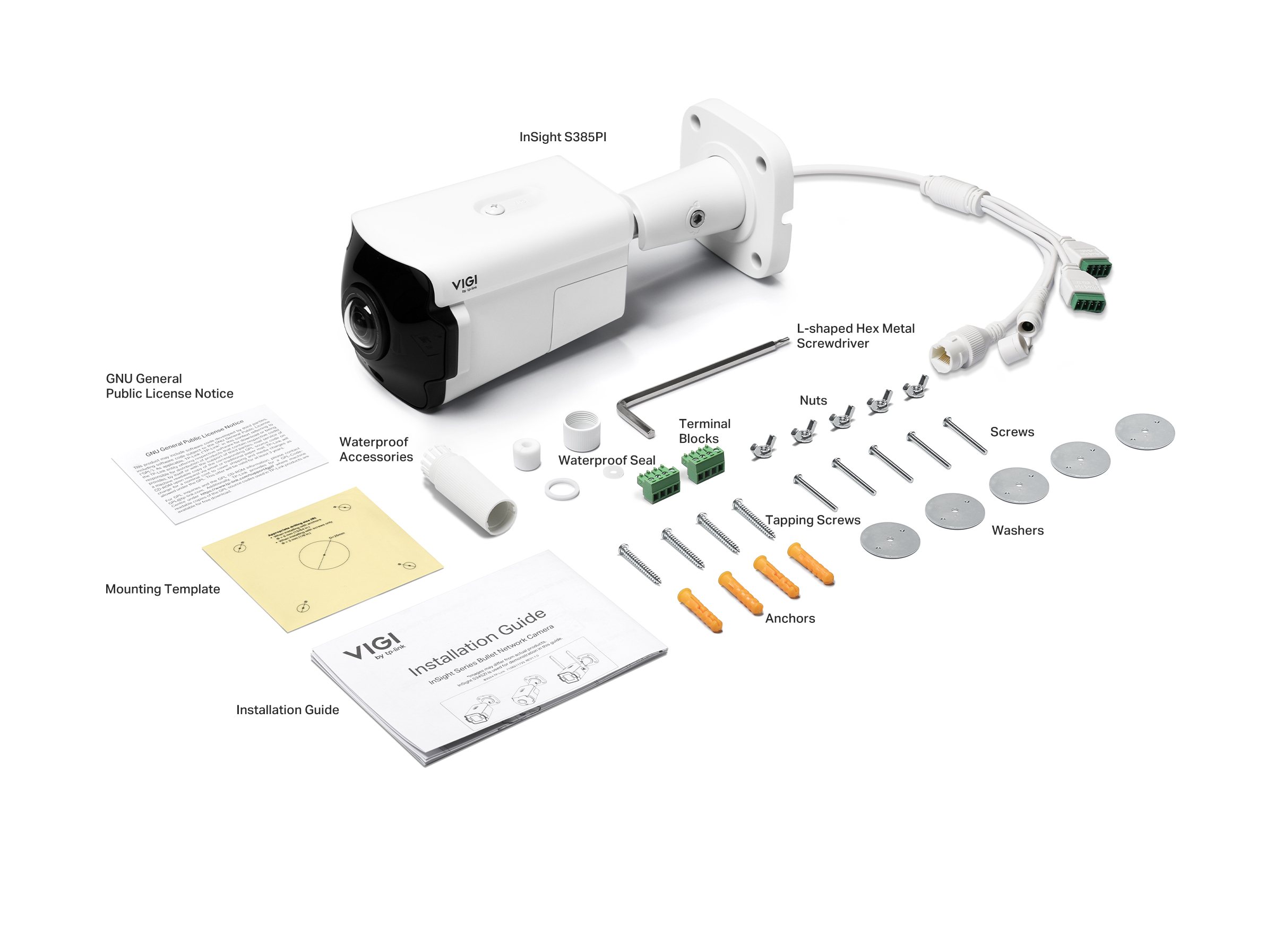

IN THE BOX

What ships with the camera

• VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories

Key specs

Specification	Detail
Max. resolution	3840 x 2160
Focal length	1.65 mm
Image sensor	1/2.7” Progressive Scan CMOS
Protection	IP67 Weatherproof, IK10 Vandal Proof
Power	• 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, Class 4, Max. 21W
Net weight	1.01Kg

Full specifications are in the Specifications tab. Source: TP-Link Australia.

Recommended mounts

Official AU accessory matrix. Confirm your exact model before ordering.

VJB-305 — larger InSight junction box where listed
VMB-350 — pole bracket for 70–130 mm poles (bullet / PT)

Frequently asked questions

What weather / vandal rating does TP-Link publish?

TP-Link Australia lists IP67 · IK10 for this model.

Which junction box or pole mount do I need?

On the AU accessory matrix this camera maps to: VJB-305 — larger InSight junction box where listed; VMB-350 — pole bracket for 70–130 mm poles (bullet / PT).

Is this a kit?

No — this listing is the standalone camera. NVR, cable and mounts are sold separately unless the product title says Kit.

Need help matching this camera to an NVR or mount?
Infront Technologies stocks and supports TP-Link VIGI across Australia — call 1300 736 970 or email [email protected].

Install note. Use an ACMA-registered cabler for concealed customer cabling (AS/CA S009). Specs and imagery can change at TP-Link’s discretion — verify against the current AU product page before ordering.

Net Weight: 1.01Kg
Power Supply: 12V DC 5%, Max. 18W, 5.5 mm Coaxial Power Plug; PoE: 802.3at, Class 4, Max. 21W
Audio: 1 Audio In, 1 Audio Out
Ingress Protection: IP67
Vandal Resistance: IK10
Material: Metal
Operating temperature: -30 to 60
Power: • 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, Class 4, Max. 21W
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
Network Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Alarm: 1 Alarm In, 1 Alarm Out
Audio Input: Built-in microphone
Audio Output: Built-in Speaker
Brand: TP-Link
Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
Image Sensor: 1/2.7” Progressive Scan CMOS
Lens: 1.65 mm
Minimum Illumination: 0.005 Lux; 0 Lux with IR light
Max. Resolution: 3840 x 2160
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protection: IP67 Weatherproof, IK10 Vandal Proof
Operating Humidity: 95% or Less (Non-Condensing)
Storage Temperature: -40 to 60
Lens Type: Fixed Focal Lens
Bit Rate Control: CBR, VBR
DORI Distance: 1.65 mm: D: 144.36 ft (44 m), O: 60.15 ft (18.33 m), R: 28.87 ft (8.8 m), I: 14.44 ft (4.4 m)
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Aperture: F2.0
Focal Length: 1.65 mm
Storage Humidity: 95% or Less (Non-Condensing)
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto
Lens Mount: M12
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
Main Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Main Stream Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Sub-Stream Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
H.264 Type: High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate: Main Stream: 256 Kbps to 8 Mbps; Sub-Stream: 64 Kbps to 1024 Kbps
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: 120 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 4 Regions
OSD Setting: Yes
Audio Communication: Two-Way Audio
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps (G.711 alaw)
ONVIF: Yes
API: Open Network Video Interface (Profile S/T/G)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
Cloud: Yes
Smart Event: Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal
Basic Event: Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login), Alarm Input Device
Alarm Linkage: Memory Card Video Recording, Upload to FTP Server, Alarm Output Device, Push Notifications, Send to Alarm Server, Active Defence-Sound Alarm, Active Defence-Light Alarm, Email Alarm
Reset Button: Yes
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5
Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker: Yes
Product Dimensions (L x W x H): 10.5 3.9 4 in (266 100 101 mm)
IR LED Quantity: 4
IR LED Range: 65.62 ft (20 m)*1
IR LED Wavelength: 850nm
Horizontal FOV: 180
Vertical FOV: 86
Diagonal FOV: 180
Angle Adjustment (Manual) Range: Pan: 0 to 360, Tilt: 0 to 90, Rotation: 0 to 360
SNR: 52 dB
Deep Learning Function: People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.*2
Red-Blue Warning Lights: Yes
Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
Warranty: Australian Warranty via Infront Technologies
Product Family: VIGI InSight
Model: S385PI

Insight S385PI 1.0 Datasheet

Download the Datasheet for the TP-LINK S385PI Camera

Download (979.16KB)

TP-Link VIGI Network Camera Junction Box - VJB-305VJB-305

TP-Link VIGI Network Camera Junction Box - VJB-305VJB-305 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Junction Box - VJB-305

TP-Link

VJB-305

$ 49.00

Larger aluminium alloy network camera junction box Indoor / outdoor wall or ceiling mounting Dimensions: 155.56 × 150 × 51 mm (6.1 × 5.9 × 2.0 in) Weight: 416 g · VIGI White For listed InSight models only (see description) Not a drop-in for VIGI C-series — use VJB-300 for those

TP-Link VIGI Network Camera Pole Mounting Bracket - VMB-350VMB-350

TP-Link VIGI Network Camera Pole Mounting Bracket - VMB-350VMB-350 2

In Stock - Ready to Ship

TP-Link Surveillance Accessories

TP-Link VIGI Network Camera Pole Mounting Bracket - VMB-350

TP-Link

VMB-350

$ 39.00

SGCC galvanised + stainless steel pole mounting bracket Fits poles 70–130 mm diameter Dimensions: 105 × 100 × 39 mm (4.1 × 3.9 × 1.5 in) Weight: 392.25 g · VIGI White For listed bullet and pan-tilt cameras only Not a junction box — pair with VJB-300 / VJB-305 for cable enclosure

CAMERA
Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

LENS
Type	Fixed Focal Lens
Focal Length	1.65 mm
Aperture	F2.0
FOV	• Horizontal FOV: 180° • Vertical FOV: 86° • Diagonal FOV: 180°
Lens Mount	M12
DORI Distance	1.65 mm: • D: 144.36 ft (44 m) • O: 60.15 ft (18.33 m) • R: 28.87 ft (8.8 m) • I: 14.44 ft (4.4 m)

Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR
IR LED	• Quantity: 4 • Range: 65.62 ft (20 m)*1 • Wavelength: 850nm
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	3840 x 2160
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 8 Mbps • Sub-Stream: 64 Kbps to 1024 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	4 Regions
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Built-in Microphone Audio In Interface
Audio Output	Built-in Speaker Audio Out Interface
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps (G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception (Illegal Login) • Alarm Input Device
Alarm Linkage	• Memory Card Video Recording • Upload to FTP Server • Alarm Output Device • Push Notifications • Send to Alarm Server • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm

Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.*2

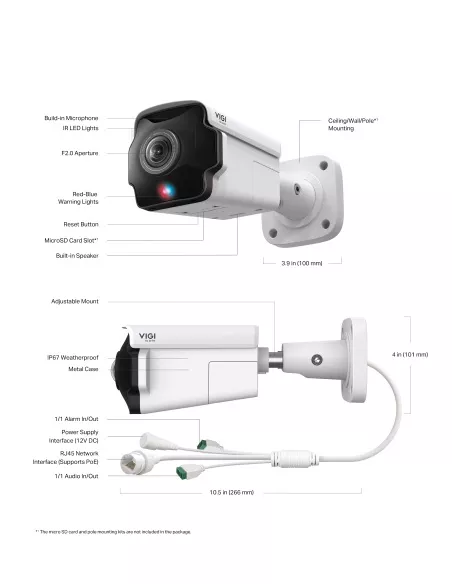

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	1 Alarm In, 1 Alarm Out Red-Blue Warning Lights
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	1 Audio In, 1 Audio Out

GENERAL
Operating Temperature	-30℃ to 60℃
Storage Temperature	-40℃ to 60℃
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories
Material	Metal
Net Weight	1.01Kg
Power Supply	• 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug • PoE: 802.3at, Class 4, Max. 21W
Protection	IP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	10.5 × 3.9 × 4 in (266 × 100 × 101 mm)
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
