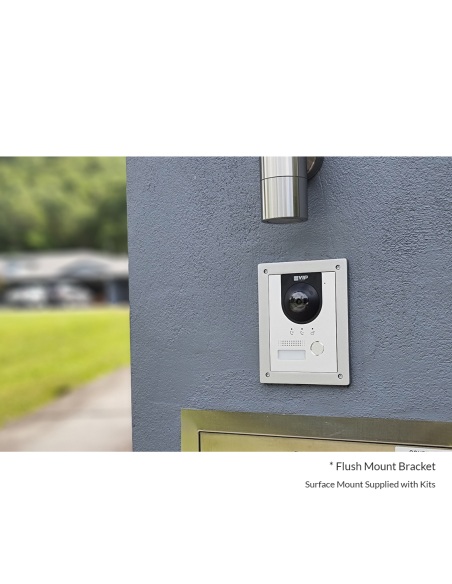

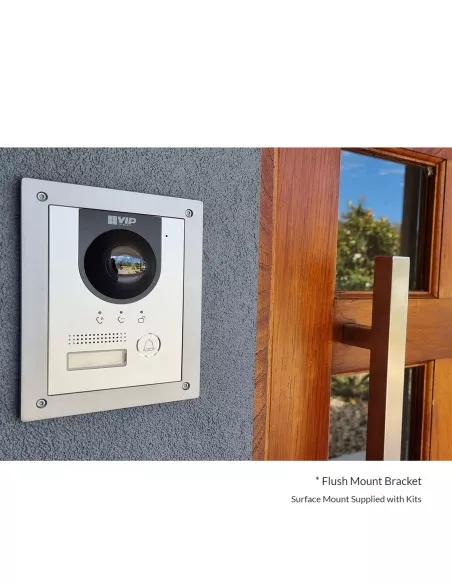

DHI-VTO2202F-P-S2 INTIPRDSG Flush Mounted at Front Door

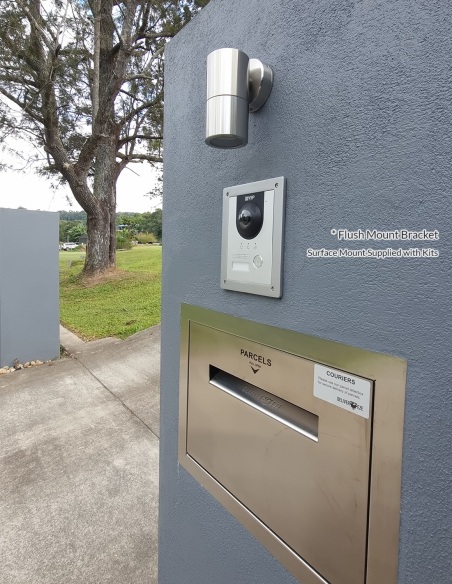

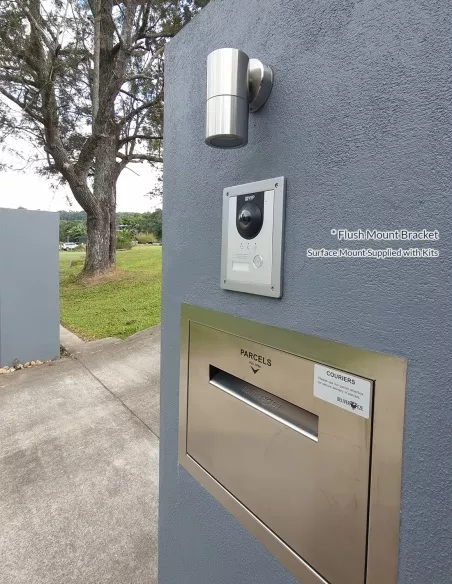

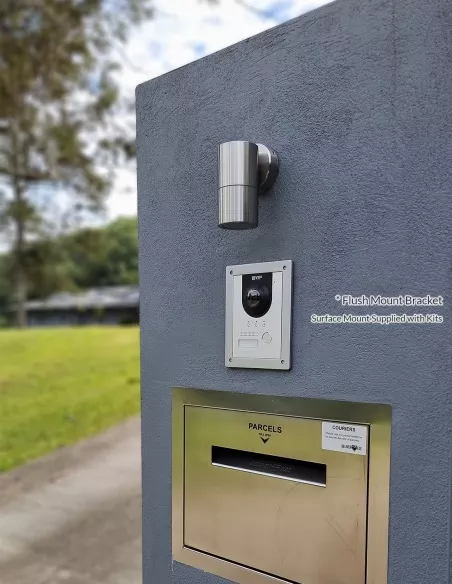

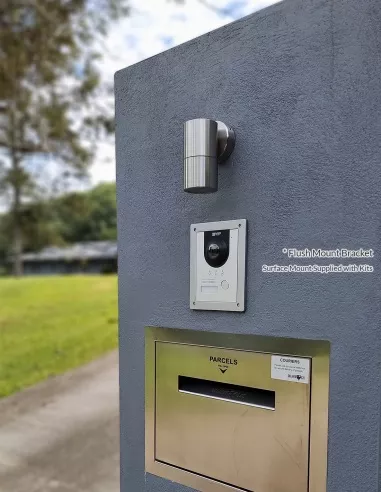

DHI-VTO2202F-P-S2 INTIPRDSG Flush Mounted in Gate Pillar Video Intercom Door Station

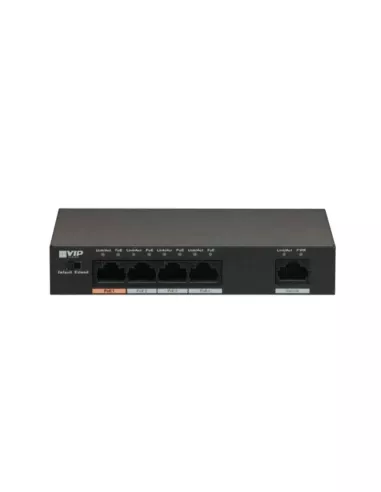

VIP Vision 4-port Unmanaged Fast Hi-PoE Ethernet Switch - VSPOE-SWA4

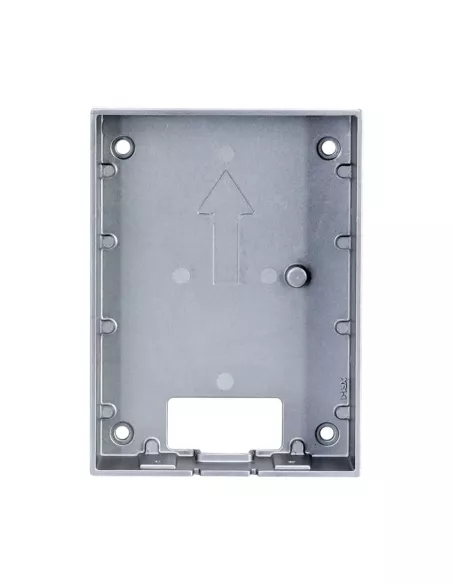

Surface Mount Box for INTIPRDSG - INTIPRDSGSB

1 / 16

VIP Vision Complete Premium Video IP Intercom Kit Flush Mounted 2x Door Station - INTIPRKITG-P

Name: VIP Vision Complete Premium Video IP Intercom Kit Flush Mounted 2x Door Station - INTIPRKITG-P
Brand: VIP Vision
SKU: INTIPRKITG-P/2M
Price: 588 AUD
Availability: InStock

SKU INTIPRKITG-P/2M In Stock - Ready to Ship

$588.00 inc GST

A VIP Vision G-P Series IP video intercom kit: one door station, two 7-inch monitors and a PoE switch, so two rooms and your phone can answer the door.

✓1 × INTIPRDSG door station, 2MP 140° camera, IP65 aluminium
✓2 × INTIPMONKW 7-inch white touchscreen monitors
✓5-port PoE switch powers every part
✓Answer, talk and unlock from your phone
✓Lock output for a strike or gate
✓4-year warranty

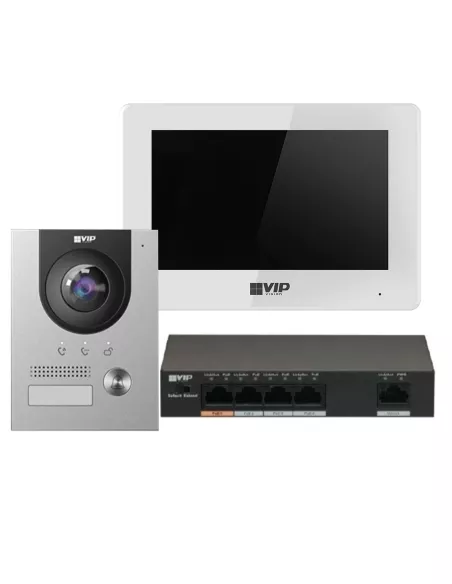

VIP Vision INTIPRKITG-P/2M intercom kit: INTIPRDSG door station, 2 × INTIPMONKW monitors and PoE switch

VIP Vision G-P Series · 1 door station · 2 monitors

IP video intercom with two 7-inch monitors.
One press rings every room.

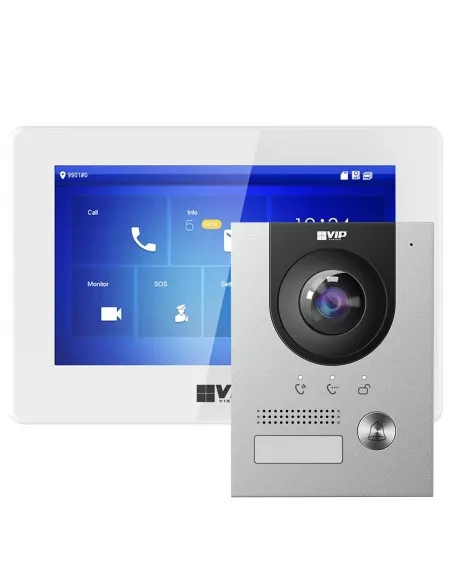

VIP Vision G-P Series intercom kit. An aluminium door station with a 2MP 140° camera, two white 7-inch touchscreen monitors and a PoE switch that powers them all over network cable. Answer at any monitor or on your phone, talk to the visitor and unlock the door from anywhere.

In one sentence: the INTIPRKITG-P/2M is the VIP Vision INTIPRKITG-P intercom kit with a second INTIPMONKW monitor, so two rooms can answer the door.

Everything for a 2-monitor intercom, ready to cable.

The door station and every monitor plug into the PoE switch with one network cable each. Connect the switch to your router for the phone app.

In the box

1 × VIP Vision INTIPRDSG door station with 2MP fisheye camera
1 × surface mount box for the door station
2 × VIP Vision INTIPMONKW 7-inch touchscreen monitor (white)
1 × 5-port PoE switch (4 PoE ports and an uplink) with power supply

You also need

Cat5e or Cat6 cable from the switch to the door station and each monitor (up to 100 m per run)
A network cable from the switch to your router, for the phone app
An electric strike, magnetic lock or gate controller and its power supply, if you want to unlock from the intercom
The INTIPRDSGFB flush box, if you want the door station recessed into the wall

Answer the door from any room, or from anywhere.

When a visitor presses the button, every monitor rings and so does your phone. See who it is in a wide 140° view, talk to them and release the lock without walking to the door.

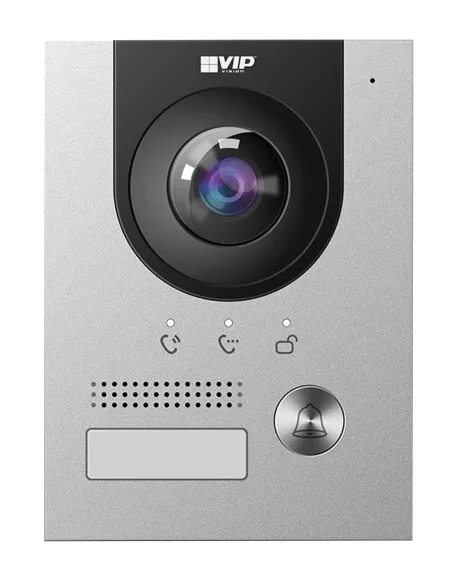

VIP Vision INTIPRDSG IP intercom door station

At the door

INTIPRDSG: a 2MP camera in an aluminium door station.

A 2MP fisheye camera covers 140° with automatic infrared and 120 dB WDR, so faces stay clear at night and against the sun. The aluminium body is rated IP65 and IK07, with a call button, mic and speaker, a lock output, exit button input and a microSD slot up to 64GB.

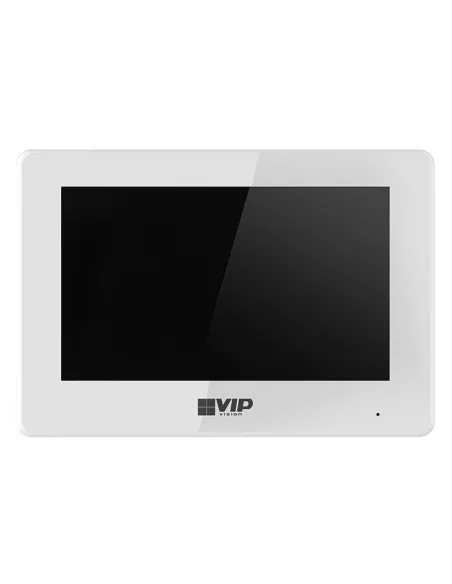

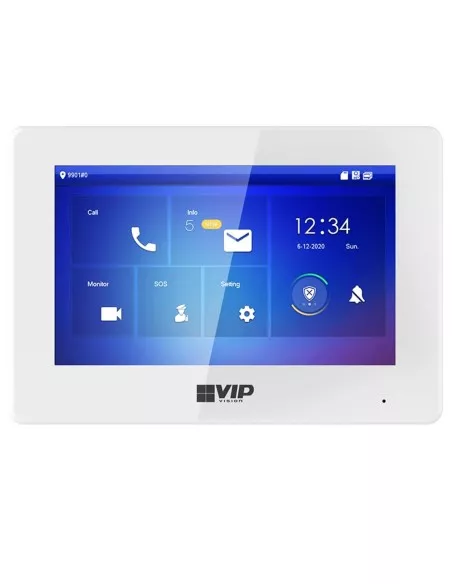

VIP Vision INTIPMONKW 7-inch IP intercom monitor, white

Two in the kit

INTIPMONKW: a slim 7-inch touchscreen.

A 1024 × 600 capacitive touchscreen in a slim white case, 26 mm deep. It answers calls with echo-suppressed two-way talk, unlocks the door with one tap and records visitor messages, with 8GB built in and a microSD slot. Six alarm inputs take door sensors or a panic button.

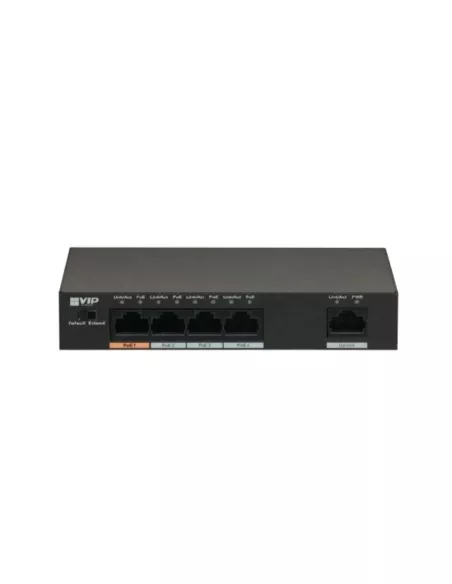

VIP Vision 5-port PoE switch with 4 PoE ports

One in the kit

The PoE switch: power and data on one cable.

Four PoE ports power the door station and the monitors through their network cables, and the uplink port connects to your router. One PoE port is left for another monitor or door station.

How it goes in

From the box to answering the door.

Plan the positions

Mount the door station about 1.4–1.6 m high beside the door or gate, and each monitor at eye height in the rooms where you want to answer.

Run the cables

Run one Cat5e or Cat6 cable from the switch to the door station and to each monitor, up to 100 m per run. Wire the lock to the door station if you are using one.

Connect the switch

Plug everything into the PoE ports, the uplink into your router, then power on the switch and follow the setup wizard on a monitor to add the door station and the other monitors.

Set up the app

Add the system to the free iOS and Android app, then make a test call and check the unlock from a monitor and your phone.

At a glance

INTIPRKITG-P/2M

Show specs

Kit code

INTIPRKITG-P/2M

In the kit

1 × INTIPRDSG door station
2 × INTIPMONKW monitor
1 × 5-port PoE switch

Door camera

2MP fisheye, 2.0 mm lens, 140° horizontal

Night and glare

Automatic infrared, 120 dB WDR

Door station body

Aluminium, IP65, IK07, −30 °C to 60 °C

Door station size

130 × 96 × 29 mm, surface box included

Monitor screen

7-inch 1024 × 600 capacitive touchscreen

Monitor size

189.6 × 134.6 × 26 mm, white, indoor

Audio

Two-way talk with echo suppression

Lock control

Lock output and exit button input on the door station

Alarm inputs

6 on each monitor, 1 on the door station

Storage

Door station microSD up to 64GB; monitor 8GB built in plus microSD

Power

PoE (802.3af) or 12 V DC

App

Free iOS and Android app: calls, live view, two-way talk, unlock

Warranty

4 years

Not compatible with 2-wire intercom systems. Figures from the VIP Vision datasheets.

Pair it with

What goes with it

Mounting

INTIPRDSGFB flush box

Recess the door station into a wall or pier for a flush, tamper-resistant finish.

Access

Electric strike or gate lock

Wire a strike, magnetic lock or gate controller to the door station to unlock from any monitor or the app.

Cabling

Cat6 cable box

Cable is not included. A 305 m box of solid-copper Cat6 covers most homes.

Where it is used

Where this kit fits

Two-storey homes

Answer from the kitchen, upstairs or the home office.

Front gates

See and talk to visitors at the gate, then open it from inside.

Granny flats

One door station that rings the main house and the flat.

Home businesses

Answer clients from the office and the house.

Small offices

Reception, the back office and the manager can all answer.

Holiday homes

Let guests and trades in from your phone while you are away.

Compared with the other G-P kits

	INTIPRKITG-P/2M	INTIPRKITG-P/3M	INTIPRKITG-P
Monitors	2	3	1
Door stations	1	1	1
Spare PoE ports	1	0	2
Phone app and remote unlock	Yes	Yes	Yes

All three kits use the same INTIPRDSG door station, INTIPMONKW monitors and PoE switch, with a 4-year warranty.

Common questions

What is in the kit?

One INTIPRDSG door station with a surface box, two white INTIPMONKW 7-inch touchscreen monitors and a 5-port PoE switch (4 PoE ports and an uplink) with its power supply.

Do all the monitors ring?

Yes. A press of the call button rings every monitor at once, and whoever answers first talks to the visitor.

Can I answer the door on my phone?

Yes. Connect the switch to your router and the free iOS and Android app gets a call when someone presses the button, with live video, two-way talk and remote unlock.

Can it open my door or gate?

Yes. The door station has a lock output for an electric strike, magnetic lock or gate controller, plus an exit button input. The lock and its power supply are not included.

Is it flush mounted or surface mounted?

A surface box is supplied. If you would rather recess the door station into the wall, ask for the INTIPRDSGFB flush box instead and add a comment to your order.

What cable does it need?

One Cat5e or Cat6 cable from the switch to the door station and to each monitor, up to 100 m each. PoE carries power and data, so no power points are needed at the door or the monitors.

Does it work with my old 2-wire intercom cable?

No. This is an IP system and needs network cable. For 2-wire runs, ask us about the VIP Vision 2-wire kits.

Is the door station weatherproof?

Yes. It has an aluminium body rated IP65 for rain and dust and IK07 for knocks, and works from −30 °C to 60 °C. The monitors are for indoor use.

Can visitors be seen at night?

Yes. The 2MP fisheye camera has automatic infrared and 120 dB WDR, so faces stay clear at night and against bright sunlight. It covers 140° across the doorway.

Can I add more door stations or monitors?

Yes. One PoE port is free on the switch for another monitor or door station, and the system takes more with a bigger PoE switch.

Can I install it myself?

Many customers do, because every part runs on one network cable. In Australia, cable inside walls and ceilings and any mains wiring for a lock must be installed by a licensed cabler or electrician.

What is the warranty?

4 years, supported in Australia by Infront Technologies. Contact us first and we will organise any claim.

Supported by Infront Technologies.

Need a black monitor, a second door station or a gate lock? Call 1300 736 970 or email [email protected] and we will put together the right kit.

Installation and safety

Power. Power the door station and monitors only from the PoE switch or a 12 V DC supply. Plug the switch power supply into a standard power point.

Placement. The door station is rated for outdoor use. Keep the monitors and the switch indoors, away from moisture and direct heat.

Cabling. Fixed cable inside walls and ceilings must be installed by a registered cabler, and any mains wiring for a lock by a licensed electrician.

Privacy. Aim the door camera at your own entry. Recording audio and filming public areas are covered by state surveillance laws.

Type: Video Intercom Kit
Ingress Protection: IP65 / IK07 (door station)
Series: G-P Series
Door Station Camera: 2.0MP fisheye, 2.0mm lens (H: 140°)
Door Station Model: INTIPRDSG
Door Station Mount: Surface box included (flush box INTIPRDSGFB optional)
Kit Components: 1 x door station, surface box, 2 x monitors, 5-port PoE switch
LCD Display: 7" 1024 x 600 capacitive touchscreen
Monitor Colour: White
Monitor Model: INTIPMONKW
Monitor Mount: Wall mount
PoE: Yes
Power Source: Hardwired - PoE
Connectivity: Ethernet IP Cabling Cat5e/Cat6
Smart Home Compatibility: Works with Mobile/PC Application
Manufacturer Warranty: 4 Year Australian Based Warranty
Two-Way Audio: Yes
Number of Monitors: 2
