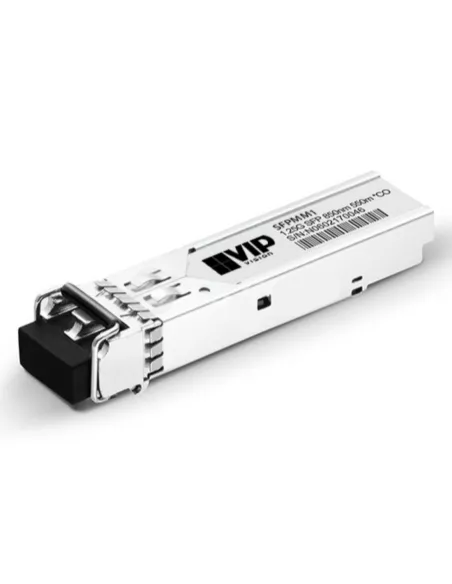

VIP Vision Mini GBIC / SFP Multimode Fibre Adapter
SFPMM1
The SFPMM1 is a compact, hot-pluggable SFP module for linking high speed optical fibre infrastructure to a network. Easily configure and upgrade networks for high-speed networking over optical fibre, with a bit rate of up to 1.25 Gbps.
Product Features:
• Mini GBIC / SFP optical fibre adapter
• Transfer data over optical fibre at up to 1.25 Gbps
• SFP (Small Form-factor Pluggable)
• MMF (Multimode Fibre), compatible with OM1 50/125µm & OM2 62.5/125µm
• Up to 550m transmission distance over OM2 MMF (300m over OM1 MMF)
• 850nm VCSEL laser transmitter
• Hot-pluggable, allowing for installation and removal while the system is running
• Built-in digital diagnostic functions, including optical power monitoring
- Cable Type
- Multi-mode Fibre
- Power Supply
- Operating Environment
- -40° ~ 85°C / RH95% (max)
- Interface
- LC duplex
- DOM Support
- Yes
- Form Type
- SFP (Small Form-factor Pluggable)
- Max Bit Rate
- 1.25Gb/s
- Max Cable Distance
- 550m over OM2 MMF (50/125µm), 300m over OM1 MMF (62.5/125µm)
- Protocols
- SFF-8472 MSA Compliant, IEEE 802.3z
- Receiver Sensitivity
- < -17dBm
- TX Power
- -9.5 ~ - 3dBm
- Wavelength
- 850nm
