VIP Vision Professional AI Series 6MP Fixed VSIPC-HDW3649H-AS-PV-PRO

VIP Vision Professional AI Series 6MP Fixed Deterrence Turret Pro 2-Way Audio - VSIPC-HDW3649H-AS-PV-PRO

Name: VIP Vision Professional AI Series 6MP Fixed Deterrence Turret Pro 2-Way Audio - VSIPC-HDW3649H-AS-PV-PRO
Brand: VIP Vision
SKU: VSIPC-HDW3649H-AS-PV-PRO
Price: 358 AUD
Availability: InStock

Reference VSIPC-HDW3649H-AS-PV-PRO

In Stock - Ready to Ship

$ 358.00

inc-GST

Streams up to 6.0MP (3288×1850) at 25fps
Enhanced low-light colour with 1/1.8" sensor
AcuPick smart search across all cameras
Spotlight, strobe & siren trigger on alarm
24/7 colour in low light down to 0.005lx
30m IR, BLC/HLC & true WDR (120dB)
AI detection for people & vehicles
SMD 4.0 & Perimeter Protection reduce false alerts (VIP NVRs)
AI SSA auto-adjusts exposure for clarity

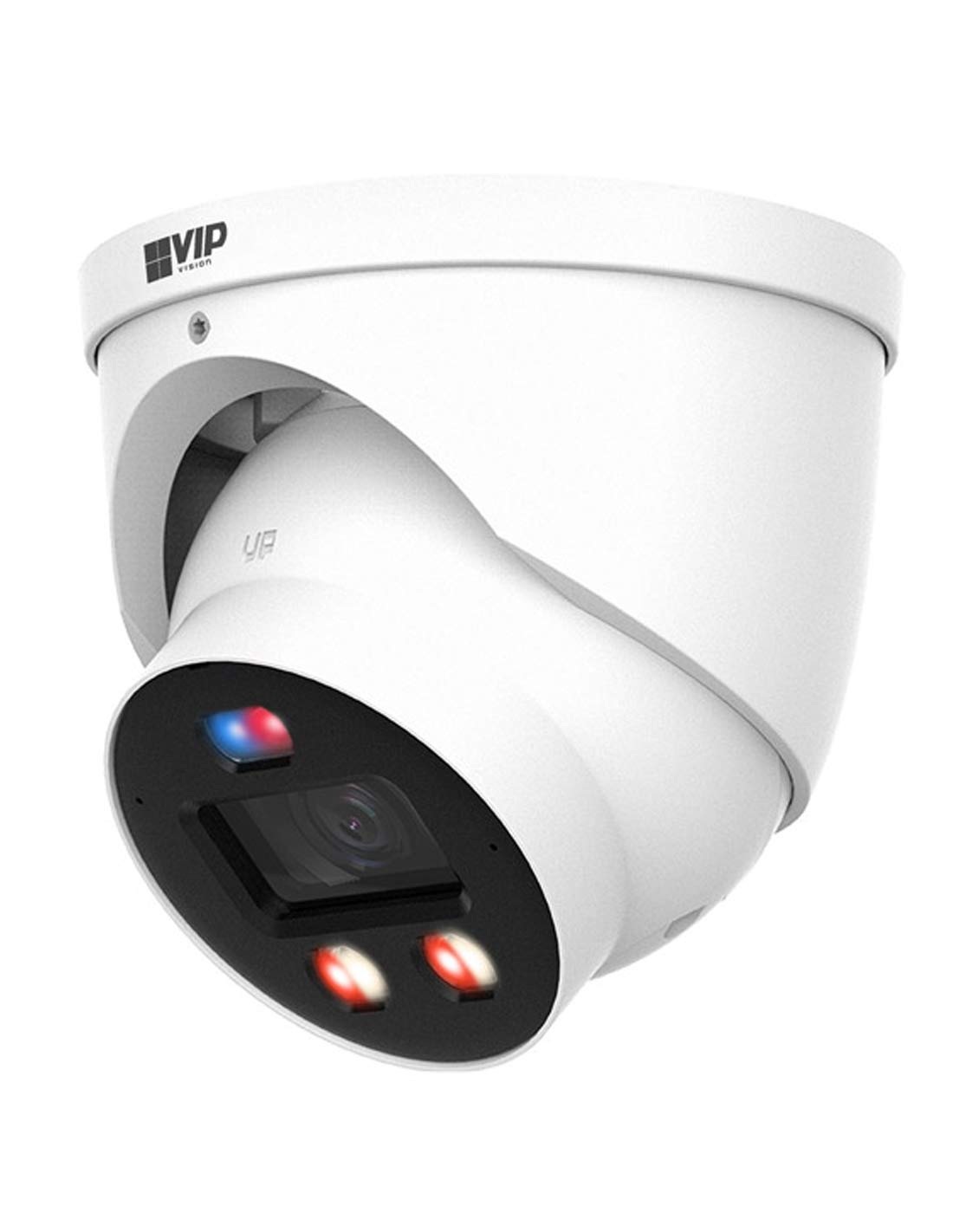

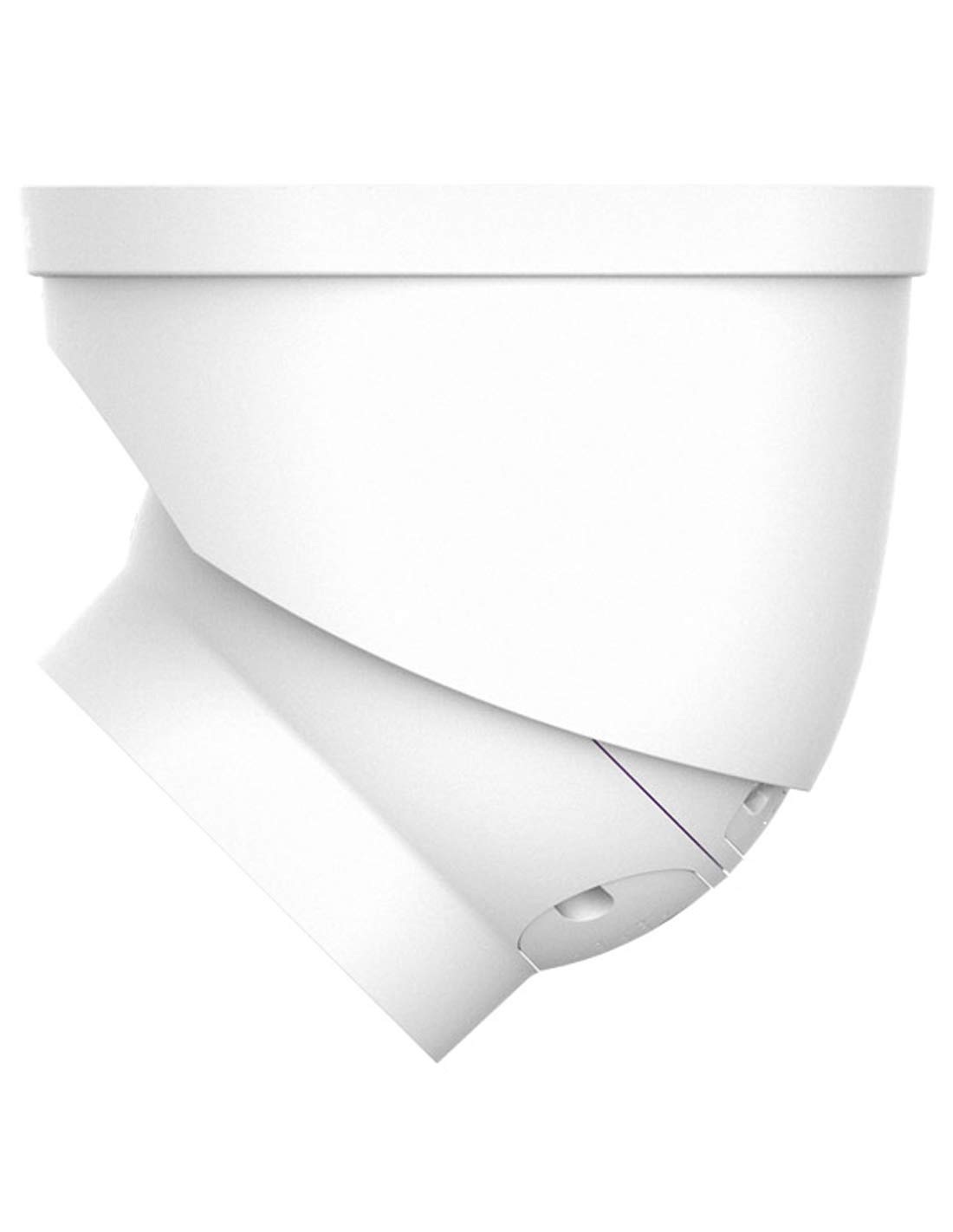

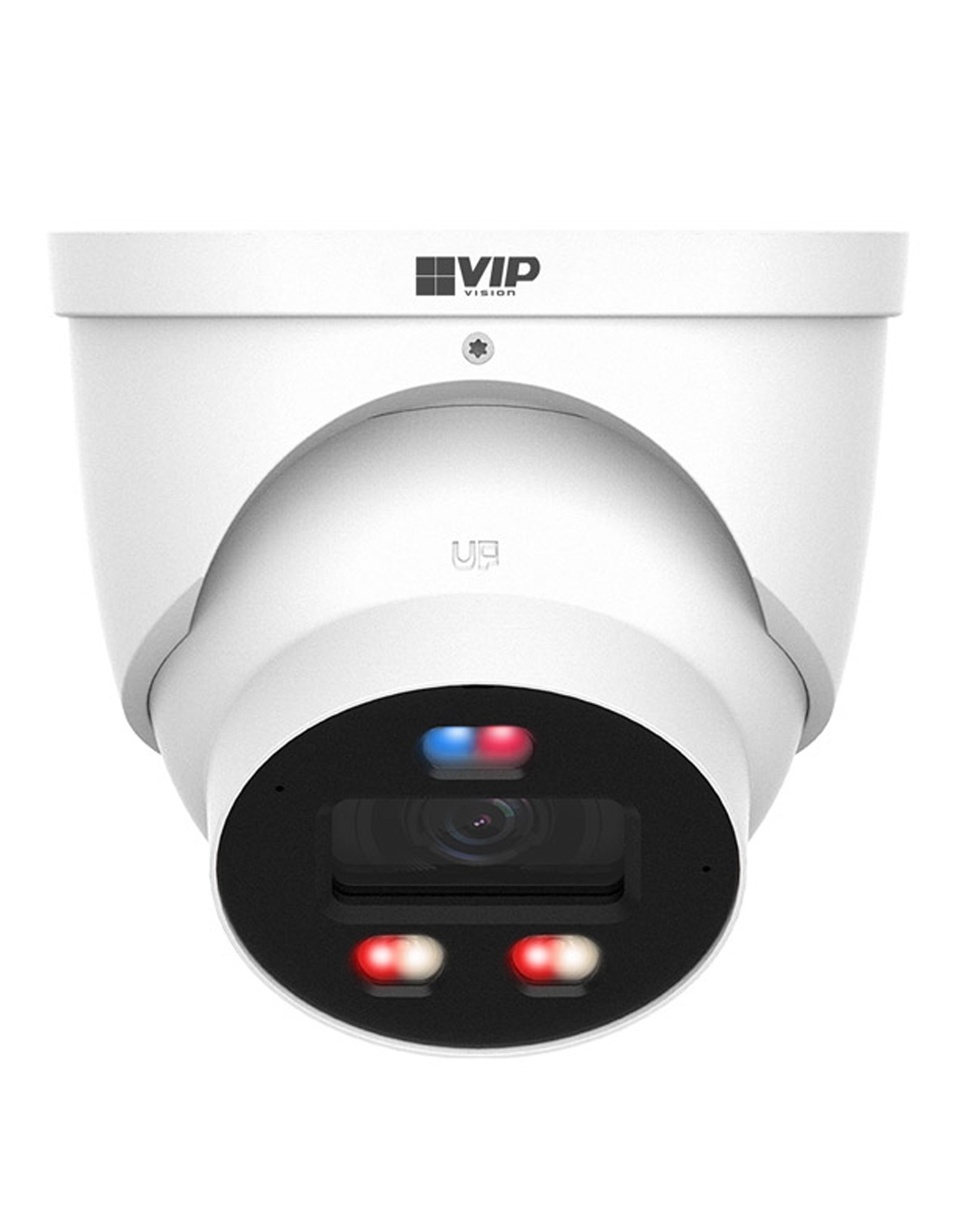

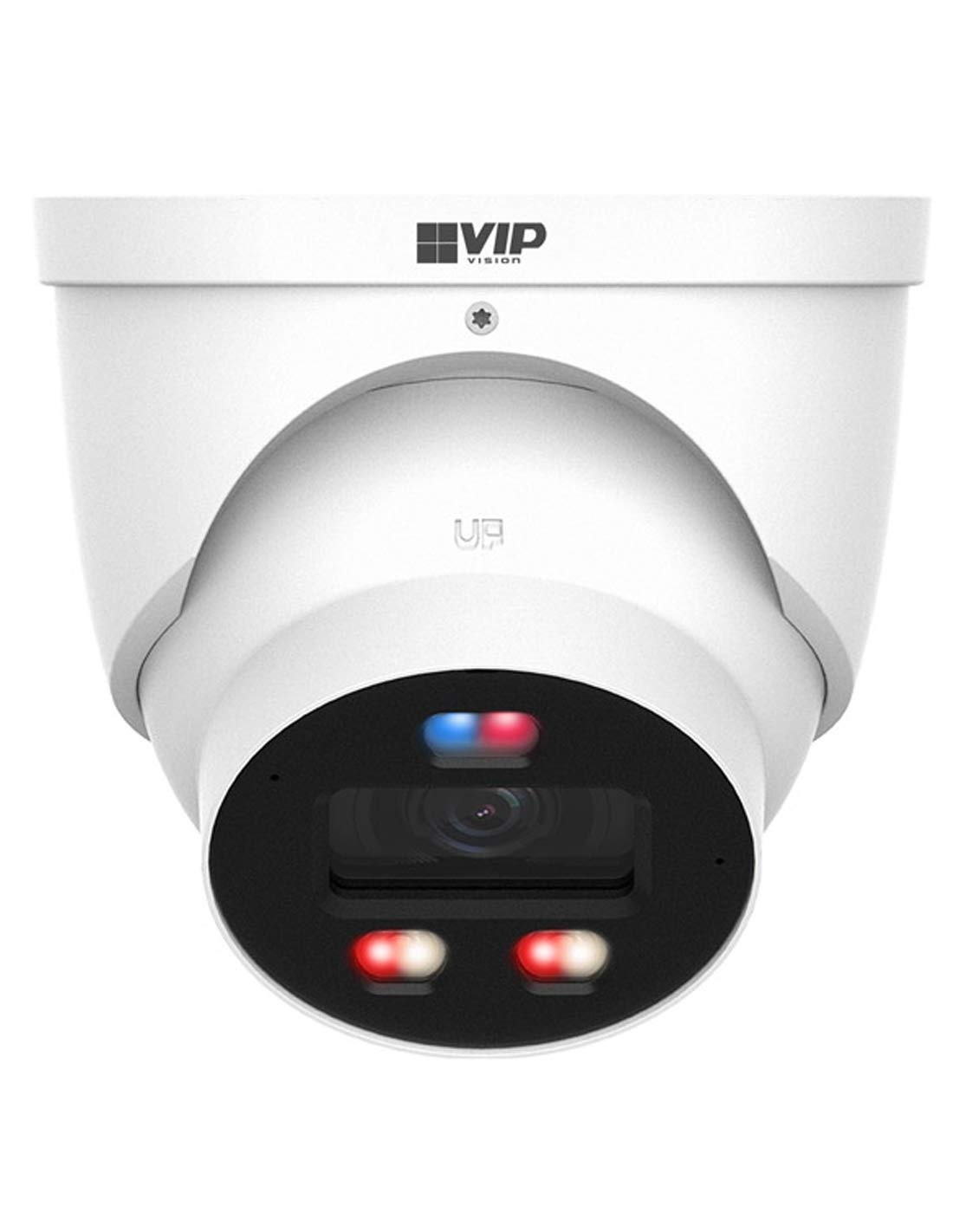

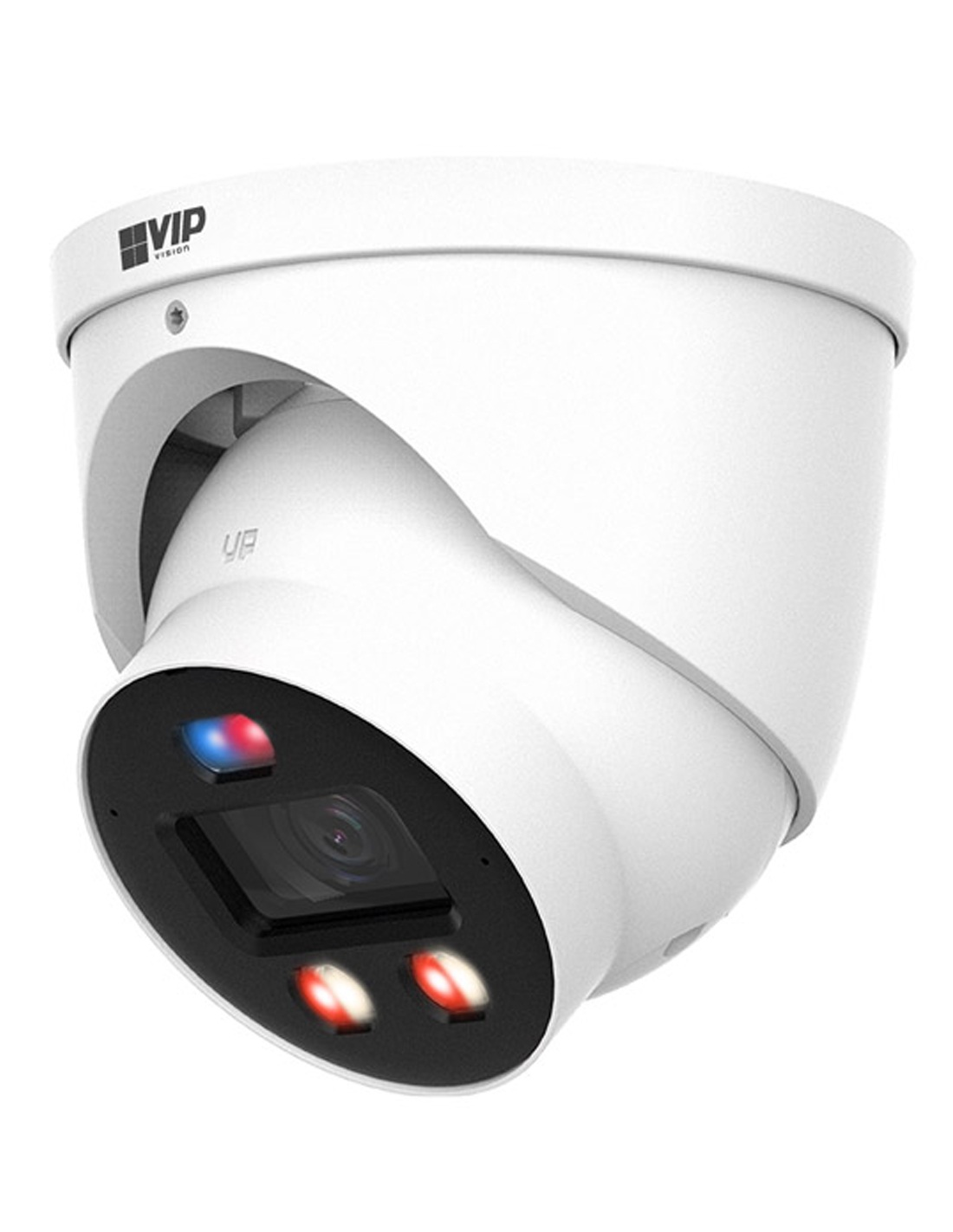

VIP Vision Professional AI Pro Series 6MP Fixed Deterrence Turret Camera

Model: VSIPC-HDW3649H-AS-PV-PRO

Overview

The VIP Vision Professional AI Pro Series 6MP turret camera is designed for high-performance security applications, delivering crystal-clear Super-HD video with intelligent deterrence and detection features. Built for both indoor and outdoor use, this camera includes a fixed 2.8mm lens offering a 106.4° wide viewing angle and captures video up to 6MP resolution at 25fps.

Advanced AI features such as perimeter protection, smart motion detection (SMD), and event-triggered white light & siren alarm make this camera ideal for proactive surveillance. The camera also supports color footage 24/7 with its warm LED lighting and Starlight technology. With IP67 weatherproof construction and edge recording via MicroSD card, it’s suited for diverse installations.

Key Features

6MP resolution (3072 x 2048) at 25fps
2.8mm fixed lens offering 106.4° horizontal field of view
Starlight technology for enhanced low-light performance
Built-in microphone, speaker, white light, and red/blue flashing light for active deterrence
Supports two-way audio and siren alarm trigger on events
AI features: Perimeter protection, SMD+ (Smart Motion Detection), and AI Scene Self-adaptation
White light illumination up to 30m and IR night vision up to 30m
IP67-rated metal housing for outdoor durability
Supports H.265+ video compression for efficient bandwidth and storage
MicroSD card slot supports edge recording up to 512GB
ONVIF compatible for third-party integration
Power via 12VDC or PoE (802.3af)

What’s in the Box

1 x VSIPC-HDW3649H-AS-PV-PRO 6MP Fixed Lens Turret AI Camera
Mounting accessories
Quick Start Guide

Ethernet: RJ-45 (10/100 Base-T)
Housing: Metal
Operating Conditions: -40 °C to +60 °C / ≤95% (RH), non-condensing
Power Supply: 12VDC / PoE (802.3af)
Ingress Protection: IP67
Bit Rate: H.265: 6 ~ 16384Kbps / H.264: 6 ~ 16384Kbps
Frame Rate (Sub): D1 (1 ~ 25fps)
Max. User Access: 20 Users
Video Compression: H.265+ / H.265 / H.264+ / H.264 / H.264B / MJPEG
Series: Professional AI Series
Focus: Auto Focus / 1.7m Min. Focus Distance
Interoperability: ONVIF / P2P / CGI
Effective Pixels: 2960 (H) × 1668 (V)
Image Sensor: 1/1.8" 5.0MP Progressive Scan CMOS
Camera Type: Turret
Max. Resolution: 5.0 Megapixel
Field of View: Horizontal: 109°, Vertical: 59°, Diagonal: 131°
Horizontal: 110°, Vertical: 58°, Diagonal: 132°
Lighting Compensation: BLC / HLC / WDR
Day/Night: Color/B/W
Detect (25px/m): 58m
Identify (250px/m): 6m
Lens Type: Fixed-focal
Noise Reduction: 3D NR
Observe (63px/m): 23m
Recognise (125px/m): 12m
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Audio Interface: Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; PCM
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Edge Storage: MicroSD Card (up to 256GB) / NAS / FTP / SFTP
Infrared System: 1 x Infrared LED, 30m range, Auto/manual on/off control
Intelligent Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Lens / Iris: 2.8mm F1.0 Fixed Focal Lens with Fixed Iris
Min Illumination: 0.0005 lux/F1.0, 0 lux (IR)
Pan/Tilt/Rotation: Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Picture Control: Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 4.0MP resolution and lower)
Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
RAM / ROM: 256 MB / 128MB
S/N Ratio: >56 dB
Streaming Method: Unicast / Multicast
Event Trigger: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Intelligent Search: Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle
Perimeter Protection: Smart Motion Detection (SMD+): People and vehicle detection using motion detection Perimeter Protection: People and vehicle detection using tripwire or intrusion rules
White Light LED: 2 x Spotlight (Warm White), 30m range, Auto/manual on/off control
